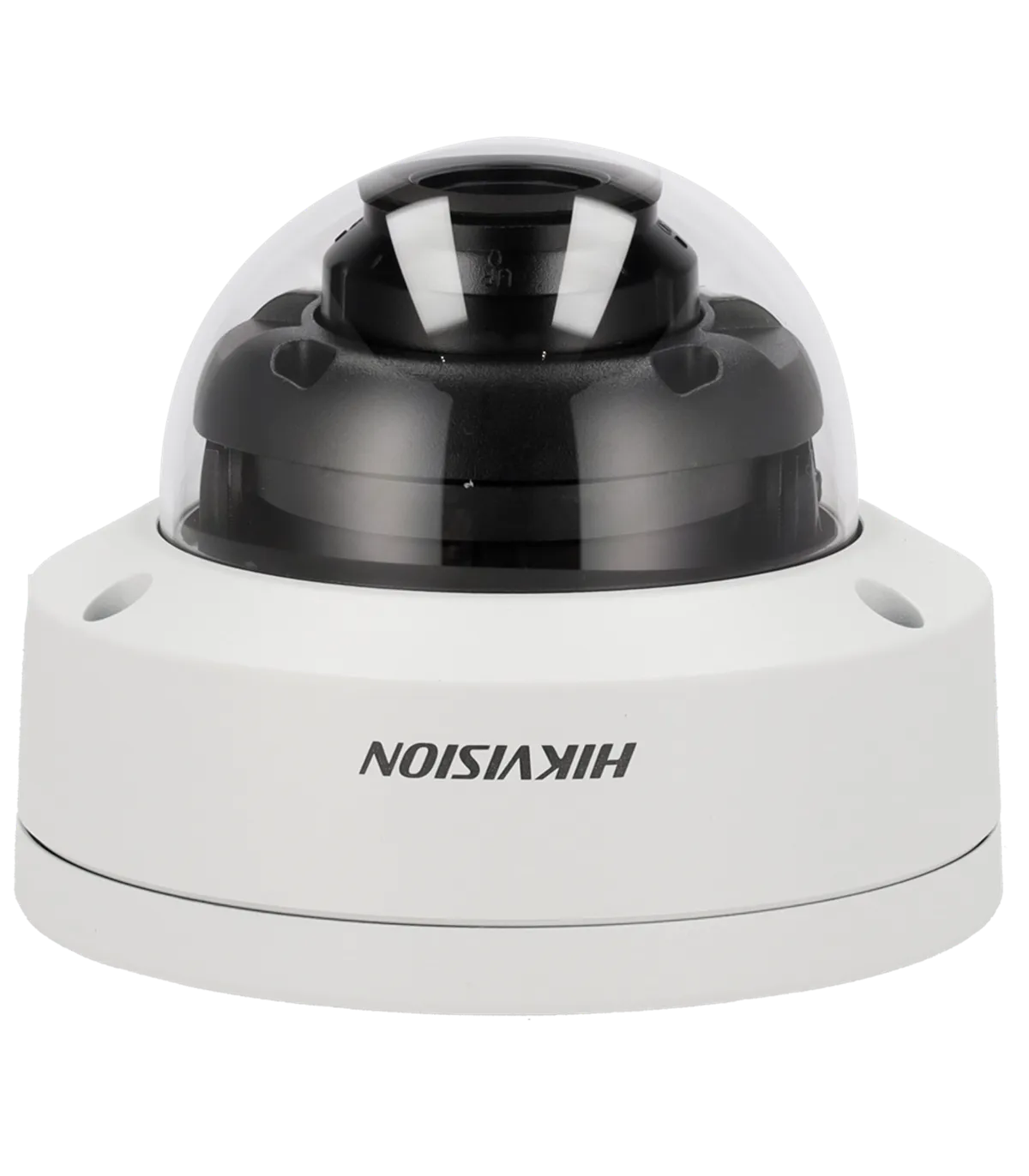

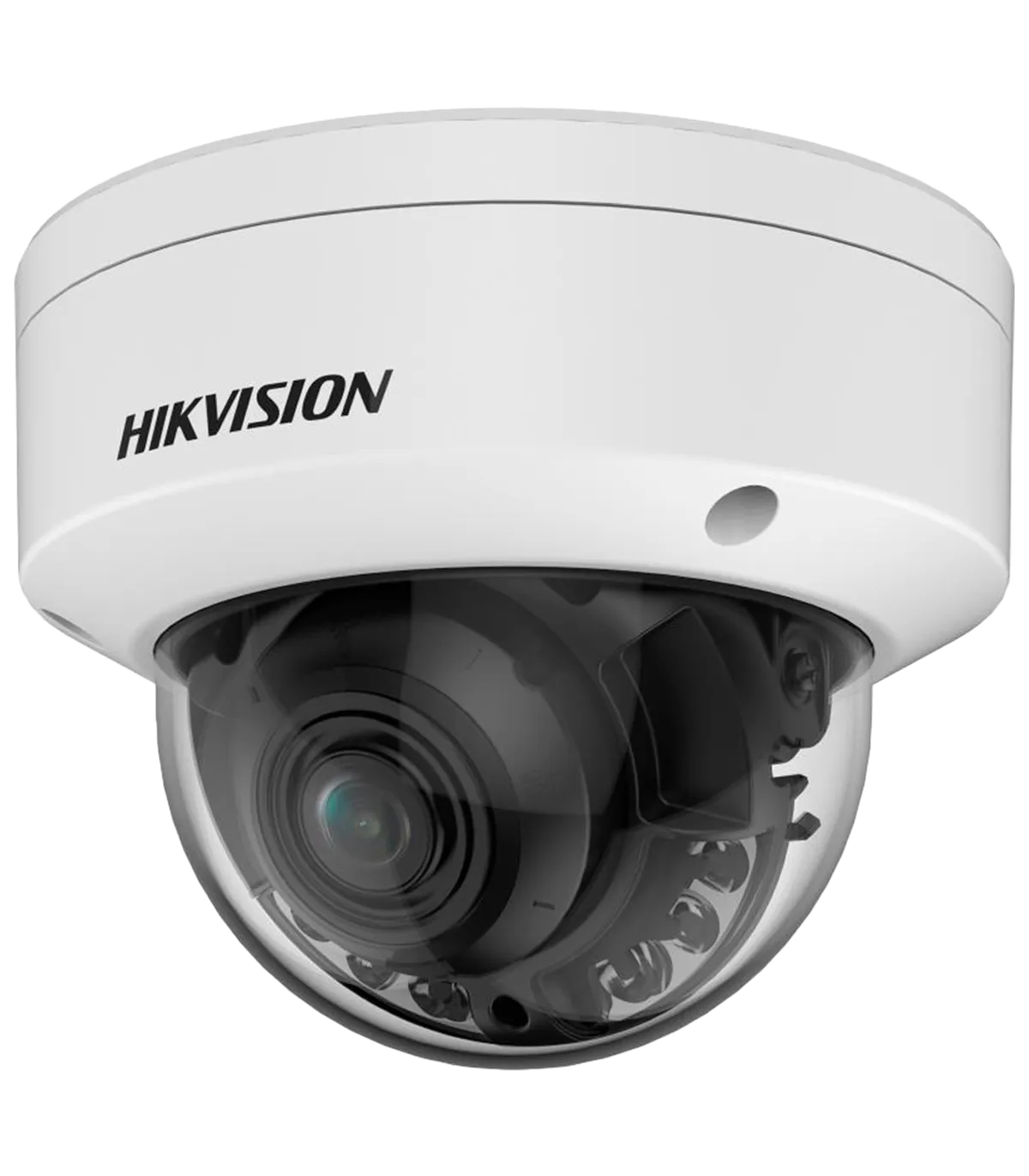

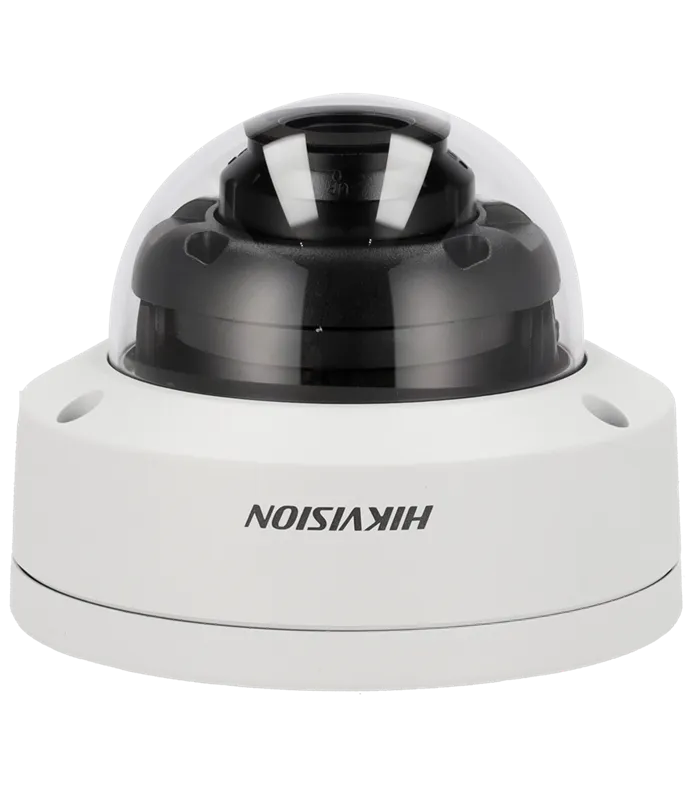

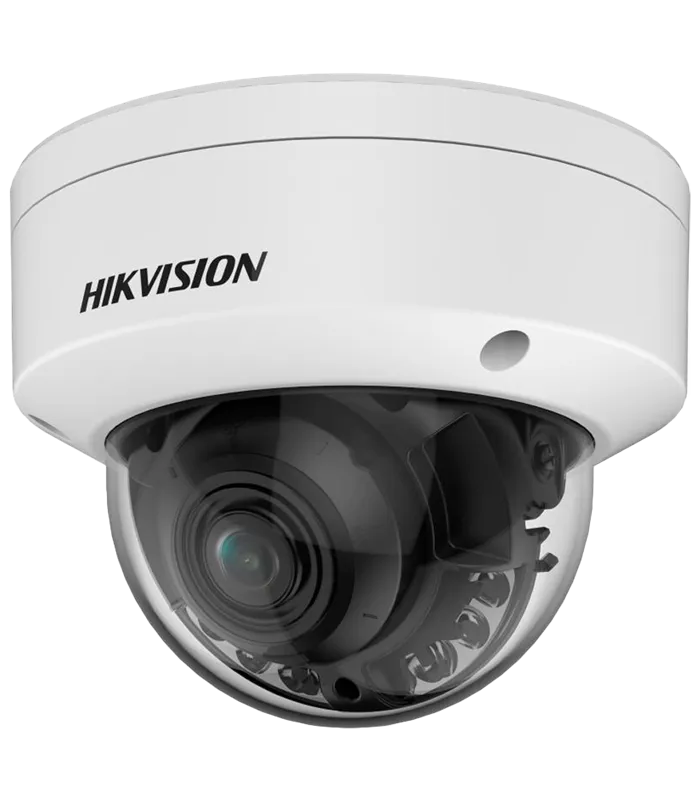

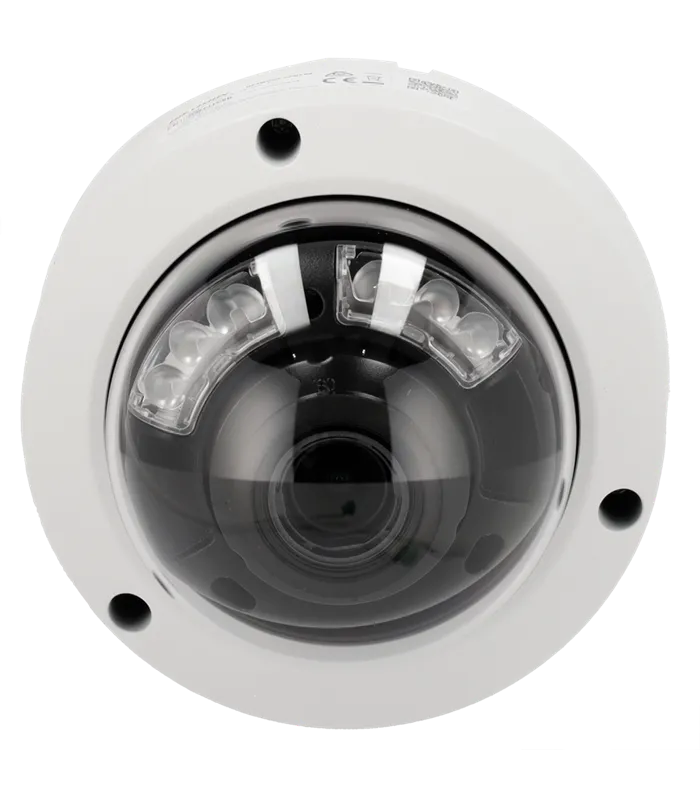

The DS-2CD2747G2HT-LIZS(2.8-12mm)(eF) is a high-performance IP dome camera designed for professional surveillance applications. It is ideal for both indoor and outdoor environments, providing exceptional image quality with its 4 Megapixel resolution and ColorVu technology, which ensures vibrant color images even in low-light conditions. This camera features a varifocal motorized lens with a focal length of 2.8 to 12 mm, allowing for flexible installation and precise field of view adjustments. With advanced features such as motion detection and AcuSense technology, it effectively reduces false alarms while enhancing security monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 114.6~41.8°, V: 59.3~23.6°, D: 141.3~48.1° |
| DORI | 60~149 m (D), 23.8~59.1 m (O), 12~29.8 m (R), 6~14.9 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with white light range 40 m |

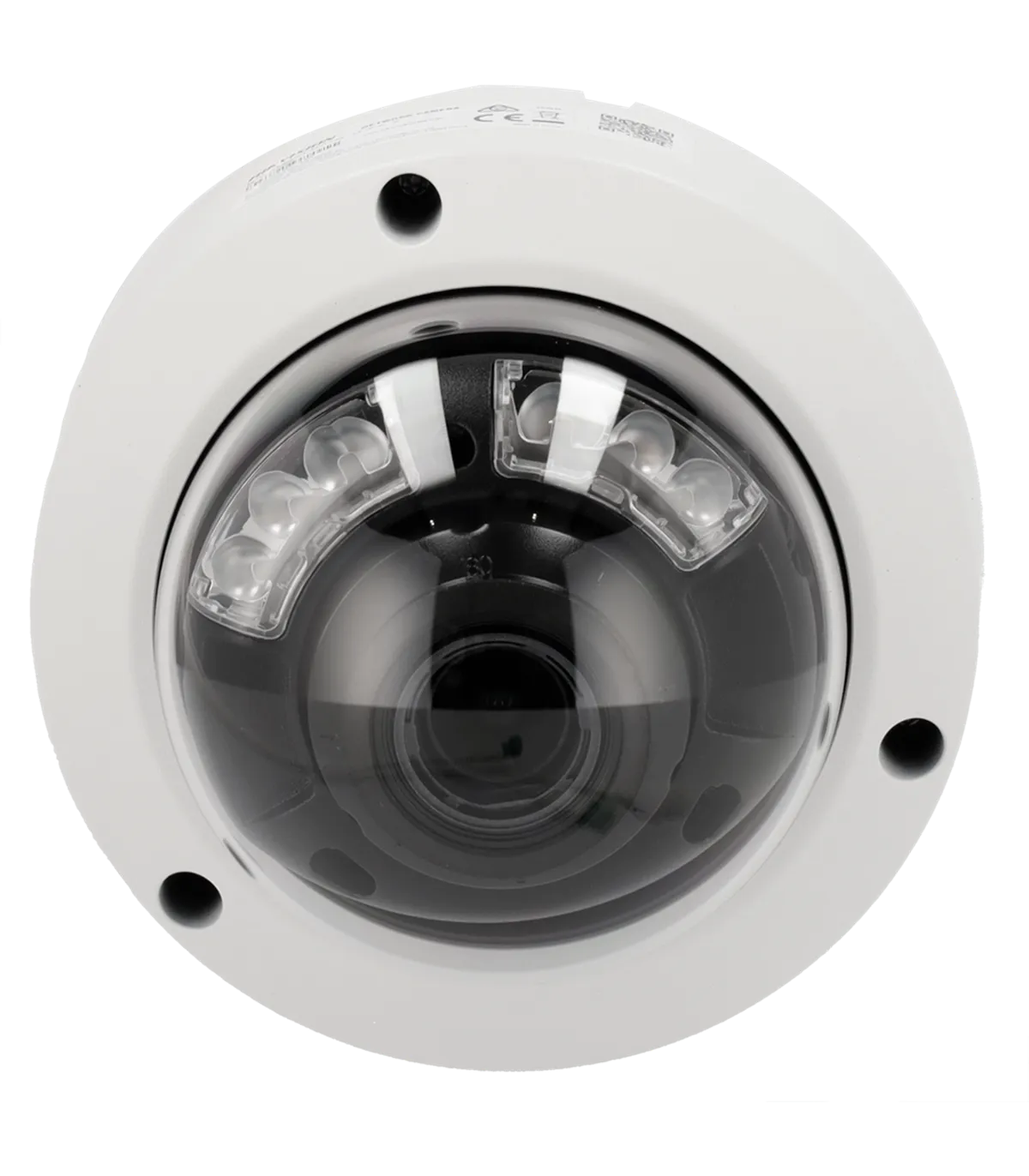

| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | ColorVu: color image 24 hours |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |

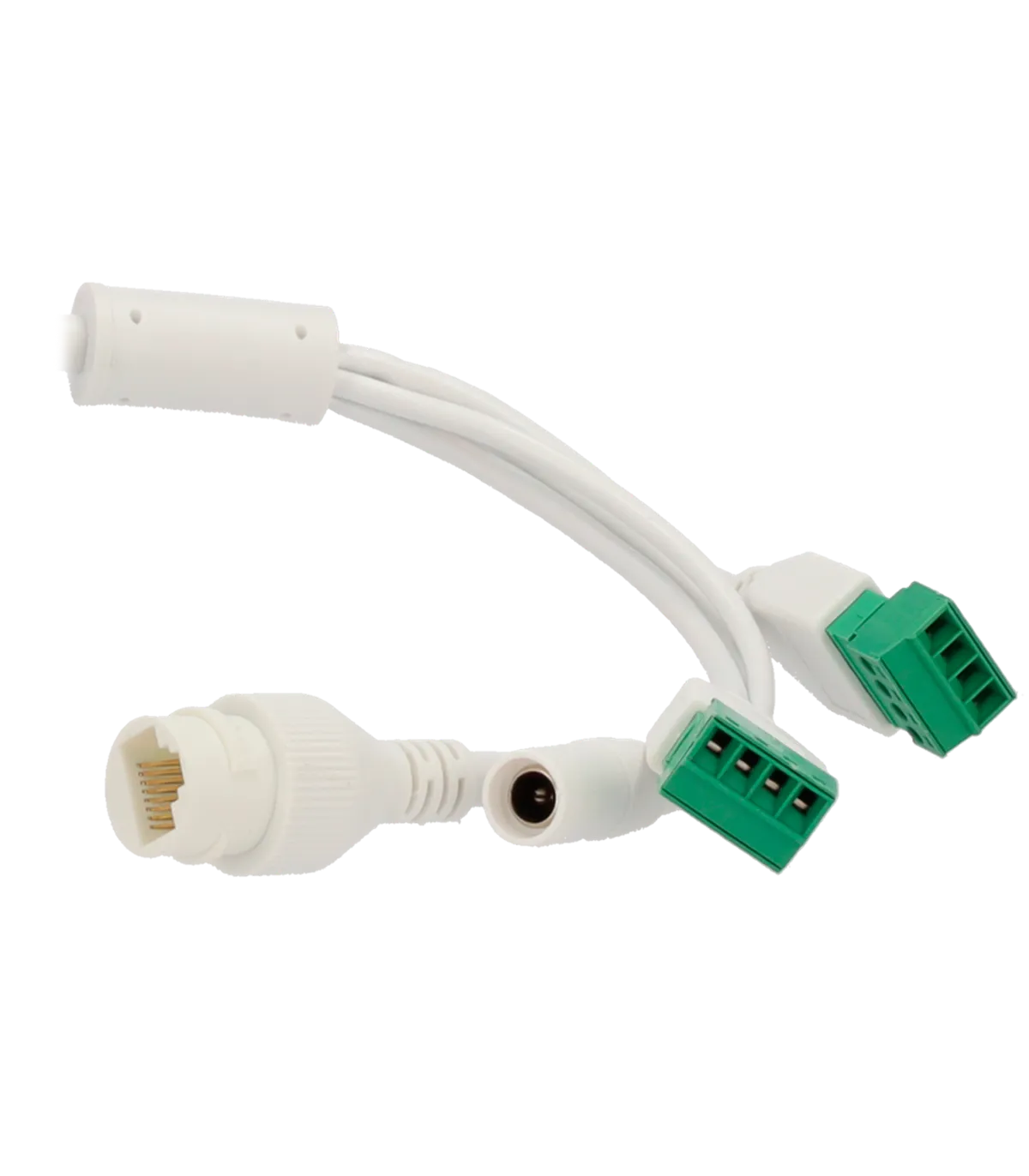

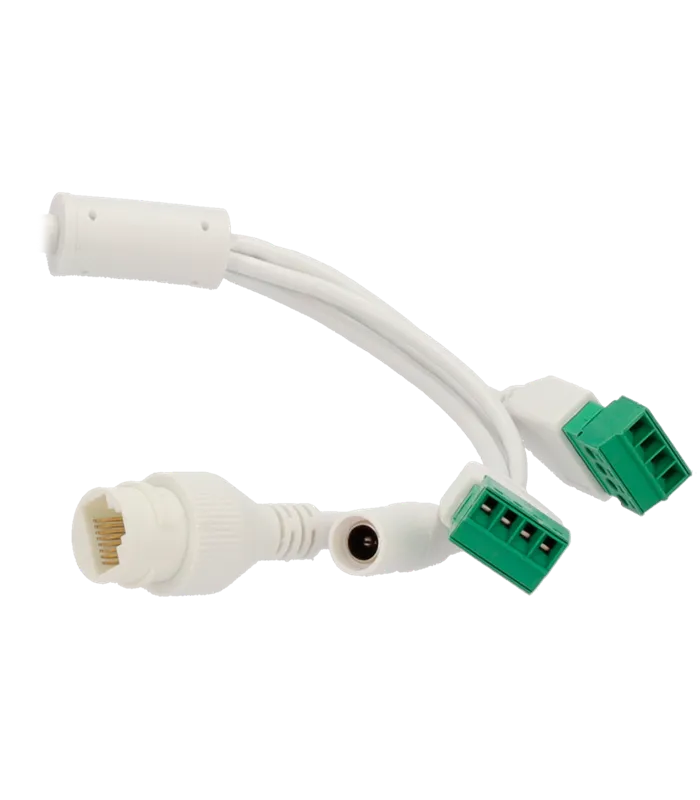

| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 mm x 112 mm (H) |

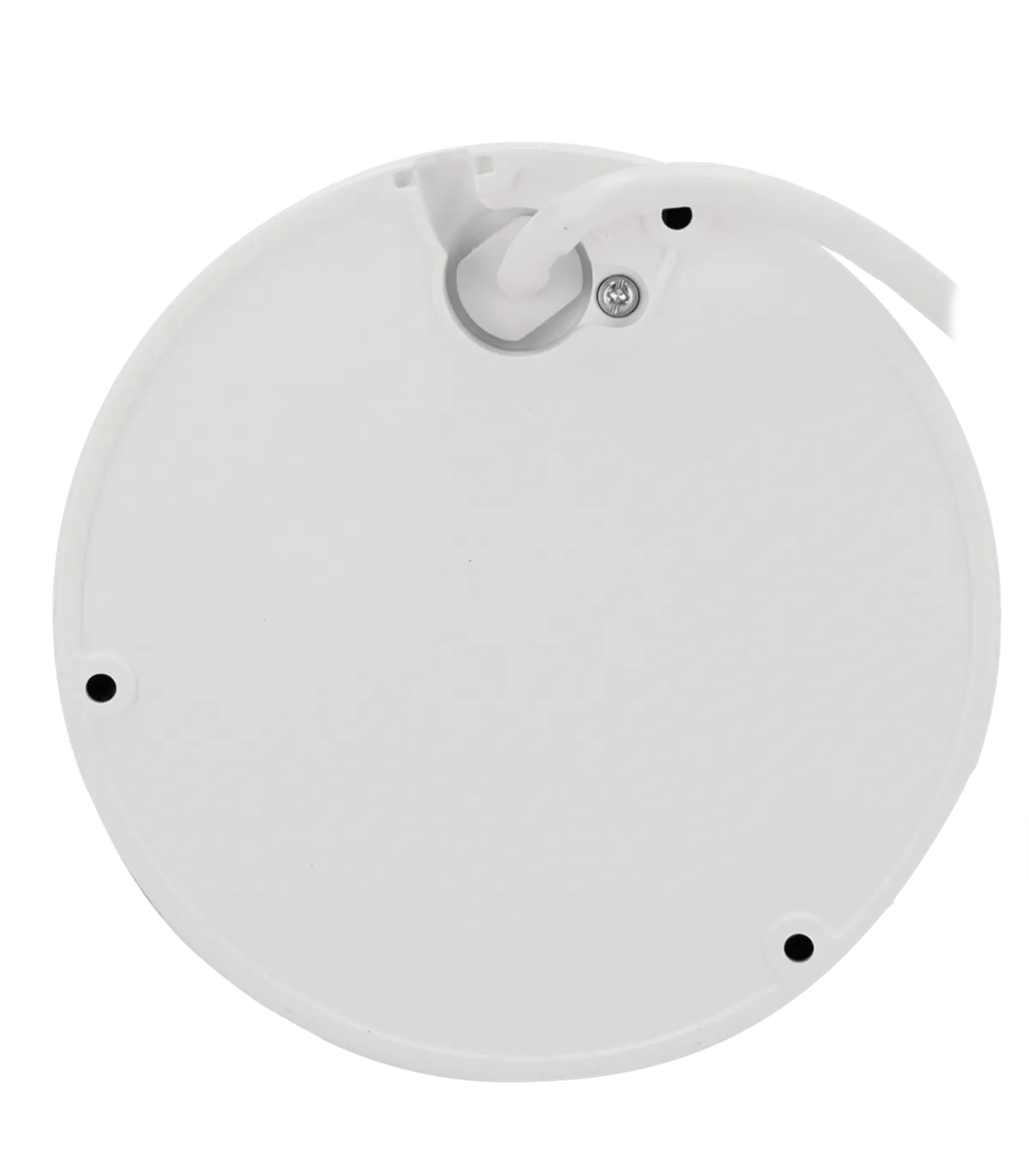

| Base Dimensions | Ø base 141 mm / Ø between screws 130 mm / 3 screws |
| Weight | 820 g |
The DS-2CD2747G2HT-LIZS(2.8-12mm)(eF) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its high-resolution imaging and ColorVu technology, it provides clear images day and night, ensuring comprehensive coverage. The motion detection capabilities, enhanced by AcuSense technology, allow for precise alerts, reducing false alarms triggered by non-threatening movements. Additionally, the camera's remote access features enable security personnel to monitor live feeds from anywhere, enhancing response times to incidents. The robust IP67 rating ensures durability against harsh weather conditions, making it a reliable choice for outdoor installations. Overall, the DS-2CD2747G2HT-LIZS(2.8-12mm)(eF) combines advanced technology with practical features, making it an excellent solution for effective surveillance.
