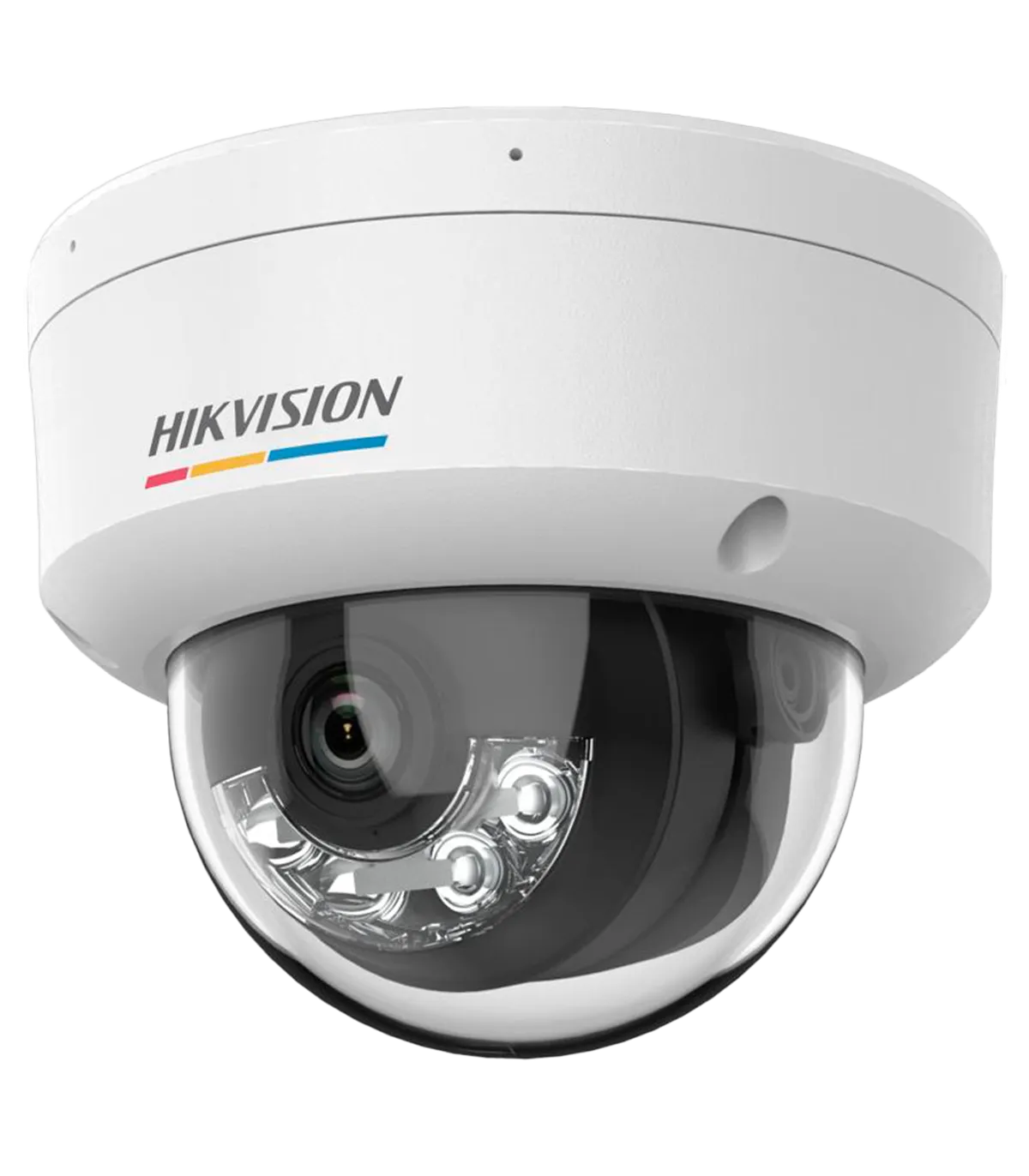

- Hikvision VALUE ColorVu3.0 Dome IP Camera
- Resolution 4 MPx | PoE IEEE802.3af
- ColorVu3.0: color image HikAI-ISP F1.0 1/1.8"
- 2.8 mm | Microphone | Hybrid light up to 30m
- Motion Detection 3.0
- IP67 | IK08 | MicroSD card slot up to 512GB
Description & Key Features: DS-2CD1147G3H-LIUF(2.8mm)
The Hikvision Value Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for applications requiring enhanced visibility and detail, such as retail stores, parking lots, and residential areas. With its advanced sensor technology and wide aperture lenses, it captures more light, ensuring superior clarity without the need for additional lighting. The integration of HikAI-ISP enhances visual quality by reducing noise and improving sharpness in challenging conditions.
The Value Series features Motion Detection 3.0, an upgraded version with a more accurate algorithm that includes human and vehicle classification based on artificial intelligence, helping to filter false alarms and highlight significant events in the recording bar.
- Hikvision
- VALUE Series
- IP Camera
- 1/1.8" Progressive Scan CMOS with F1.0
- 4 Megapixel (2560x1440)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Range 30 m
- ColorVu 3.0: 24-hour color imaging with HikAI-ISP, F1.0 super aperture, and motion blur reduction
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 3.0
- WDR (120 dB)
- 3D DNR
- MicroSD card slot up to 512GB
- Integrated Microphone
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- IP67 Waterproof
- IK08 Vandal-proof
Specifications: DS-2CD1147G3H-LIUF(2.8mm)
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (768x432, 640x360) |
| Compression | Main stream: H.265+ / H.264+ / H.265 / H.264 Sub stream: H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 54.4°, D: 126.7° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color imaging with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and White Light up to 30m |
| Day/Night | Auto / Manual / Programmable |
| Audio | Integrated Microphone Noise reduction filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror, Corridor Mode, Privacy Mask |
| Motion Detection | Motion Detection 3.0 with human and vehicle classification applied in motion detection. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Power Supply | DC 12 V / 0.6A / 7.2W max. / PoE IEEE802.3af |
| Reset Button | Yes |
| Protection Grade | IP67 Waterproof / IK08 Vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 97.6 mm (H) x 121.5 mm (Ø) |
| Base Dimensions | Ø base 121.5 mm / Ø 104.7 screws / 3 screws |
| Material | Metal and Plastic |
| Weight | 670 g |
Package Contents
- Hikvision IP Dome Camera
- Installation Materials
- User Instructions
Use Case
In a typical deployment scenario, the Hikvision DS-2CD1147G3H-LIUF is installed in a retail environment to enhance security and monitoring capabilities. The camera's ColorVu 3.0 technology ensures that the store remains visible even during nighttime, providing clear, full-color images. With its motion detection capabilities, the camera can accurately identify human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial for store owners who want to ensure the safety of their premises without unnecessary interruptions. The integrated microphone allows for audio monitoring, adding another layer of security. Additionally, the camera's remote access capabilities enable store managers to monitor live feeds from their smartphones, ensuring peace of mind while away from the premises. The IP67 waterproof and IK08 vandal-proof ratings make it suitable for both indoor and outdoor installations, ensuring durability in various weather conditions.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- Micrófono integrado
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK08
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6936422163624
