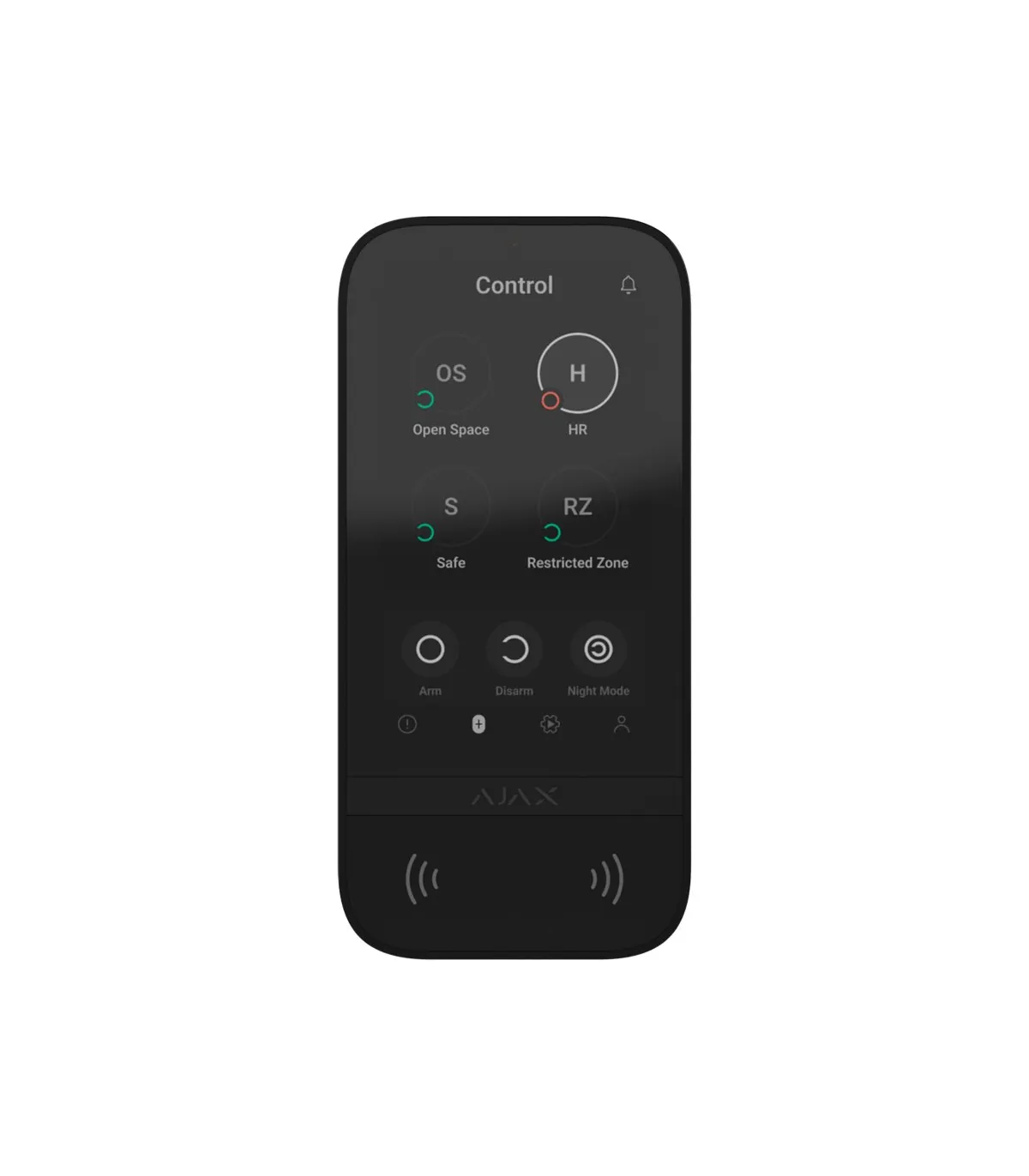

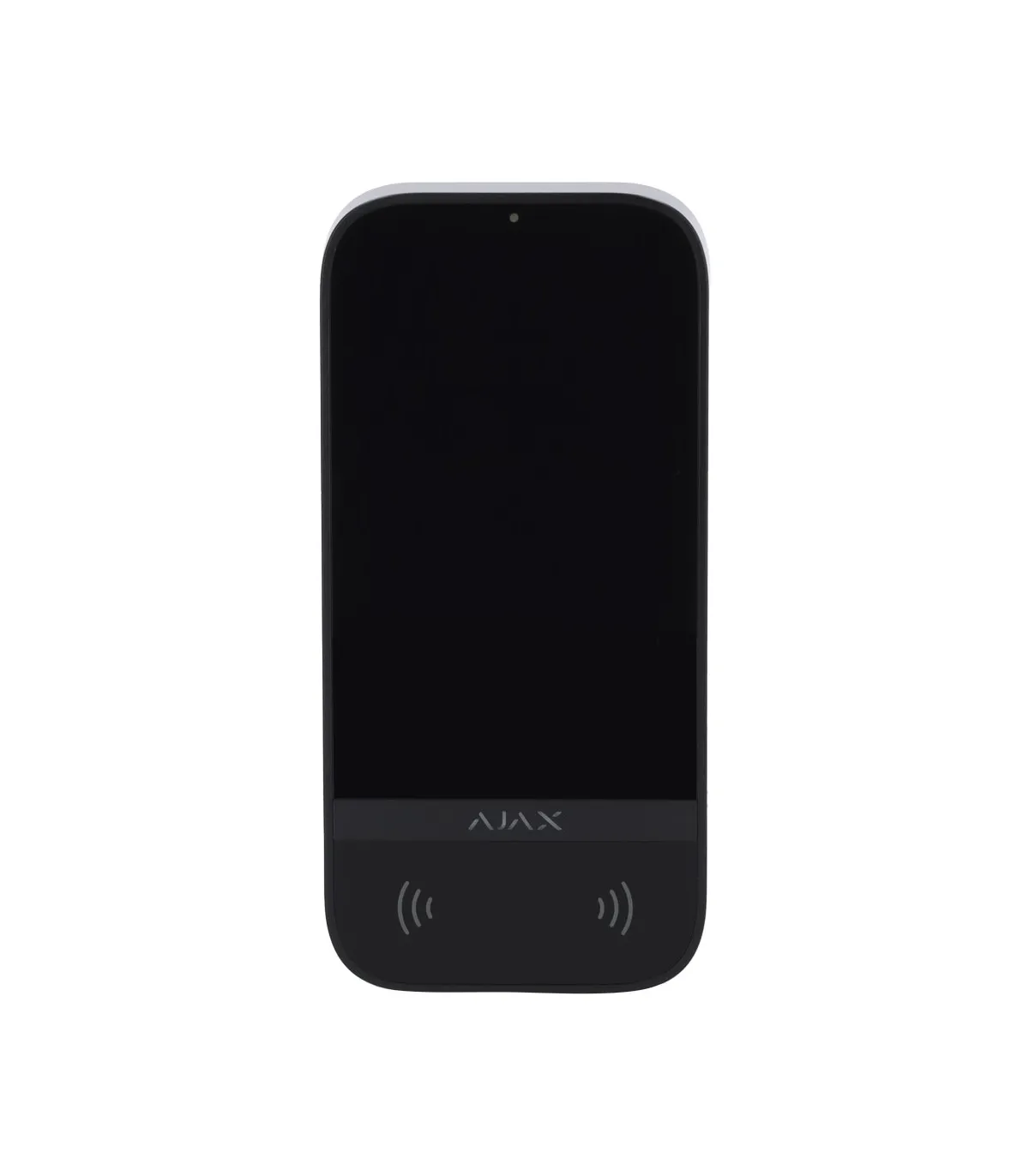

The Touchscreen IPS Keyboard with RFID Reader Ajax AJ-KEYPADTOUCHSCREEN-B is the perfect solution for efficiently and securely controlling your security system. With its IPS touchscreen, you can navigate intuitively and quickly, making it easy to configure and manage your security system. Additionally, its RFID reader allows you to access quickly and easily, without the need to remember complicated passwords.
| Brand | Ajax |
| Security Grade | Grade 2 |
| Frequency | 868 MHz Jeweller |
| Transmission Distance | ≤ 1700 m in open space |
| Functions | - Total system arming/disarming - Group arming/disarming - Automation scenario control (up to 6) |
| Authentication Control | - Codes (from keypad or user) - RFID reader for Ajax key fobs and cards - Mobile phone via Bluetooth |
| RFID Technology | Mifare DESFire® EV1, EV2 (ISO14443-A 13.56 MHz) |
| Power Supply | 2 options: - 6 AA 1.5V Lithium batteries with approximate 1.5 years duration. - External 12 VDC power supply + batteries |
| External Power Supply Operating Voltage | 10.5–14 VDC, up to 0.4 A |
| Panic Button | Configurable: - Panic - Fire (silence alarm) - Urgent help |
| Notifications | Audible notifications for: - Delays - Door openings - Alarms Instant notifications of malfunctions |
| Antisabotage | - Tamper - Fixing screw - Automatic lock in case of unauthorized access |
| LED Indicator | To indicate security mode status |
| Screen | 5-inch IPS touchscreen |
| Screen Resolution | 480 × 854 px |
| Interface Modes | Day and night |
| Compatibility with Central Panels and Repeaters | Compatible with Ajax Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), and ReX 2 |
| Dimensions | 172 (H) x 82 (W) x 26 (D) mm |
| Operating Temperature | -10º C ~ 40º C |
| Weight | 327 g |
| Cover Material | ABS plastic |
| Color | Black |
Data sheet
