- Hikvision
- PRO Series IP Dome Panoramic Camera
- 6 Megapixel Resolution (3632x1632)
- 2.8 mm Lens | ColorVu | Microphone and Speaker
- 30 m White Light | Deterrent Siren and Flash
- Motion Detection 2.0 | AcuSense

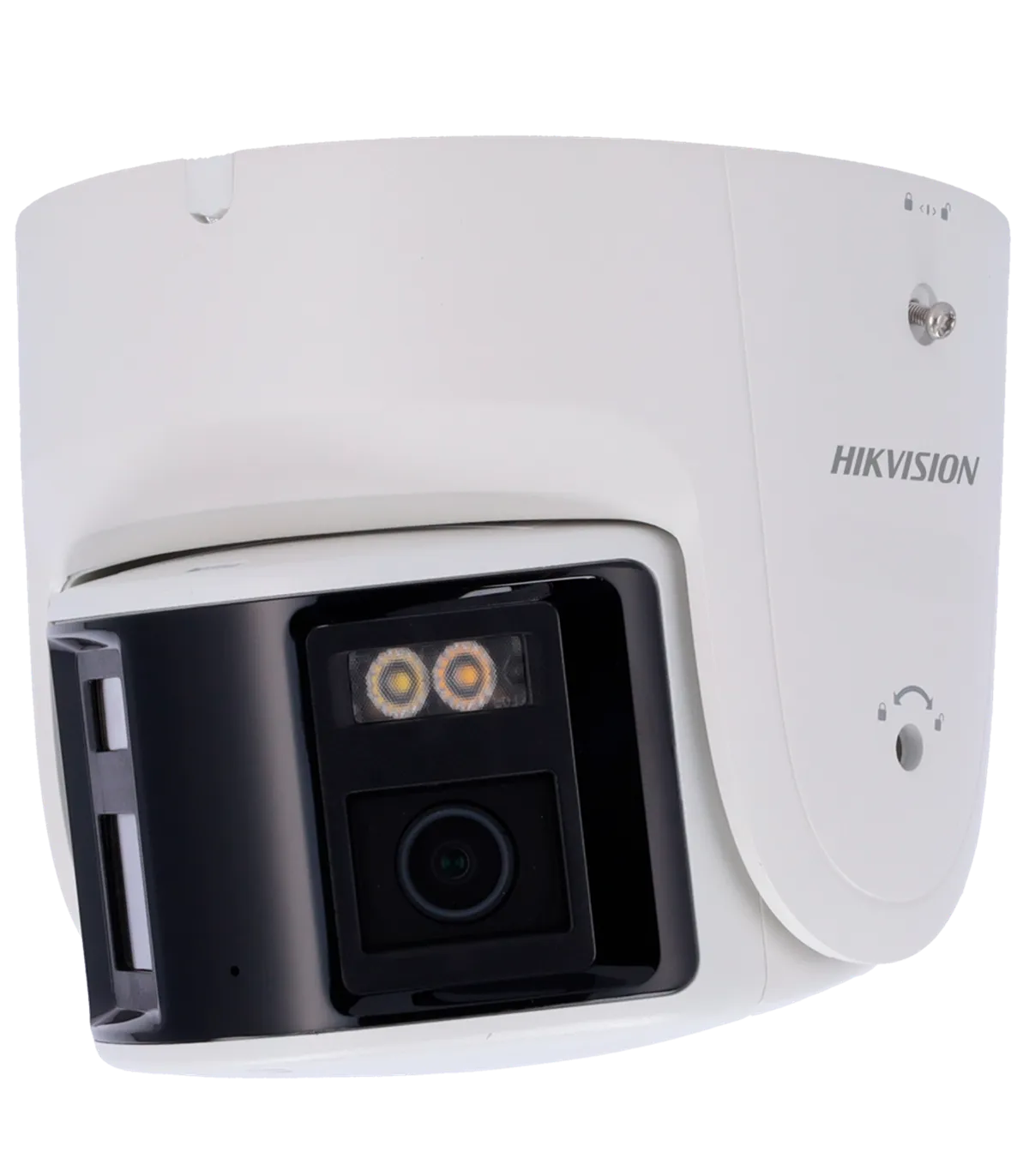

Description & Key Features: DS-2CD2367G2P-LSU/SL(2.8mm)(C)
The DS-2CD2367G2P-LSU/SL(2.8mm)(C) is a high-performance IP dome camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this device excels in providing 24-hour color imaging with its ColorVu technology. With a 180-degree panoramic view, it is perfect for monitoring large areas such as parking lots, retail spaces, and public venues. The camera features advanced motion detection capabilities and is equipped with AcuSense technology to minimize false alarms, making it a reliable choice for security professionals.
- Hikvision
- PRO Series
- IP Dome Panoramic Camera
- 2 x 1/2.5" Progressive Scan CMOS
- 6 Megapixel (3632x1632)
- 2.8 mm Lens
- 180º Panoramic View
- 0 Lux
- White Light Range 30 m
- ColorVu: 24-hour Color Imaging
- H.265+ / H.265 / H.264+ / H.264 Compression
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- WDR (130 dB)
- 3D-DNR
- Alarms
- Audio
- Integrated Microphone and Speaker
- MicroSD Card Slot up to 512 GB
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- IP67 Waterproof
Specifications: DS-2CD2367G2P-LSU/SL(2.8mm)(C)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 2 x 1/2.5" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3632x1632) |
| Main Stream Rate | 20 fps (3632x1632) |
| Extra Stream Rate | 20 fps (1200x536, 960x432) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 180°, V: 81° |
| DORI | 45 m (D), 17.5 m (O), 9 m (R), 4.5 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with White Light Range 30 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy Masking |
| ANR | Yes |
| Alarms | 1 Input / 1 Output |
| Deterrent Alarm | Integrated Siren and Strobe Flash in the Camera |
| Audio | 1 Input / 1 Output Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 140 mm x 145.6 mm (H) |
| Base Dimensions | Ø base 140 mm / Ø screw hole 96 mm / 4 screws |
| Weight | 920 g |
Package Contents
- Hikvision IP Dome Camera
- Installation Materials
- User Instructions
Use Case
The DS-2CD2367G2P-LSU/SL(2.8mm)(C) is ideally suited for deployment in various settings, including retail stores, parking lots, and public spaces. For instance, in a retail environment, the camera can be strategically placed at entrances and checkout areas to provide a comprehensive surveillance solution. With its 180-degree panoramic view, it captures a wide area, ensuring that no blind spots are left unmonitored. The integrated audio capabilities allow for two-way communication, enhancing security measures. Additionally, the motion detection feature, combined with AcuSense technology, significantly reduces false alarms, making it easier for security personnel to focus on genuine threats. This camera's IP67 waterproof rating ensures reliable performance in various weather conditions, making it a versatile choice for outdoor installations. Overall, the DS-2CD2367G2P-LSU/SL(2.8mm)(C) provides a robust and efficient solution for modern security needs.
Data sheet
- Brand
- HIKVISION
- Resolution
- 6 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 40 m
- Audio
- 1 Entrada / 1 Salida / Micrófono / Altavoz disuasorio
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- No dispone
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1273ZJ-140B,DS-1273ZJ-140B,DS-1273ZJ-140,DS-1273ZJ-140,DS-1271ZJ-140,DS-1271ZJ-140
Specific References
- EAN13
- 6931847178918
