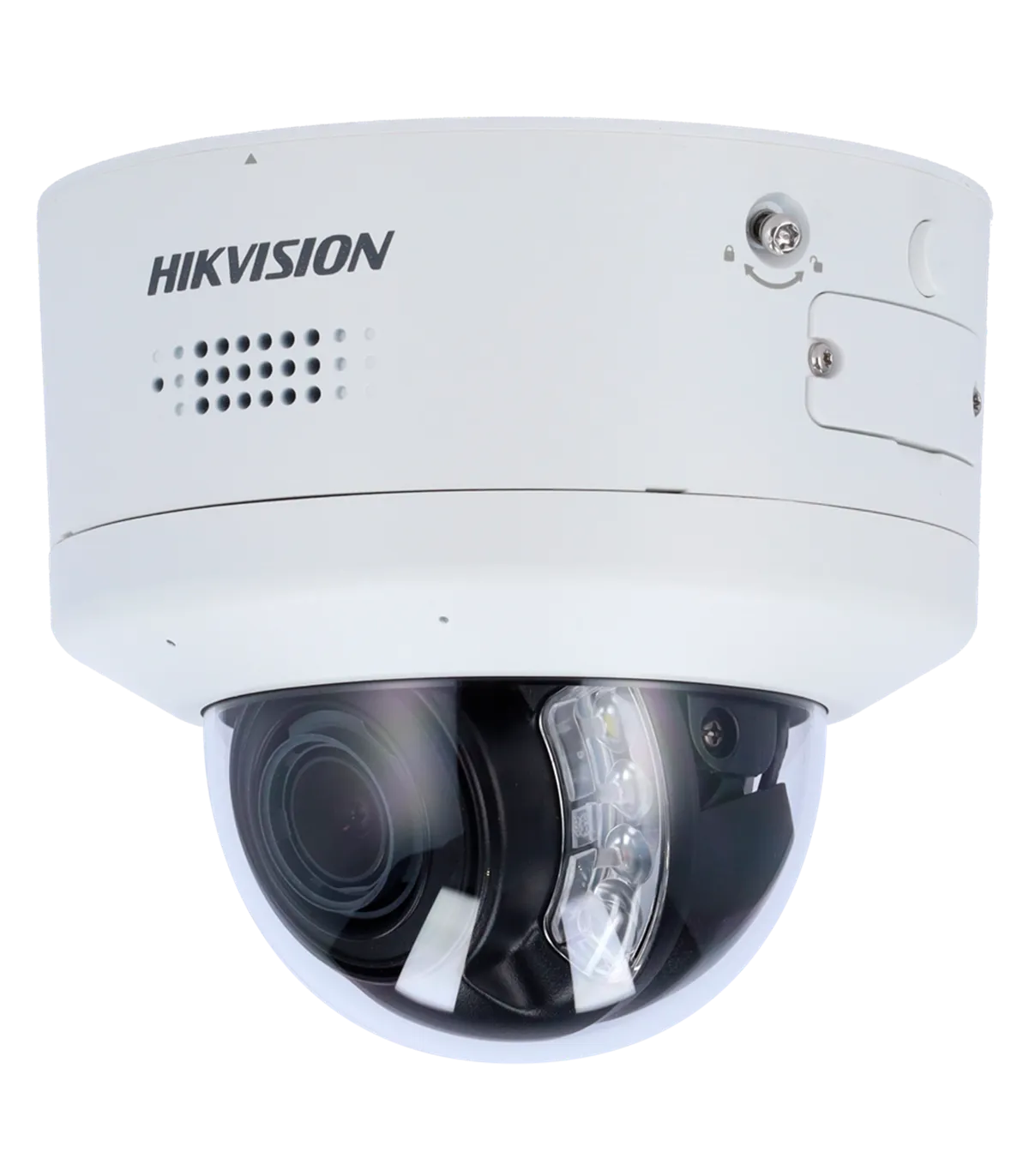

The DS-2CD2746G2H-IPTRZS2U/SL(2.8-12mm) is a high-performance IP dome camera designed for advanced surveillance applications. This device is ideal for both indoor and outdoor environments, providing exceptional image quality and reliability. With its 4 Megapixel resolution and motorized varifocal lens, it offers flexible installation options and superior monitoring capabilities. The camera's Ultra Low Light technology ensures clear images even in complete darkness, making it a perfect choice for security in low-light conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Remote Adjustment | Horizontal rotation: 0~350° Vertical rotation: 0~85° Rotation: 0~350° |
| Field of View (FOV) | H: 114.6~41.8°, V: 59.3~23.6°, D: 141.3~48.1° |
| DORI | 61.5~151.7 m (D), 24.4~60.2 m (O), 12.3~30.3 m (R), 6.2~15.1 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and deterrent flash in the camera |
| Audio | 1 input / 1 output Integrated dual array microphone Integrated speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1350 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Rating | IP66 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 155 mm x 140.4 mm (H) |
| Base Dimensions | Ø base 155 mm / Ø between screws 96 mm / 4 screws |
| Weight | 840 g |
In a commercial setting, the DS-2CD2746G2H-IPTRZS2U/SL(2.8-12mm) can be deployed to enhance security measures in retail stores or warehouses. With its motorized varifocal lens, installers can easily adjust the camera's field of view to cover critical areas such as entrances and cash registers. The camera's Ultra Low Light capabilities ensure that even in dimly lit environments, clear images are captured, providing reliable surveillance around the clock. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, making it ideal for busy locations. The integrated deterrent siren and flash can actively deter potential intruders, while the remote monitoring features allow security personnel to access live feeds from anywhere, ensuring a proactive approach to security management.
