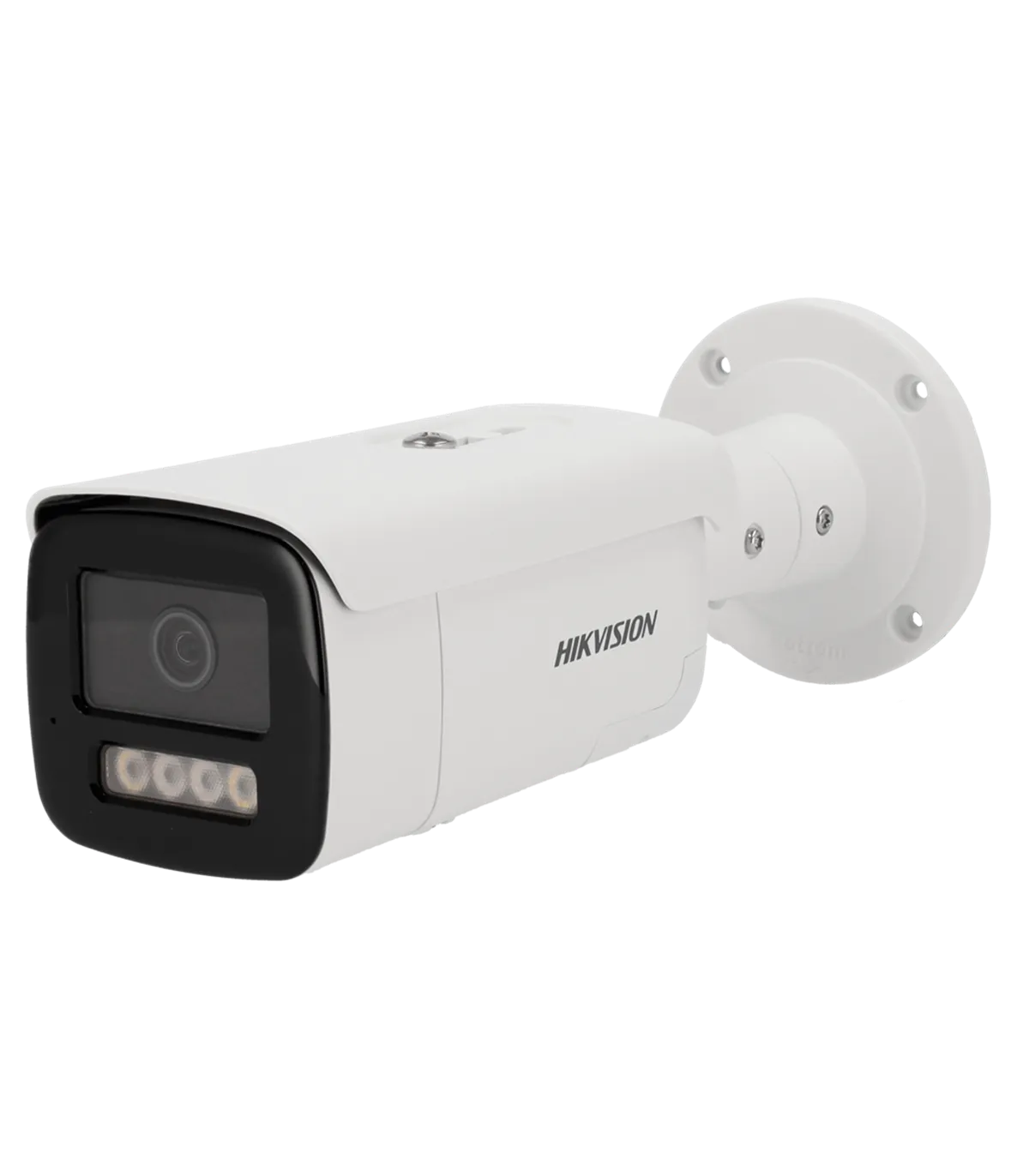

The DS-2CD2T47G2H-LISU/SL(2.8mm)(eF) is a high-performance IP camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this device offers exceptional image quality with its 4 Megapixel resolution and ColorVu technology, ensuring clear color images even in low-light conditions. With features such as motion detection and AcuSense technology, it effectively reduces false alarms while providing reliable security monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640×480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 54.4°, D: 126.7° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with white light range 60 m |
| Supplementary Lighting | Hybrid Light: IR range 60 m White light range 60 m |
| Day/Night | ColorVu: 24-hour color image |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and strobe light in the camera |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 91.2 mm (H) × 93.3 mm (W) x 286.7 mm (D) |
| Weight | 1205 g |
The DS-2CD2T47G2H-LISU/SL(2.8mm)(eF) camera is perfect for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, or residential areas. With its 24-hour color imaging capability, users can maintain visibility around the clock, enhancing security measures. The integrated microphone allows for audio monitoring, providing an additional layer of security. Furthermore, the remote access feature enables users to view live feeds from anywhere, making it ideal for property managers and homeowners alike. The IP67 waterproof rating ensures durability in various weather conditions, while the AcuSense technology significantly reduces false alarms, allowing for more efficient monitoring. This camera is an excellent choice for those seeking reliable and advanced surveillance solutions.
