DS-1281ZJ-DM23 Junction Box

DS-1281ZJ-DM23 Junction Box

Hikvision DS-1294ZJ – Wall Mount Bracket

Junction Box
For dome cameras
Suitable for outdoor use
Installation on sloped ceiling
Cable pass-through
White color

Read moreShow less

€7.29

In stock - Ships in 24/48h

✆ Ask on WhatsApp

Reference:

DS-1281ZJ-DM23

Brand:

Original products

Fast shipping 24/48h

Legal and manufacturer warranty

Specialized technical support

Description

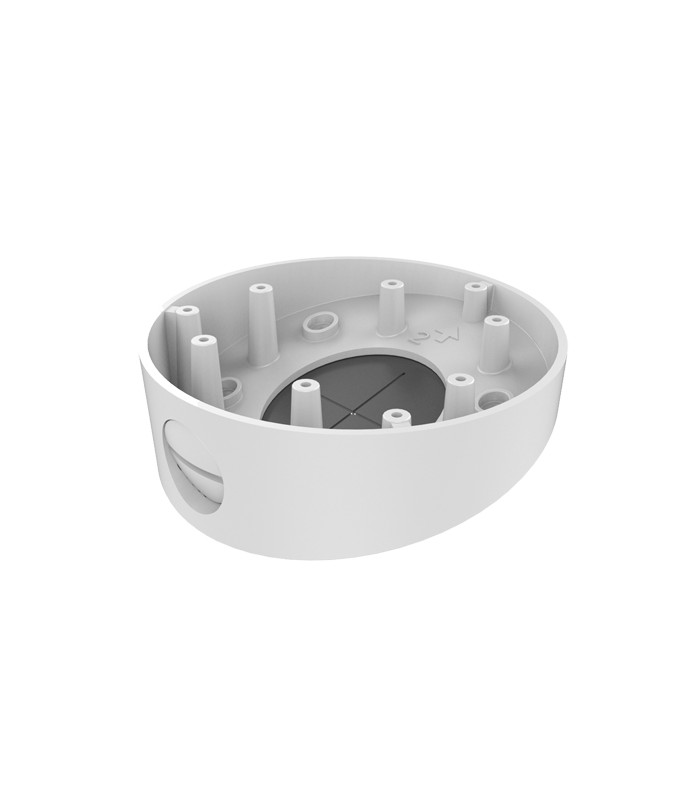

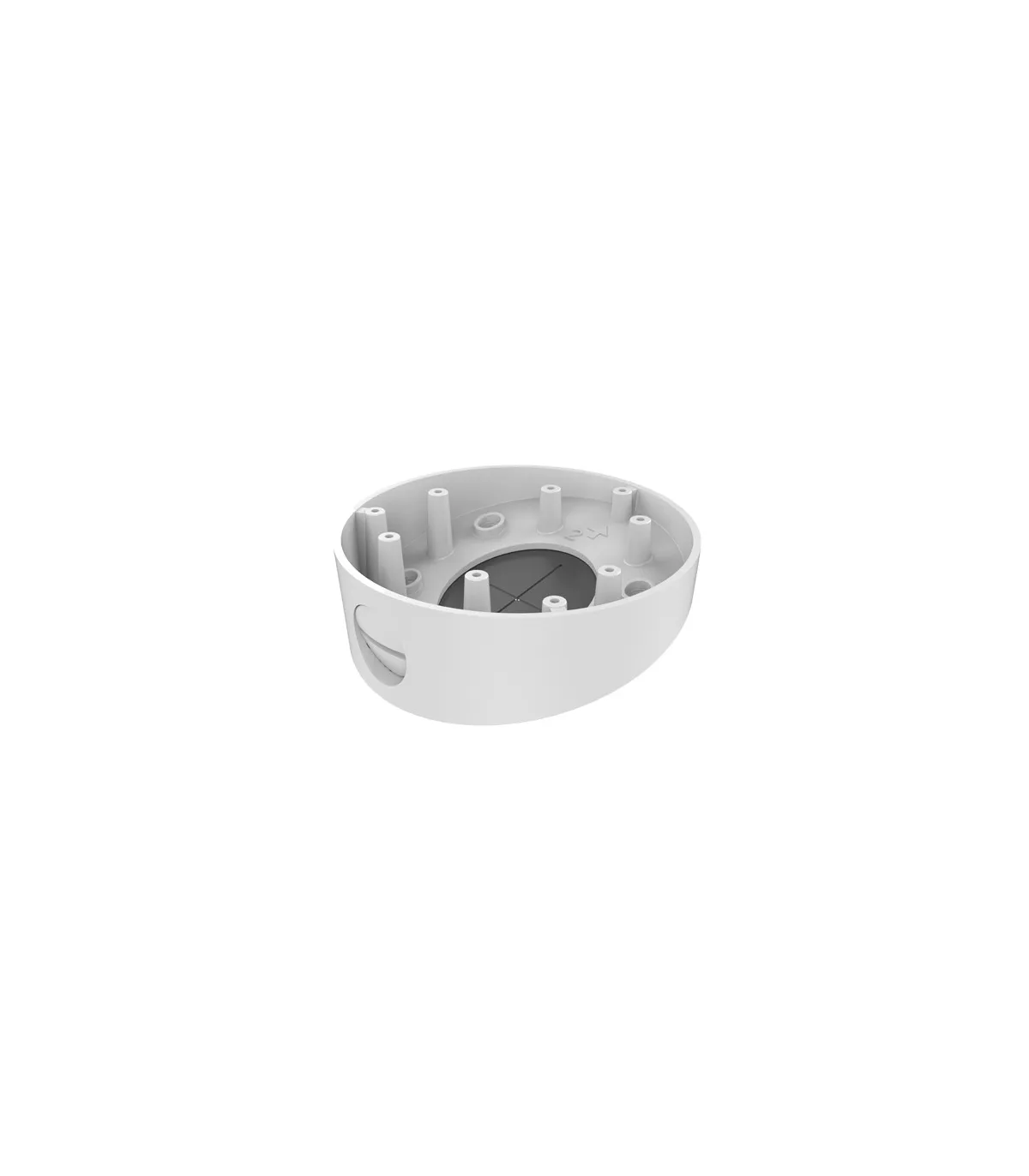

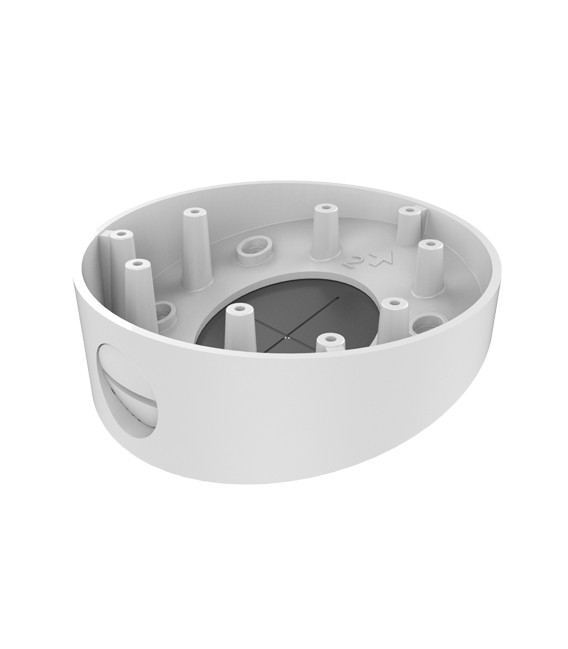

DS-1281ZJ-DM23 junction box

Inclined ceiling support for dome cameras.

Allows the power supply, wiring and installation accessories to be housed inside. It has multiple holes for installation of different types of dome or bullet cameras. Fixing to wall or ceiling through 4 screws. The camera is installed in the removable cover of the support. Allows internal wiring passage. It has an elevation angle of 15º.

Made of aluminum. Suitable for outdoors

Technical specifications

Dimensions	48 (H) x 136 (Ø) mm
Maximum load	4.5Kg
Weight	245g
Use	Suitable for indoor/outdoor
Composition	Aluminum alloy
Color	White

Content

Inclined ceiling support
5 plugs and 5 screws for mounting
4 screws for fixing the camera
Installation template

Read moreShow less

Product Details

Reference DS-1281ZJ-DM23

Data sheet

Brand: Hikvision

Type of camera: Dome

Use: Outdoor

Specific References

EAN13: 6954273658779
