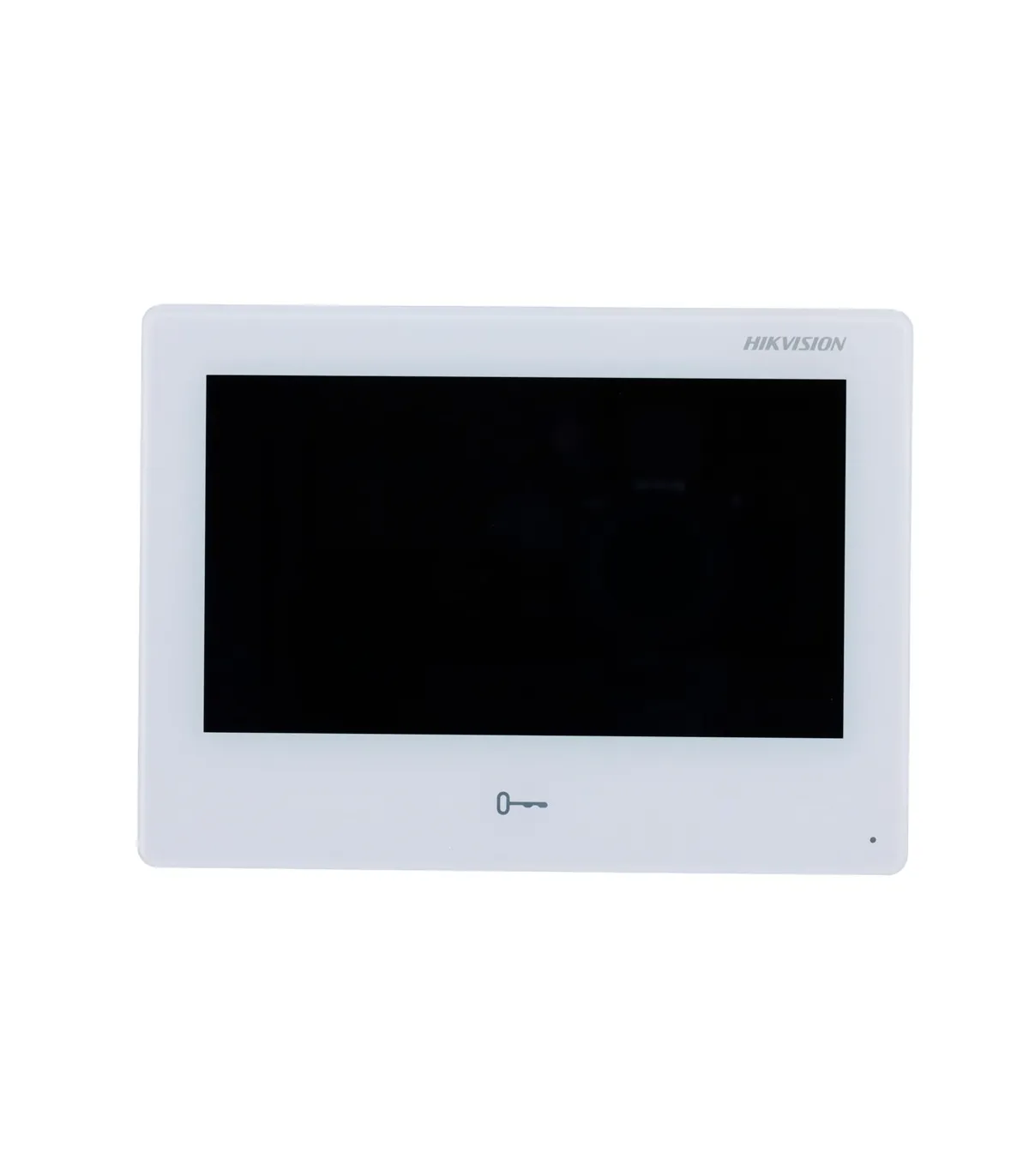

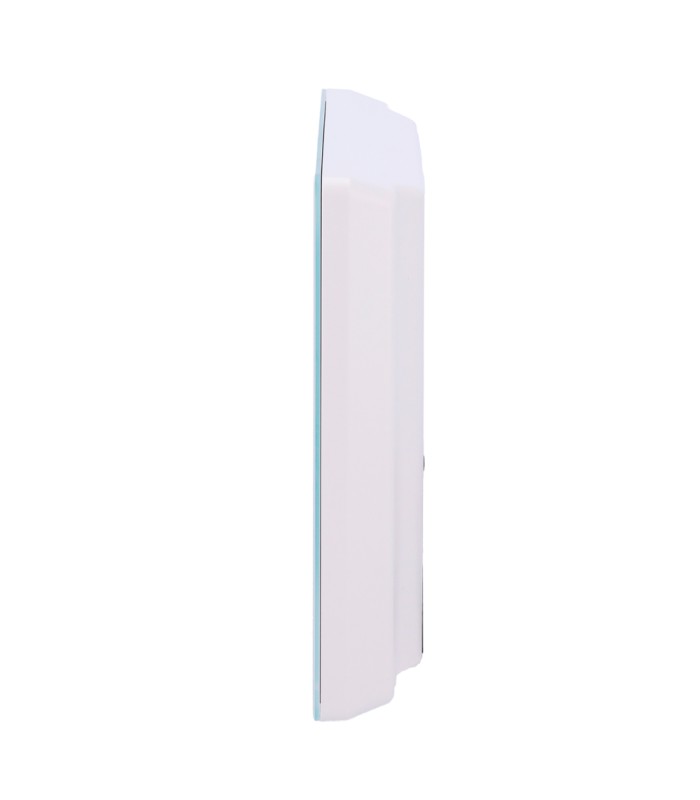

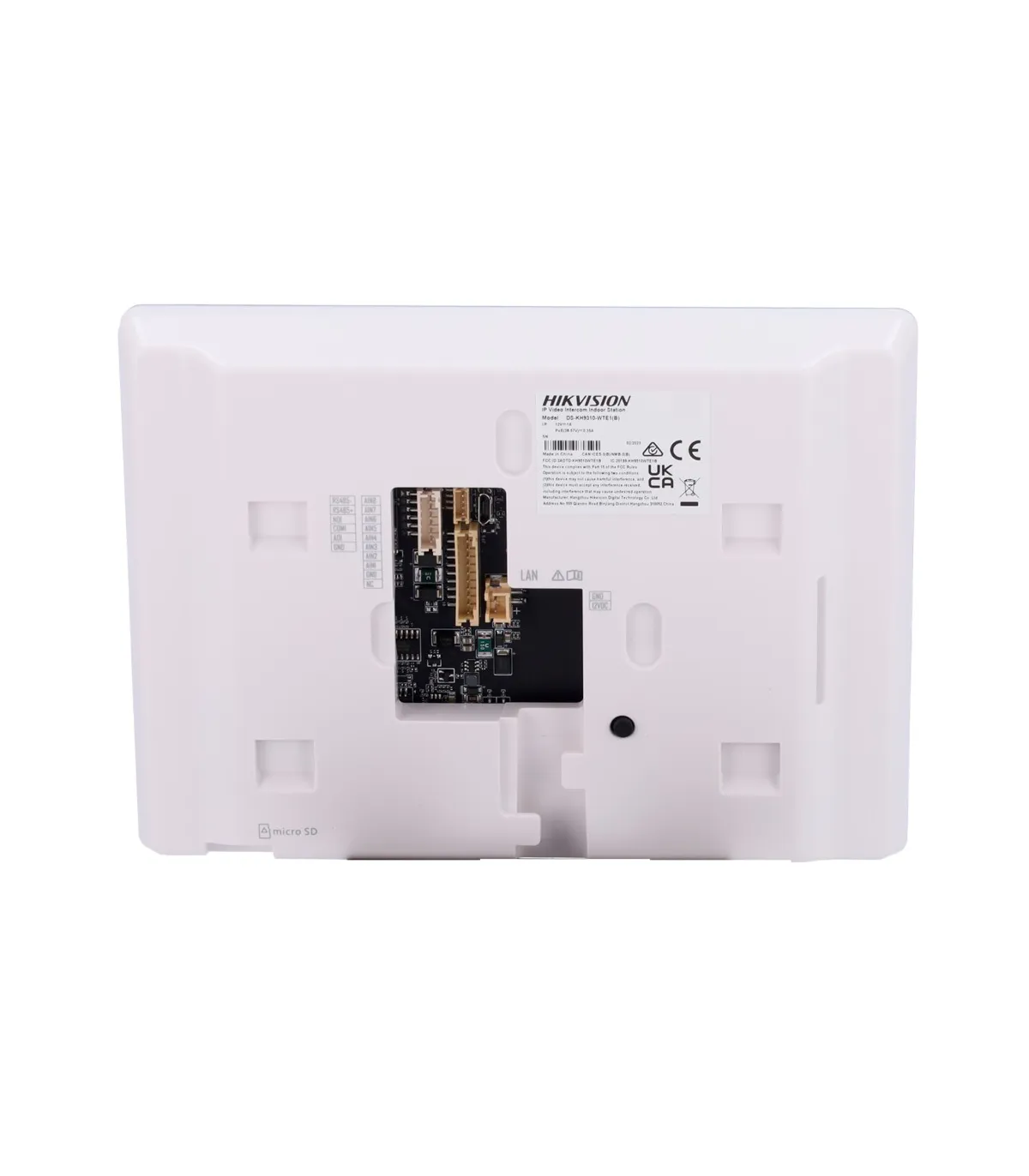

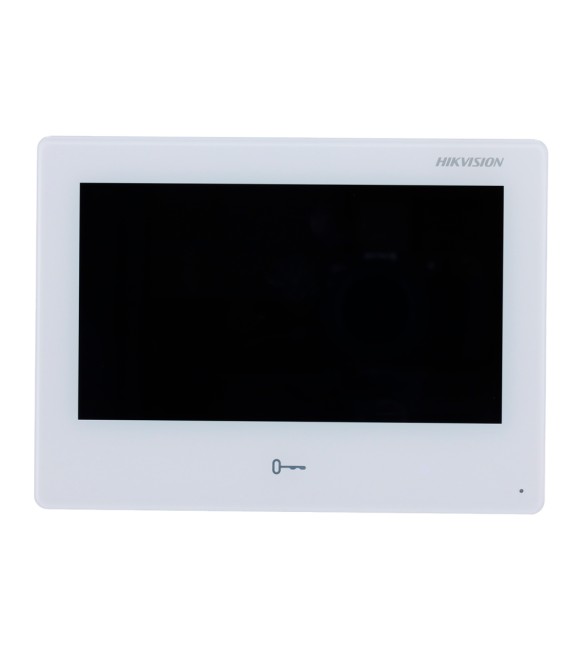

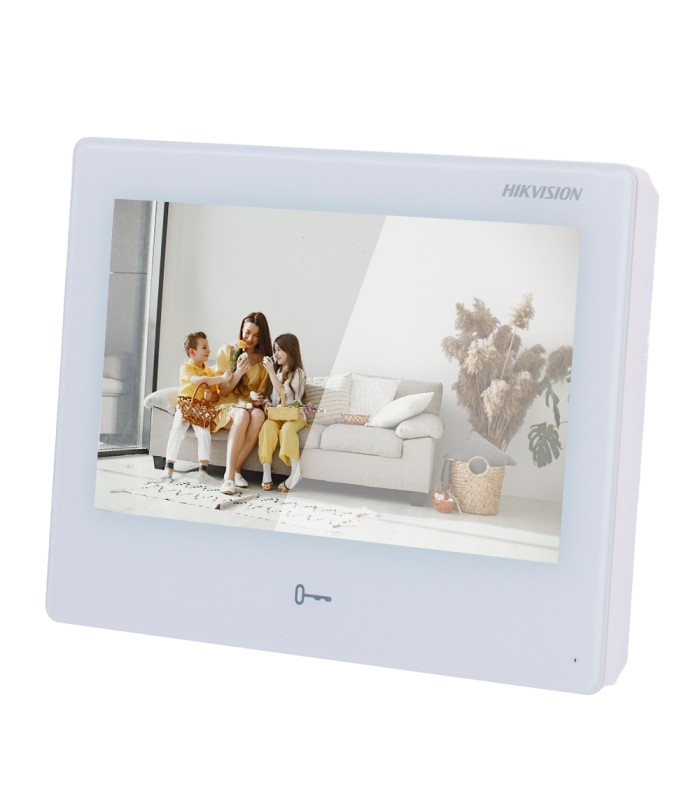

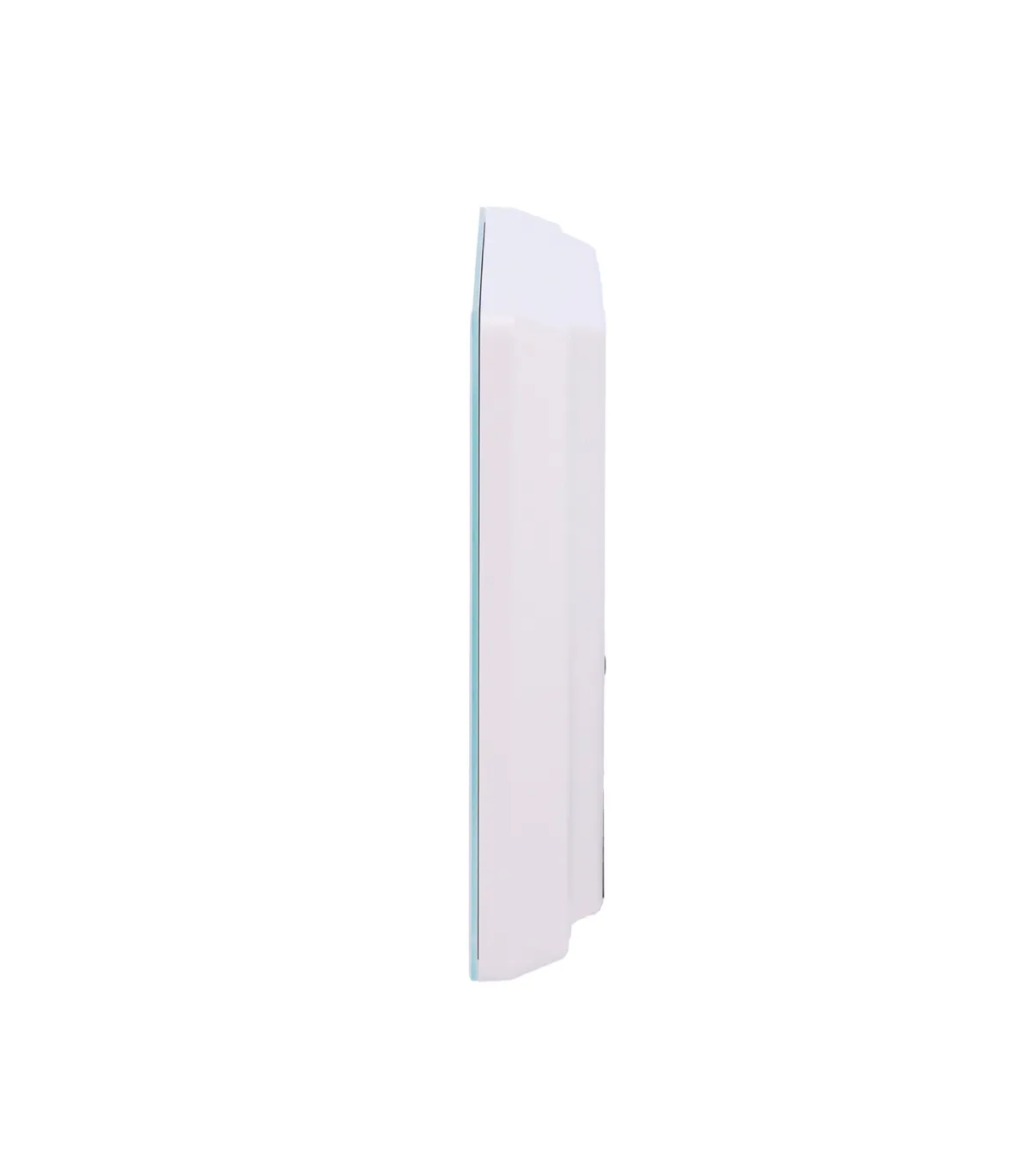

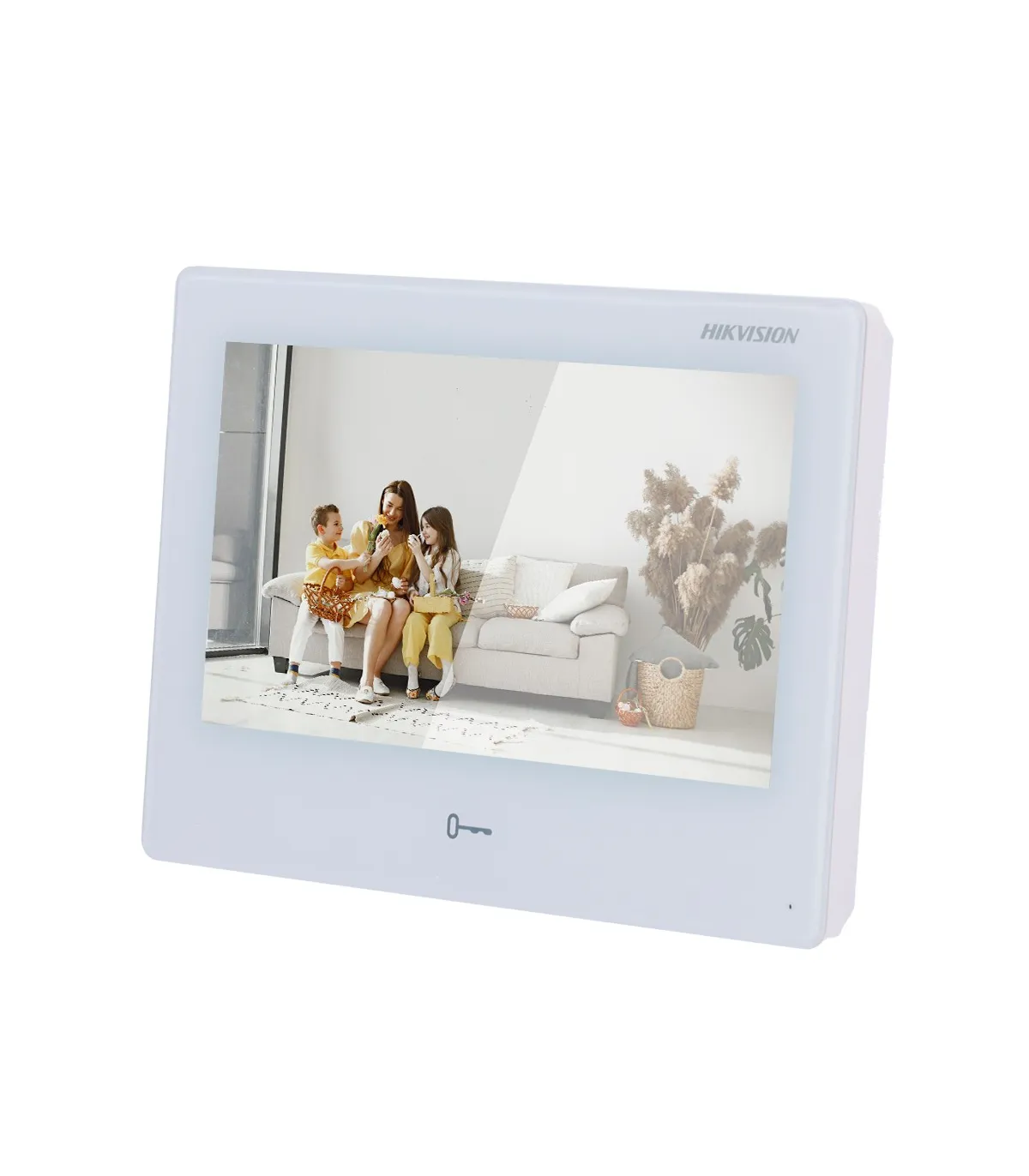

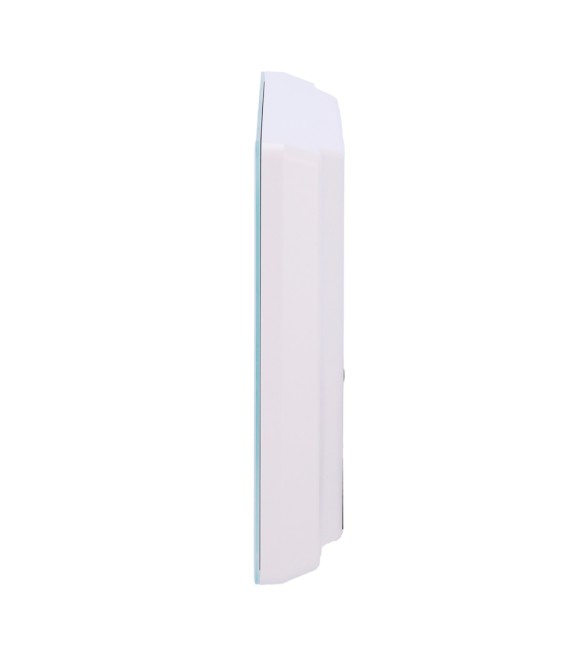

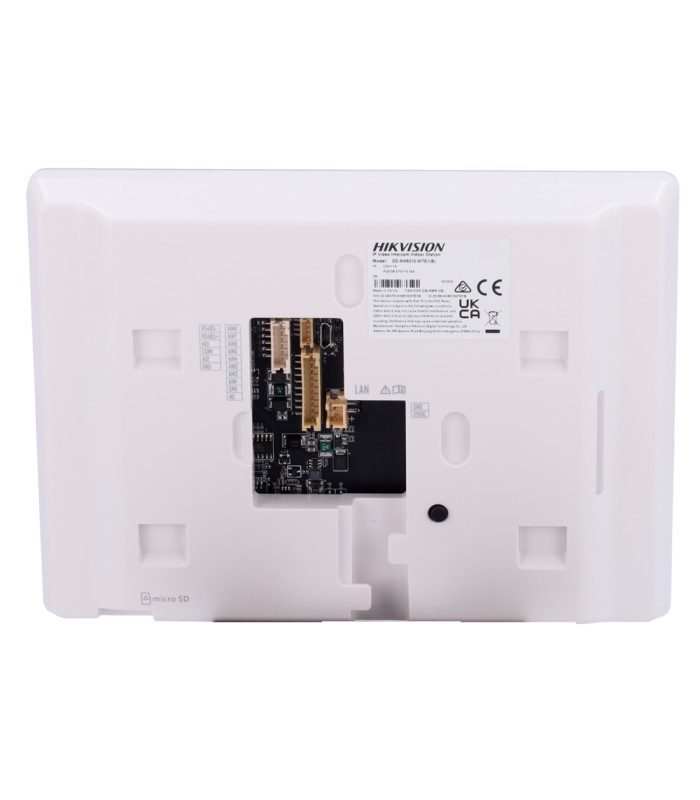

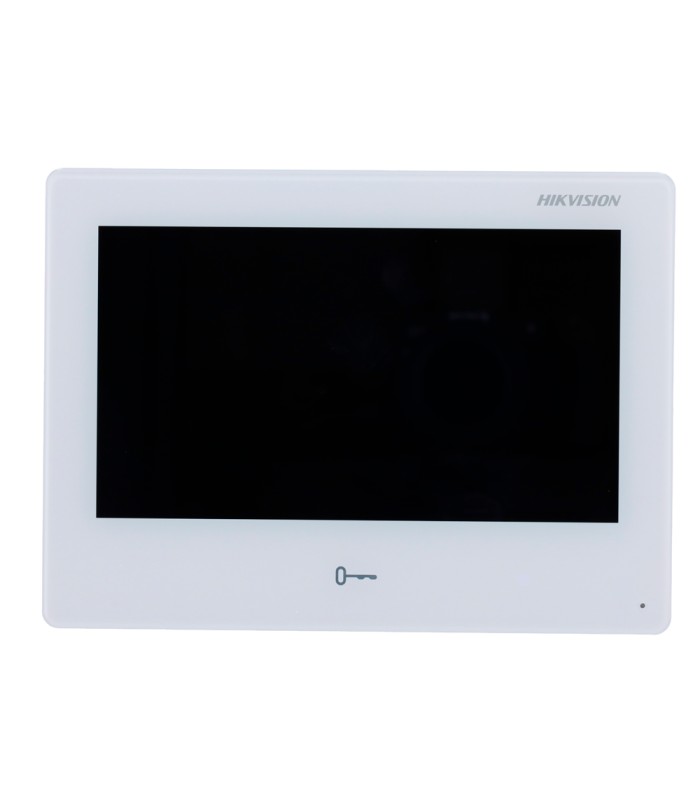

Monitor for Android video intercom Hikvision DS-KH9310-WTE1(B)
- Hikvision
- TFT touch screen for 7" Android video intercom
- Supports installation of third-party applications
- Built-in microphone and speaker
- Two-way audio
- 8 inputs alarm
- 1 relay output and 1 alarm output
- microSD slot
- Recording and image capture
- Multiple screen extension
- TCP/IP and WiFi
- PoE IEEE802.3af
- Internal calls between devices
- Surface mounting
- Push notifications through the Hik-Connect app (when receiving a call from the panel exterior)
- White color
Technical specifications
| Brand | Hikvision |
| Model | DS-KH9310-WTE1(B) |
| Operating system | Android 10 optimized for Hikvision video intercom |
| Applications | Supports up to 2 Android applications (.apk) |
| Application installation | Downloadable on the monitor via direct download link Installation of .apk files through iVMS-4200 |
| Integration | Integrated Hik-Connect (no notifications) |
| Display type | 7" color touch TFT |
| Screen resolution | 1024 x 600 |
| Operation mode | Additional door opening touch button |
| Inputs | 8 x configurable alarm inputs, 1 x RS485 |
| Outputs | 1 x alarm output, 1 x relay output |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | Internal memory (ROM): 8 GB RAM memory: 2 GB microSD card slot (up to 32 GB) |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol / WiFi 802.11 b/g/n (only for connection to app via P2P) |
| Remote Access | iVMS-4200 Software Hik-Connect Mobile App |
| Power | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 137 (H) x 187 (W) x 25.7 (D) mm |
| Weight | 420 g |
| Slave monitors | The DS-KH6320, DS-KH6350, DS-KH8350 and DS-KH8520 Linux monitors cannot be used as slaves |
Contents
- Hikvision video intercom indoor monitor
- Installation material
- Instructions for use
