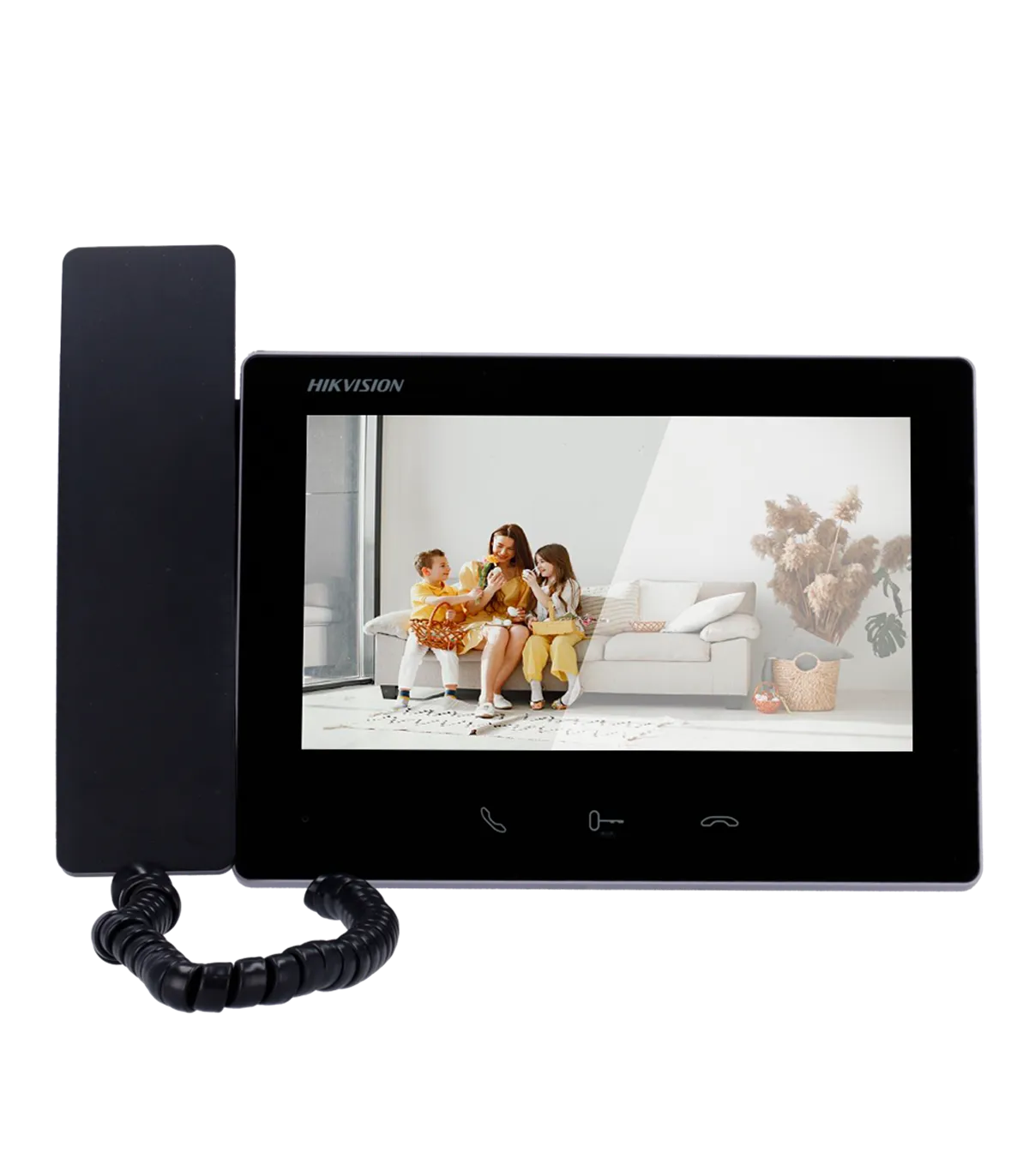

The video intercom monitor is the component installed inside the premises, also known as the indoor unit, and allows the building staff to receive calls from visitors.

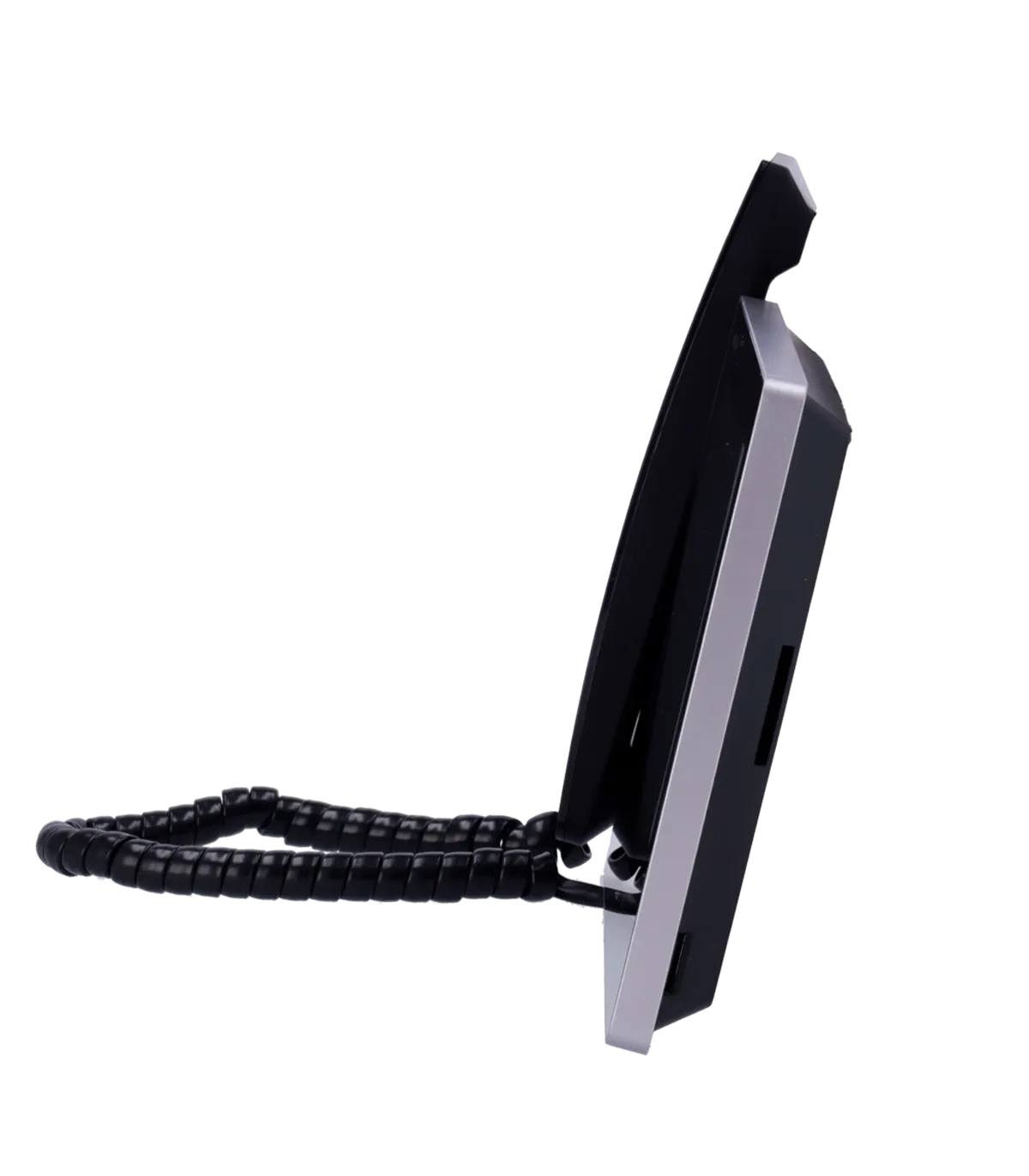

This model features a 7" touchscreen that facilitates user operation. It also includes a handheld receiver to maintain greater privacy during calls.

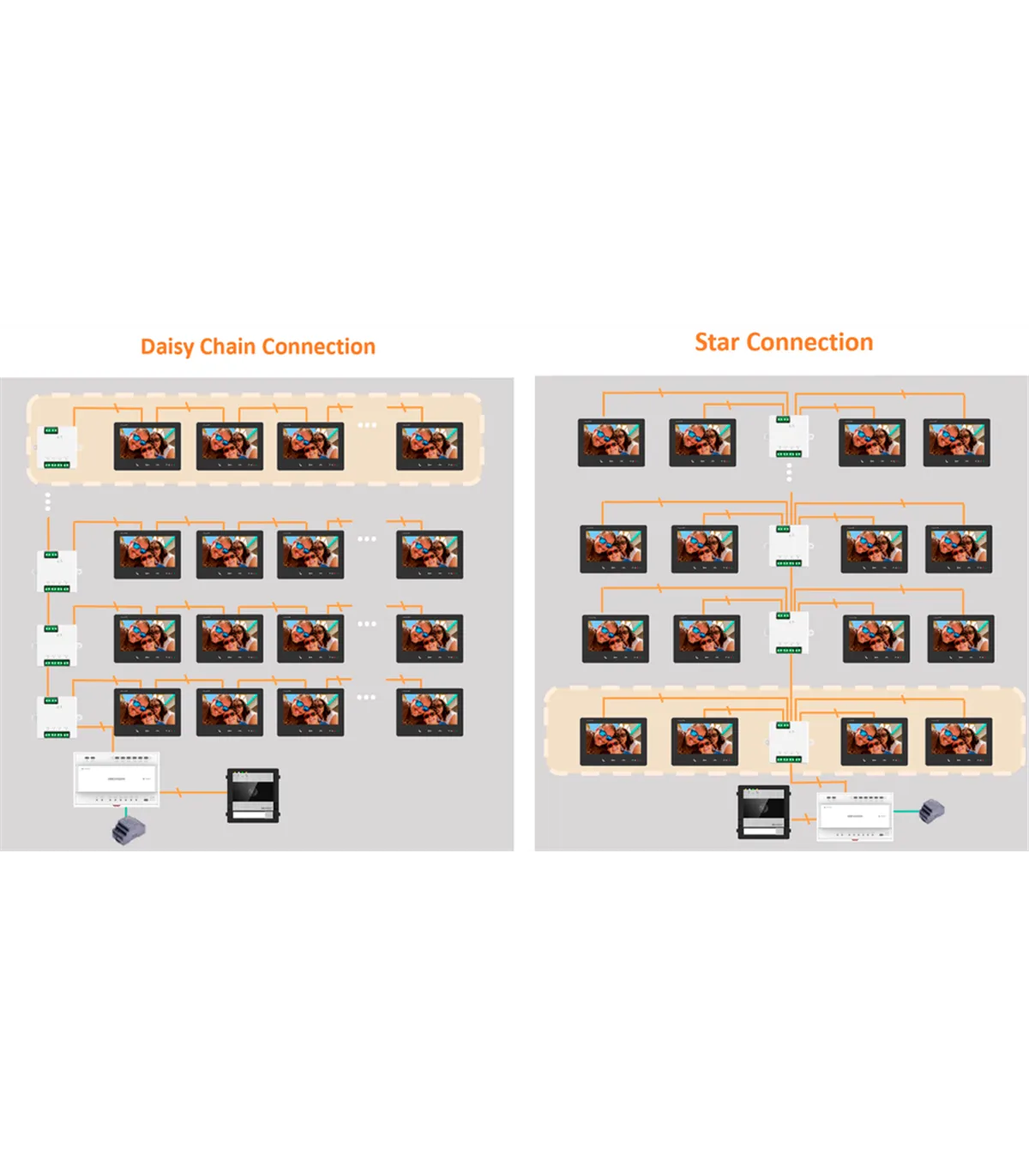

The 2-wire systems communicate and are powered through conventional copper cables (referred to as wires) and distributors, allowing for the reuse of existing conventional installations that already have this type of wiring.
With the Hik-Connect mobile application for the end user, calls can be received, doors can be opened, or the camera feed from the outdoor panel can be viewed live, all from any location.
| Brand | Hikvision |
| Model | DS-KH7300EY-WTHE2 |
| Operating System | Linux |
| LCD | 7" color touchscreen TFT |
| Screen Resolution | 1024 x 600 |
| Operation Mode | Additional touchscreen buttons: call initiation, call termination, and door opening LED status indicators |
| Inputs | 1 x 2-wire HD |
| Outputs | 1 x 2-wire HD |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation Handheld receiver with microphone and speaker |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 2-wire HD / RTSP / WiFi 802.11b/g/n (only for app connection via P2P) |
| Remote Access | Hik-Connect mobile application |
| Power Supply | Via Hikvision hub specific for 2-wire HD video intercoms (max 4 W) |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 138 (H) x 190 (W) x 20 (D) mm |
| Weight | 500 g |
| Slave Monitors | Monitors not belonging to the 2-wire HD system cannot be used |
