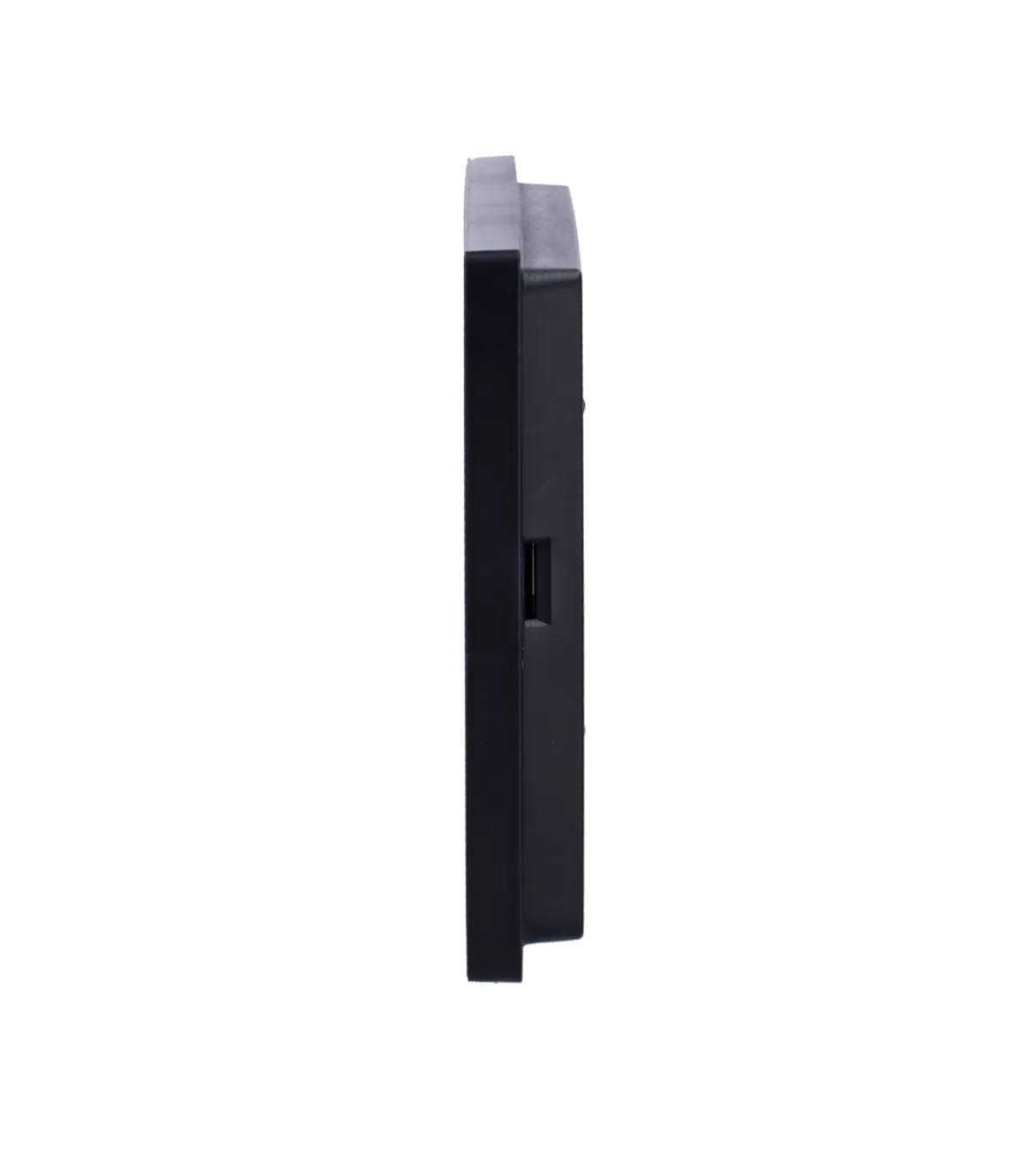

The video intercom monitor is the component installed inside the premises, also known as the indoor unit, and allows the building staff to receive calls from visitors.

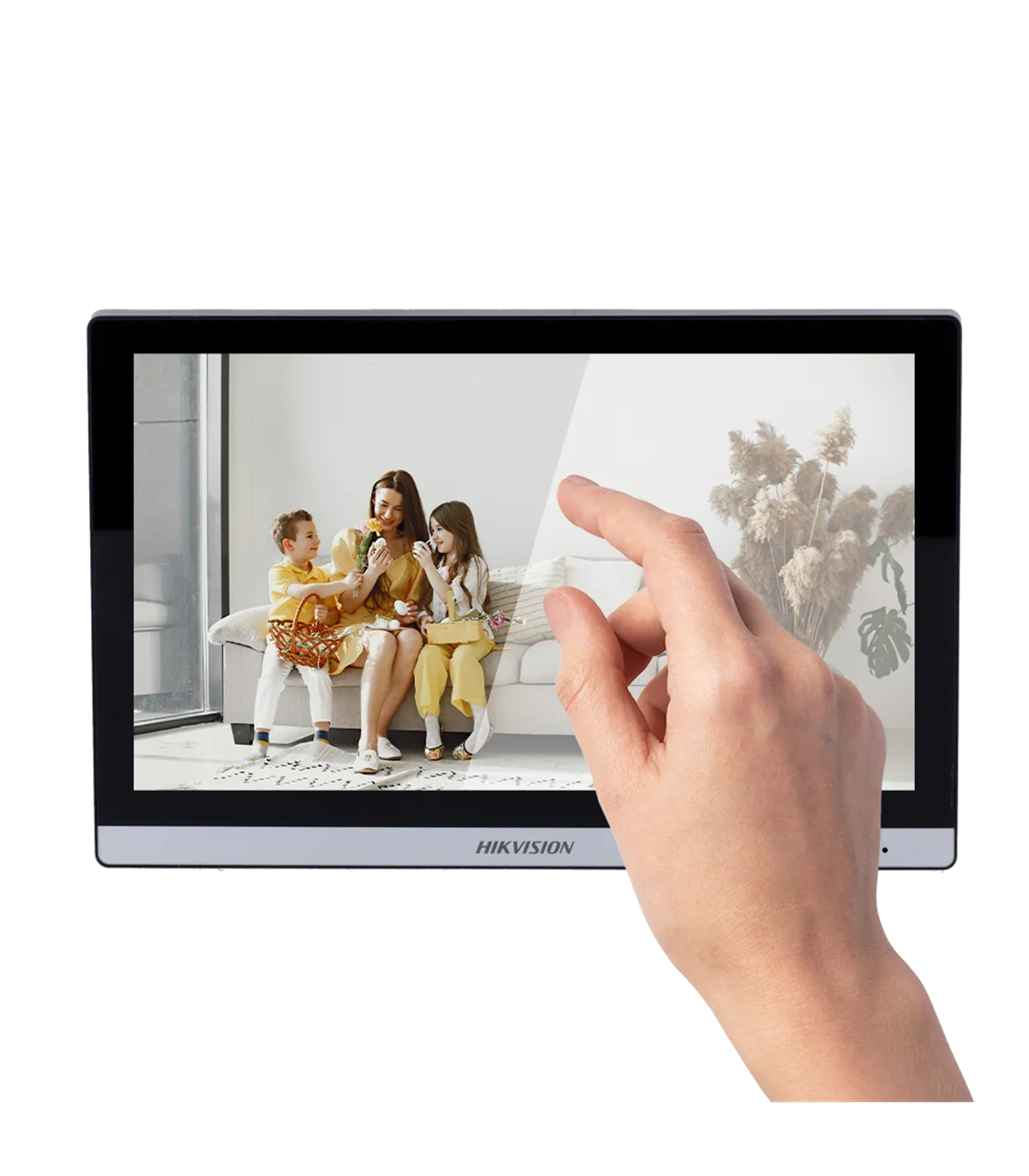

This model features a 7" touchscreen that facilitates user operation.

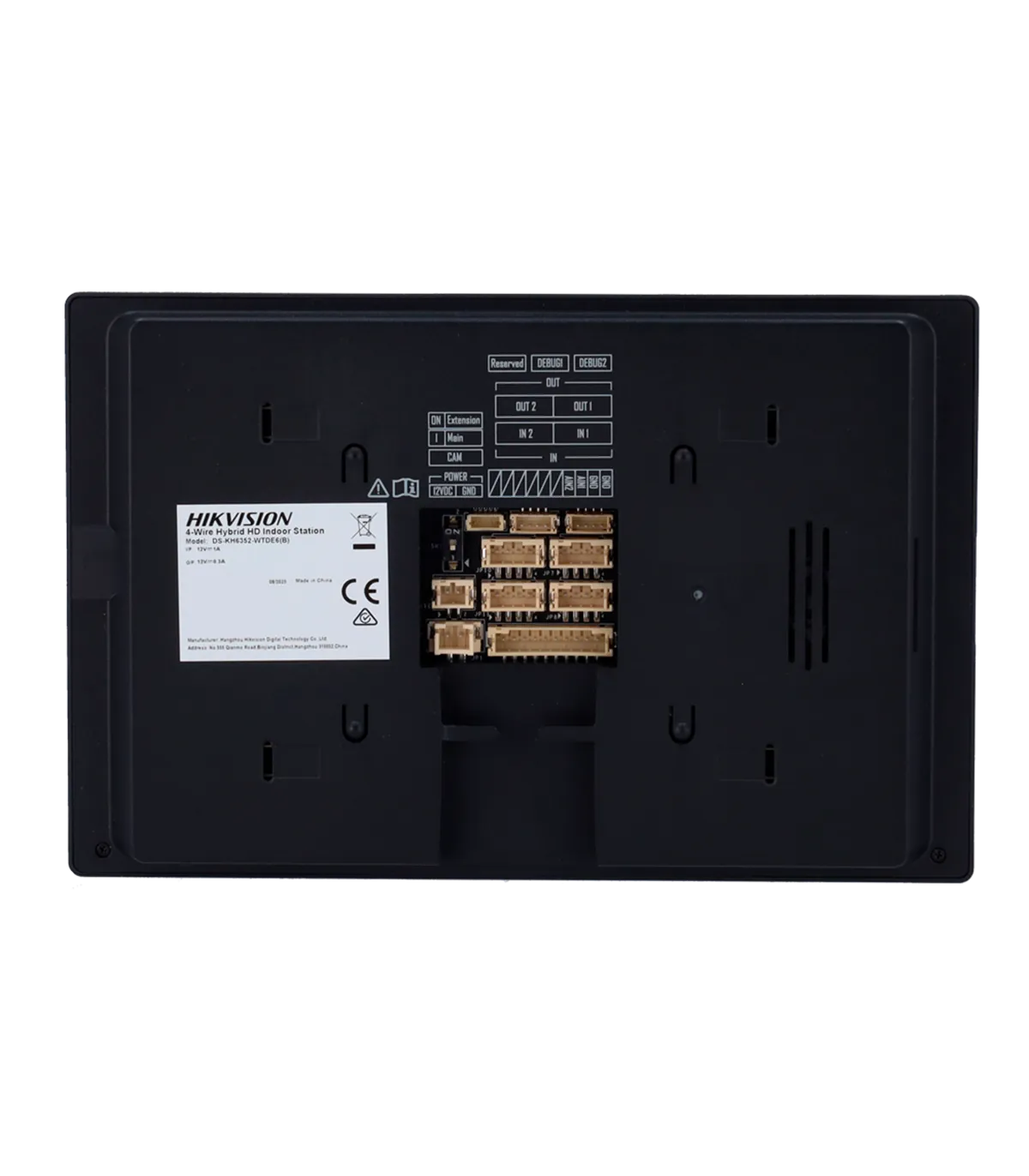

The 4-wire devices communicate and are powered through conventional copper cables (referred to as wires), allowing for the reuse of existing conventional installations that already have this type of wiring.
Using the iVMS-4200 software, the linking of panels and monitors is performed to make and receive calls, create contacts, send informational messages to the monitors, or review call logs.
With the Hik-Connect mobile application, end users can receive calls, open the door, or view the panel camera live, all from anywhere.
| Brand | Hikvision |
| Model | DS-KH6352-WTDE6(B) |
| Operating System | Linux |
| Screen Type | 7" color TFT touchscreen |
| Screen Resolution | 1024 x 600 |
| Inputs | 2 x 4 wires for outdoor panels, 1 x analog camera, 2 x alarm |
| Outputs | 2 x 4 wires for indoor monitor |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 4-wire analog / WiFi 802.11 b/g/n (only for app connection via P2P) |
| Remote Access | Hik-Connect mobile app |
| Power Supply | DC 12 V / 420 mA max. |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 114 (H) x 175 (W) x 18 (D) mm |
| Weight | 260 g |
Data sheet
