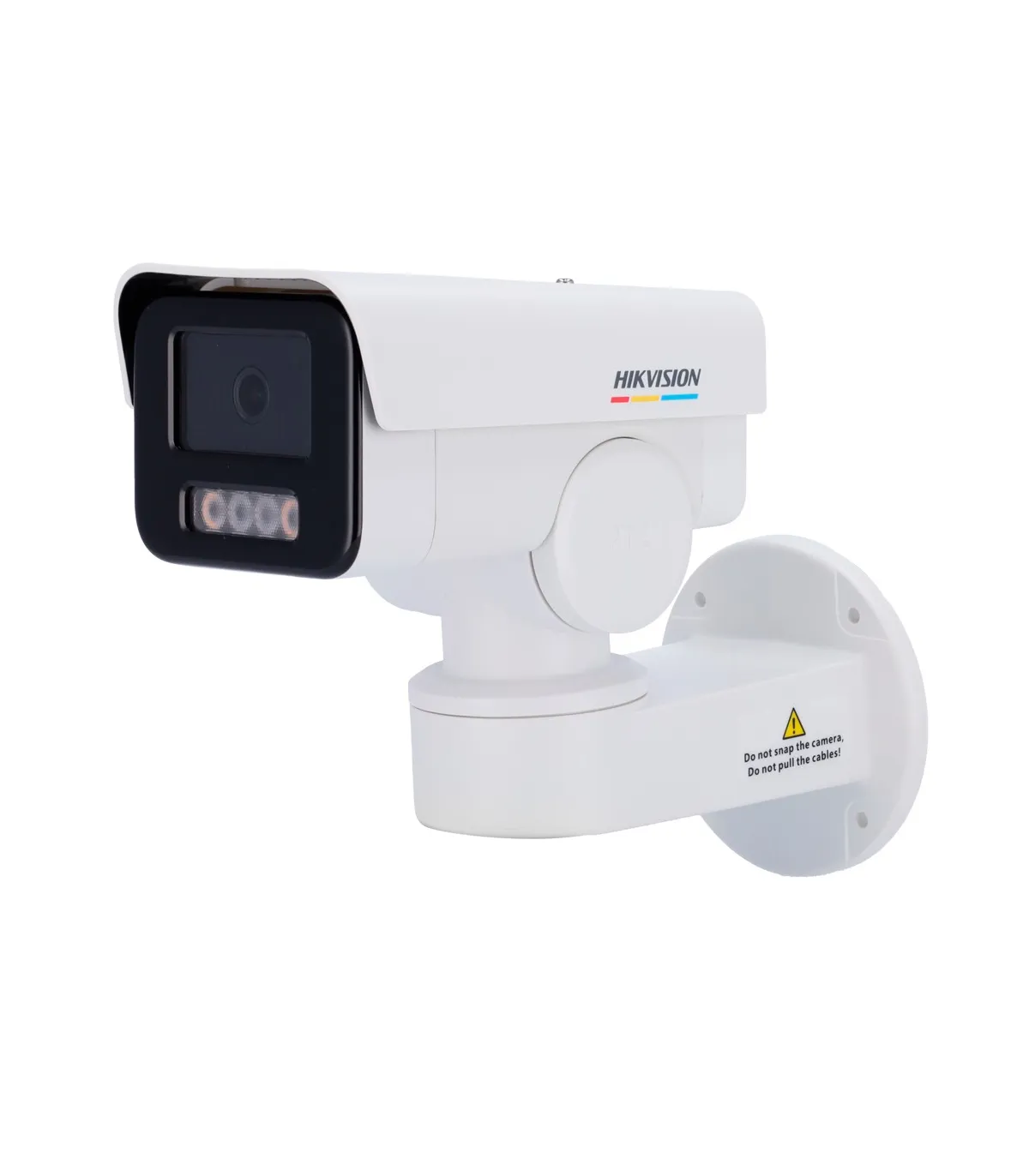

| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optical | 2.8 mm |
| Angle of view (FOV) | H: 106°, V: 57°, D: 126° |
| DORI | 44 m (D), 17 m (W), 8 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Lighting minimum | ColorVu: color image 24 hours Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with white light range 30 m |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Privacy masking |
| Pan-Tilt Movement | Pan: -100° to 100° Tilt: -20° to 45° |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 910 mA / 11 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP66 |
| Material | Front cover: Metal Body: Plastic Support: Plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 197.1 mm (H) x 105 mm (W) x 225.4 mm (D) |
| Base dimensions | base Ø 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 900 g |
Data sheet
