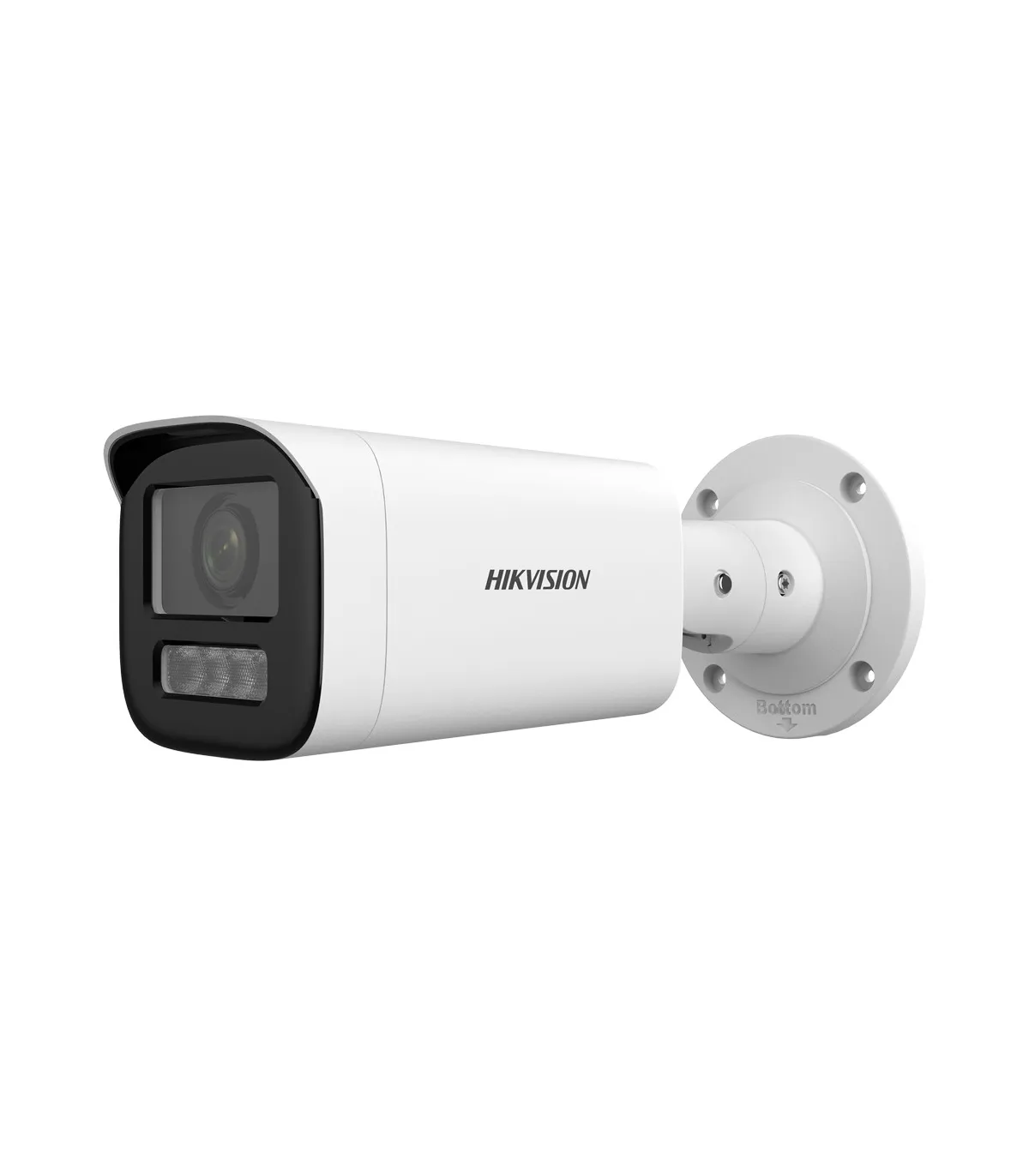

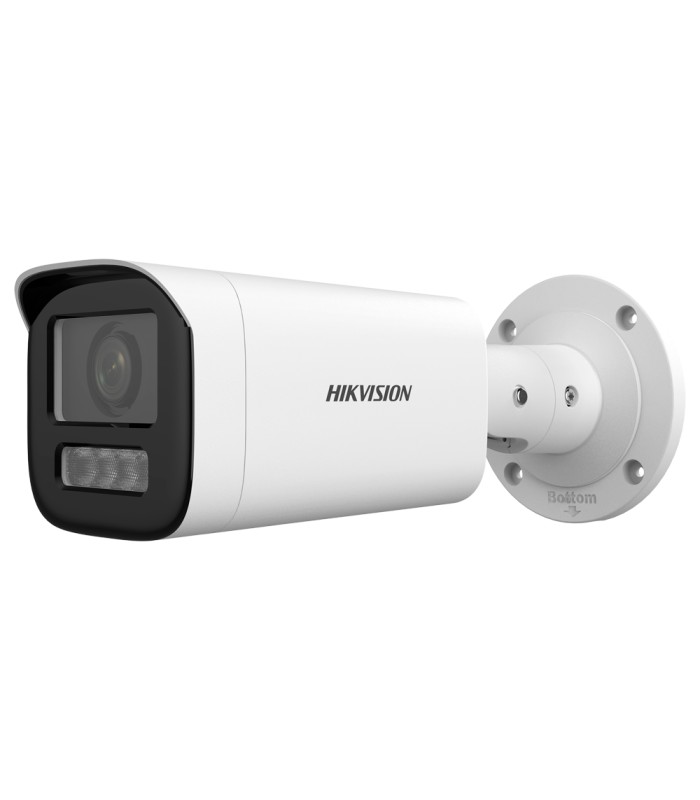

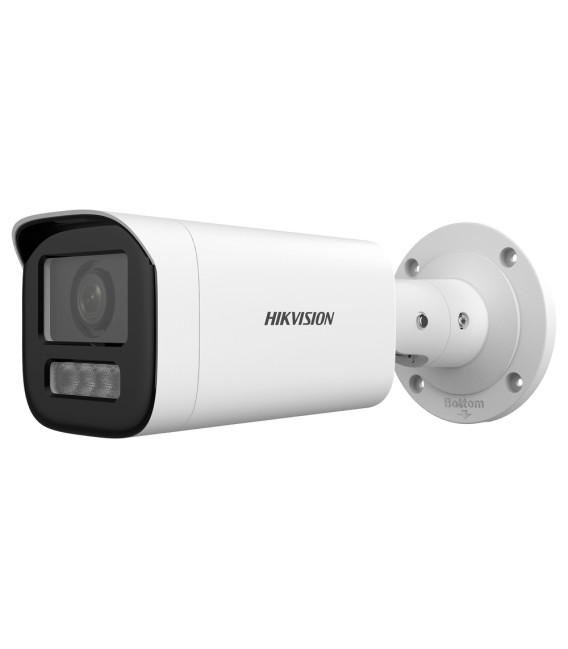

Hikvision DS-2CD1643G2-LIZSU IP Bullet Camera (2.8-12mm)
Brand: HIKVISION VALUE
- Hikvision VALUE IP Bullet Camera
- 4 Megapixel Resolution (2560x1440)
- Motorized Lens 2.8~12 mm
- Hybrid Light Range 50 m | PoE | H.265+ | IP67
- Integrated Microphone | Alarms | Audio
- Motion Detection 2.0 | MicroSD
Hikvision DS-2CD1643G2-LIZSU(2.8-12mm) IP Bullet Camera
- Hikvision
- VALUE range
- IP Bullet Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Motorized varifocal lens 2.8~12 mm
- Hybrid light: IR and white light
- Hybrid light advancement 50 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- DWDR
- 3D-DNR
- Alarms
- Audio
- Built-in microphone
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | HIKVISION |
| Range | VALUE |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Resolution maximum | Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps 1(920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Angle of view (FOV) | H: 96.7~29.7°, V: 51.7~16.7°, D: 114.3~34° |
| DORI | 64~198 m (D), 25.4~78.6 m (W), 12.8~39.6 m (R), 6.4~19.8 m (L) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary lighting | Hybrid light: IR and white light IR range: 50 m White light range: 50 m |
| Day/night | Removable ICR mechanical filter |
| Image enhancements | WDR (120dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Alarms | 1 entry / 1 output |
| Audio | 1 input / 1 output Built-in microphone |
| Audio type | Mono |
| Audio compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Detection of movement | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal storage | MicroSD card slot up to 512 GB |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK |
| Power | DC 12 V / 880 mA / 10.5 W max PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 105 mm x 252 mm (Fo) |
| Dimensions of the base | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 585 g |
Contents
- Value IP camera Hikvision
- Installation material
- Instructions for use
