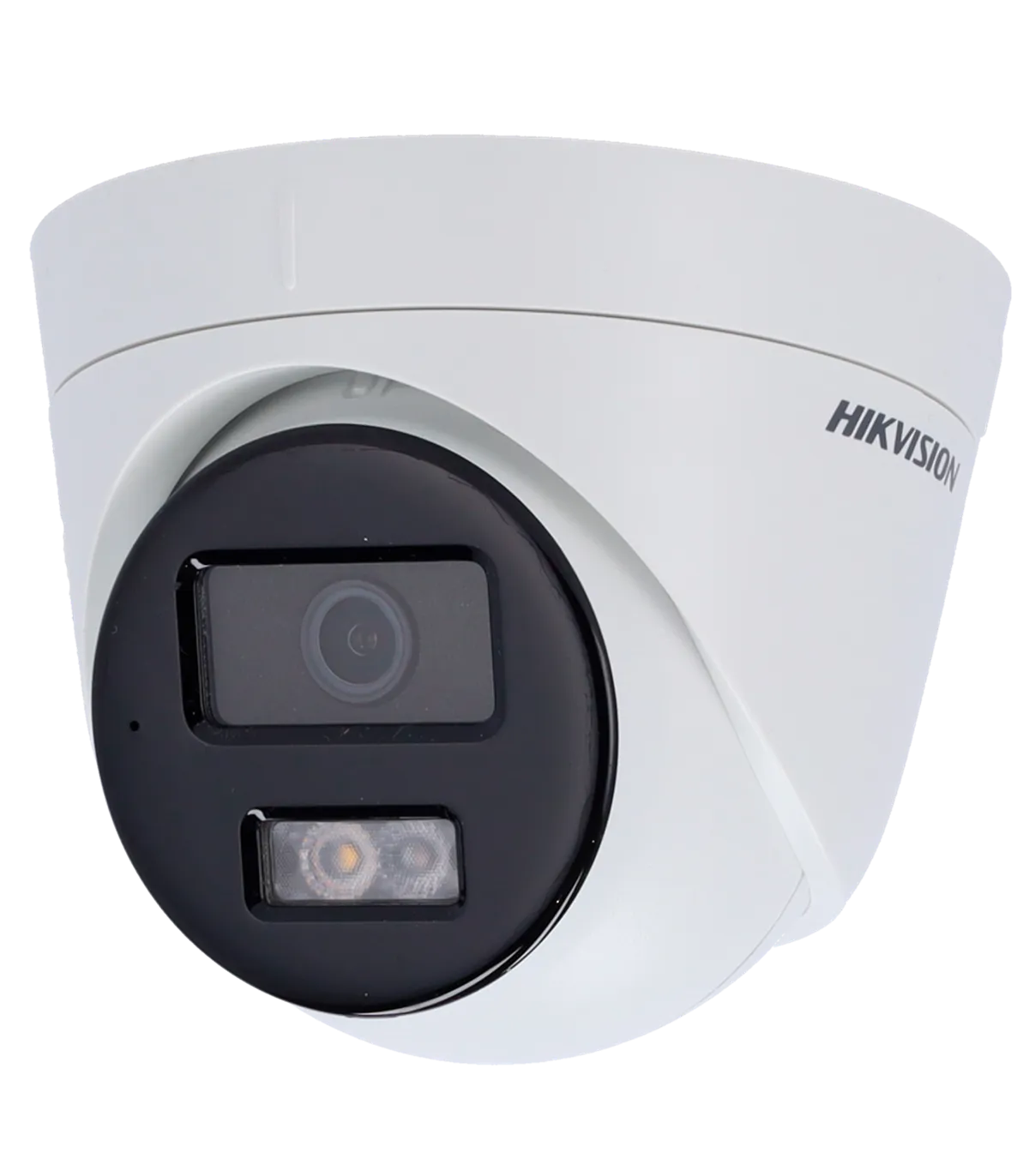

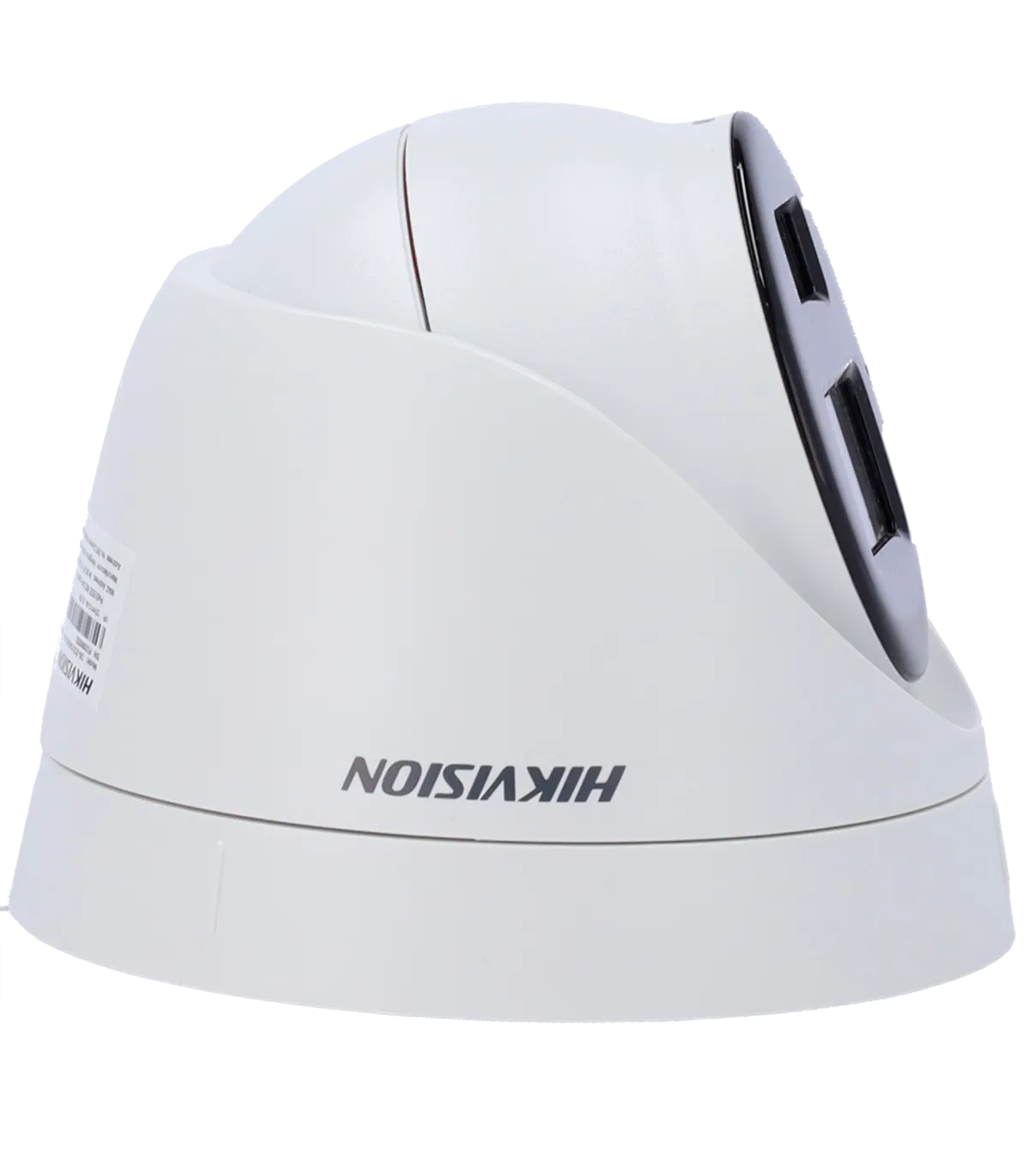

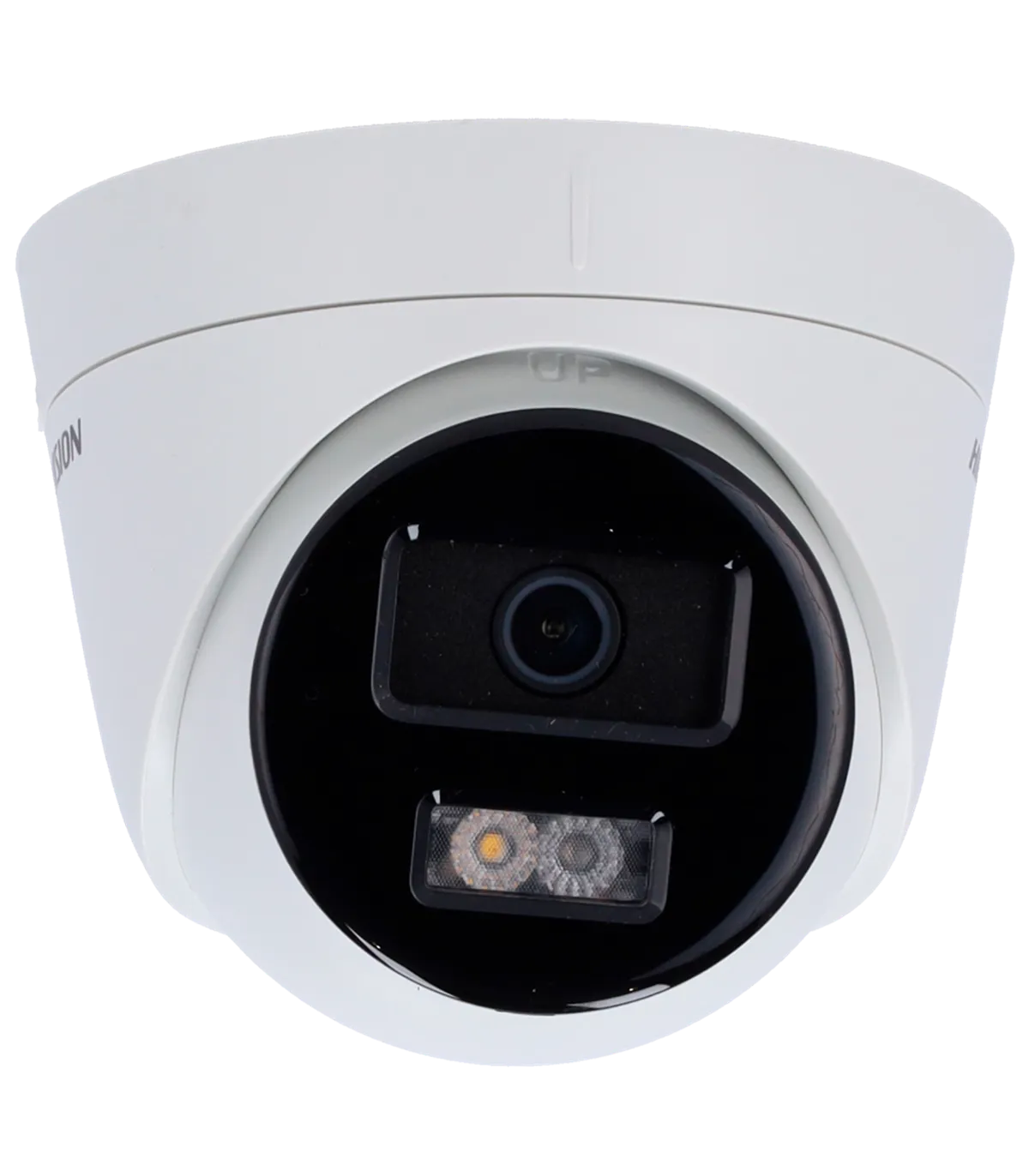

The DS-2CD1341G2-LIU(4mm) is a high-performance IP turret camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera delivers exceptional 4 Megapixel resolution (2560x1440) and features a 4 mm lens for a wide field of view. With advanced features such as H.265+ compression and motion detection, it ensures efficient video storage and reliable monitoring.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 82°, V: 45°, D: 98° |
| DORI | 67 m (D), 26 m (O), 13 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.2, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 20 m White Light Range 20 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 420 mA / 5 W max. PoE IEEE802.3af, Class 3, 6.5 W max. |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +45º C |
| Dimensions | Ø 110 x 89.2 mm (H) |

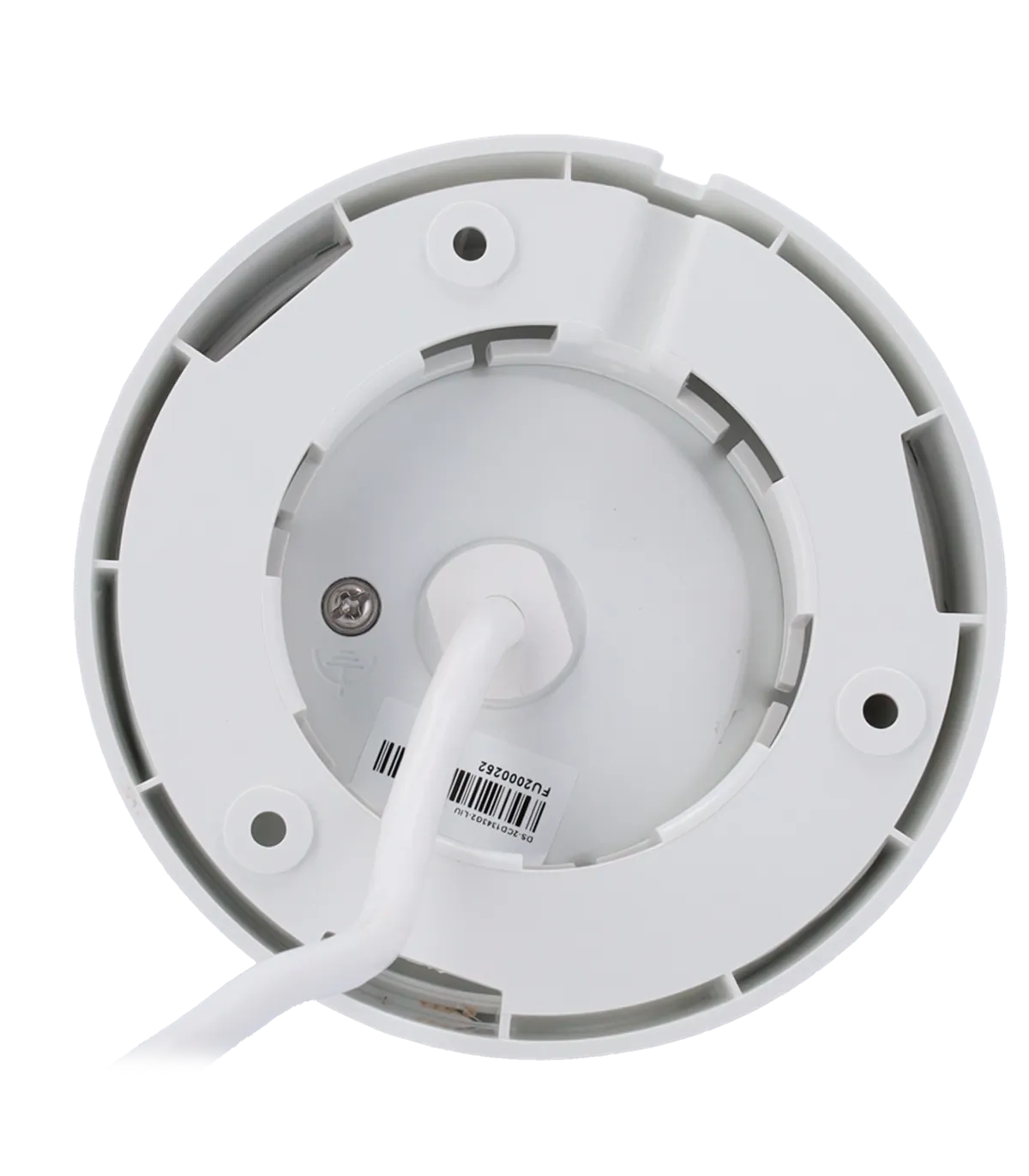

| Base Dimensions | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 345 g |
The DS-2CD1341G2-LIU(4mm) is an excellent choice for various surveillance scenarios, such as monitoring retail stores, parking lots, or residential areas. Its 4 Megapixel resolution ensures clear images, while the hybrid light technology allows for effective night-time surveillance with both IR and white light capabilities. Installers can benefit from the plug-and-play functionality, making setup straightforward and efficient. The camera's remote monitoring capabilities via web browsers and mobile apps enable users to keep an eye on their premises from anywhere. Additionally, the motion detection feature with human and vehicle classification enhances security by reducing false alarms. With its IP67 waterproof rating, this camera is built to withstand harsh weather conditions, making it a reliable choice for outdoor installations.
