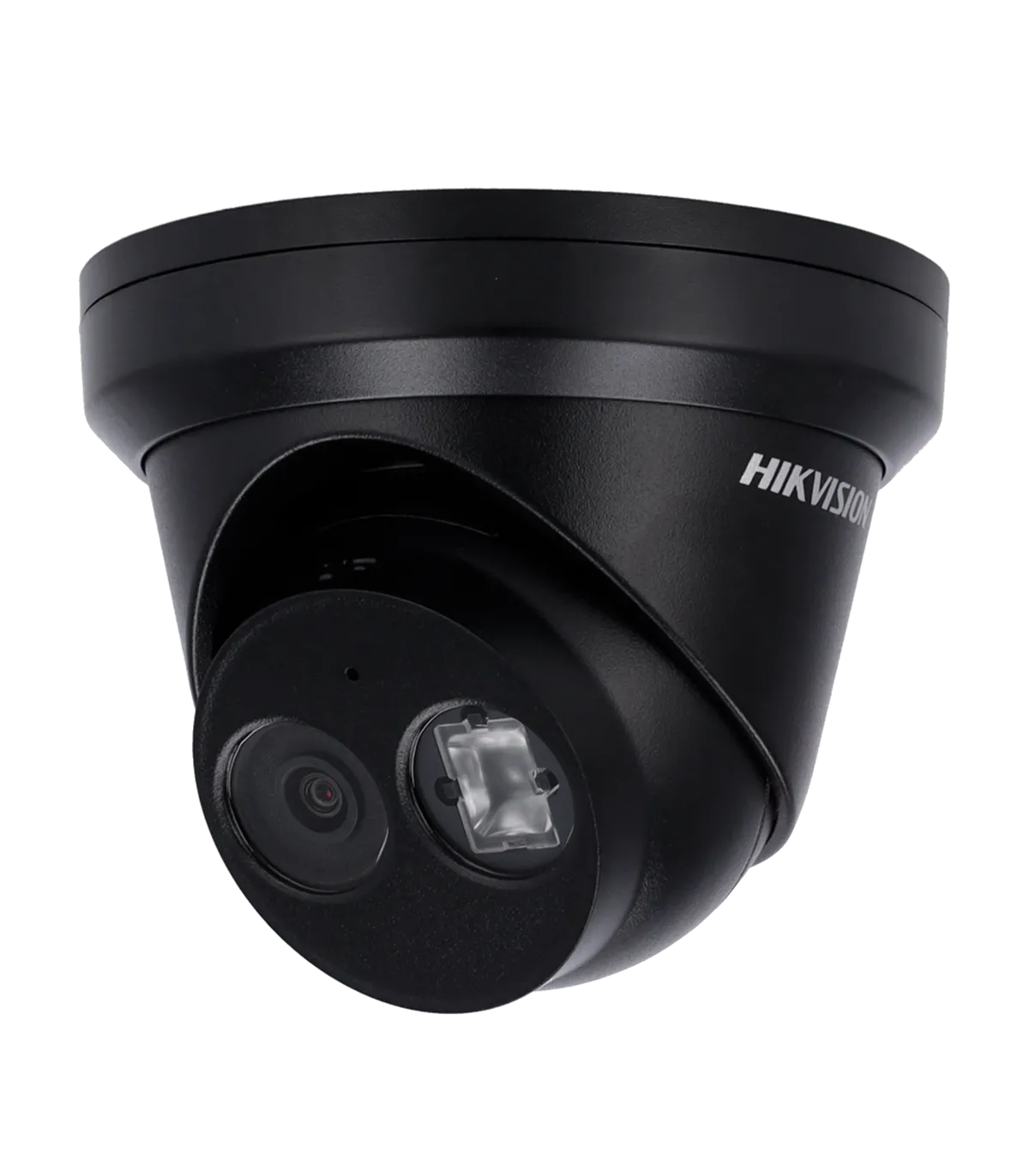

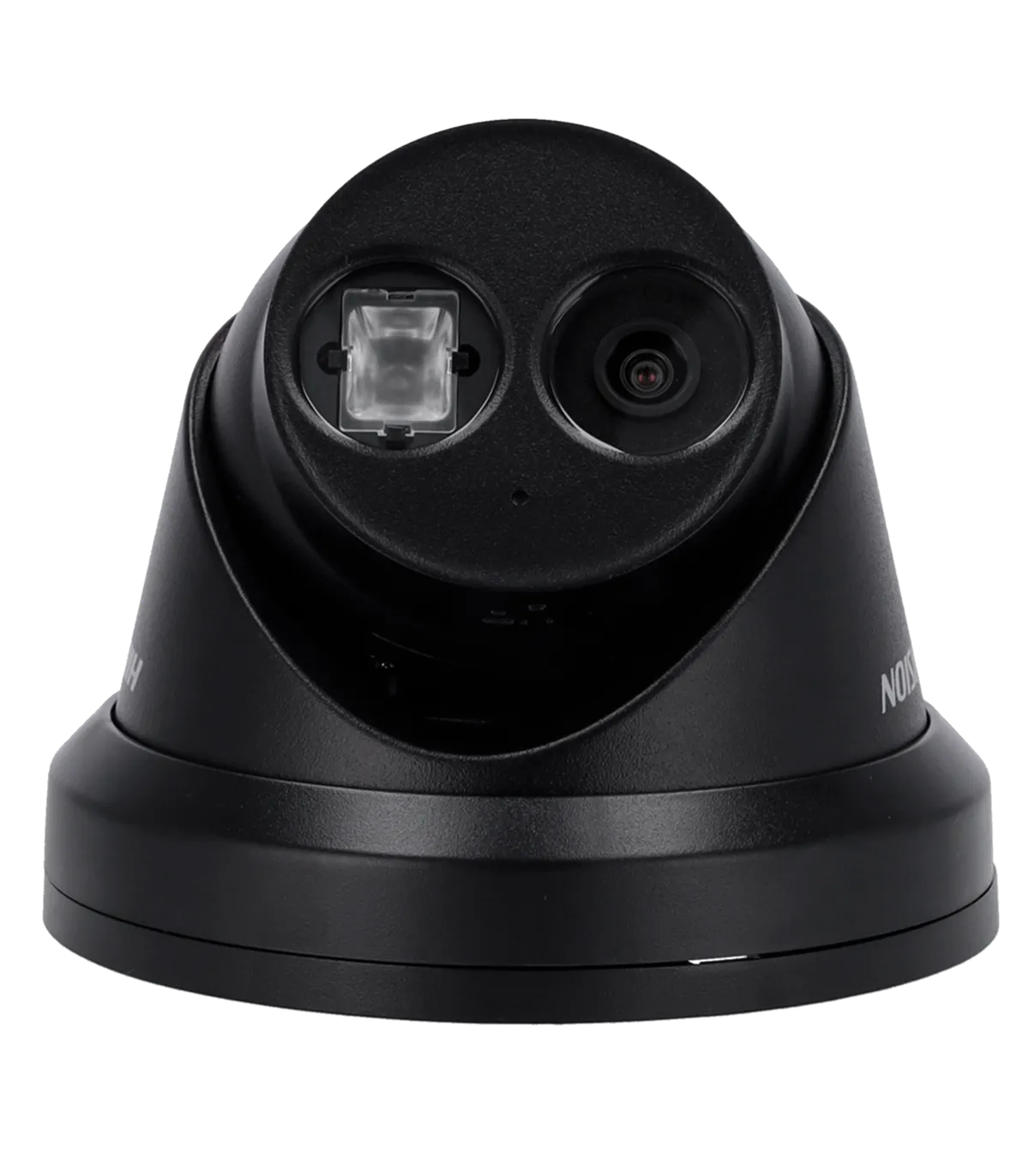

The DS-2CD2343G2-IU(2.8mm)(BLACK) is a high-performance IP turret camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this device offers exceptional image quality with its 4 Megapixel resolution and advanced features such as motion detection and face detection. Its robust design ensures reliability in various conditions, making it a perfect choice for security professionals seeking to enhance their surveillance systems.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 55°, D: 122° |
| DORI | 67 m (D), 26 m (O), 13 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Audio | Integrated Microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 95.9 mm (H) |
| Base Dimensions | Ø base 127.3 mm / Ø screw holes 112 mm / 3 screws |
| Weight | 600 g |
| Color | Black |
The DS-2CD2343G2-IU(2.8mm)(BLACK) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. With its high-resolution imaging and night vision capabilities, this camera ensures clear visibility even in low-light conditions. Installers can benefit from its plug-and-play functionality, allowing for quick setup and integration into existing security systems. The remote monitoring feature enables users to access live feeds and recorded footage from anywhere, enhancing security management. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, making it an essential tool for effective surveillance. Overall, the DS-2CD2343G2-IU(2.8mm)(BLACK) provides a reliable and efficient solution for comprehensive security needs.
