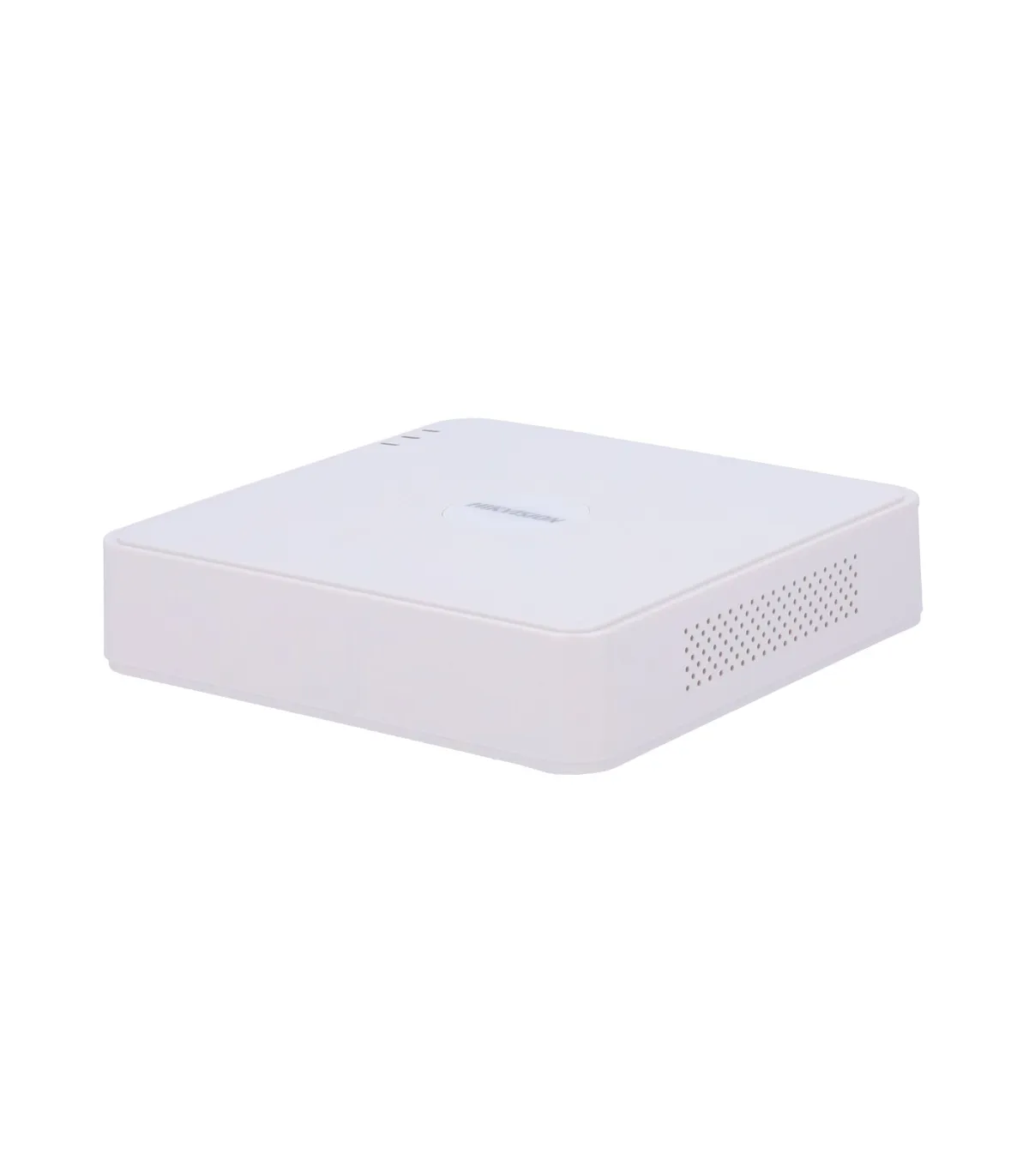

| Brand | HIKVISION | |
| Range | CORE | |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP | |
| Video inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) | |
| Hybrid configuration | 1CH additional IP: Up to 5 IP channels (6Mpx), replacing all BNC channels Enhanced IP mode: 2CH additional IP: Up to 6 IP channels (4Mpx), replacing all BNC channels | |
| Available bandwidth | 72 Mbps | |
| Video outputs | 1 HDMI Full HD and 1 VGA, simultaneous; | |
| Display resolution | HDMI: 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 | |
| Audio inputs | 1 Channel RCA | |
| Audio outputs | 1 Channel RCA | |
| Two-way audio | Reusing the audio input | |
| Audio Bit Rate | 64 Kbps | |
| Audio compression | G.711u | |
| Video compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 | |
| Recording resolution | When 1080p Lite mode is not enabled: 3L Lite/ 5 MPx Lite/ 4Mpx Lite/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF When 1080p Lite mode is enabled: 3L Lite/ 5 MPx Lite/ 4Mpx Lite/ 1080p Lite/ 720p Lite/ VGA / WD1/ 4CIF/ CIF | |
| Input resolution | HDTVI: 3K (20 fps), 5MPx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) HDCVI: 5MPx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) AHD: 5MPx (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps), 720p (25~60 fps) CVBS: PAL/NTSC | |
| Main Stream Encoding | 1080P Lite not enabled: For 3K stream: 3K Lite (12 fps), 4 MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For the 5 Mpx stream: 5 Mpx Lite (12 fps), 4 MPx Lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (20 fps) For the 4 Mpx stream: 4 Mpx lite/1080p (15 fps), 720p/WD1/4CIF/VGA/CIF (25fps) (N) 720p/VGA/WD1/4CIF/CIF (25fps (P), 30fps (N)) Video Bit Rate | 32 Kbps to 6 Mbps |
| Simultaneous multifunction | Pentaplex: Direct, Recording, Playback, Backup and Remote Access | |
| Alarms | Not available | |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. Available on all analog channels. * Motion detection and AcuSense cannot be enabled at at the same time on the same device. | |
| Intelligent functions | AcuSense Technology based on DeepLearning for classification of humans and vehicles with reduction of false alarms applied to: Line Crossing, Area Intrusion, Entry Region, Exit Region Available in 2 video channels analog. * Motion detection and AcuSense cannot be enabled at the same time on the same device. | |
| Face Detection | Yes | |
| Recording method | Manual, scheduled, motion detection | |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network | |
| Internal storage | 1 3.5" SATA HDD up to 10 TB (not included) | |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) | |
| Remote Connections | 32 | |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central | |
| Power | DC 12 V, 1.5 A, ≤ 8 W (without HDD) | |
| Operating Temperature | -10° ~ +55° C | |
| Dimensions / Weight | 45 (H) mm x 200 (W) mm x 200 (Fo) mm / ≤ 1 Kg (without HDD) | |
| Color | White |
Data sheet
