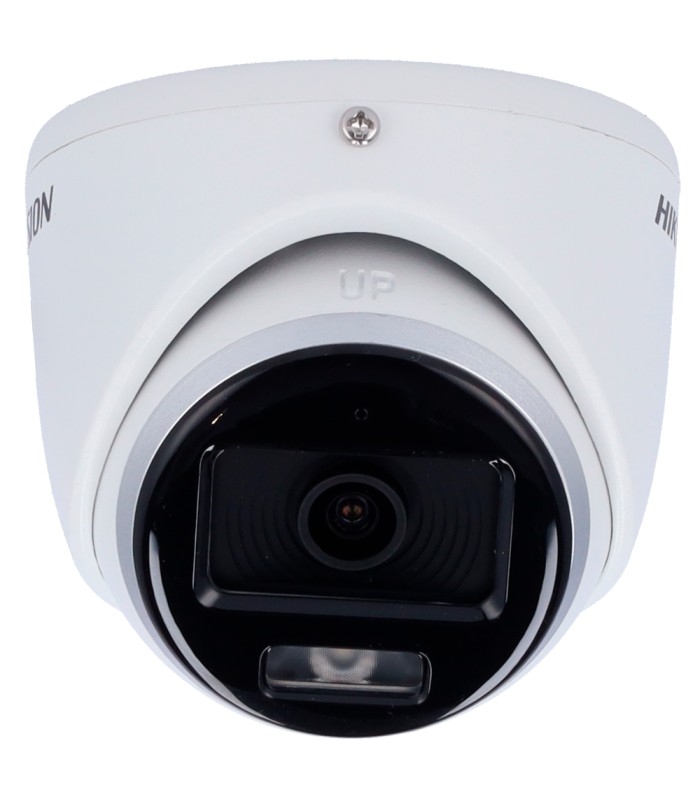

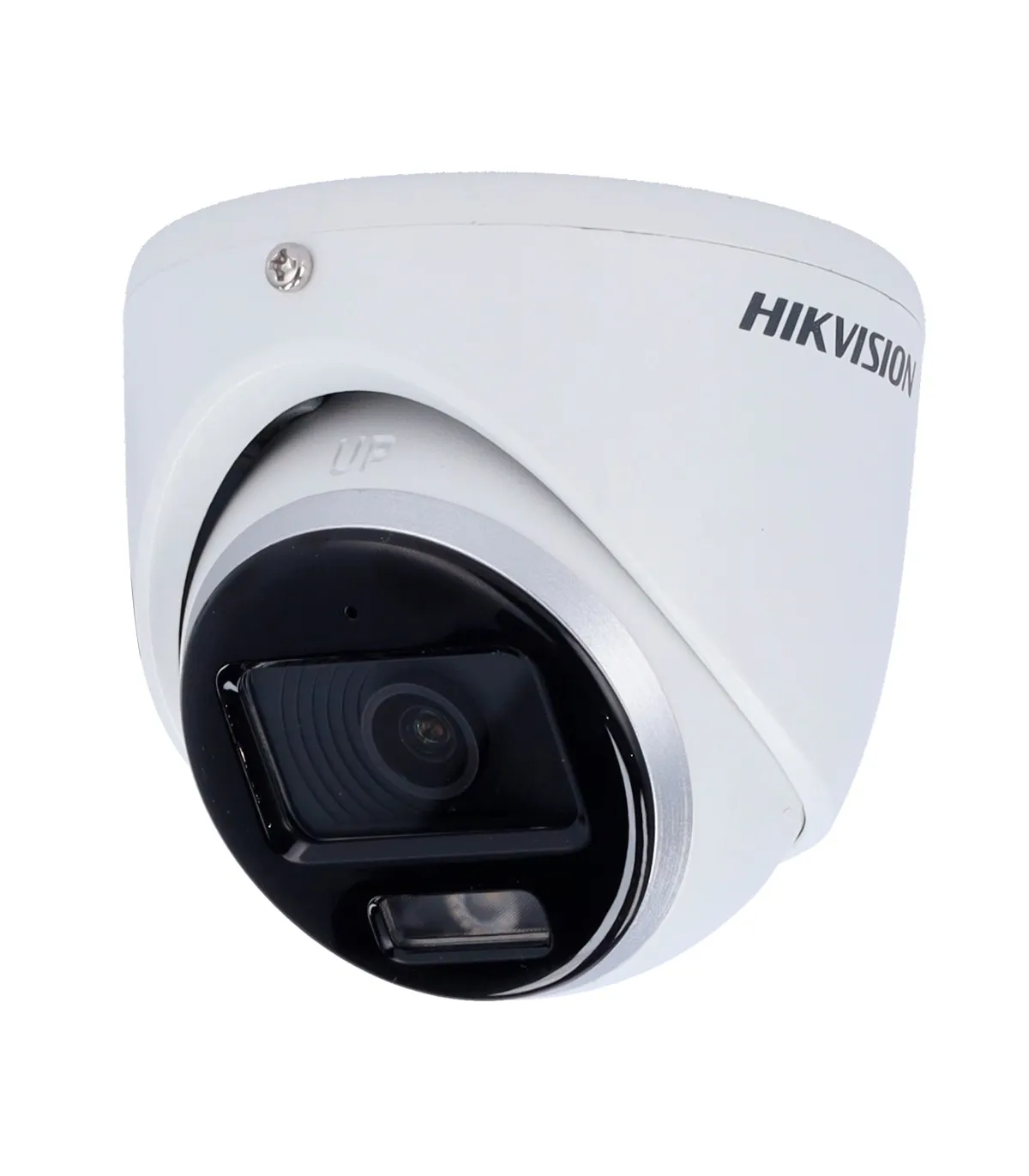

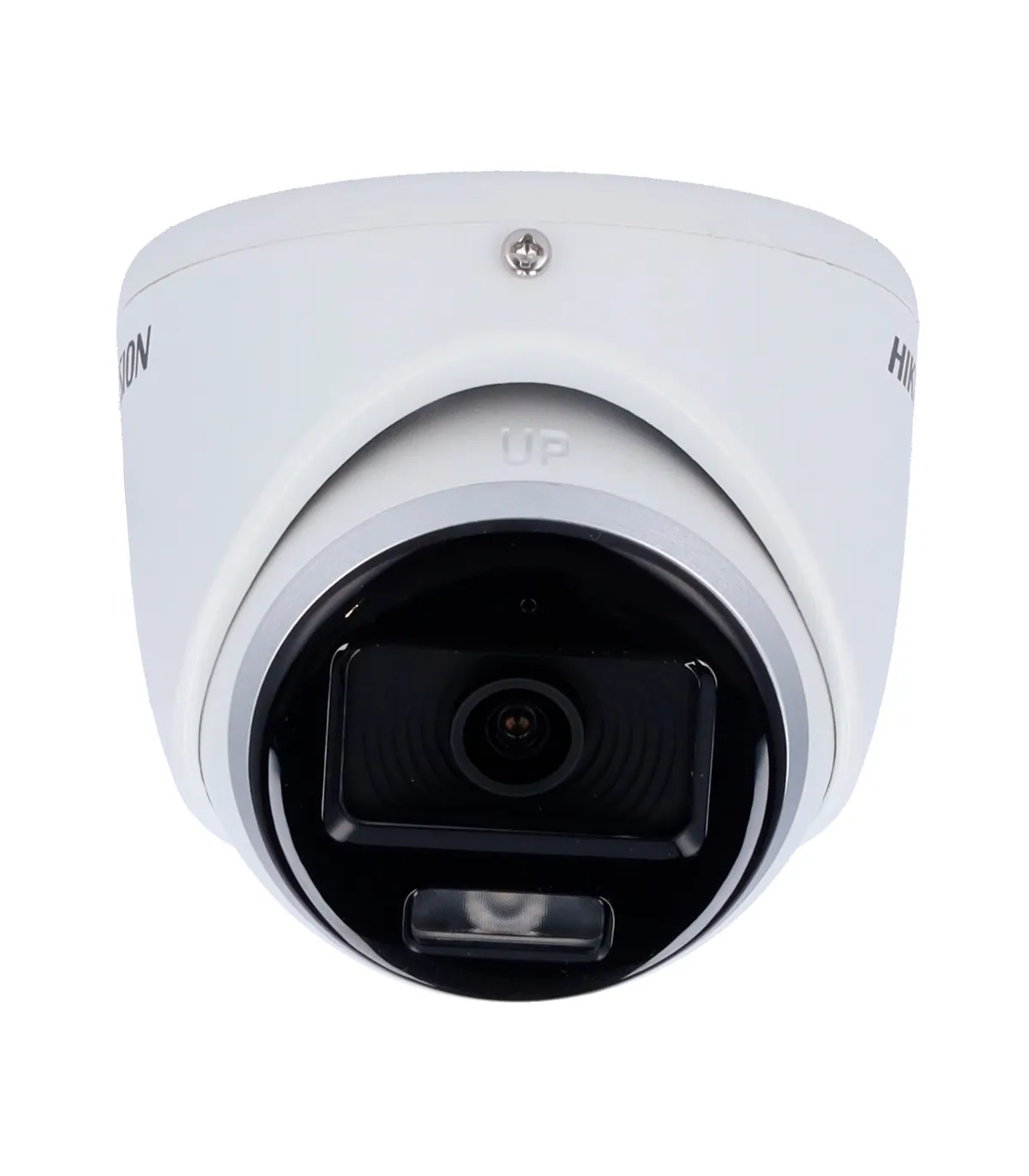

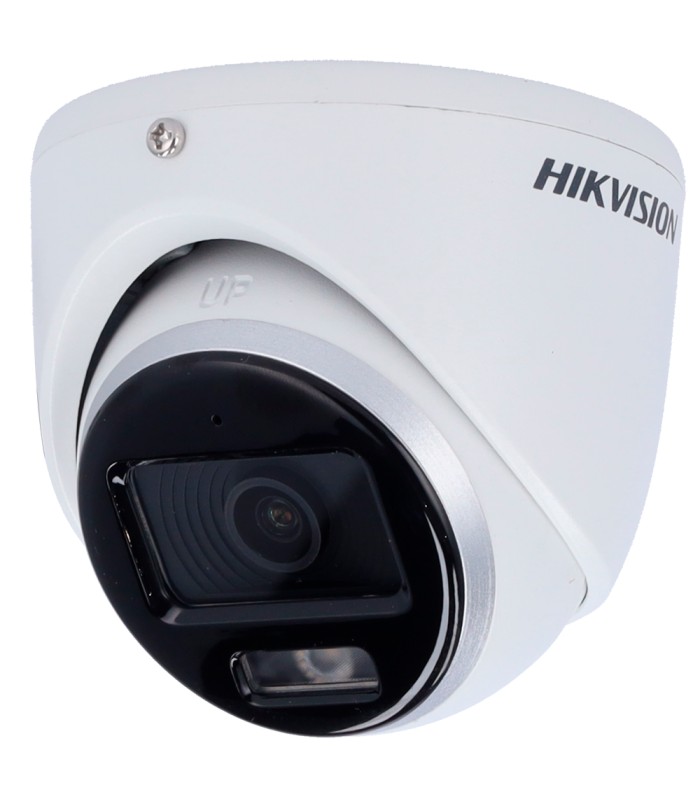

| Brand | Hikvision |
| Range | Value |
| Image Sensor | 2 MPx CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Angle of view (FOV) | 105º (H), 56º (V), 126º (D) |
| Minimum illumination | 0.001 Lux @ (F1.0, AGC ON) 0 lux with white light range 20 m |
| Supplementary lighting | Hybrid light: IR range 20 m White light range 20 m |
| Day / Night | ColorVu: 24-hour color image |

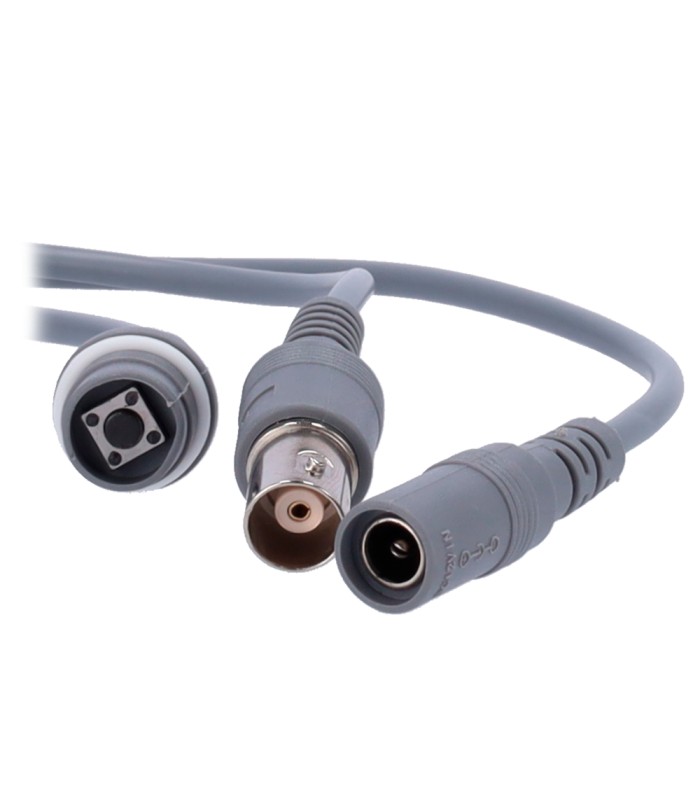

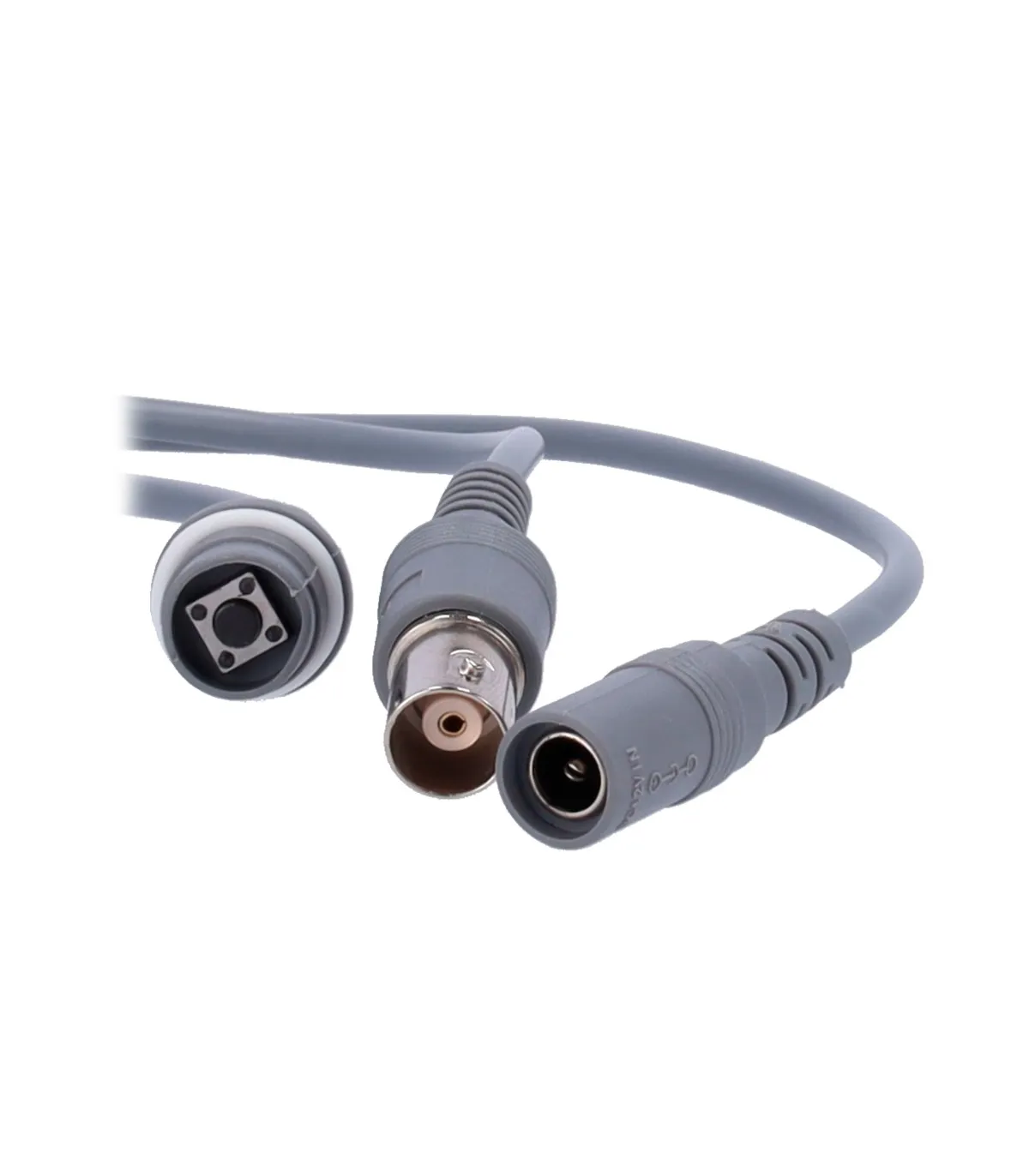

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light |
| Audio | Built-in microphone |
| Communication | HIKVISION-C |
| Positioning Lens | 3 Axis |
| Power | DC 12 V / 2.9 W max. |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 85.11 mm x 77.62 mm (H) |

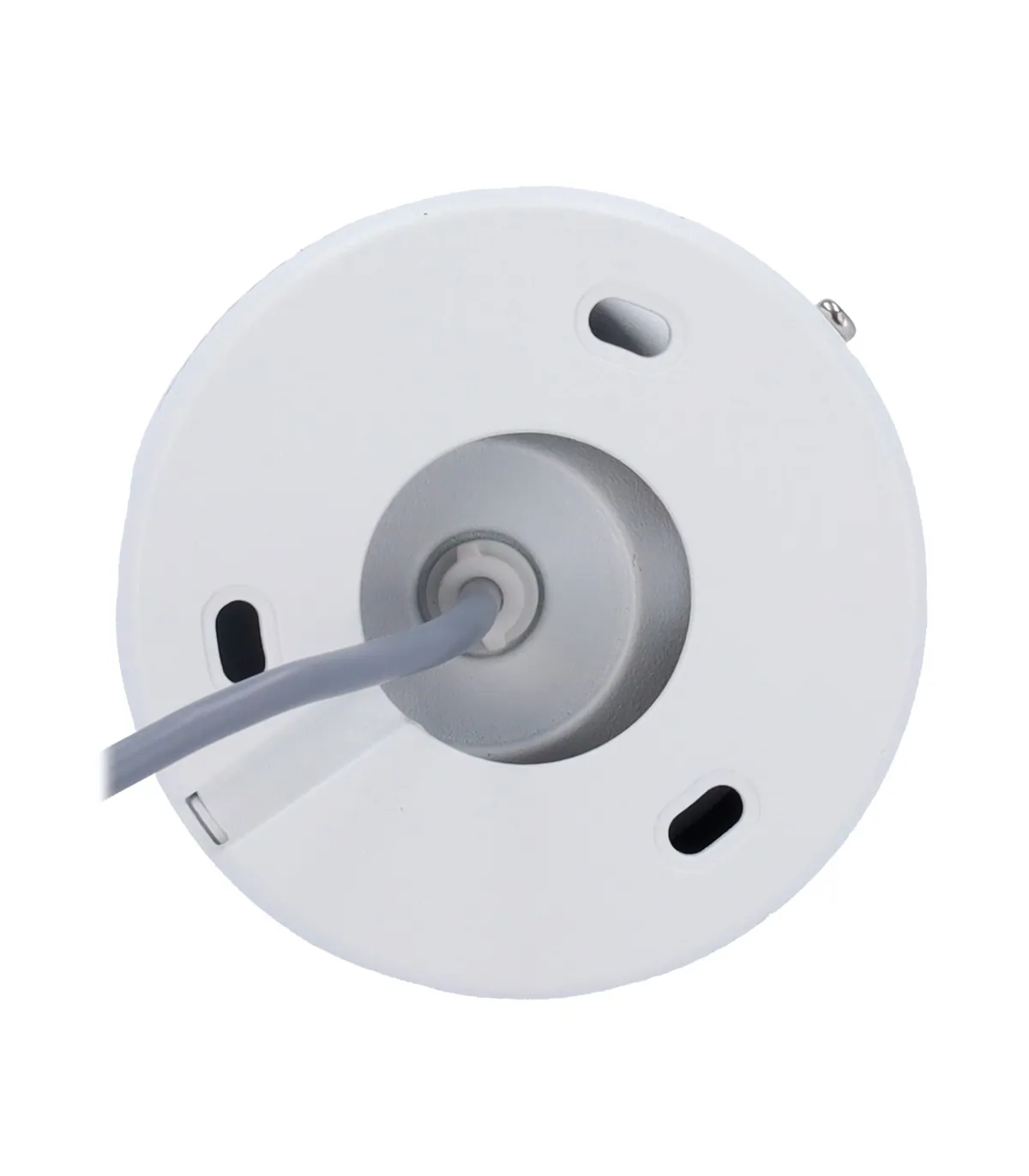

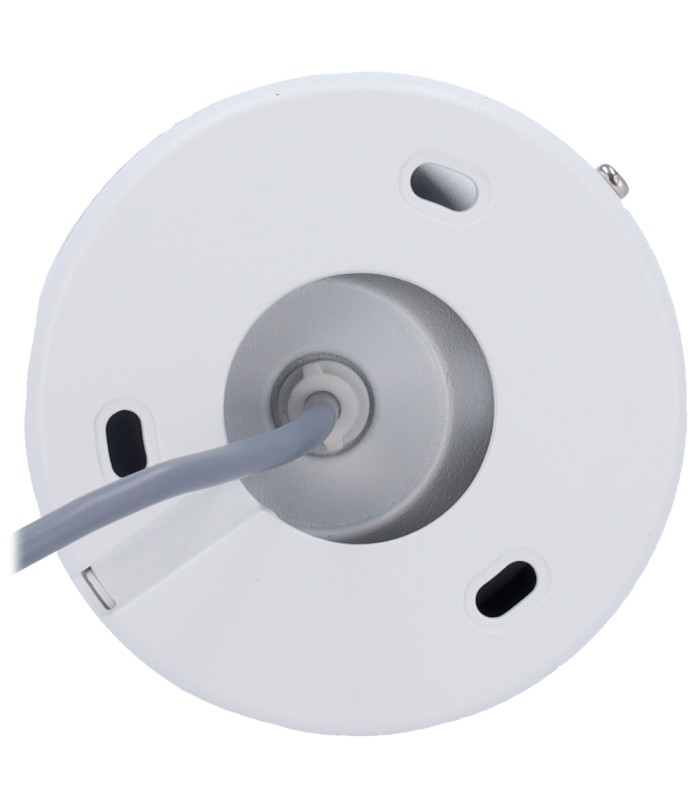

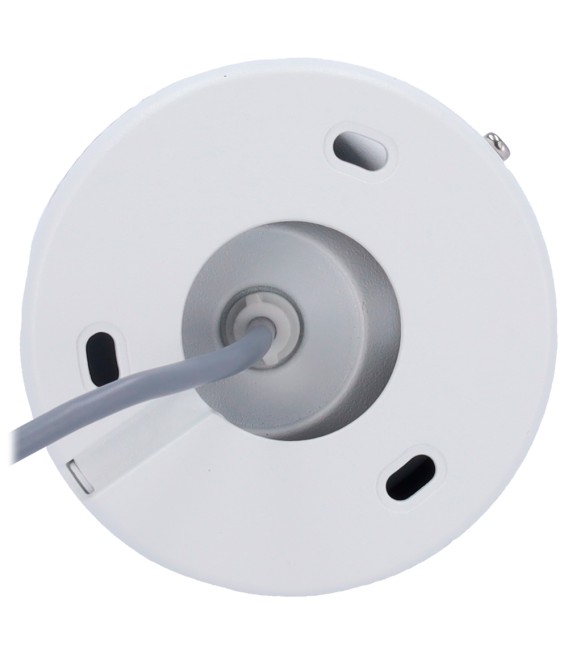

| Base diameter | Ø base 85.11 mm / Ø between screws 60 mm / 3 screws |
| Weight | 320 g |
Data sheet
