| Brand | Hikvision |
| Range | CORE |
| Image Sensor | 2Mpx CMOS |
| Maximum resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 79.6º (H), 43.5º (V), 93.7º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart IR range 40 m) |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Audio | Audio via coaxial cable in technology TVI Built-in microphone |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror Function, Smart IR |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3.7 W max. |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Body: Metal Cover: Plastic |
| Dimensions | Ø 109.82 mm x 91.03 (H) mm |

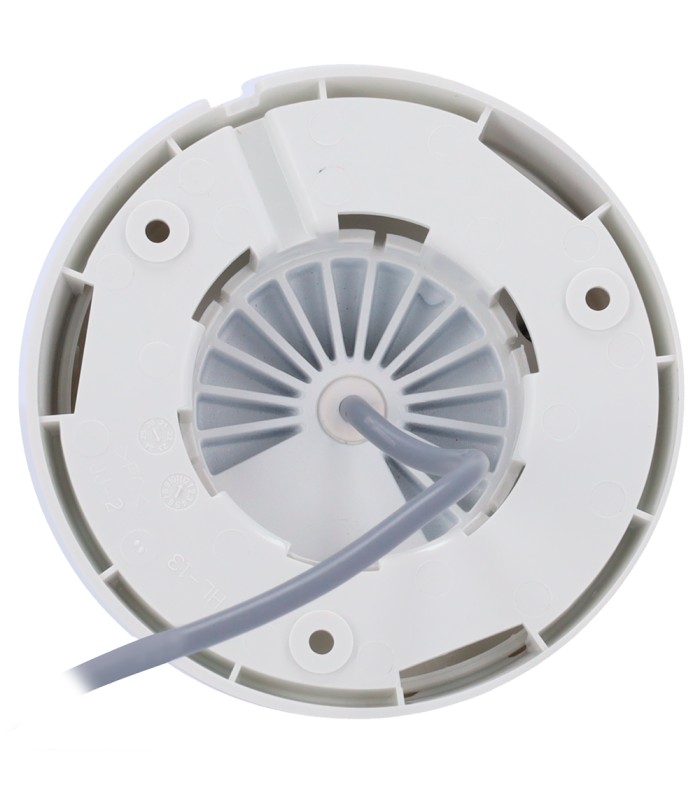

| Base diameter | base Ø 109.82 mm / Ø between screws 85 mm / 3 screws |
| Weight | 300 g |
