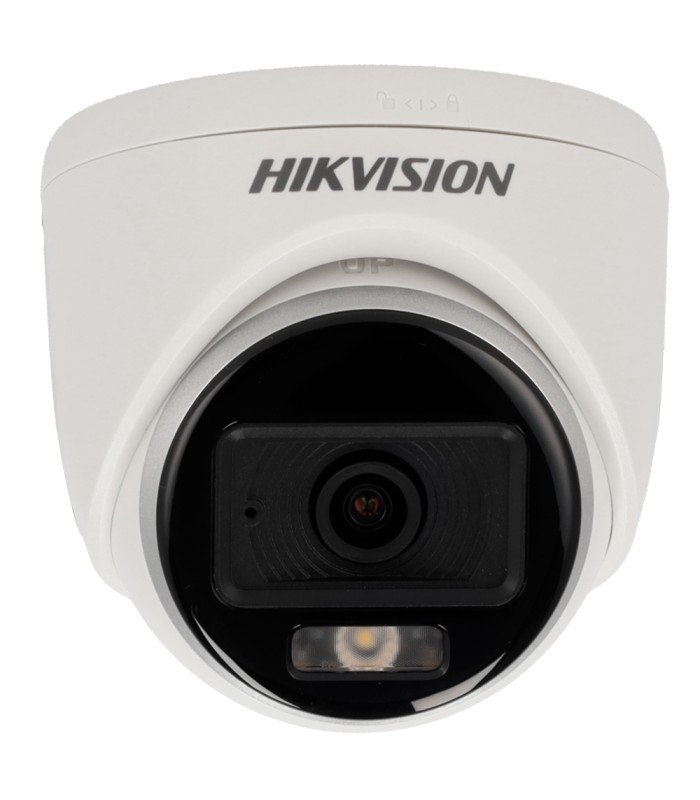

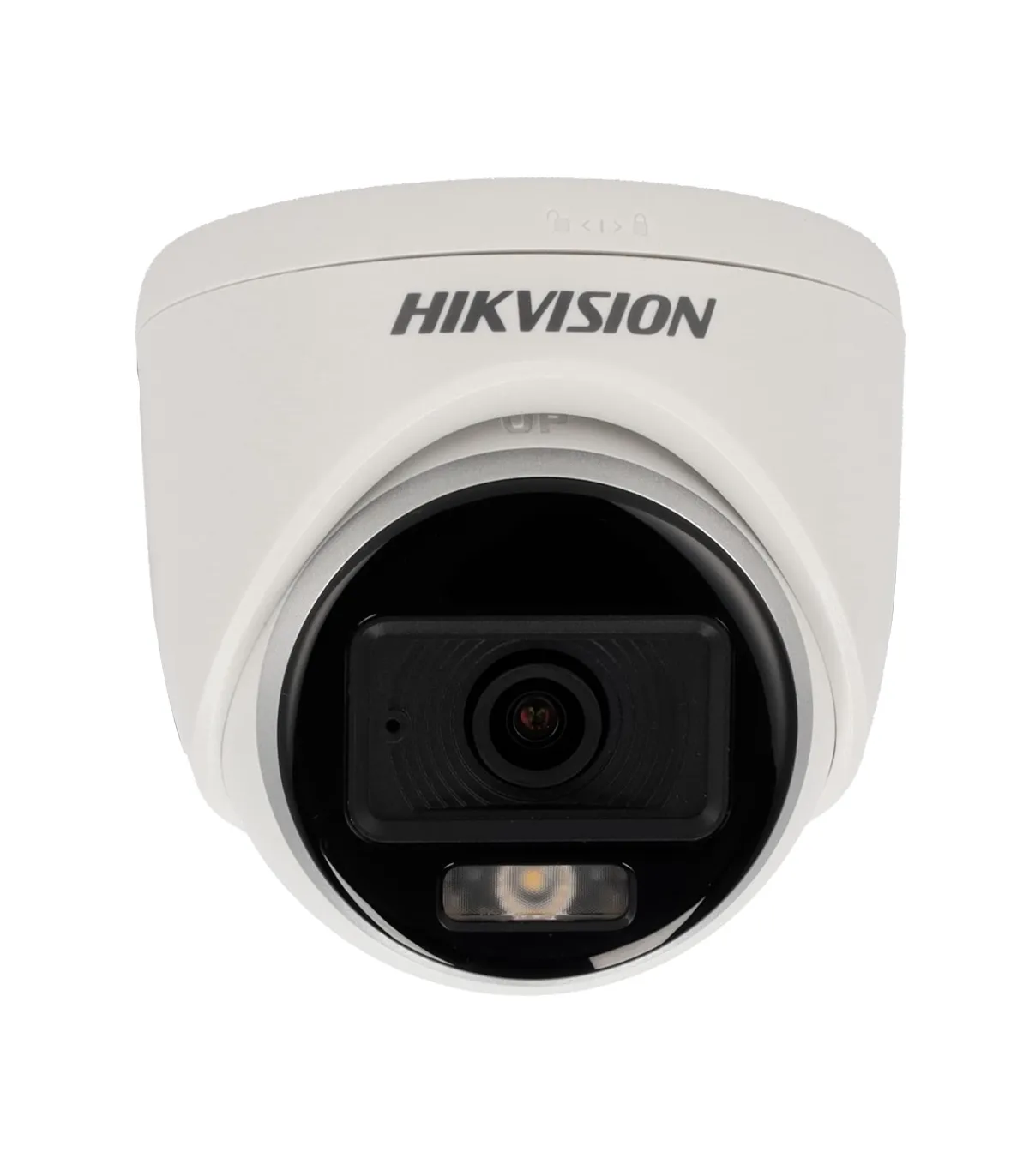

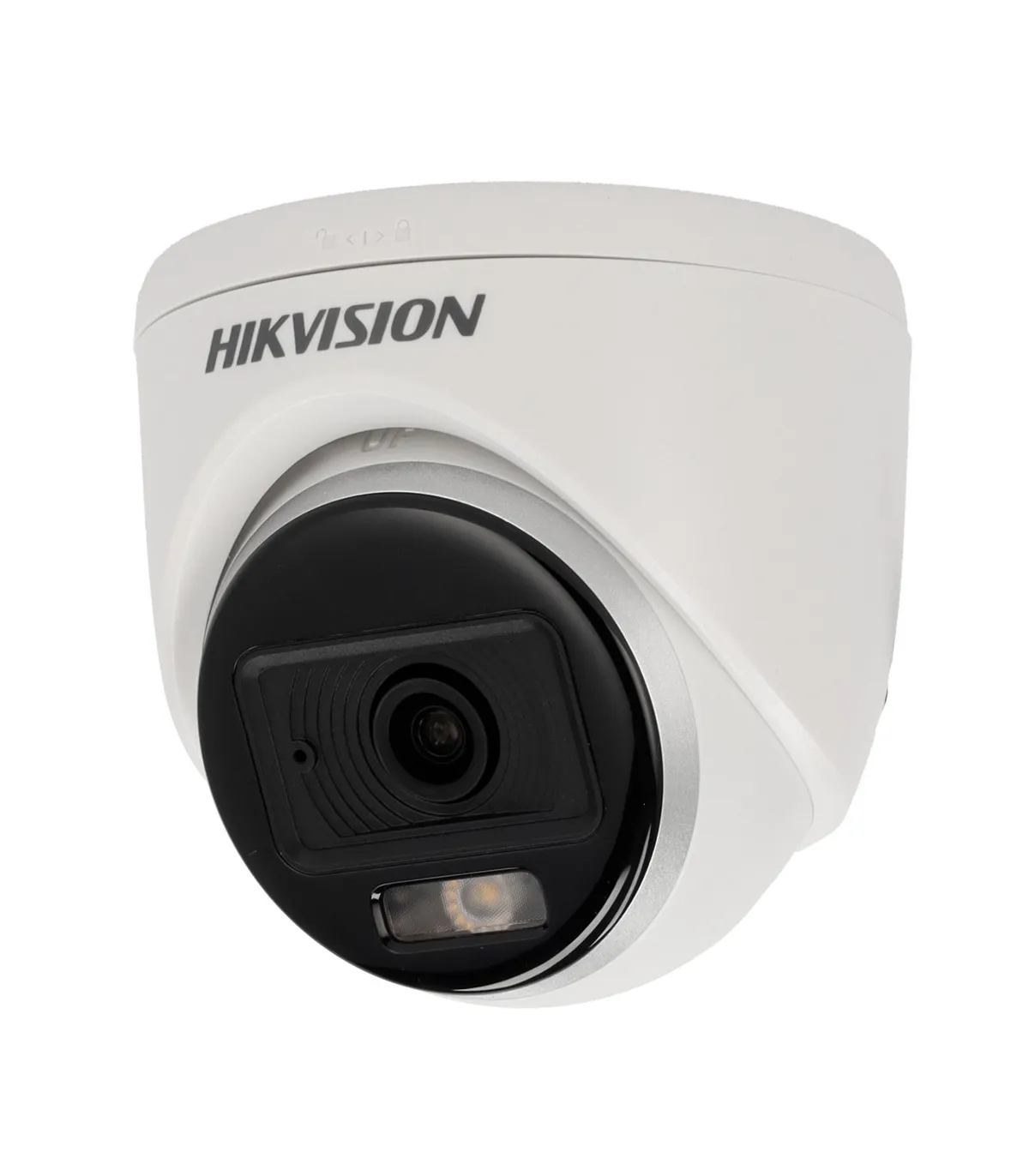

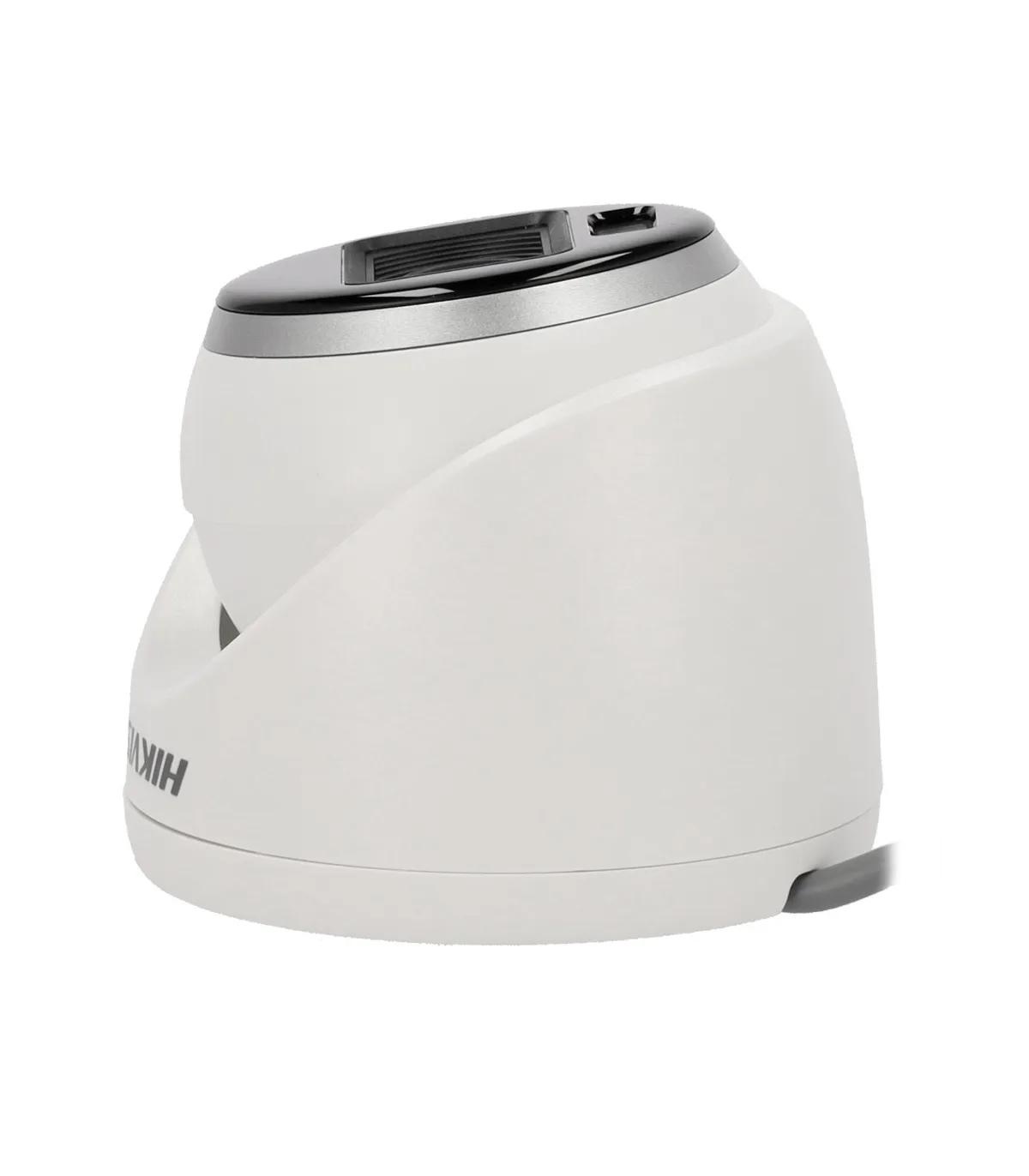

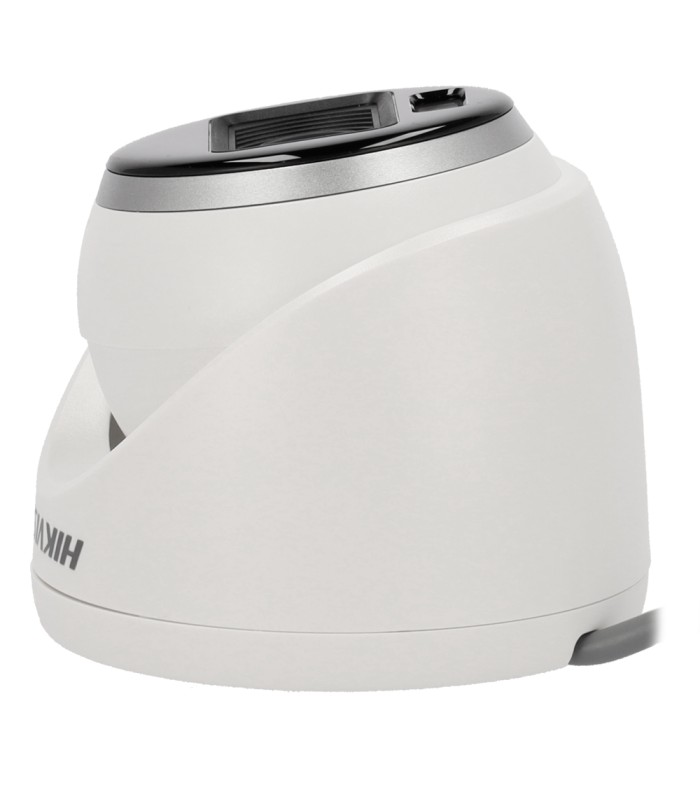

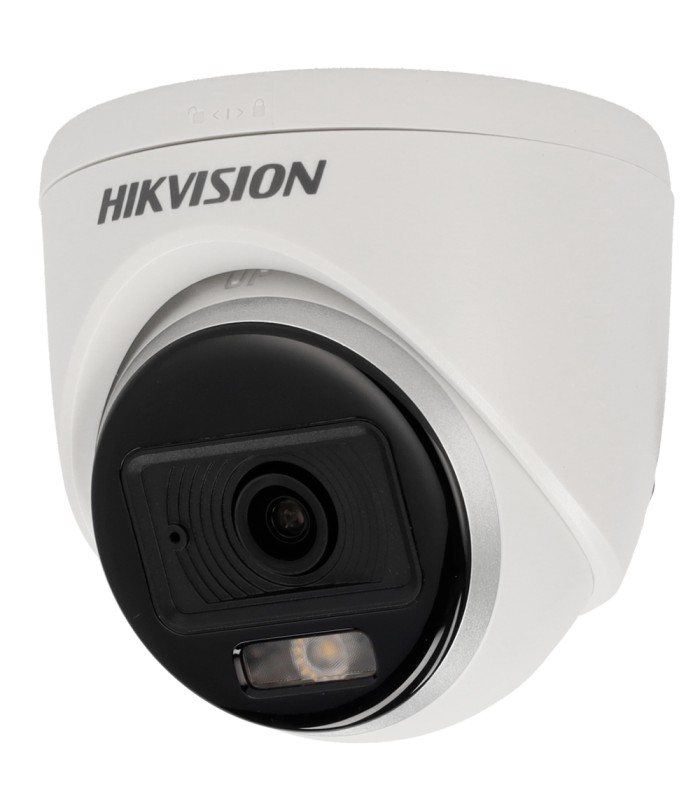

Hikvision DS-2CE70DF0T-LPFS Value Range 4in1 Dome Camera (3.6mm)
Brand: HIKVISION VALUE
- Hikvision
- 4-in-1 Value Range Dome Camera
- Resolution 1080p (1920x1080)
- 3.6mm Lens | Hybrid Light Range 20m
- ColorVu: 24-hour color image
- Suitable for indoor use | Integrated microphone
Hikvision DS-2CE70DF0T-LPFS(3.6mm) Value Range 4in1 Dome Camera
- Hikvision
- Value Range
- HDTVI, HDCVI, AHD and CVBS Turret Camera
- 2 MPx CMOS
- 1080p resolution (1920x1080)
- 4 in 1 output
- 3.6 mm lens
- 0 Lux
- Hybrid light: IR and White Light
- Hybrid light range 20 m
- ColorVu: 24-hour color image
- DWDR
- 3D DNR
- Microphone integrated
- Audio over coaxial
- Suitable for indoors
Technical specifications
| Brand | Hikvision | |
| Range | Value | |
| Image Sensor | 2 MPx CMOS | |
| Resolution maximum | 1080p (1920x1080) at 30 fps | |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC (FOV) | 84º (H), 46º (V), 98º (D) |
| Minimum illumination | 0.001 Lux @ (F1.0, AGC ON) 0 lux with white light range 20 m | |
| Supplementary lighting | Hybrid light: IR range 20 m White light range 20 m | |
| Day / Night | ColorVu: 24 color image hours | |

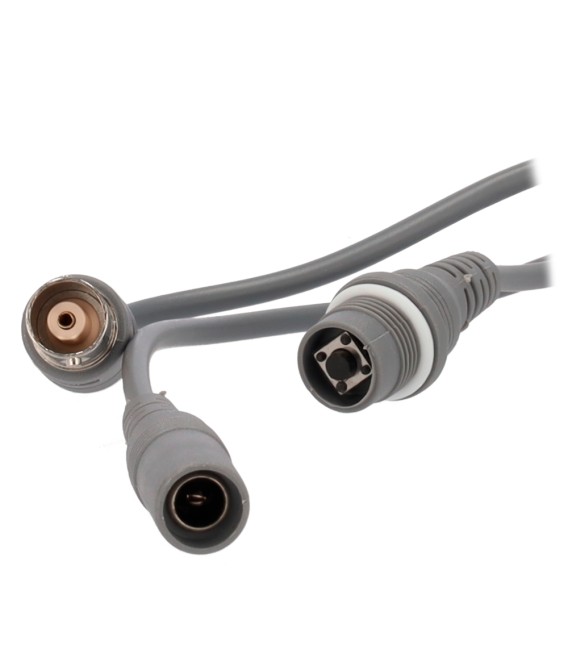

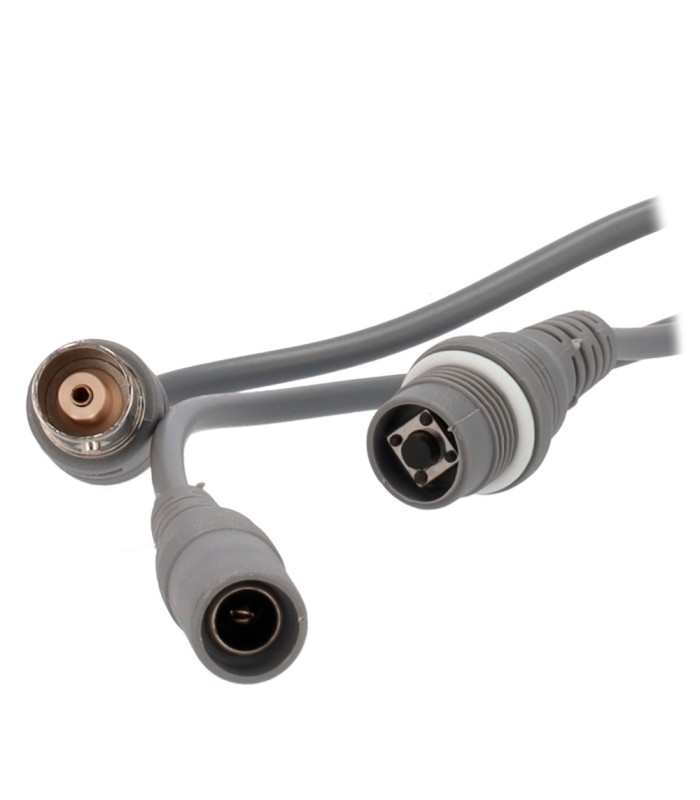

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS | |
| Video output switching | Via Switch | |
| Basic functions | OSD menu (remote) | |
| Configurable OSD functions | DWDR, BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light | |
| Audio | Audio over coaxial Built-in microphone | |
| Communication | HIKVISION-C | |
| Lens Positioning | 3 Axis | |
| Power | DC 12 V / 2.9 W max. | |
| Protection degree | Suitable for indoors | |
| Temp. operation | -40º C ~ +60º C | |
| Material | Plastic | |
| Dimensions | Ø 85.02 mm x 81.25 mm (H) | |

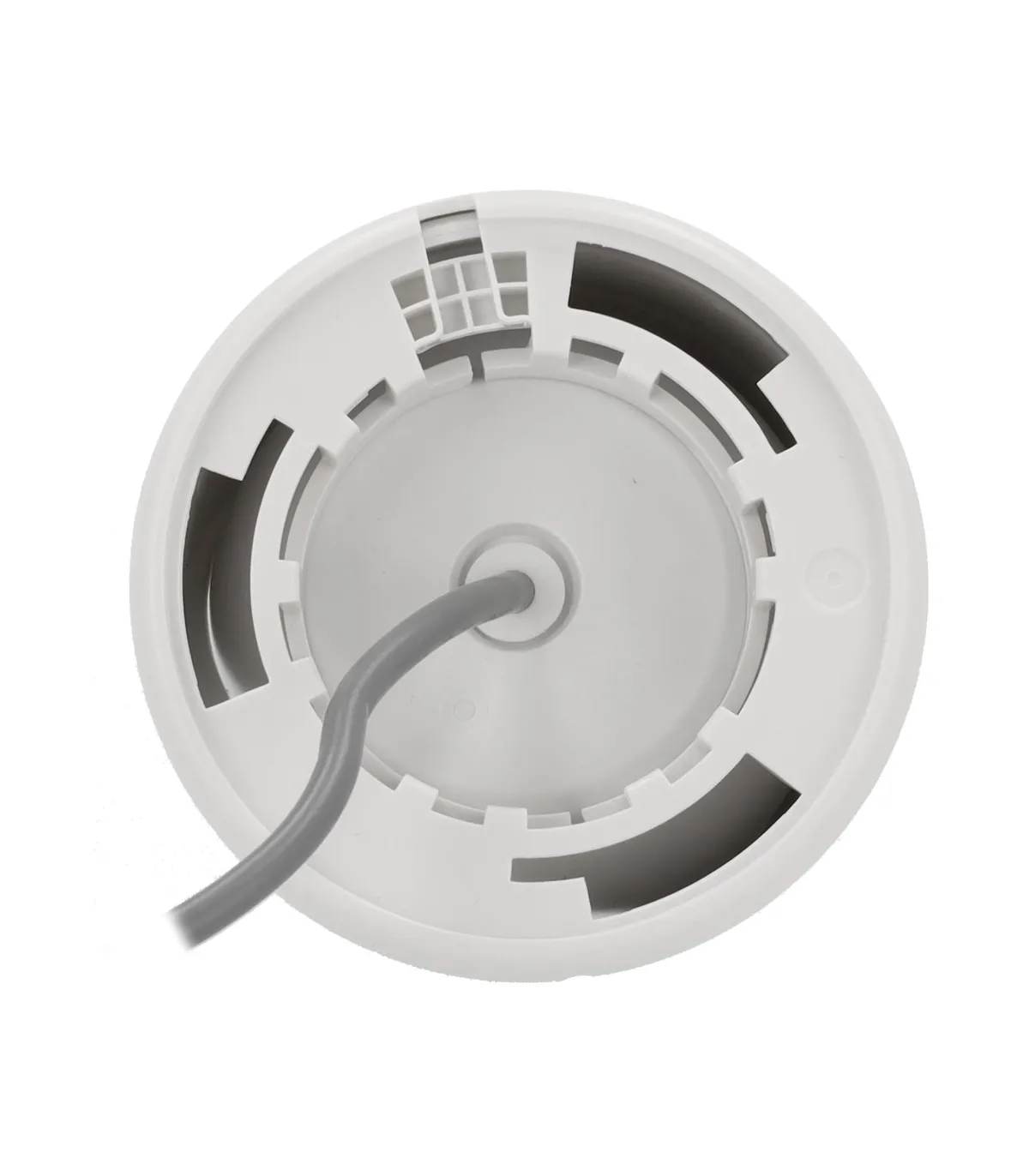

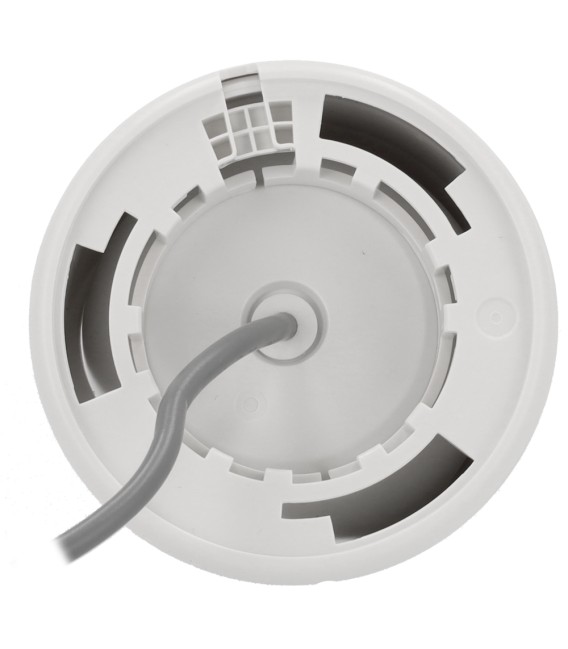

| Base diameter | Ø base 85.02 mm / Ø between screws 60 mm / 3 screws | |
| Weight | 155 g |
Contents
- Hikvision ColorVu 4N1 Dome Camera
- Mounting material
- Instructions for use
