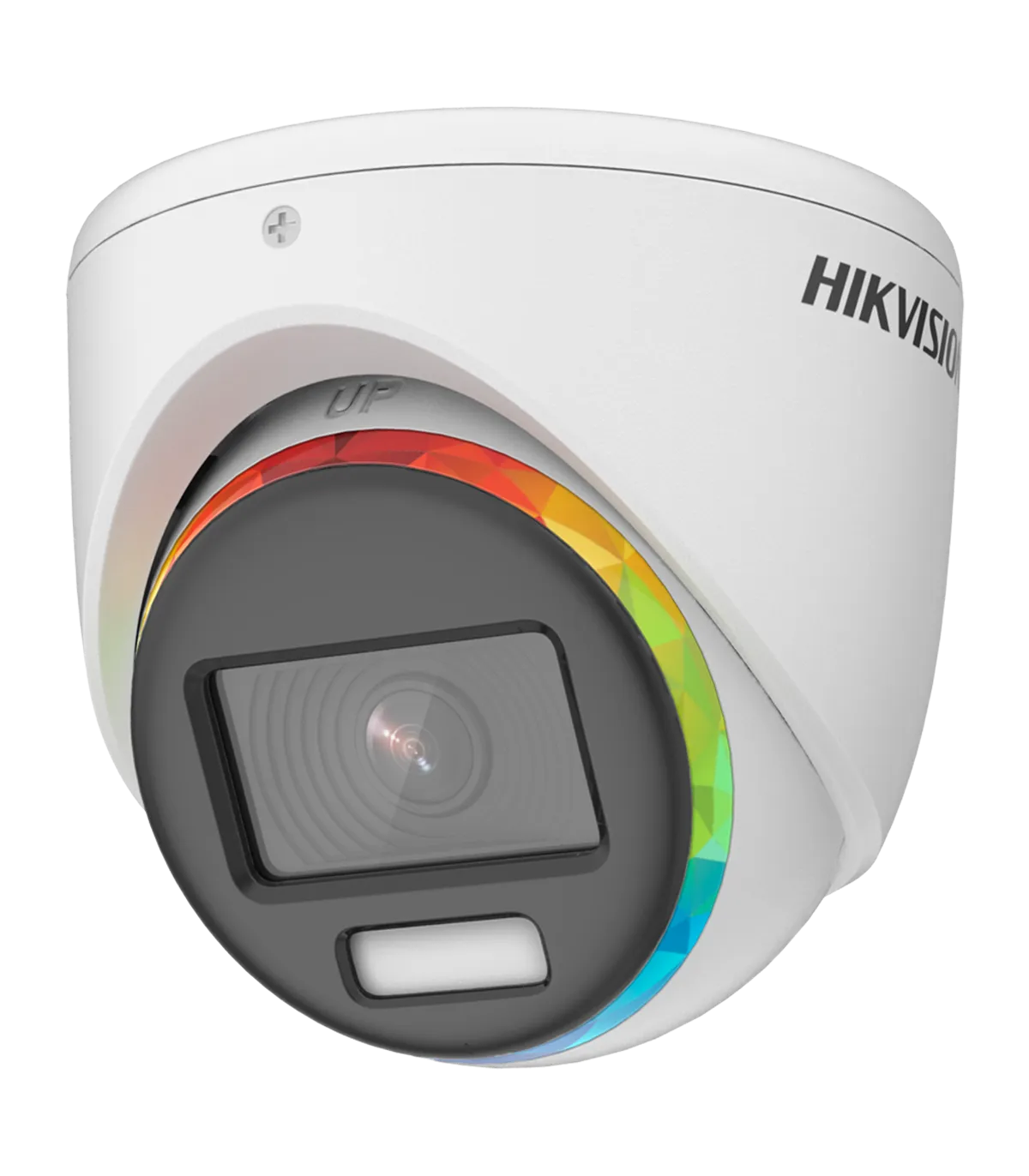

The DS-2CE70DF8T-MF(2.8mm) is a high-performance turret camera designed for versatile surveillance applications. Ideal for both indoor and outdoor settings, this camera excels in providing clear and detailed images around the clock, thanks to its ColorVu technology. With a resolution of 2 MP (1920x1080), it ensures high-quality video output, making it suitable for various security needs. The camera features a 2.8 mm lens, offering a wide field of view, and is equipped with advanced functionalities such as motion detection and a light alarm. Its robust IP68 rating guarantees durability against harsh weather conditions, making it a reliable choice for comprehensive electronic security solutions.
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 2 MP CMOS |
| Maximum Resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 106º (H), 56º (V), 129º (D) |
| Minimum Illumination | 0.0003 Lux @ (F1.0, AGC ON) 0 Lux with white light, range 20 m |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light, Mirror effect, Privacy mask |
| Audio | Not available |
| Alarm | Light alarm |
| Motion Detection | Yes |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 3.1 W max. |
| Protection Rating | Waterproof IP68 |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 85.1 mm x 77.62 mm (H) |
| Base Diameter | Ø base 85.1 mm / Ø between screws 60 mm / 3 screws |
| Weight | 315 g |
The DS-2CE70DF8T-MF(2.8mm) turret camera is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this camera at entry points to monitor customer activity and deter theft. With its high-resolution capabilities and ColorVu technology, the camera provides clear images even in low-light conditions, ensuring 24/7 surveillance. The motion detection feature alerts store owners to any suspicious activity, while the light alarm can be triggered to draw attention to potential threats. Additionally, its IP68 rating allows for outdoor installation, making it suitable for various environments. This camera is a reliable solution for enhancing security measures and ensuring peace of mind for both installers and end users.
