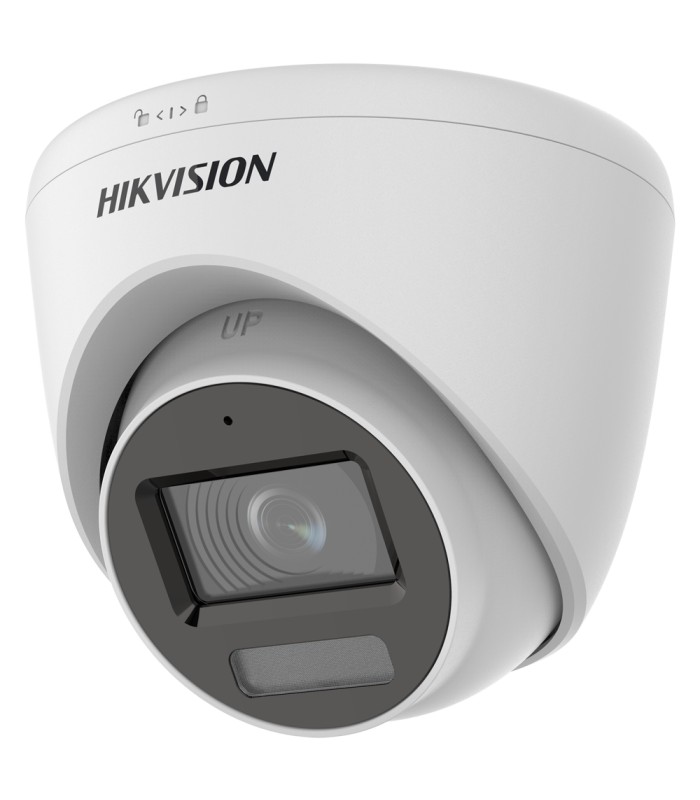

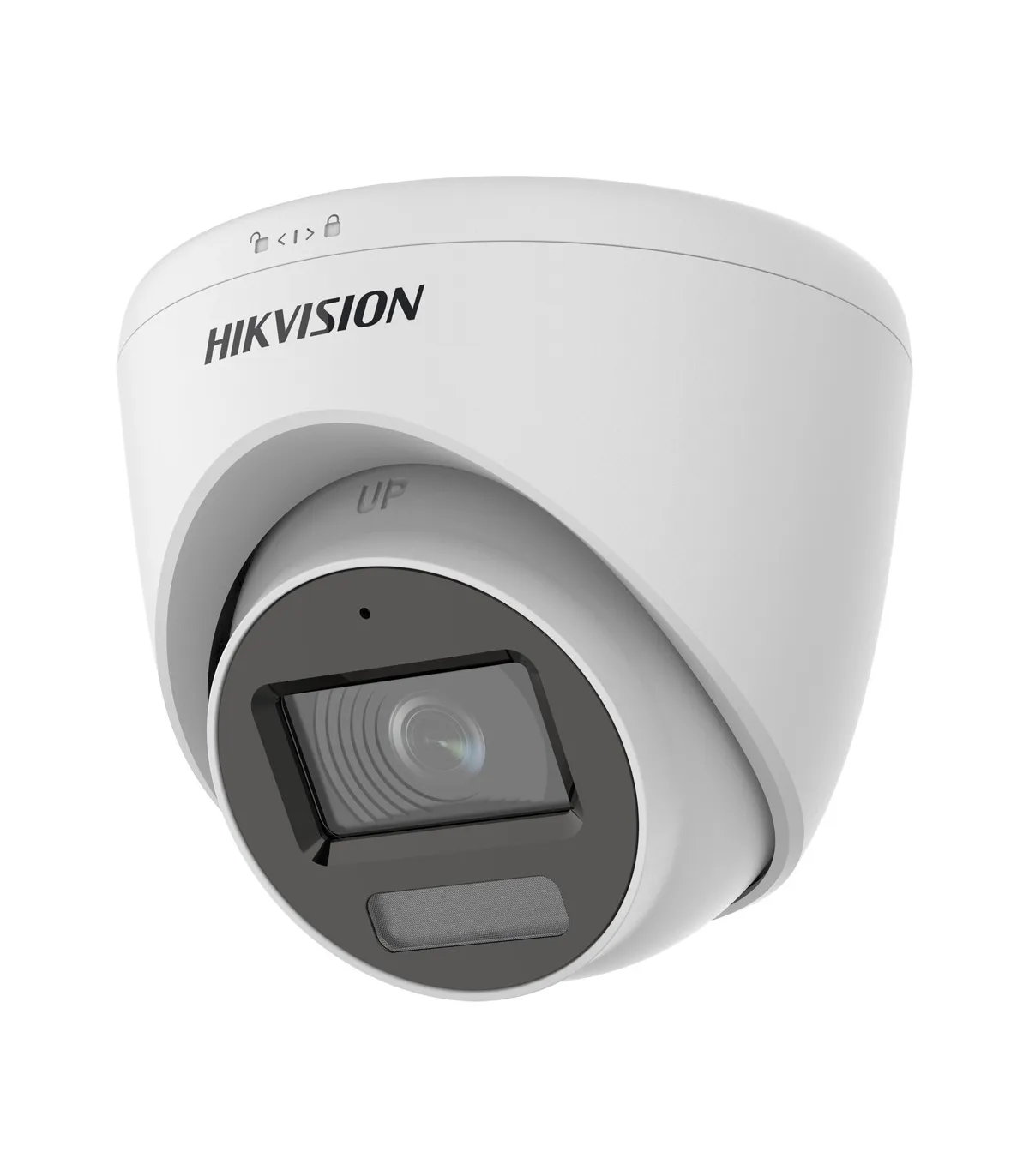

Hikvision DS-2CE78K0T-LFS Value Range 4in1 Dome Camera (3.6mm)
Brand: HIKVISION VALUE
- Hikvision
- 4-in-1 Value Range Dome Camera
- 3K (2960x1665) CMOS
- 3.6 mm Lens | Waterproof IP67
- Dual light: IR LEDs 40 m, white light 20 m
- Audio over coaxial cable | Built-in microphone
Hikvision DS-2CE78K0T-LFS(3.6mm) Value Range 4in1 Dome Camera
- Hikvision
- VALUE Range
- HDTVI, HDCVI, AHD and CVBS Dome Camera
- CMOS
- 3K (2960x1665)
- 4 in 1 output
- 3.6 mm lens
- 0 Lux
- IR range 40 m
- White light range 20 m
- Audio over Coaxial
- Built-in microphone
- IR CUT
- Waterproof IP67
Technical specifications
| Brand | Hikvision |
| Gamma | Value |
| Image Sensor | 3K CMOS |
| Maximum resolution | 3K (2960x1665) at 20 fps |
| Resolution | TVI: 3K (20 fps), 4 Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps) AHD: 5Mpx (30 fps), 4 Mpx (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 83º (H), 48º (V), 102º (D) |
| Minimum illumination | Color: 0.01 Lux @ (F1.2, AGC ON) Black and white: 0 lux with IR |
| Infrared lighting | Dual light: Smart IR Range 40 m White light range 20 m |
| Day / Night | Auto / Color / Black and White (ICR) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Switching output video | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, AGC, AWB, Smart IR |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3.3 W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Cover: Plastic Body: Metal |
| Dimensions | Ø 110 mm × 97.9 mm (H) |
| Base diameter | base Ø 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
Contents
- Hikvision Value 4N1 Dome Camera
- Mounting material
- Instructions for use
