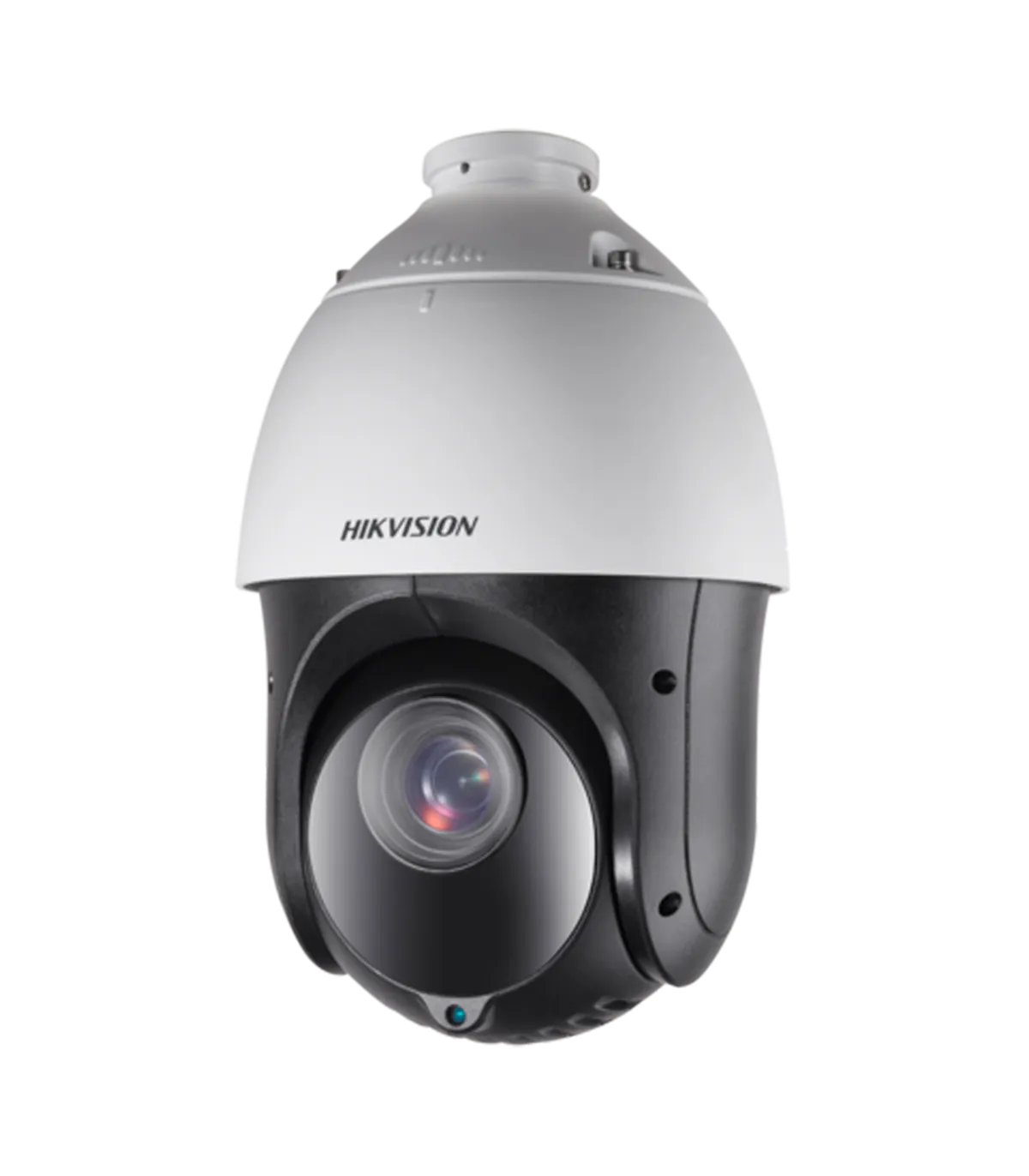

The Hikvision DS-2AE4425ITG is a high-performance motorized dome camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in monitoring large areas with its advanced zoom capabilities and high-resolution imaging. Its robust construction ensures reliable operation in various weather conditions, making it suitable for commercial, industrial, and residential security installations.
| Brand | Hikvision |
| Series | Value |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum Resolution | 4 MP (2560x1440) |
| Video Frame Rate | 25 fps (2560x1440) |
| Optics | 4.8~120 mm (Optical zoom 25X) |
| Digital Zoom | 16X |
| Field of View | 55º~2.4º (H), 33º~1.4º (V), 61.5º~2.8º (D) |
| Video Output | 1x BNC format HDTVI/HDCVI/AHD/CVBS |
| Minimum Illumination | Color: 0.005 Lux @ F1.6, AGC ON Black and White: 0.001 Lux @ (F1.6, AGC ON) 0 lux with IR range 100 m |
| Focus | Auto / Semi / Manual |
| Electronic Shutter | 1/1s~1/30,000s |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120dB), 3D-DNR, BLC, HLC, AWB, AGC |
| Image Stabilization | No |
| Privacy Masks | Up to 8 areas |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° (auto flip) |
| Manual Speed | Horizontal: 0.1°~80°/s, Vertical: 0.1°~80°/s |
| Speed Between Presets | Horizontal: 80°/s, Vertical: 80°/s |
| Preset Positions | 256 presets, 5 auto patterns, 10 auto tours, auto pan, auto scan |
| Audio | Not available |
| Alarms | Not available |
| Communication | RS-485 (Pelco P / Pelco D / HIKVISION) |
| Power Supply | DC 12 V, < 20 W |
| Operating Temperature | -30º C ~ +65º C (<90% humidity) |
| Protection Rating | IP66 waterproof Surge protection 4000 V |
| Dimensions (without mount) | 290.6 mm (H) x 164.5 mm (Ø) |
| Weight (without mount) | 2 Kg |
The Hikvision DS-2AE4425ITG is typically deployed in environments requiring comprehensive surveillance, such as shopping malls, parking lots, and large commercial spaces. Its motorized capabilities allow for remote control of the camera's position, enabling security personnel to monitor specific areas in real-time. The high-resolution imaging ensures that details are captured clearly, even in low-light conditions, thanks to its advanced infrared capabilities. This camera is particularly beneficial for installers looking to provide a reliable security solution that can adapt to various monitoring needs, while end users appreciate the peace of mind that comes from enhanced surveillance coverage.
