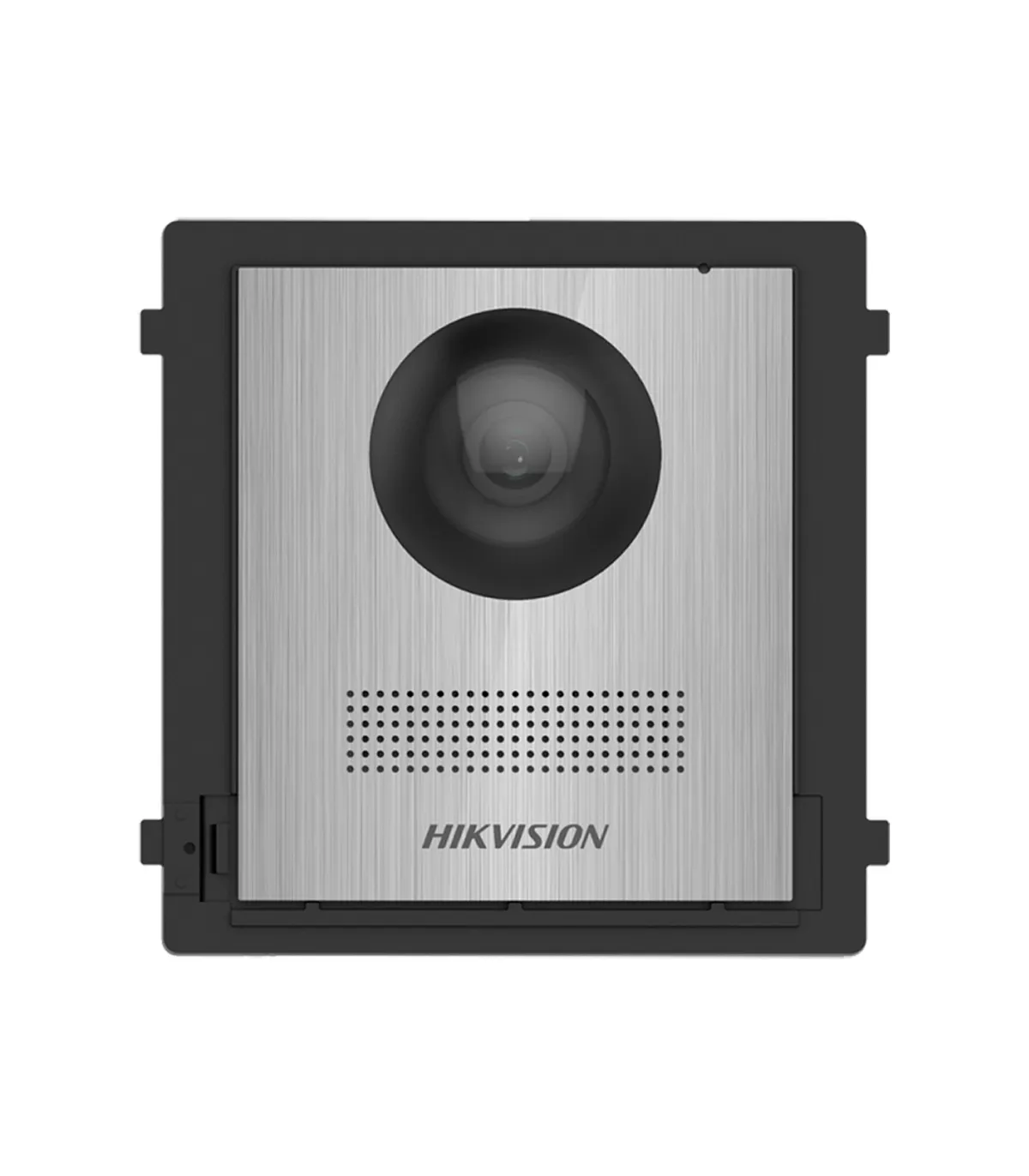

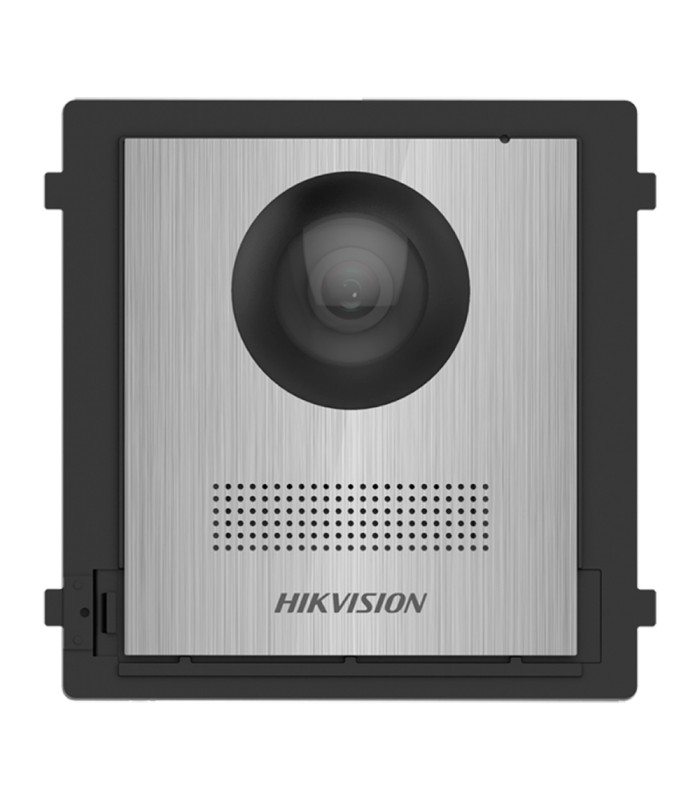

Hikvision DS-KD8003Y-IME2/NS 2-wire stainless steel video intercom
- Hikvision
- 2-wire video intercom with 2 Mpx camera
- Without button
- Wide-angle lens
- Integrated speaker and microphone
- Vision night
- TCP/IP connection via DS-KAD70xY
- Remote monitoring via iVMS-4200 software, Hik-Connect mobile app or indoor monitor
- Remote door unlocking
- Mounting with surface support or recessed with support (not included)
- Personalization label with LED
- Suitable for outdoors IP65
- Integratable with Hikvision modules
- Made of stainless steel
Technical specifications
| Brand | Hikvision |
| Model | DS-KD8003Y-IME2/NS |
| Operating system | Linux |
| Image Sensor | Low Illumination 2 Mpx IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 146º, V: 82º, D: 180º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Not available |
| Outputs | 2 x lock relay, 1 x module output, 1 x DC 12 V / 500 mA max. |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote access | iVMS-4200 software Hik-Connect mobile application |
| Network interface | 2-wire network connection / SIP 2.0 protocol |
| Modular | Compatible with Hikvision modular boards |
| Power supply | DC 24 V with 2-wire hub / 12 V / 1700 mA max. |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Plastic and stainless steel |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | 98 (H) x 100 (W) x 42 (D) mm |
| Weight | 410 g |
Contents
- Hikvision video intercom exterior panel
- Mounting material
- Instructions for use
