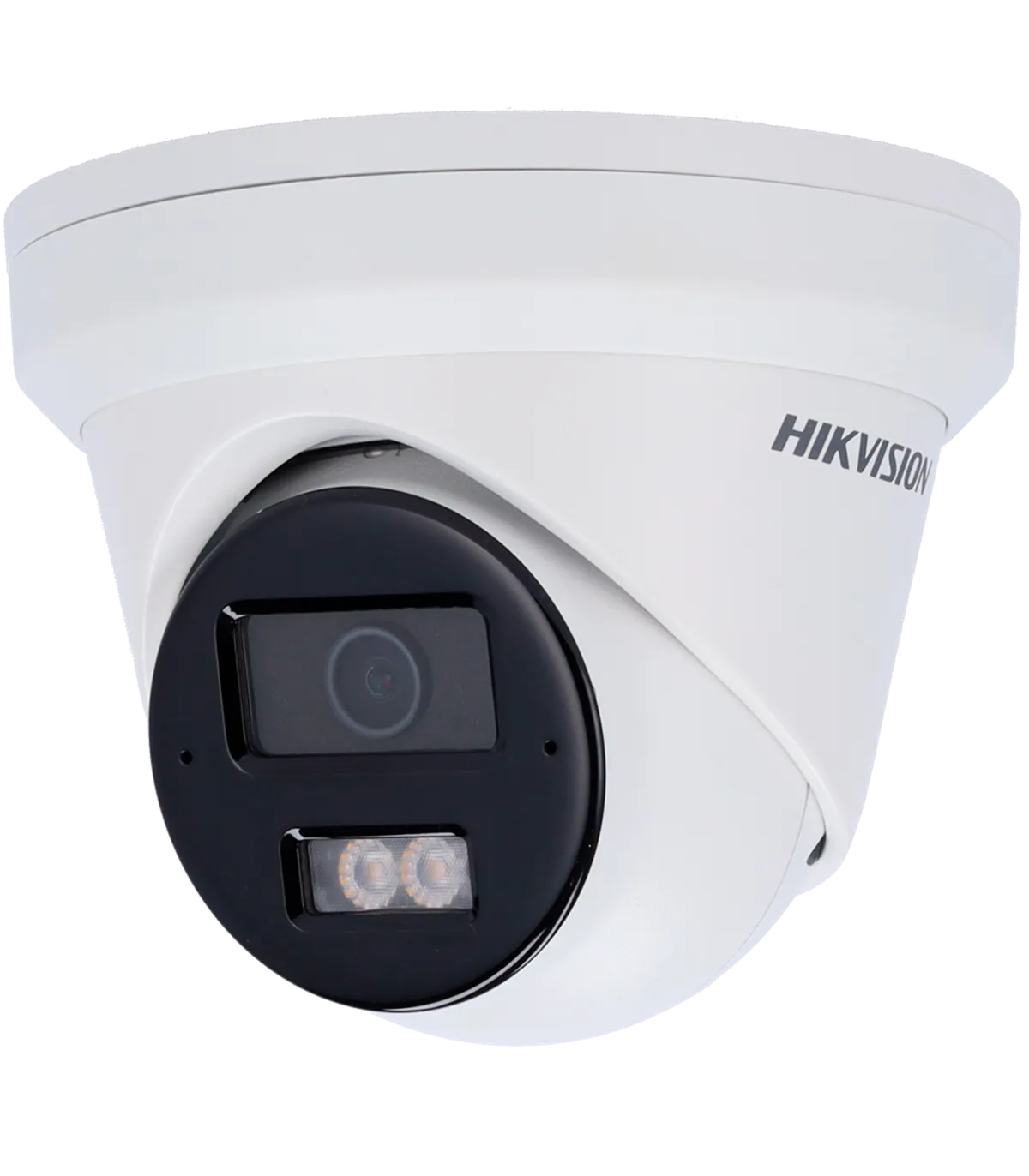

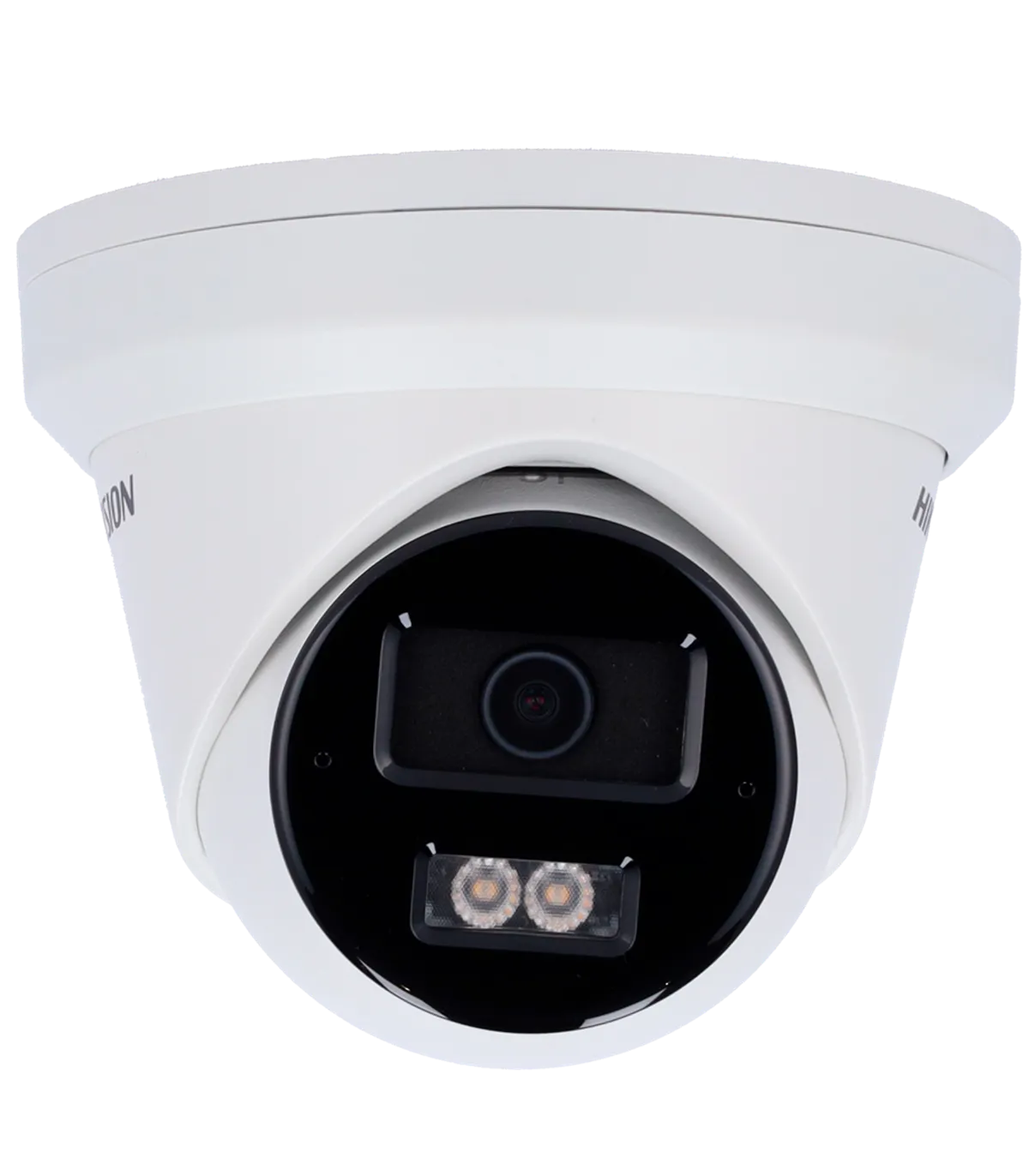

The DS-2CD2383G2-LI2U(2.8mm) is a high-performance IP turret camera designed for advanced surveillance applications. With its 8 Megapixel resolution and Progressive Scan CMOS sensor, this camera delivers exceptional image quality, making it ideal for both indoor and outdoor environments. The device features a 2.8 mm lens that provides a wide field of view, ensuring comprehensive coverage. Equipped with hybrid lighting capabilities, including IR and white light, it excels in low-light conditions, making it a reliable choice for 24/7 monitoring.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 108°, V: 59°, D: 127° |
| DORI | 84 m (D), 33 m (O), 16 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |

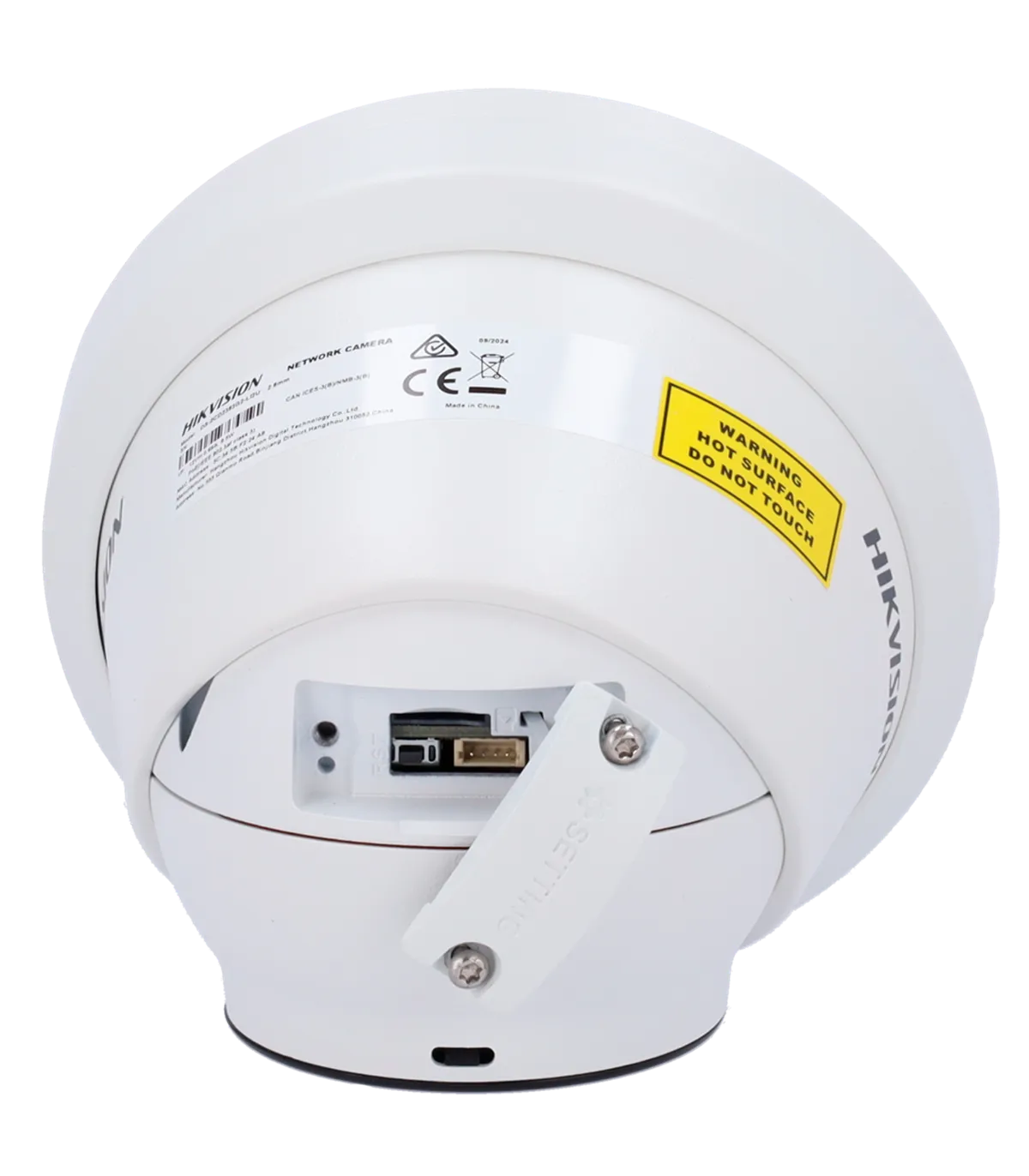

| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI |

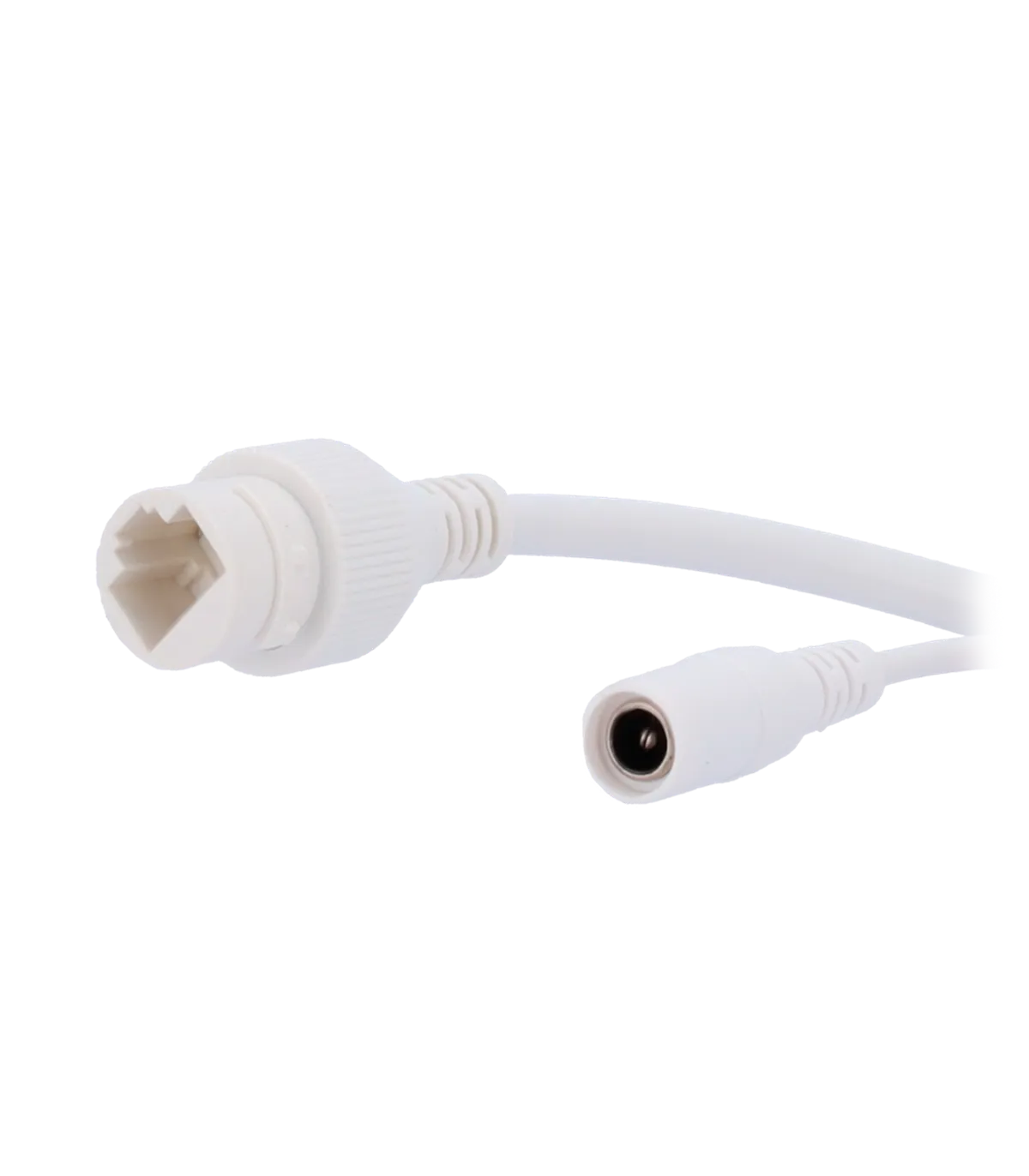

| Power Supply | DC 12 V / 660 mA / 8 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 127.3 mm x 96.3 mm (H) |

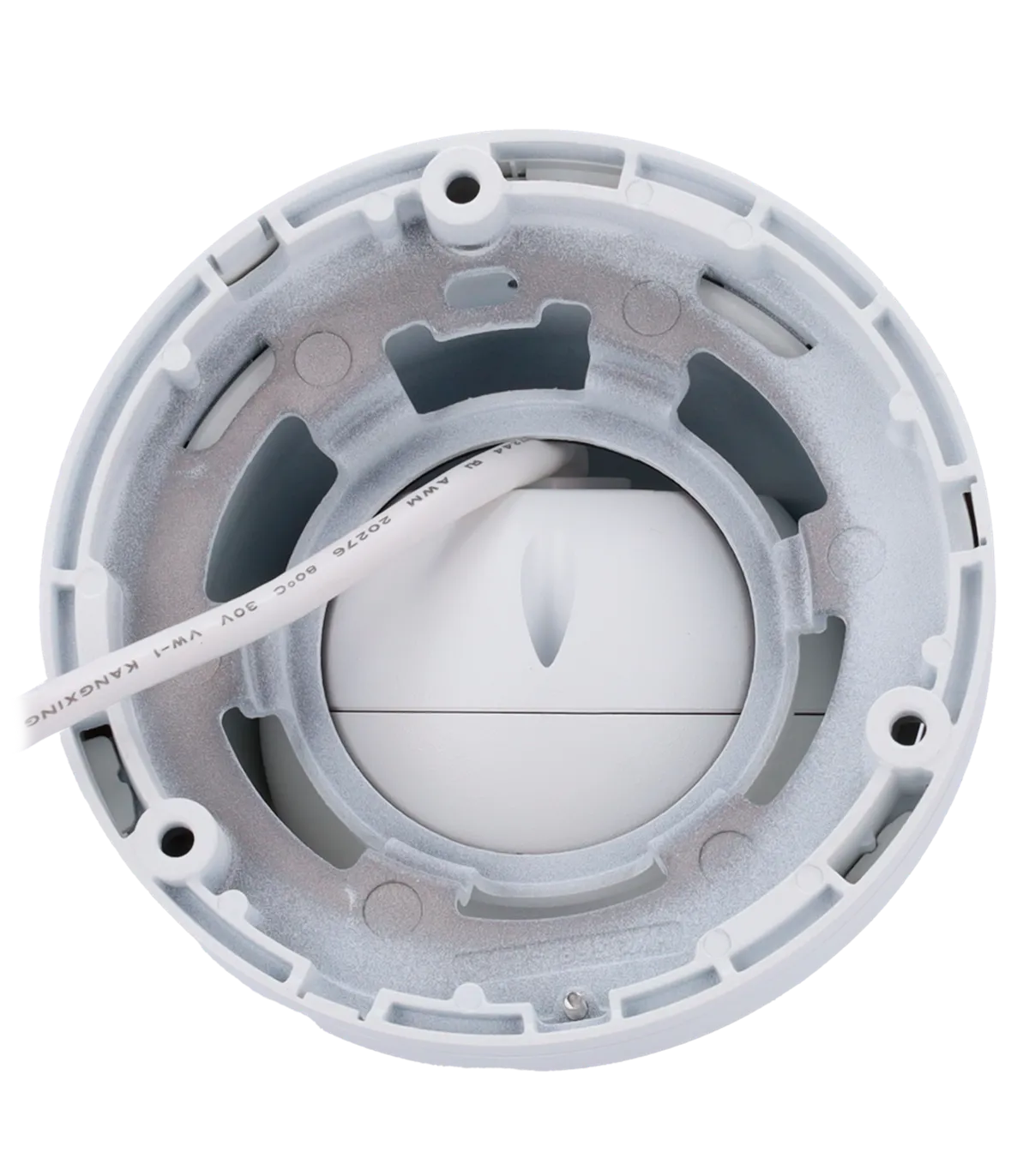

| Base Dimensions | Ø base 127.3 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 515 g |
The DS-2CD2383G2-LI2U(2.8mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and hybrid lighting capabilities, it ensures clear visibility even in low-light conditions. The motion detection feature, enhanced by AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote monitoring capabilities enable users to access live feeds via smartphones or web browsers, ensuring constant vigilance. The robust IP67 waterproof rating makes it suitable for outdoor installations, while the easy integration with existing systems via ONVIF compatibility ensures a seamless setup. Overall, the DS-2CD2383G2-LI2U(2.8mm) is an excellent choice for those seeking reliable and advanced surveillance solutions.
