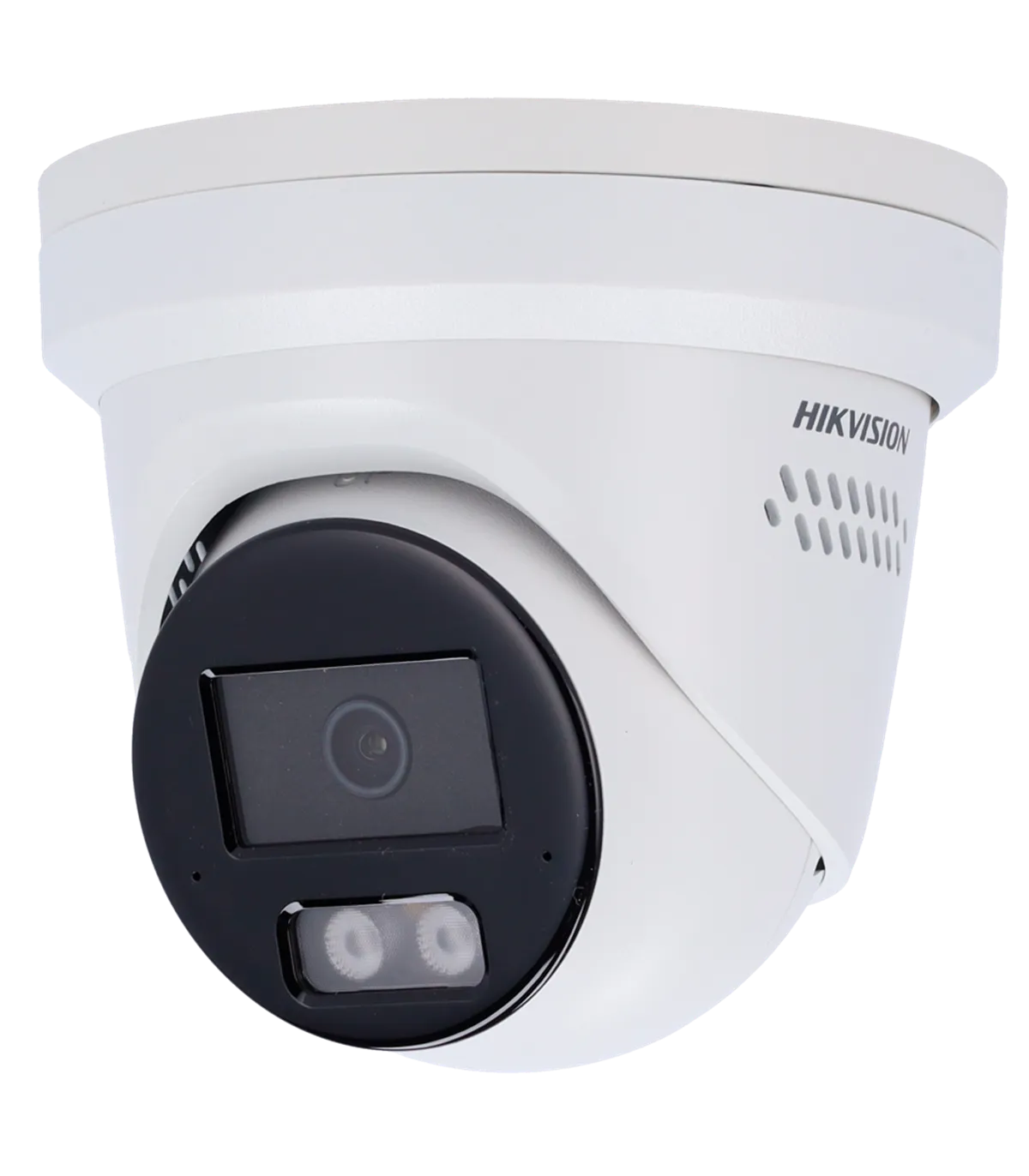

The DS-2CD2346G2H-IS2U/SRB(2.8mm) is a high-performance IP turret camera designed for advanced surveillance applications. This device is ideal for both indoor and outdoor environments, providing exceptional image quality and reliable security monitoring. With its 4 Megapixel resolution and 30 m IR range, it ensures clear visibility even in low-light conditions. The camera features advanced motion detection capabilities and AcuSense technology, which significantly reduces false alarms, making it a perfect choice for comprehensive security solutions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 100°, V: 55°, D: 120° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated red and blue deterrent siren and light flash |
| Audio | 1 input / 1 output 2 Integrated microphones and speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0 and AcuSense cannot be enabled simultaneously. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0 and AcuSense cannot be enabled simultaneously. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1340 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 115.4 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 780 g |
The DS-2CD2346G2H-IS2U/SRB(2.8mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its high-resolution imaging and 30 m IR range, it provides clear footage day and night, ensuring comprehensive coverage. The motion detection capabilities, enhanced by AcuSense technology, allow for precise alerts, reducing false alarms triggered by non-threatening movements. Additionally, the integrated audio features enable two-way communication, enhancing security measures. This camera's remote access capabilities allow users to monitor live feeds from anywhere, making it an essential tool for modern security systems.
