| Brand | Hikvision |
| Range | CORE |
| Image Sensor | High Performance CMOS |
| Maximum resolution | 5Mpx (2560x1944) a 20fps |
| Resolution | TVI: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVI: 4Mpx (25~30 fps), 1080p (25~30 fps) AHD: 5 Mpx (20 fps), 4Mpx (25~30 fps), 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Angle of view (FOV) | 80.1º (H), 63.7º (V), 105.9º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared Illumination | 0 Lux / (Smart IR Range 30 m) |
| Day / Night | Auto / Color / Black and White (ICR) |

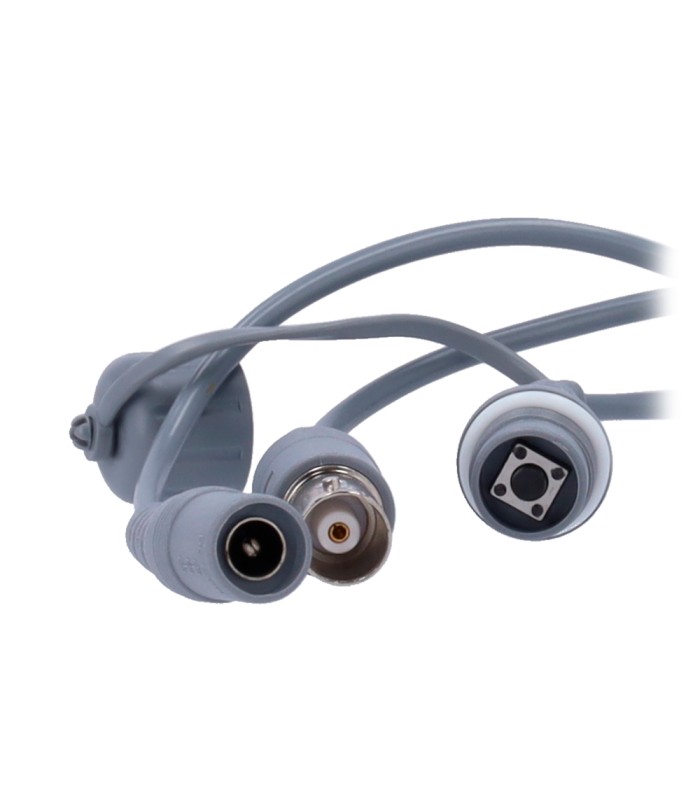

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Switching output video | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, BLC, HLC, 2DNR, AGC, AWB, Mirror function, Smart IR |
| Communication | HIKVISION-C |
| Audio | Audio over coaxial Integrated microphone |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 3.7 W max |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Metal |
| Dimensions | 58 mm (H) × 61 mm (W) × 158.6 mm (Fo) |

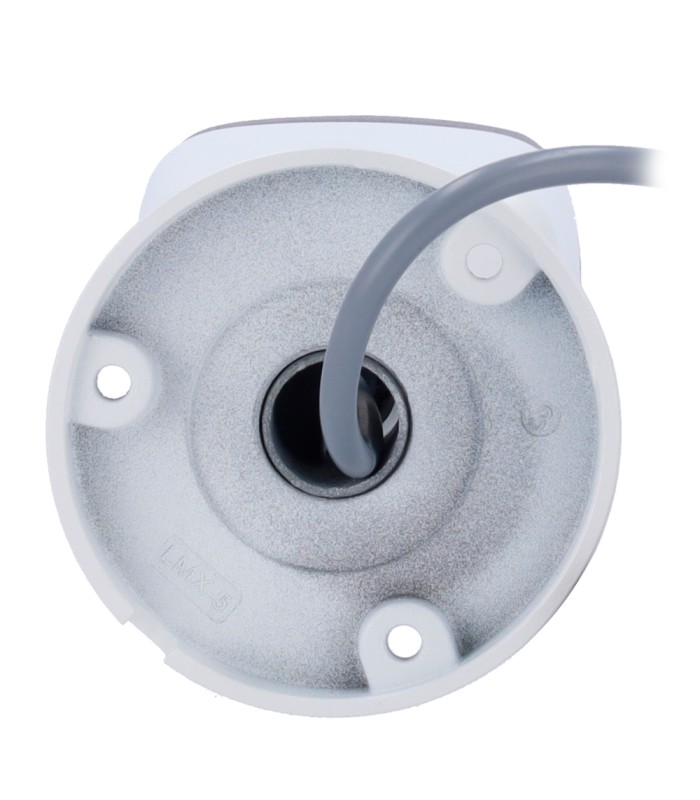

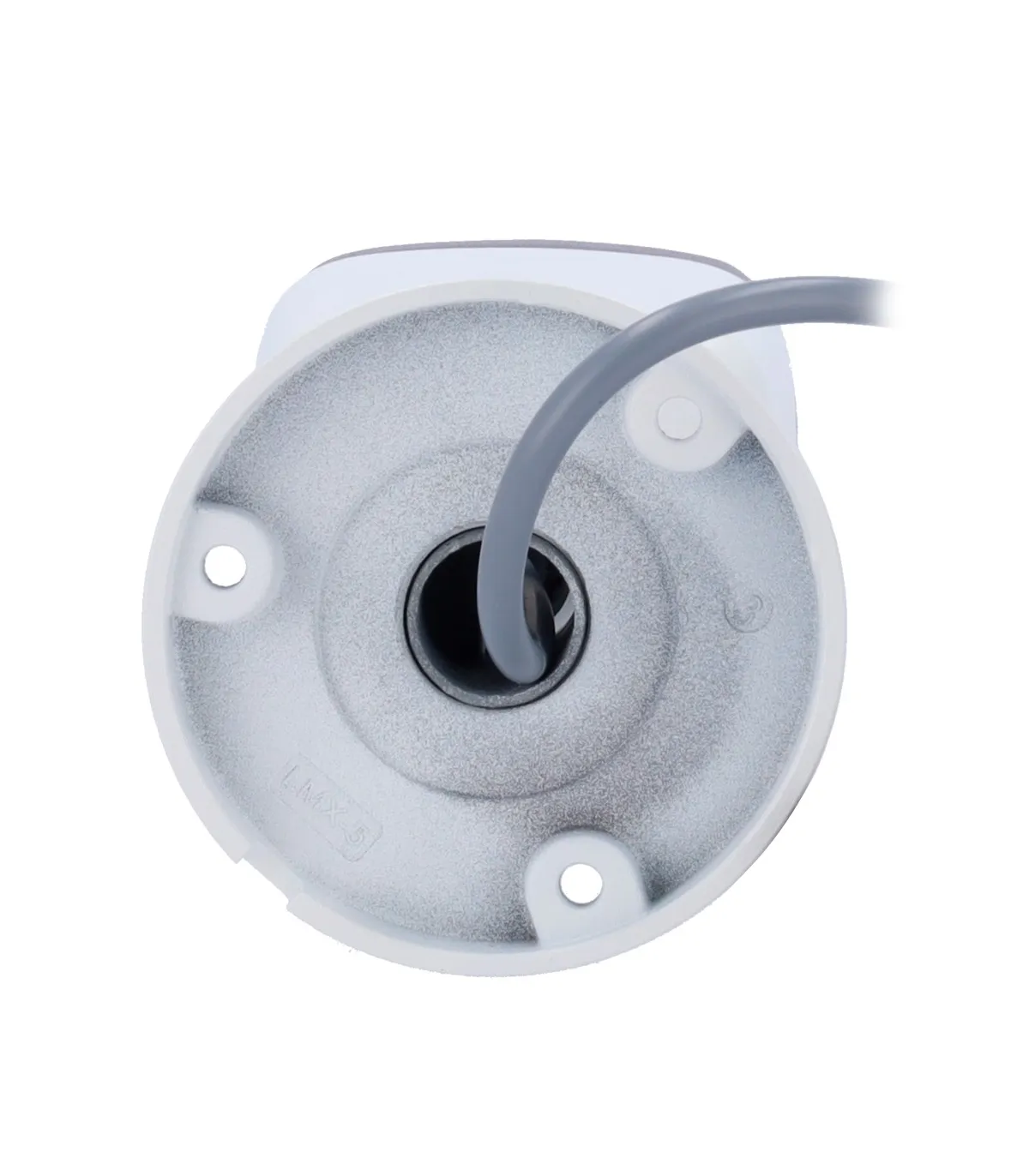

| Base diameter | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 292 g |
Data sheet
Specific References
