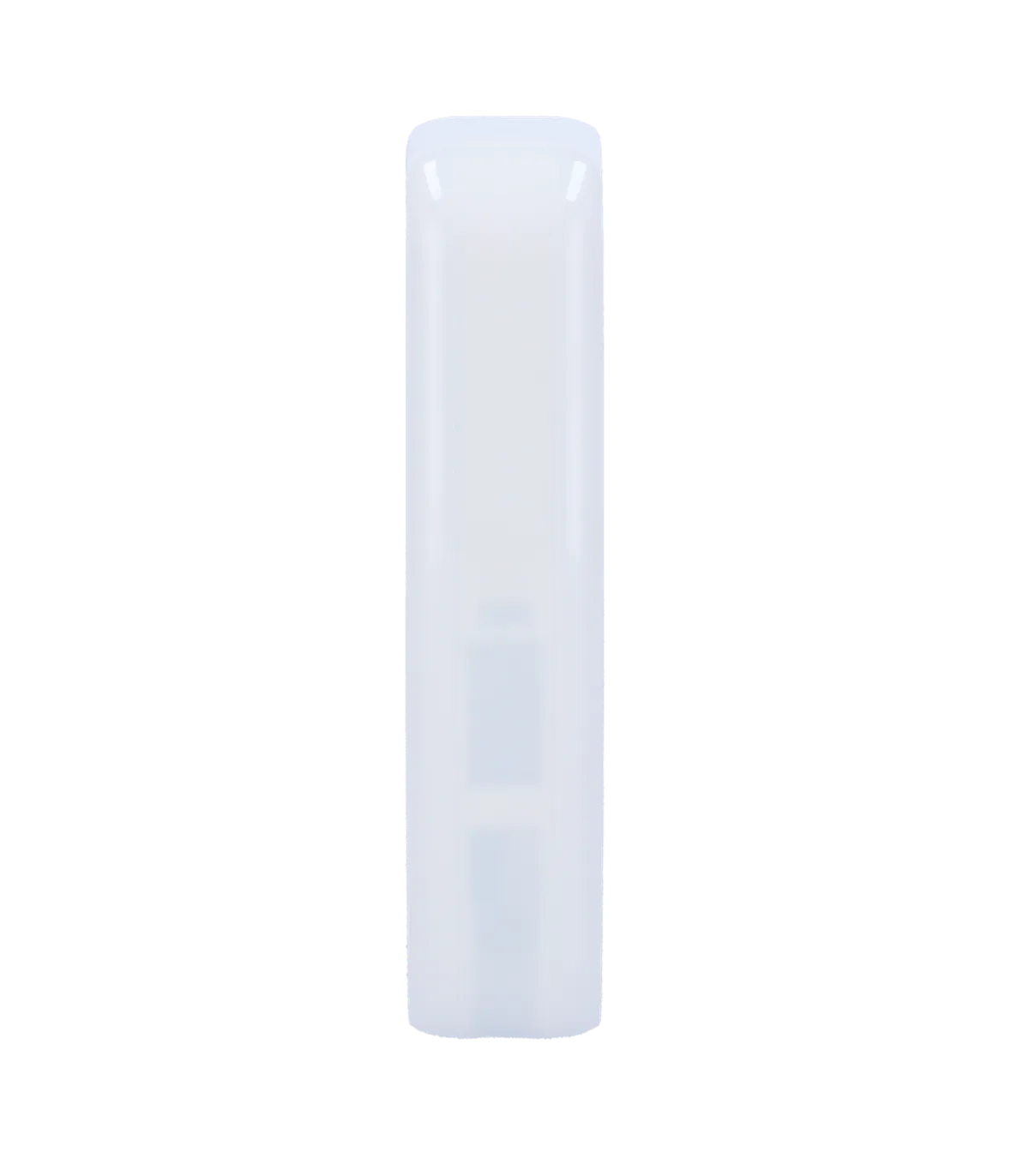

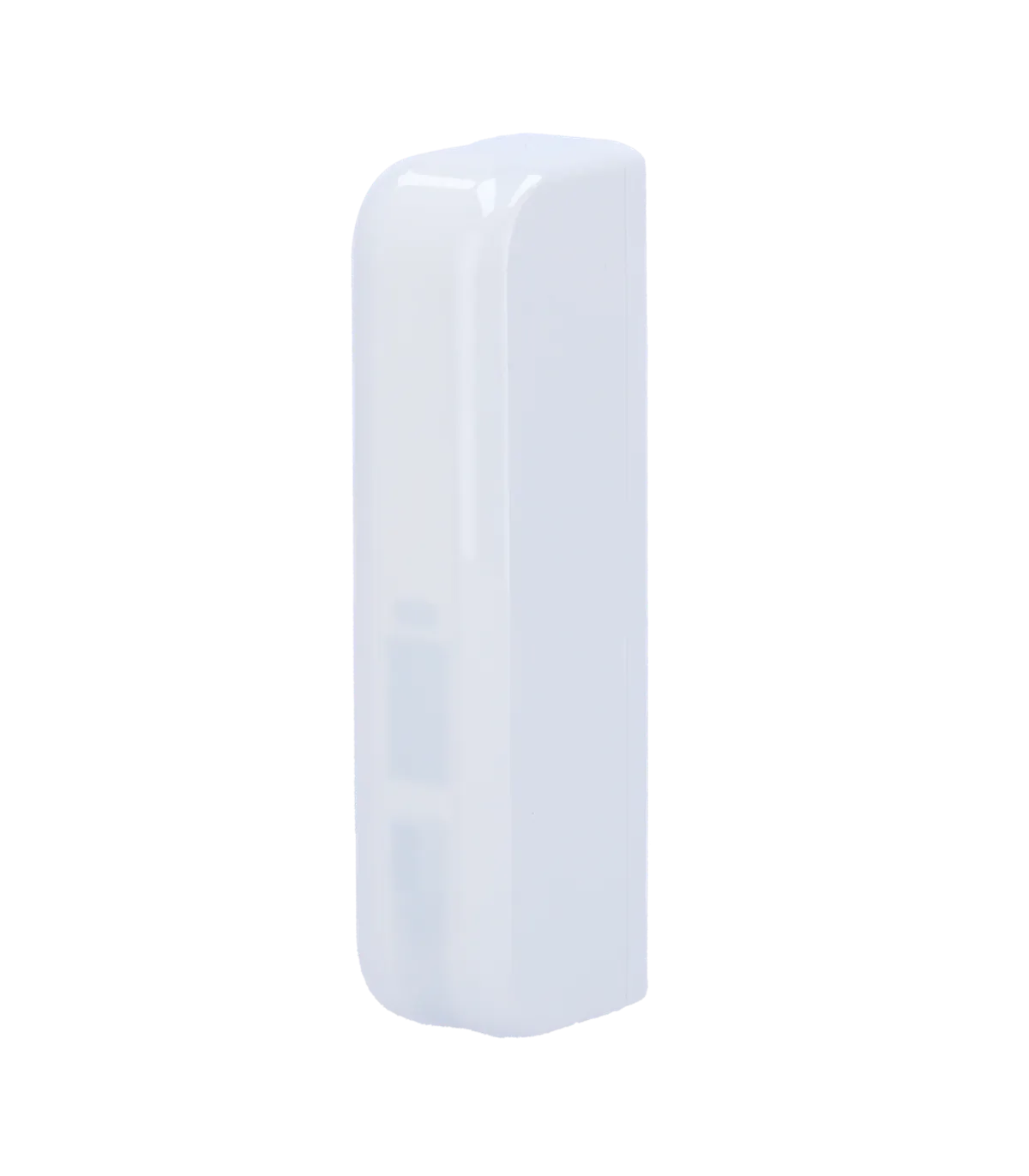

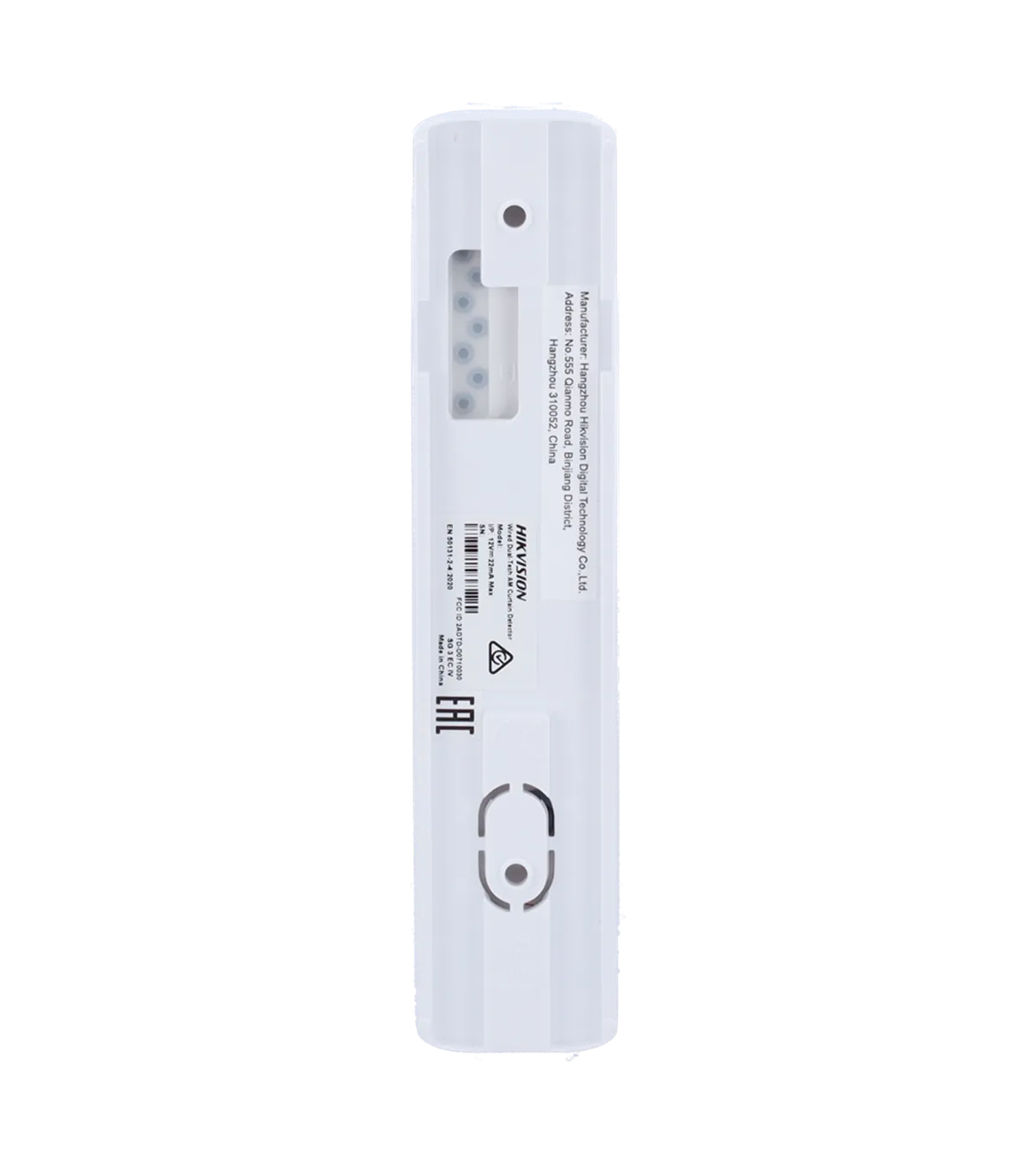

Hikvision Wired Curtain Detector 6-10 m Range Anti-Masking DS-PDC10DM-VG3

Description & Key Features: DS-PDC10DM-VG3

The DS-PDC10DM-VG3 is a dual-technology wired curtain detector designed for enhanced security applications. This device combines a passive infrared sensor and a microwave sensor to provide reliable intrusion detection. Ideal for both indoor and outdoor environments, it features advanced functionalities such as anti-masking and selectable end-of-line resistors, making it a versatile choice for various security setups.

• Hikvision
• Wired dual-technology curtain detector
• Passive infrared sensor and microwave sensor
• Front and rear anti-tamper
• Includes Anti-Masking
• Selectable end-of-line (EOL) resistors
• Automatic sensitivity
• Digital temperature compensation
• Detection: Wall: 10 m / Ceiling: 6 m
• Detection angle: 5º
• LED indicator
• Power supply 9~16 VDC
• Indoor and outdoor use
• IP65 protection rating

Specifications: DS-PDC10DM-VG3

Package Contents

• Wired dual-technology curtain detector
• Instruction manual
• Mounting materials
• L-bracket

Use Case

The DS-PDC10DM-VG3 is ideally suited for securing entrances and hallways in commercial buildings, retail stores, and residential properties. For instance, an installer can deploy this device at the entrance of a retail store to create a secure perimeter. With its dual-technology capabilities, the detector minimizes false alarms while ensuring reliable detection of intruders. The automatic sensitivity feature adjusts to environmental changes, enhancing performance in varying conditions. Additionally, the IP65 protection rating allows for outdoor installation, making it versatile for various applications. The inclusion of anti-masking technology ensures that the detector remains effective even in challenging environments, providing peace of mind for end users. Overall, the DS-PDC10DM-VG3 is an excellent choice for those seeking a robust and reliable security solution.
