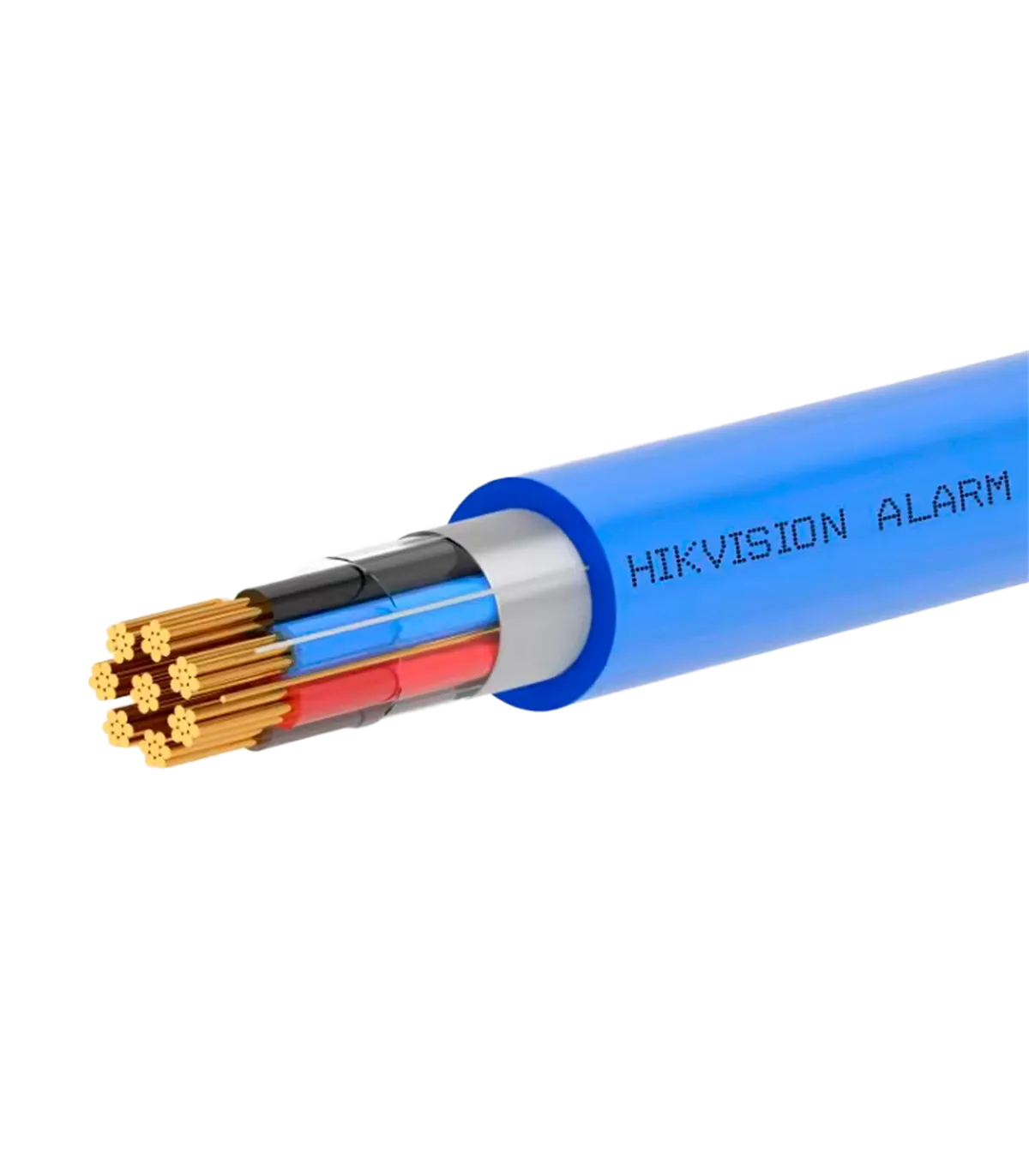

Hikvision 4-Core Flexible Copper Cable 305m Roll DS-1AC4APL1
- 4 signal conductors
- Flexible electrolytic copper conductor
- Aluminum polyester shield + CuSn drain
- Roll of 305 meters
- CPR certified Eca
- Low losses
Description & Key Features: DS-1AC4APL1
The DS-1AC4APL1 is a high-quality cable reel designed for alarm systems, featuring a robust construction ideal for various electronic security applications. This device is particularly suitable for installations requiring reliable connectivity and performance in challenging environments. With its flexible copper conductors and halogen-free materials, it ensures safety and efficiency in alarm system setups.
- Cable reel
- 305 m
- Alarm
- 4 conductors
- Flexible electrolytic copper internal conductor 0.22 mm2
- PE insulation
- Aluminum polyester screen + CuSn drainage
- LSZH insulation 0.2 mm
- LSZH outer sheath 3.9 mm
- Halogen-free
Specifications: DS-1AC4APL1
| Length | 305 m |
| Internal conductor | Flexible electrolytic copper AWG25 0.22 mm2 |
| Insulation | Polyethylene |
| Conductor formation | Stranded |
| Screen | Aluminum polyester + CuSn drainage |
| Outer sheath | LSZH |
| Number of conductors | 4 signal |
| Electrical resistance | 95 Ohm/km signal 0.22mm2 |
| Operating temperature | -20º C ~ 70º C |
| Certification | CPR Eca, UNE EN 50575 |
| Color | Blue |
Package Contents
- Cable reel 305 m
Use Case
The DS-1AC4APL1 cable reel is an essential component for installers working on alarm systems in both residential and commercial settings. For instance, when setting up a comprehensive security system in a large retail space, the 305 m length of this cable allows for extensive coverage without the need for frequent splicing. The flexible copper conductors ensure optimal signal transmission, while the halogen-free materials provide added safety in case of fire. Additionally, the LSZH insulation minimizes smoke emission, making it ideal for enclosed spaces. Installers can benefit from the easy handling of the cable reel, which simplifies the deployment process. Furthermore, the cable's certification under CPR Eca standards guarantees compliance with safety regulations, ensuring peace of mind for both installers and end users.
