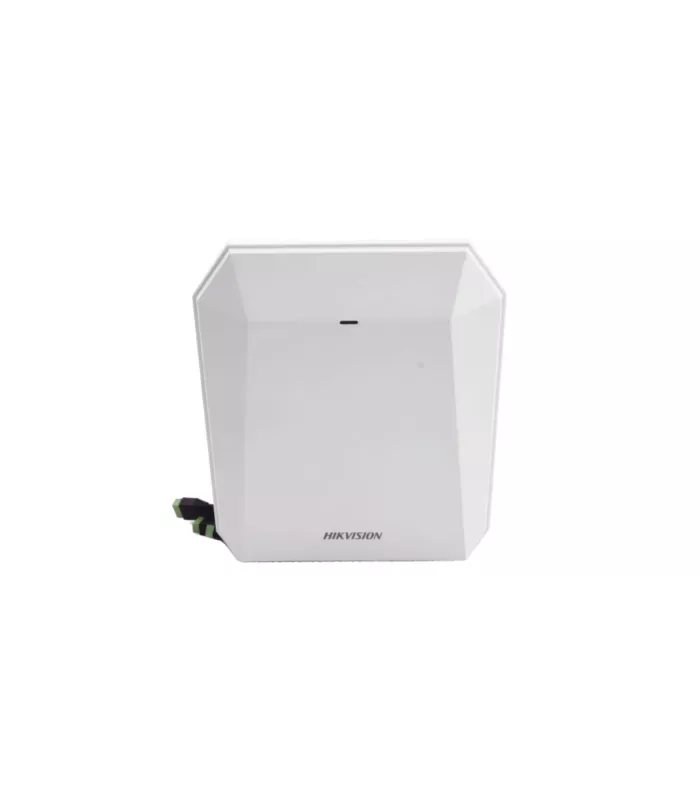

HIKVISION RADAR DS-TDSB0G-FK/60m

Characteristics of HIKVISION RADAR DS-TDSB0G-FK/60m

The HIKVISION RADAR DS-TDSB0G-FK/60m is an advanced security tool that offers a detection range of 60 meters for humans and 120 meters for vehicles. This perimeter IP radar is ideal for protecting extensive areas, with a detection angle of 120 degrees horizontally and 30 degrees vertically. Additionally, its water and dust resistance (IP67) and vandal-proof protection (IK09) make it perfect for use in any environment.

Technical Characteristics

• Working Frequency: 24.05 to 24.25 GHz
• Modulation Waveform: FMCW
• Scanning Range: Up to 12 times per second
• Horizontal Detection Angle: 120°
• Vertical Detection Angle: 30°

Product Specifications

• Detection Distance: Human: 60 m, Vehicle: 120 m
• Distance Resolution: 1.3 meters
• Distance Measurement Accuracy: ± 1.2 meters
• Angle Resolution: 12°
• Angle Accuracy: ± 1 °

Benefits and Main Uses

The HIKVISION RADAR DS-TDSB0G-FK/60m offers a range of advantages that make it an affordable and effective option for perimeter security. Its ability to detect multiple targets, set up detection zones and warning lines, and adapt to different scenarios make it ideal for commercial, industrial, and residential applications. Additionally, its ability to block targets and link multidimensional videos ensures comprehensive and accurate surveillance.

With an adaptive Ethernet network interface, onboard storage with integrated memory card, and multiple security protocols, the HIKVISION RADAR DS-TDSB0G-FK/60m offers a complete and reliable solution for protecting any environment. Its easy integration with video management systems and its intelligent radar and PTZ tracking capabilities make it a versatile and effective tool for real-time security.
