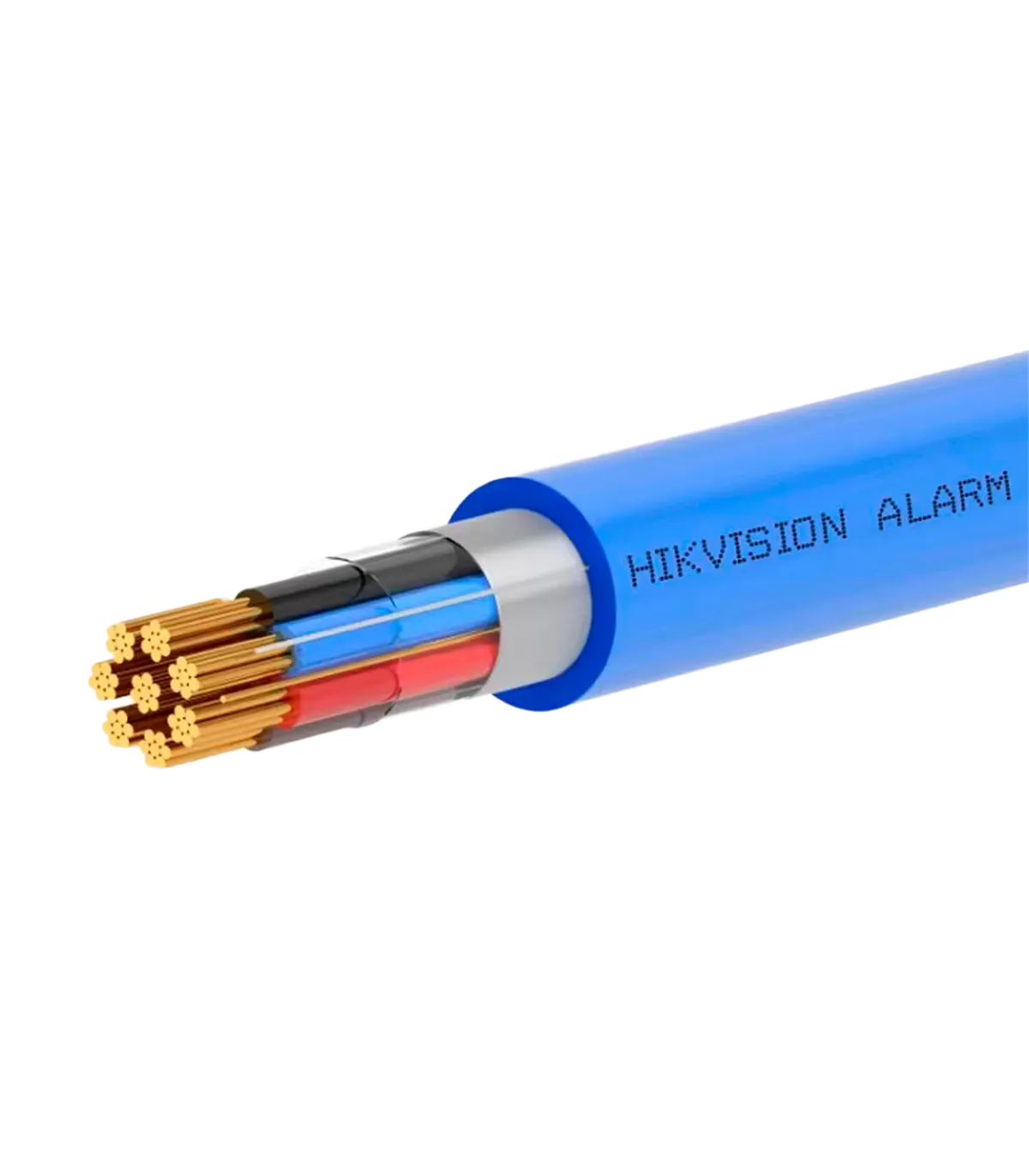

Hikvision 6-signal and 2-power conductor cable, 305 m spool, flexible electrolytic copper DS-1AC2C6APL1

Description & Key Features: DS-1AC2C6APL1

The DS-1AC2C6APL1 is a high-performance cable designed for electronic security systems, providing reliable connectivity for alarm systems. With its robust construction and flexible copper conductors, this cable is ideal for installations requiring long-distance runs, ensuring optimal signal transmission and power delivery. The cable's halogen-free materials make it suitable for environments where safety is a priority, while its low-smoke properties enhance safety during operation.

• Cable reel
• 305 m
• Alarm
• 6+2 conductors
• Flexible electrolytic copper inner conductor 0.22 mm2
• Flexible electrolytic copper power conductor 0.75 mm2
• PE insulation
• Aluminum polyester screen + CuSn drain
• LSZH insulation 0.2 mm
• LSZH outer sheath 5.2 mm
• Halogen-free

Specifications: DS-1AC2C6APL1

Package Contents

• Cable reel 305 m

Use Case

The DS-1AC2C6APL1 cable is an essential component for installers working on security alarm systems in commercial and residential settings. For example, when deploying a comprehensive security solution in a large retail space, this cable can be utilized to connect various sensors and alarms over long distances without compromising signal integrity. The flexible electrolytic copper conductors ensure that the system remains responsive, while the halogen-free and low-smoke properties of the cable enhance safety during installation and operation. Additionally, the cable's ability to withstand a wide temperature range of -20º C to 70º C makes it suitable for diverse environments. By using the DS-1AC2C6APL1, installers can achieve a reliable and efficient security setup that meets the rigorous demands of modern surveillance and alarm systems.
