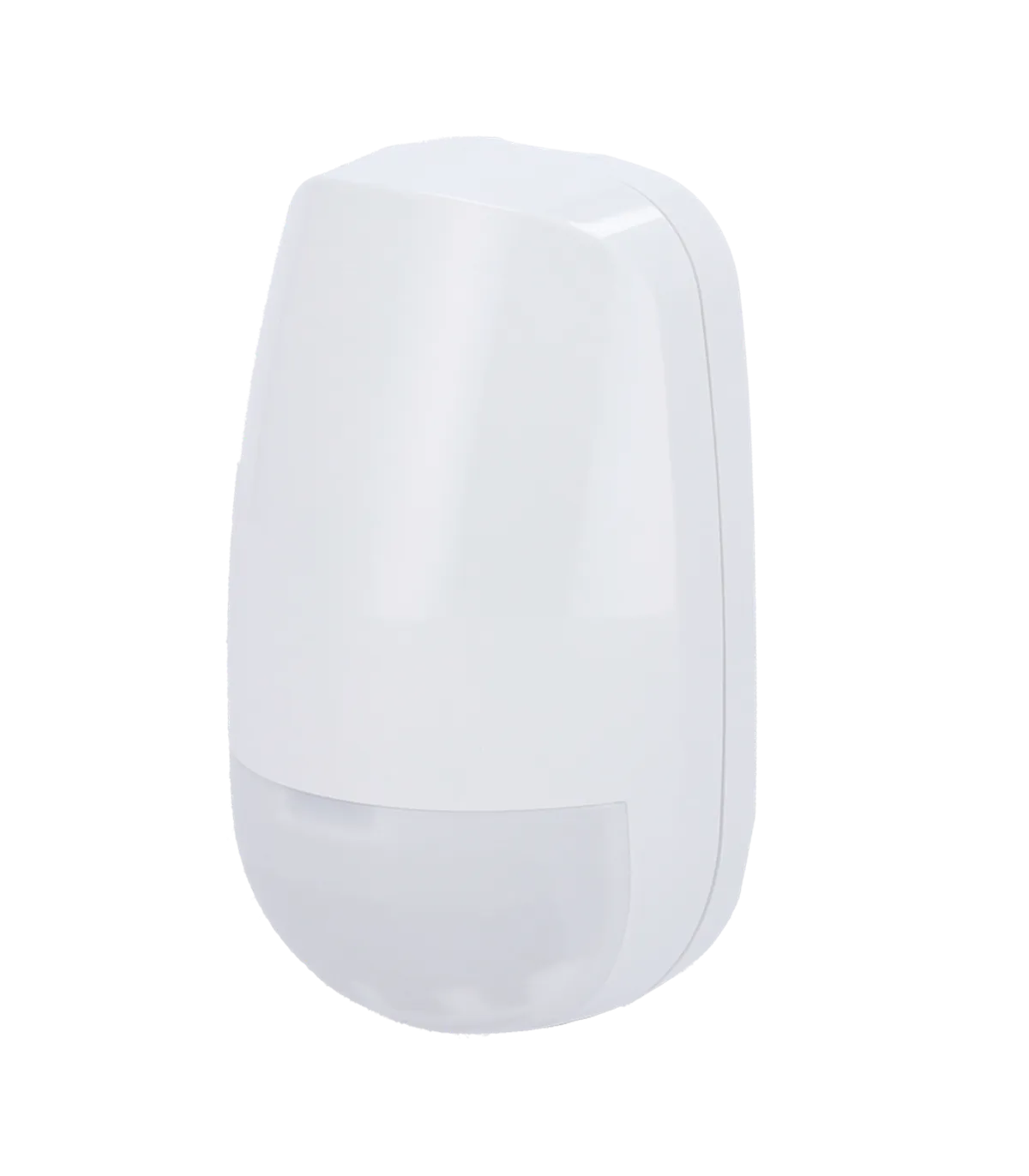

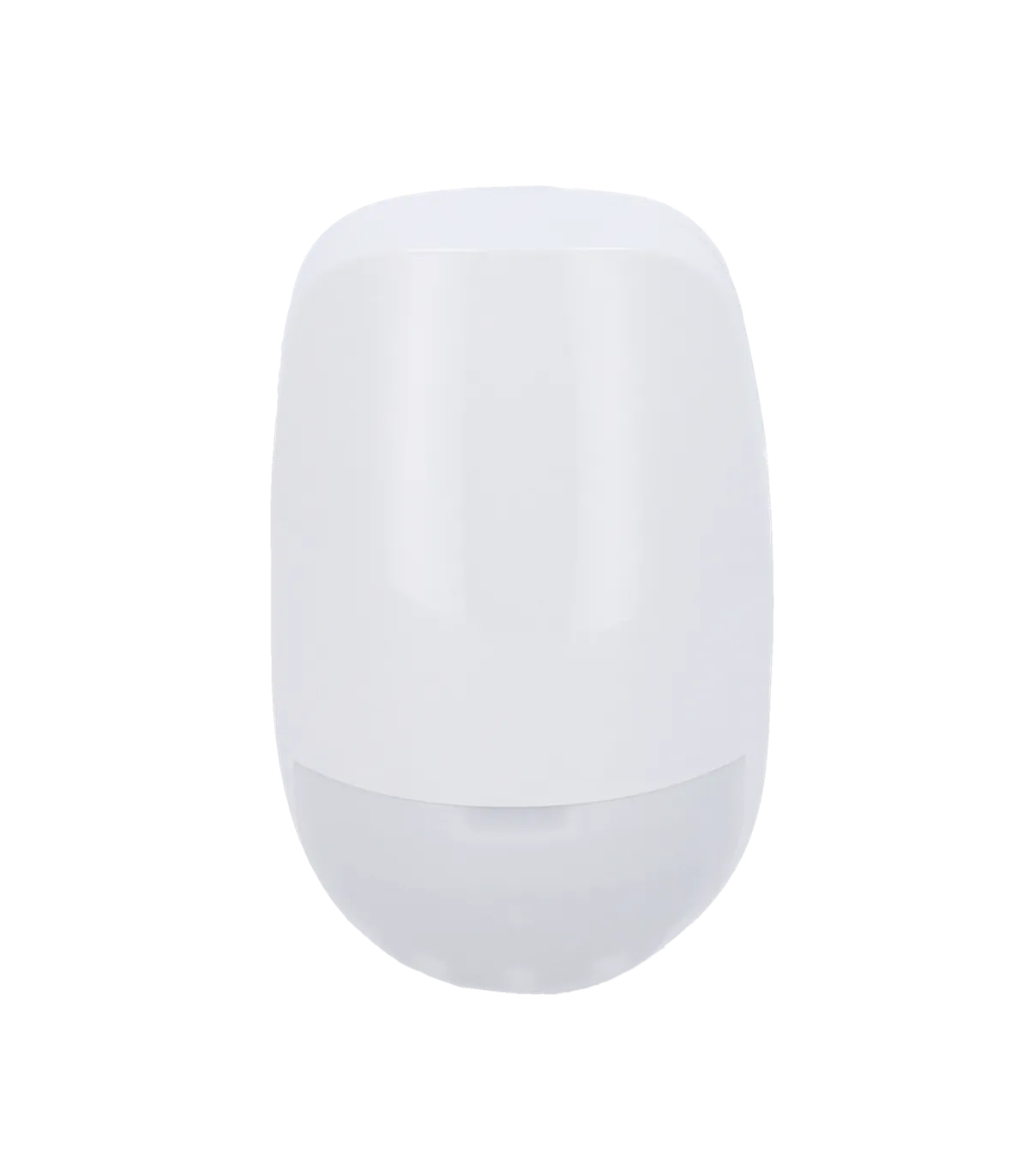

The DS-PDD12P-EG2 is a dual-technology wired detector designed for enhanced security in indoor environments. This device combines passive infrared and microwave technology to provide reliable motion detection, making it ideal for residential and commercial applications. With a detection range of 12 meters and an angle of detection of 85.9º, it ensures comprehensive coverage. The detector also features pet immunity for pets weighing up to 30 kg, making it suitable for homes with animals. Its advanced features, including automatic sensitivity and digital temperature compensation, enhance its performance in various conditions.
| Brand | Hikvision |
| Model | DS-PDD12P-EG2 |
| Security Grade | Grade 2 |
| Technology | Passive infrared and microwave |
| Detection Range | 12 meters |
| Detection Angle | 85.9º |
| Detection Zones | 52 |
| Microwave Frequency | 24 GHz (24.15 GHz to 24.25 GHz) |
| Microwave Range | Potentiometer adjustable |
| Installation Height | From 1.8 to 2.4 meters |
| Installation | Wall |
| Sensitivity | Automatic |
| Pet Immunity | Available (Up to 30 kg) |
| Digital Temperature Compensation | Available |
| Anti-Tamper Protection | Available (front) |
| Alarm Output | Normally closed |
| LED Indication | Alarm: blue PIR activated: green Microwave: orange |

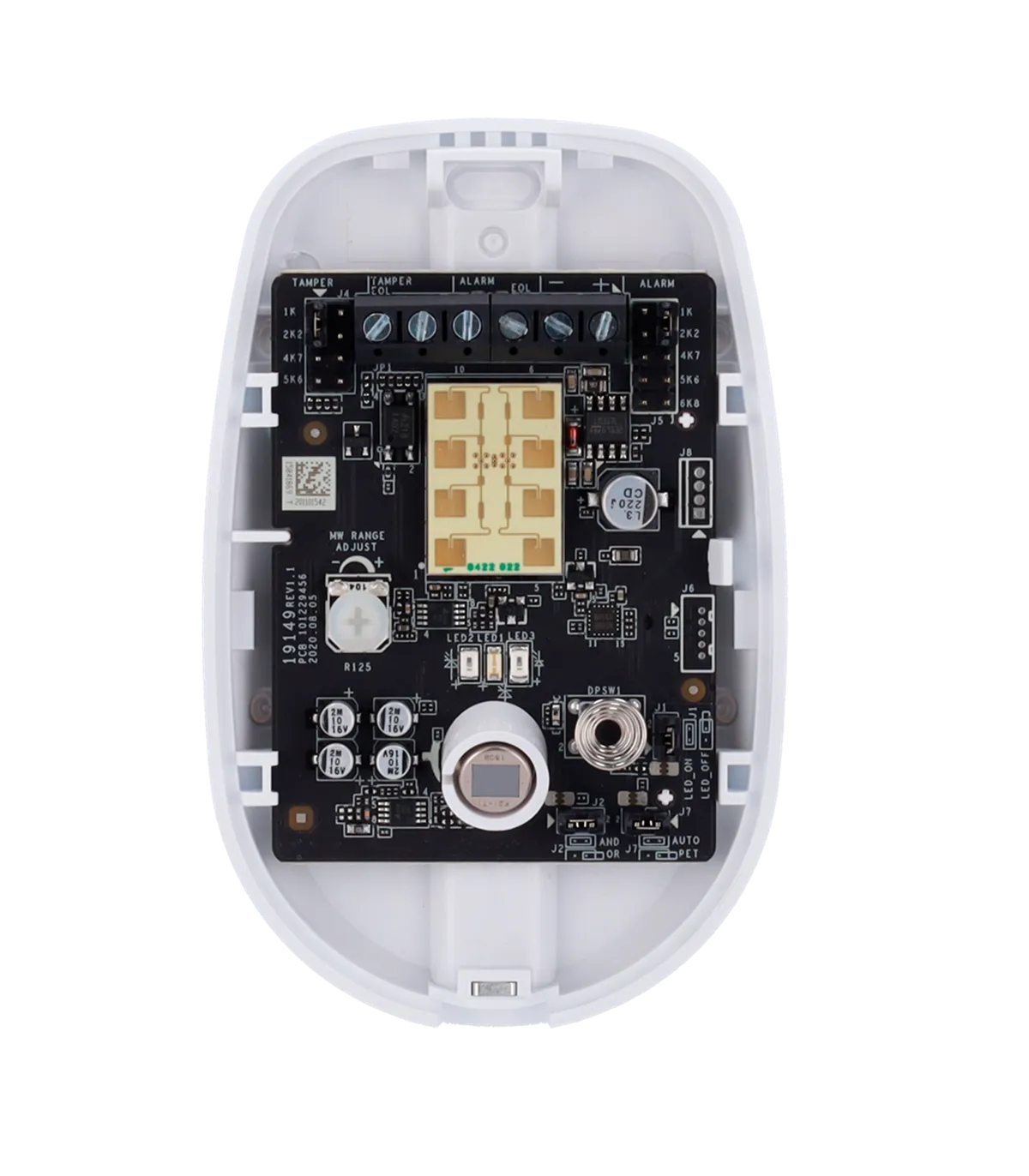

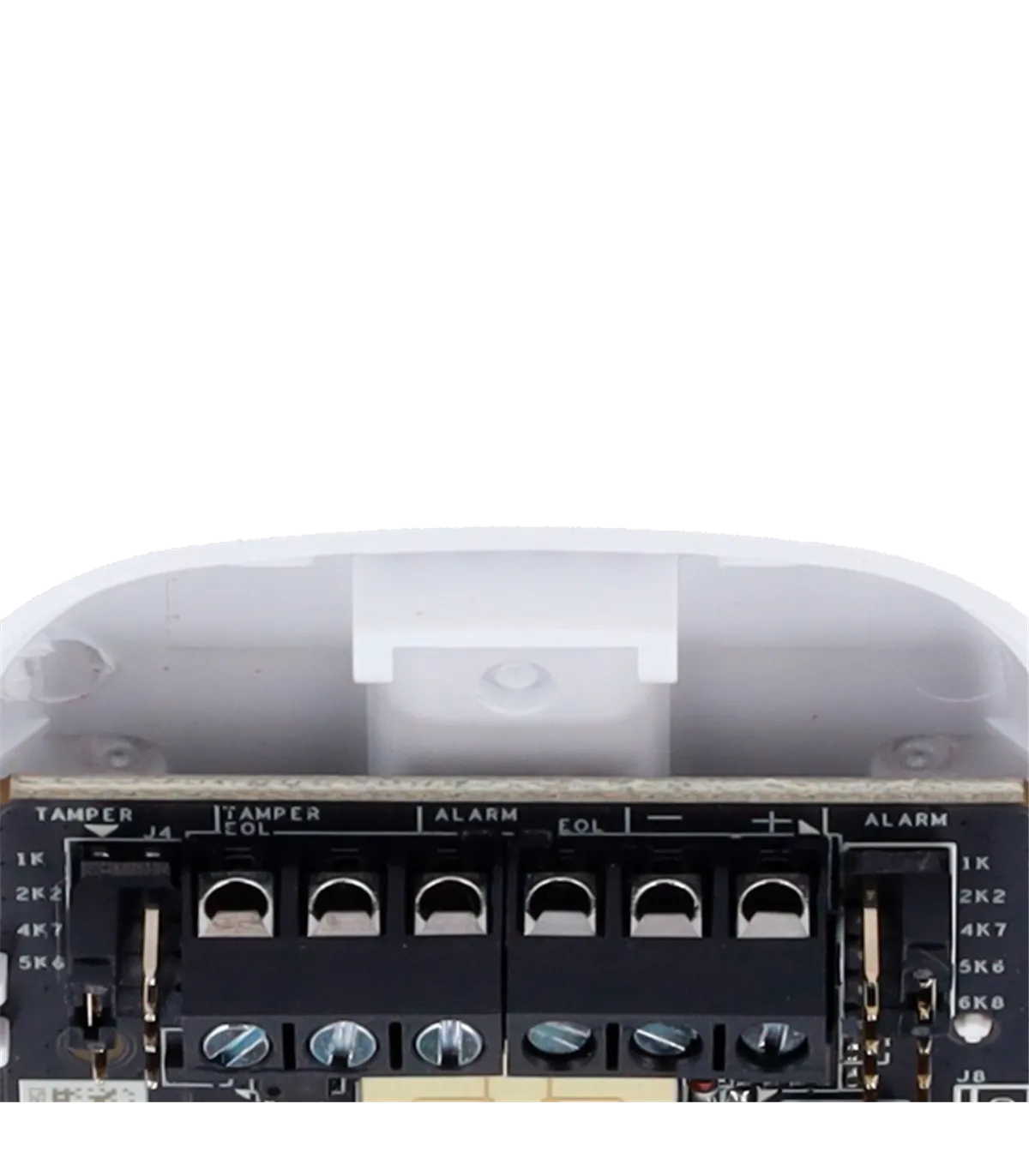

| End-of-Line (EOL) Resistors | Available, selectable with jumpers |
| Alarm Resistors | 1K, 2K2, 4K7, 5K6, 8K2 |
| Tamper Resistors | 1K, 2K2, 4K7, 5K6 |
| Wired Outputs | Alarm and tamper |
| Power Supply | 9~16 VDC (max. consumption 17 mA) |
| Operating Temperature | -10 ºC ~ +55 ºC |
| Operating Humidity | 10% to 90% |
| Application Scenarios | Indoor |
| Dimensions | 103.8 (H) x 65.7 (W) x 45.5 (D) mm |
The DS-PDD12P-EG2 is an excellent choice for securing residential properties and small businesses. For instance, when installed in a hallway or entryway, this detector can effectively monitor movement within a 12-meter range, ensuring that any unauthorized access is promptly detected. The automatic sensitivity feature allows the device to adapt to varying environmental conditions, while the pet immunity ensures that household pets do not trigger false alarms. Additionally, the digital temperature compensation helps maintain optimal performance in fluctuating temperatures, making it reliable year-round. The inclusion of anti-tamper protection adds an extra layer of security, alerting users to any attempts to disable the device. Overall, the DS-PDD12P-EG2 is a robust solution for enhancing security in indoor environments.
