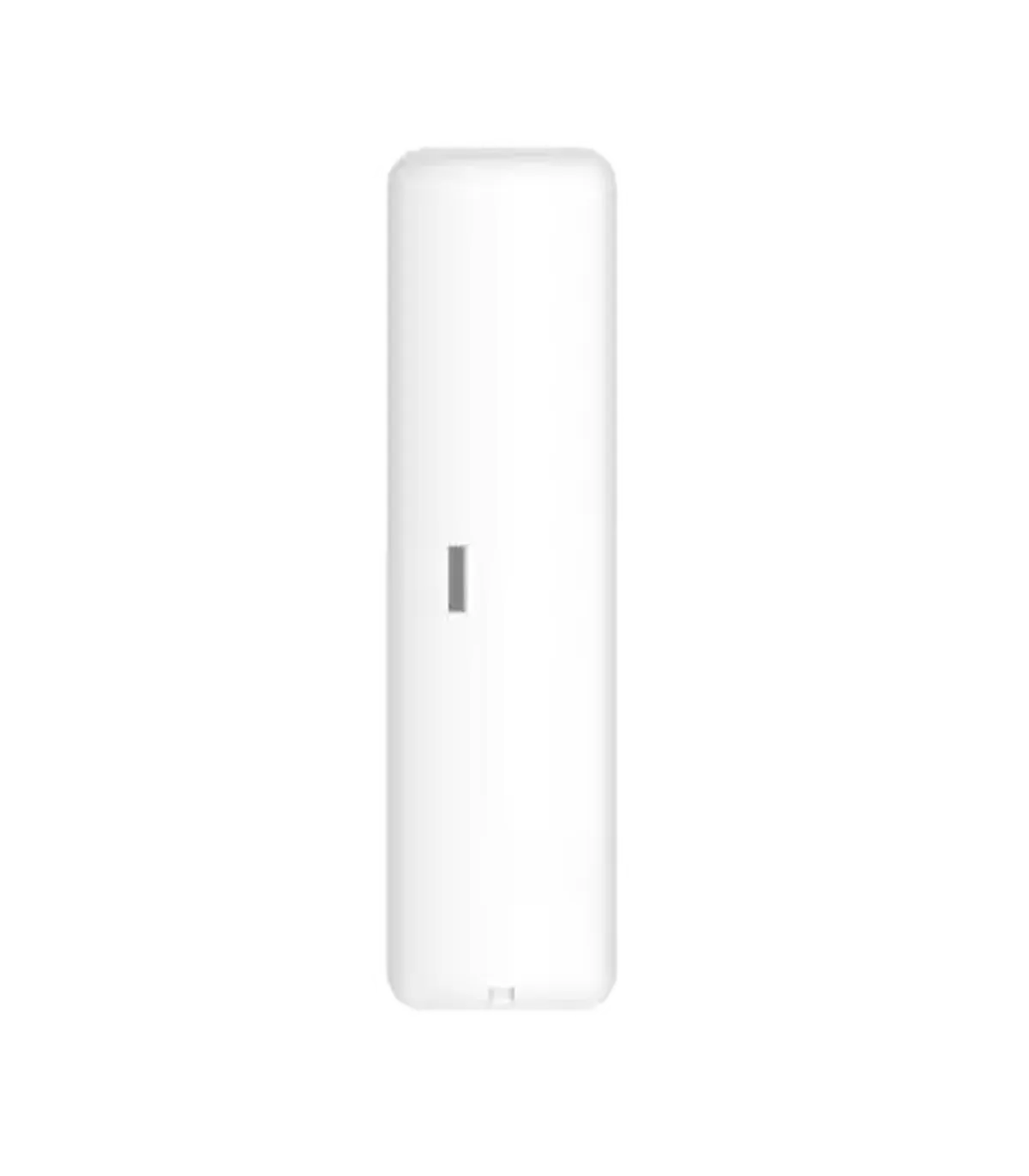

Hikvision Piezoelectric Wired Impact Detector 2.5 m Range Front Tamper Protection DS-PDSK-P
- Wired impact detector
- Piezoelectric sensor
- Detection range up to 2.5 meters radius
- Anti-tamper front cover
- Power supply 9~16 VDC
- Digital filter to eliminate background noise
Description & Key Features: DS-PDSK-P
The DS-PDSK-P is a professional-grade impact detector designed for indoor use, ideal for enhancing security in residential and commercial environments. This device utilizes a piezoelectric sensor to detect impacts within a radius of up to 2.5 meters, making it suitable for protecting vulnerable areas. With features such as adjustable sensitivity and a digital filter to eliminate background noise, the DS-PDSK-P ensures reliable performance. The built-in anti-tamper mechanism adds an extra layer of security, while the LED indicator provides clear visual feedback.
- Hikvision
- Wired impact detector
- Piezoelectric sensor
- Detection range up to 2.5 meters
- Front anti-tamper
- Adjustable sensitivity with potentiometer
- Digital filter to eliminate background noise
- LED indicator
- Power supply 9~16 VDC
- Indoor use
Specifications: DS-PDSK-P
| Brand | Hikvision |
| Model | DS-PDSK-P |
| Technology | Piezoelectric sensor |
| Detection range | Up to 2.5 meters |
| Sensitivity | Adjustable with potentiometer |
| Anti-tamper | Available (front) |
| Background noise filter | Available |
| Alarm output | Normally closed |
| LED indication | Alarm: blue |
| End of line resistors (EOL) | Not integrated |
| Wired outputs | Alarm and tamper |
| Power supply | 9~16 VDC (max current 18 mA) |
| Operating temperature | -20 ºC ~ +60 ºC |
| Operating humidity | 10% to 90% |
| Application scenarios | Indoor |
| Dimensions | 108 (H) x 30 (W) x 22 (D) mm |
| Installation | Wall-mounted |
Package Contents
- Wired impact detector
- Instruction manual
- Mounting materials
Use Case
The DS-PDSK-P is an excellent choice for installers looking to enhance security in various indoor environments, such as offices, retail spaces, or homes. By strategically placing the wired impact detector near entry points or vulnerable areas, users can effectively monitor for unauthorized access. The adjustable sensitivity allows for customization based on the specific environment, ensuring optimal performance without false alarms. Additionally, the anti-tamper feature provides peace of mind, alerting users to any attempts to disable the device. With its compact design, the DS-PDSK-P can be easily wall-mounted, making installation straightforward and efficient. Overall, this device is a reliable solution for those seeking to bolster their indoor security systems.
Data sheet
- Brand
- HIKVISION
- Compatible models
- DS-1AC6APL1,DS-1AC4APL1,DS-1AC4APL1,DS-1AC4APL1,DS-1AC2C6APL1,DS-1AC2C6APL1,DS-1AC2C6APL1,DS-1AC2C4APL1,DS-1AC2C4APL1,DS-1AC2C4APL1,CA8P2-100-H,CA8P2-100-H,CA8P2-100-H,CA8-100-H,CA8-100-H,CA8-100-H,CA6P2-100-H,CA6P2-100-H,CA6P2-100-H,CA6-100-H,CA6-100-H,C
Specific References
- EAN13
- 6941264079460
