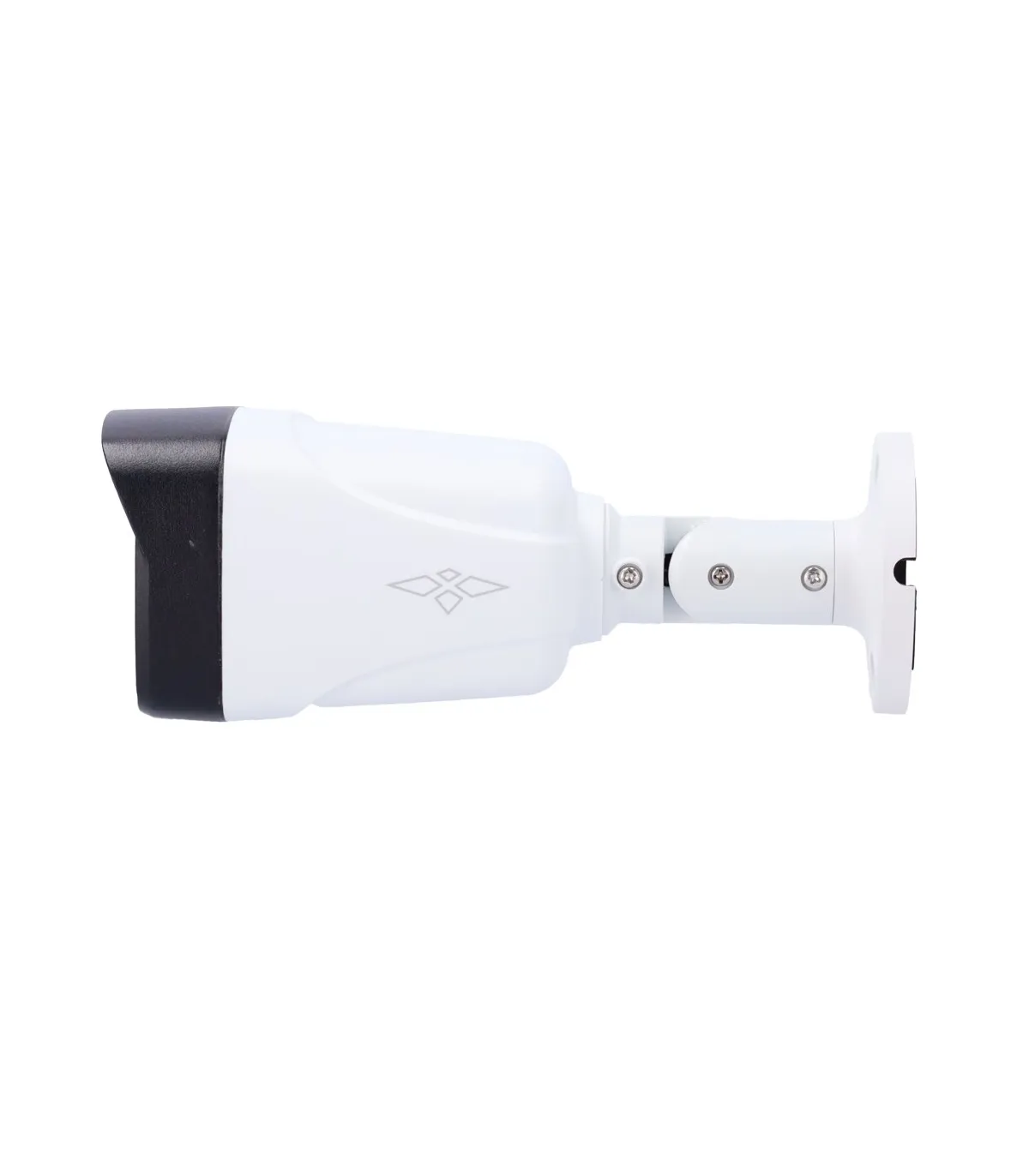

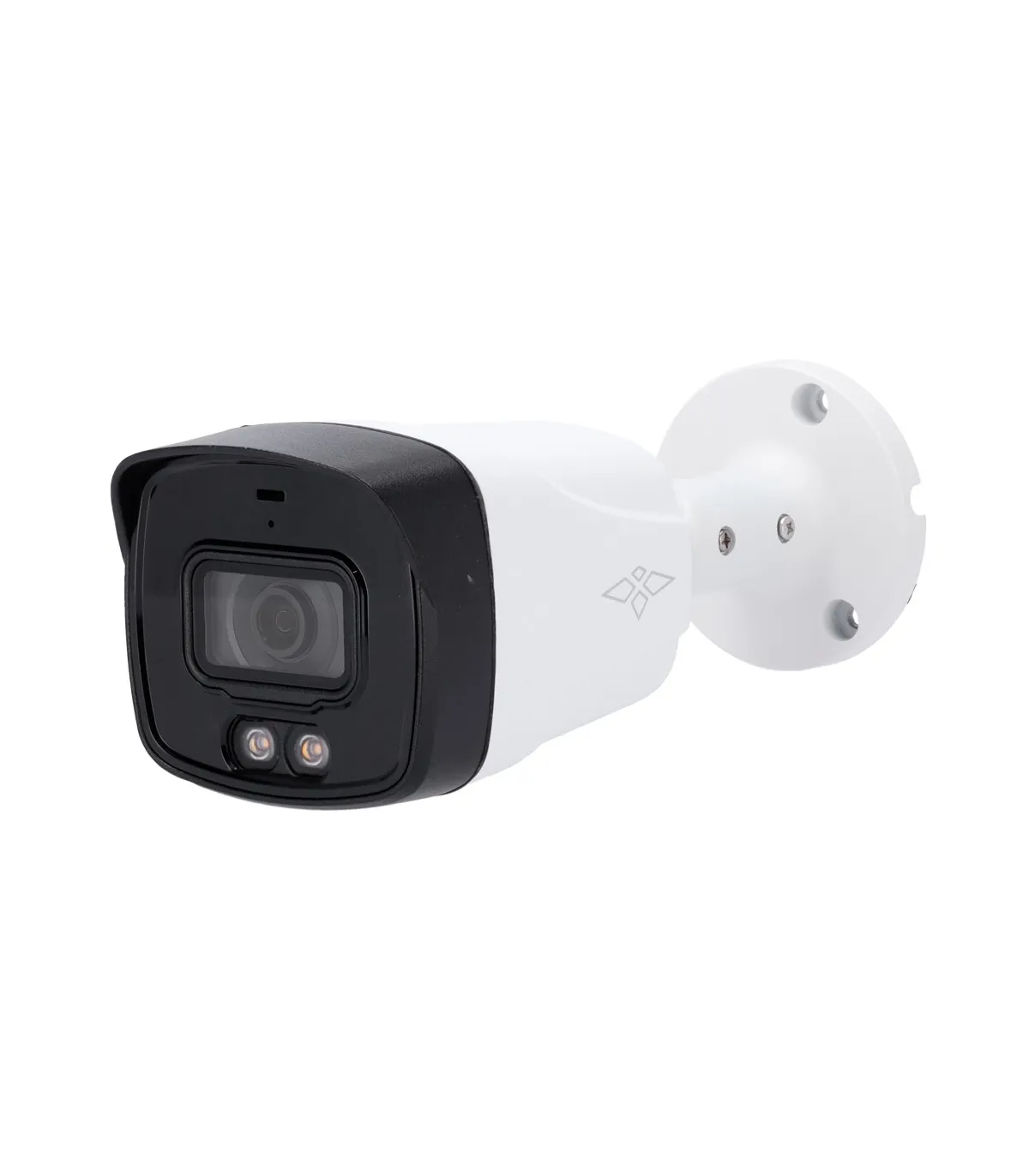

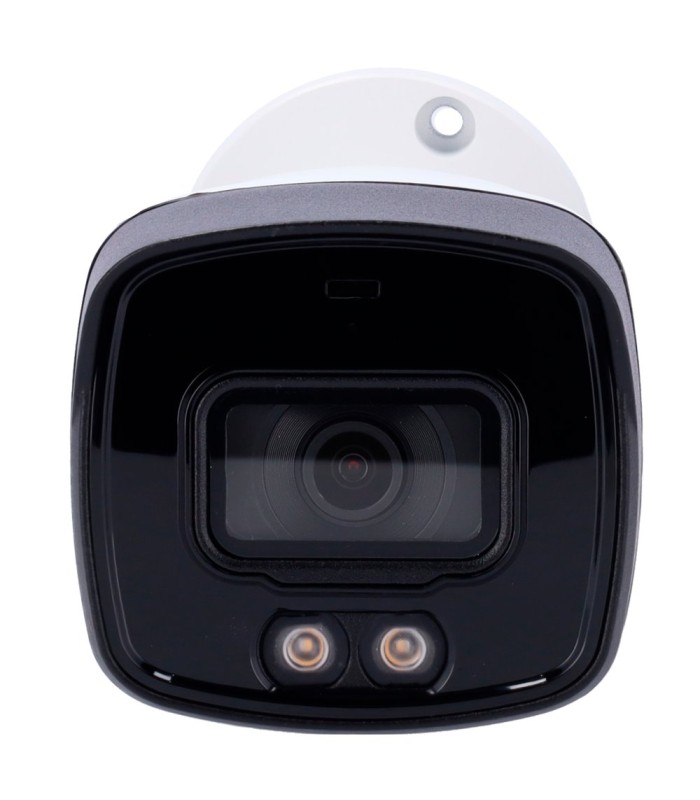

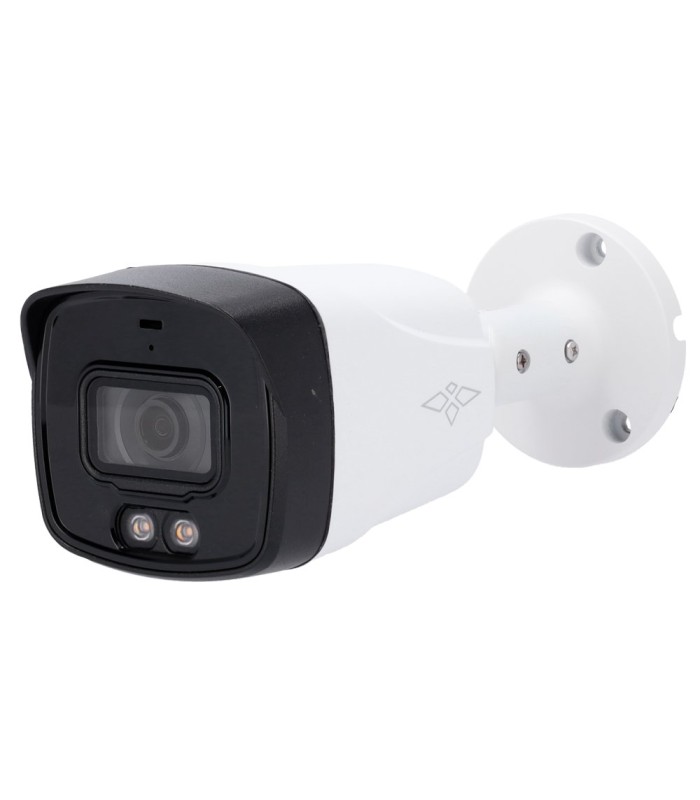

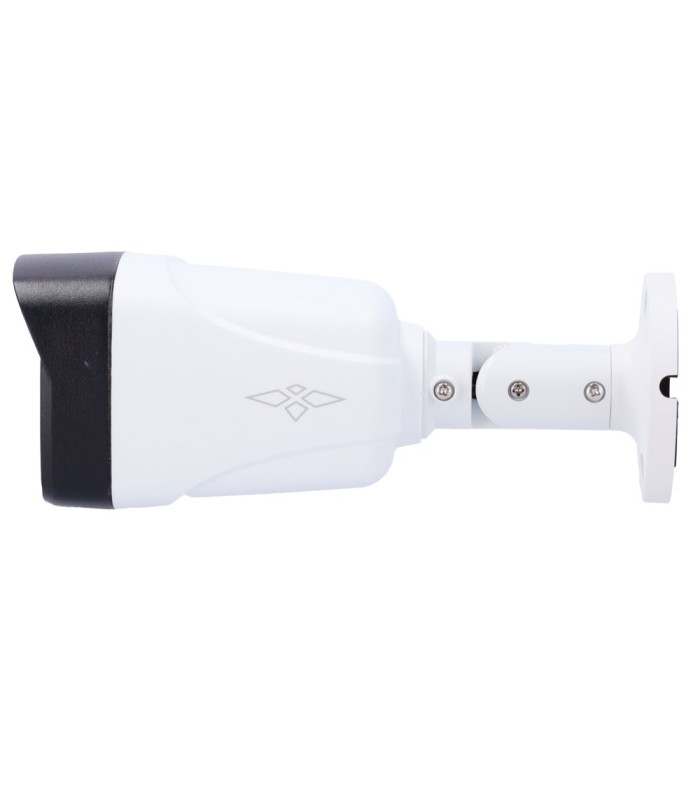

X-Security Bullet Camera ECO Range XS-B201A-2E-DL
Brand: X-SECURITY
- X-Security ECO Range Bullet Camera
- 4 in 1 Output
- 1080p Resolution
- 2.8 mm Lens
- Dual Light with 40 m range | Built-in Microphone
X-Security Bullet Camera ECO Range XS-B201A-2E-DL
- X-Security
- HDTVI, HDCVI, AHD, and Analog Bullet Camera
- ECO Range
- 1/2.7 CMOS
- Resolution 1080p (1920x1080)
- 4 in 1 Output
- 2.8 mm Lens
- 0 Lux
- Dual Light: IR and White Light
- Dual Light Range 40 m
- IR CUT
- 3D-DNR
- Integrated Microphone
- Coaxial Audio in HDCVI Technology
- IP67 Waterproof
Technical Specifications
| Brand | X-Security |
| Range | ECO |
| Image Sensor | 1/2.7" CMOS |
| Maximum Resolution | 2 Mpx (1920x1080) |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 102º, V: 60º, D: 129º |
| DORI | 41.1 m (D), 16.5 m (O), 8.3 m (R), 4.1 m (I) |
| Lens Positioning | 3-axis |
| Minimum Illumination | 0.01 Lux @(F2.0, AGC ON) 0 lux with dual light |
| Supplementary Illumination | Dual Light (IR + White Light) range 40 m |
| Day/Night | Mechanical ICR Filter |
| Electronic Shutter | 1/25~1/100000 s |

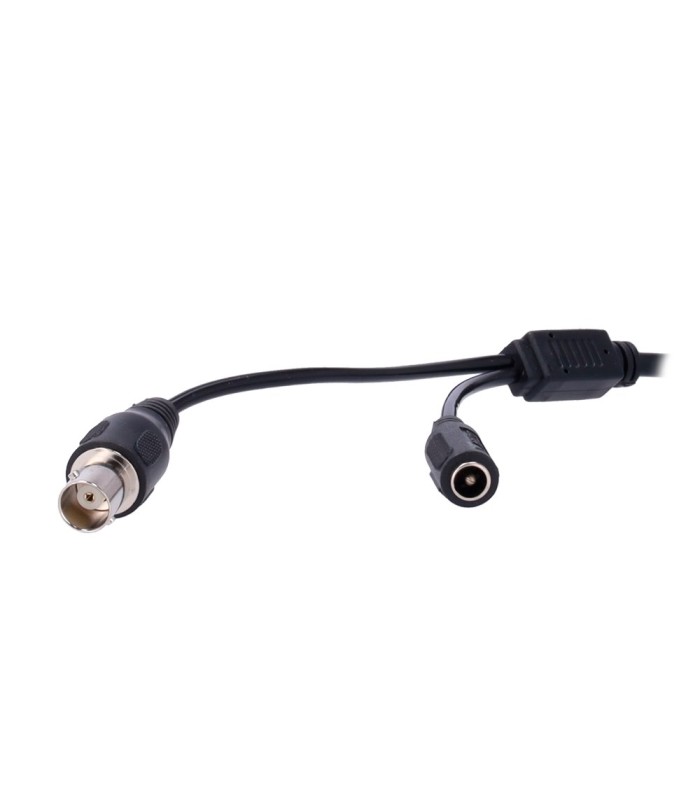

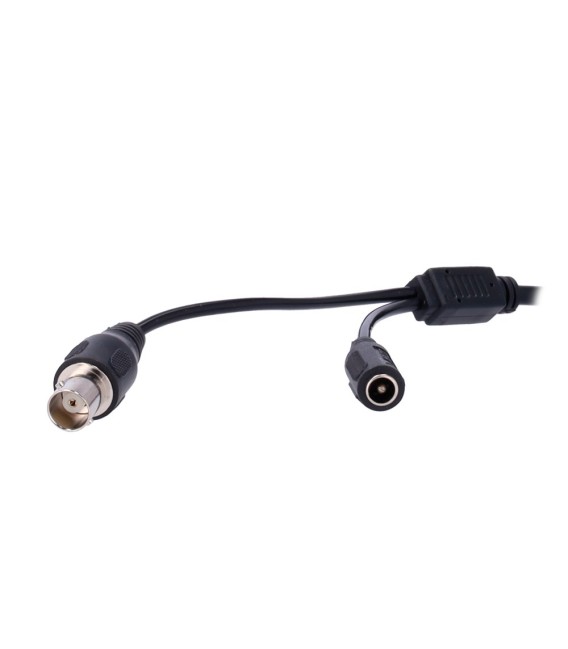

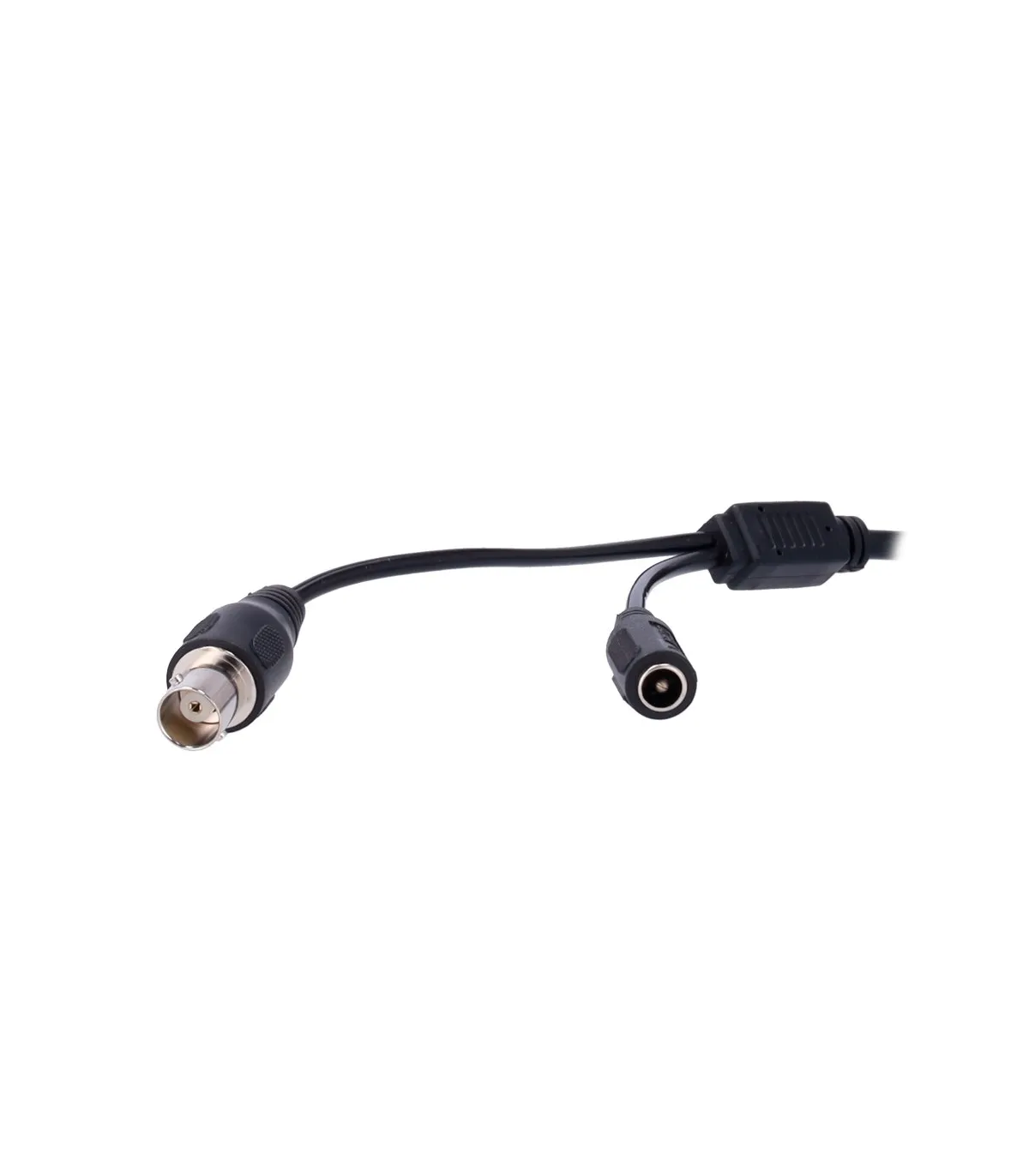

| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Through OSD |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | DWDR, 3D-DNR, HLC, BLC, AGC, AWB, Smart Light, Mirror Function, Privacy Mask |
| Power Supply | DC 12 V / 4.1 W max |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -40º C ~ +60º C |
| Dimensions | 198.9 (L) x 80.2 (W) x 76.2 (H) mm |

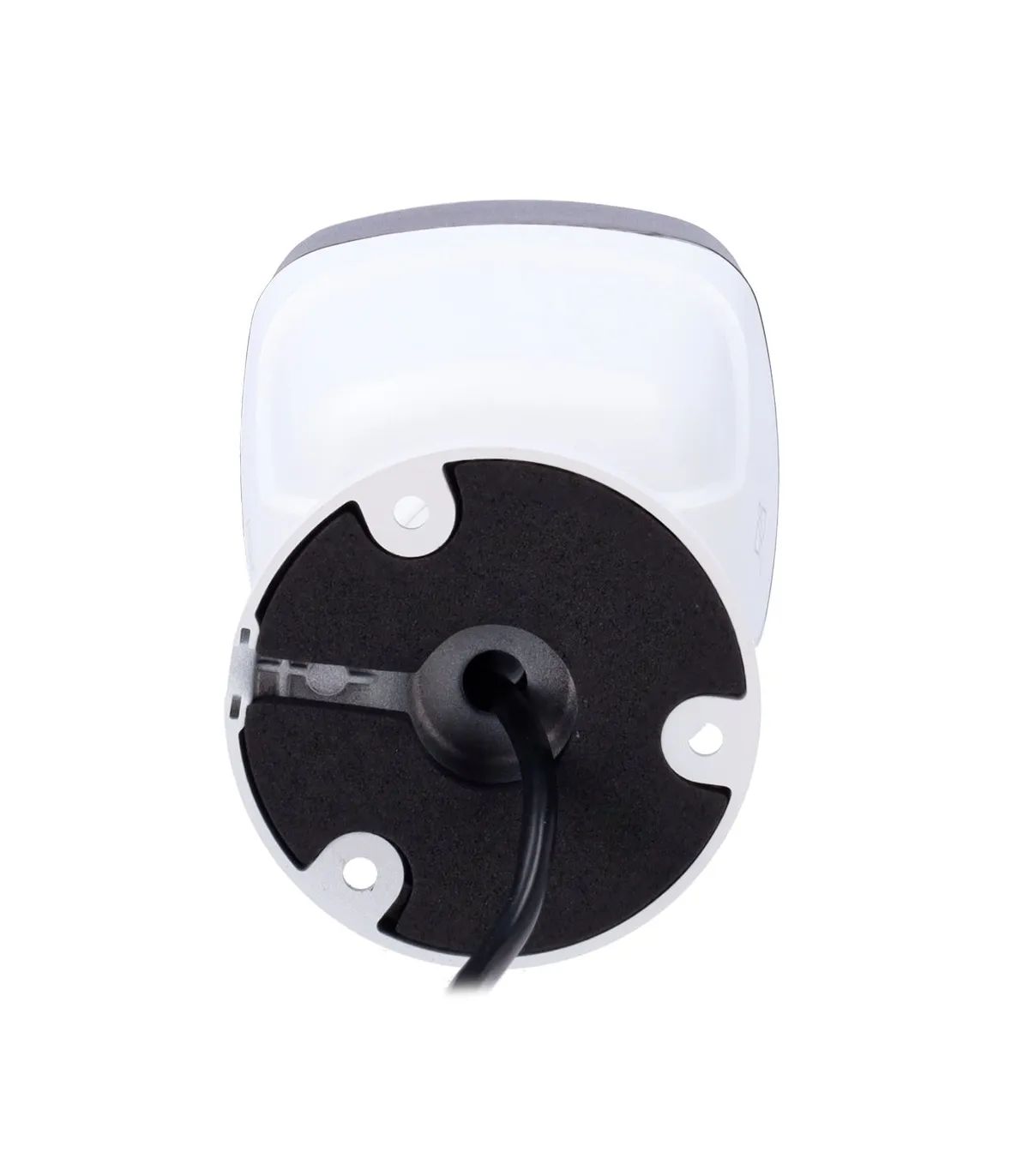

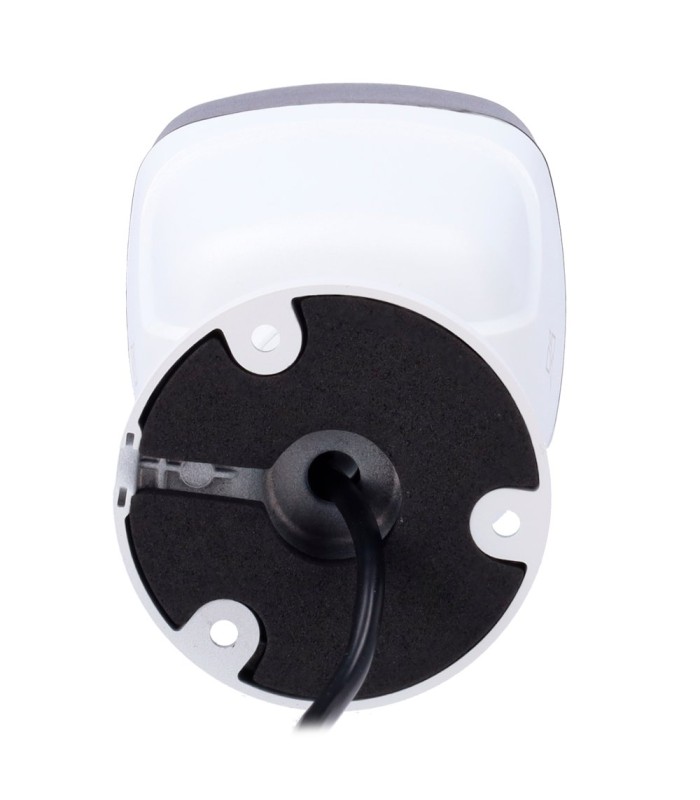

| Base Diameter | Ø base 70.1 mm / Ø between screws 56 mm / 3 screws |
| Weight | 290 g |
Contents
- X-Security 4N1 Bullet Camera
- 3 plugs and 3 screws for mounting
- Instruction Manual
- Allen Key
- Installation Template
