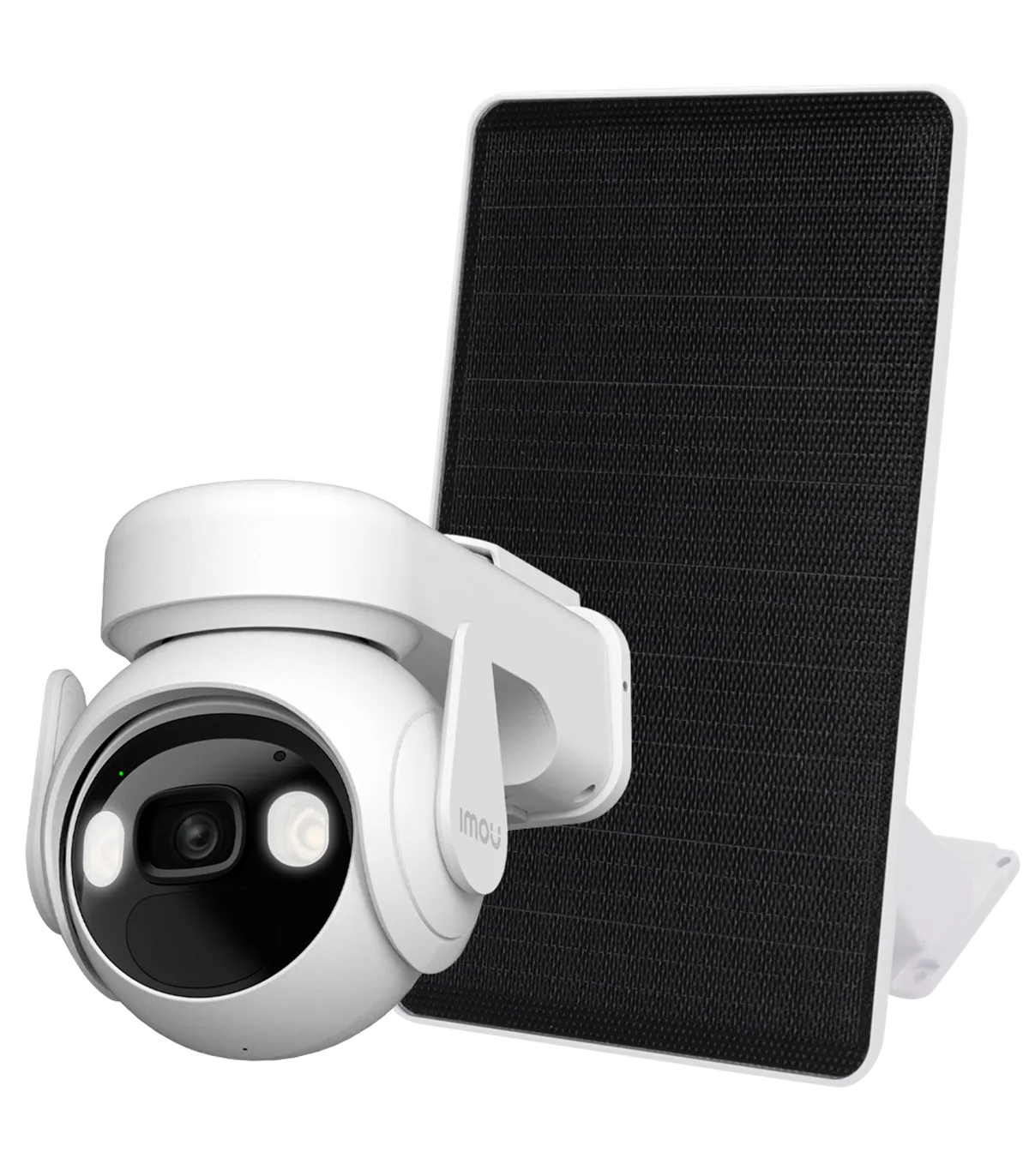

Installing the Imou Cell PT 4G battery camera kit provides reliable protection for homes, commercial premises or remote properties where Wi‑Fi and mains power are unavailable. Its high‑capacity rechargeable battery combined with the included 5W solar panel delivers continuous, autonomous surveillance without dependence on an electrical outlet. Native 4G LTE with SIM card support ensures real‑time alerts and live video on your smartphone from anywhere. As an Imou DIY system, the kit is designed for fast, tool‑light installation and straightforward configuration, minimizing downtime and eliminating the need for professional installers.
| Brand | Imou |
| Model | IMOU-IPC-B7EDP-3T1TEH-EU/FSP14-TYPEC / Cell PT2 4G 3MP — Full model identification to ensure compatibility with accessories and firmware. |
| Image sensor | 1/2.8” Progressive Scan CMOS — Delivers improved dynamic range and low‑light performance for clearer, more detailed footage. |
| Main stream encoding | 2304 x 1296 @ 30fps (3MP) — High‑resolution video stream suitable for identification and evidence capture while maintaining efficient bandwidth usage. |
| Lens | 3.6 mm (Diagonal field of view 107°) — Wide coverage to reduce blind spots and cover larger areas with a single camera. |
| Remote Pan/Tilt movement | Horizontal: 330°, Vertical: 0~90° — Extensive remote adjustment range for comprehensive area monitoring and flexible installation angles. |
| Tracking modes | Motion‑tracking (movement) — Automatic target following to keep detected subjects within the frame for continuous observation and recording. |
| Infrared illumination | 0 lux IR LEDs (20 m) — True night‑vision capability up to 20 meters for reliable surveillance in complete darkness using IR illumination. |
| Color illumination | Color Night Vision / Deterrent flash — Provides color detail at night and an integrated strobe to improve recognition and deter intruders. |
| Audio | Two‑way audio (microphone and speaker) / Built‑in 110 dB siren — Enables voice communication, remote warnings and a high‑volume audible deterrent to respond to incidents in real time. |
| Detection types | Intelligent human detection via PIR — Hardware and algorithm combination to prioritize human intrusions and reduce nuisance alerts from non‑human motion. |
| Local storage | Supports microSD card (max. 256GB) — On‑device recording option for continuous or event‑based storage without subscription fees. |
| Connectivity | 4G LTE — Cellular data connectivity for live video and notifications where wired internet is not available. |
| Remote access | Smartphone app: Imou Life PC software: Imou PC No browser access available — Mobile and desktop applications provide remote monitoring, playback and system management; browser access is not supported. |
| Rechargeable battery | 10000 mAh — High capacity cell for extended operation between charges; combined with the solar panel it supports long‑term off‑grid deployments. |
| Power | DC 5V / 2000 mA / Solar panel 5W (included) — Standard 5V input and included 5W solar panel for sustainable, low‑maintenance power in remote locations. |
| Ingress protection | Waterproof IP67 — Weather‑resistant design suitable for outdoor installation in rain, dust and harsh conditions. |
| Operating temperature | -20° C ~ +50° C — Rated to perform reliably across a wide temperature range for varied climates. |
| Dimensions | 177 mm x 110 mm x 142 mm — Compact form factor for discreet outdoor mounting and flexible placement. |
| Weight | 737.7 g — Lightweight construction simplifies installation and mounting on a variety of surfaces. |
