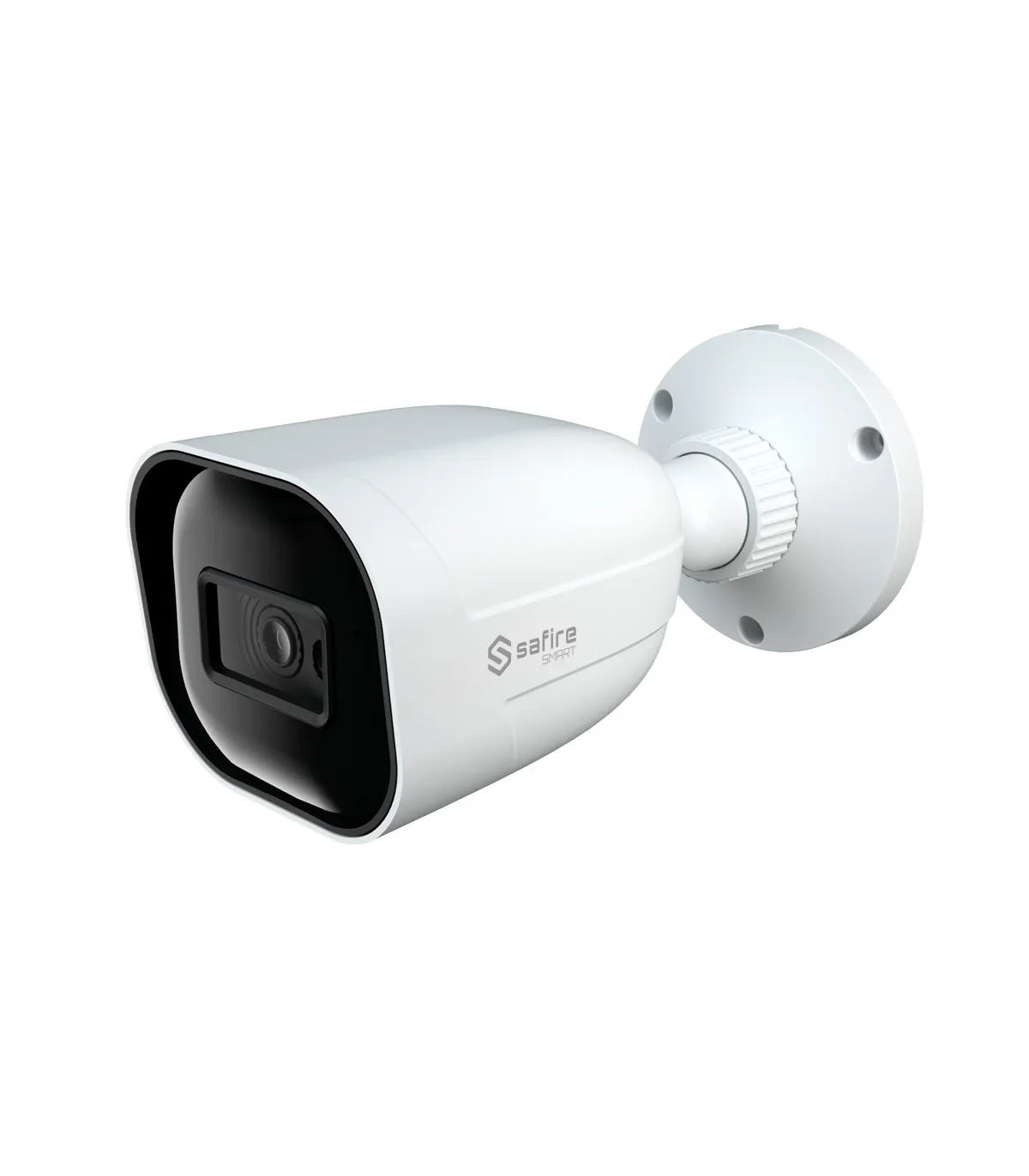

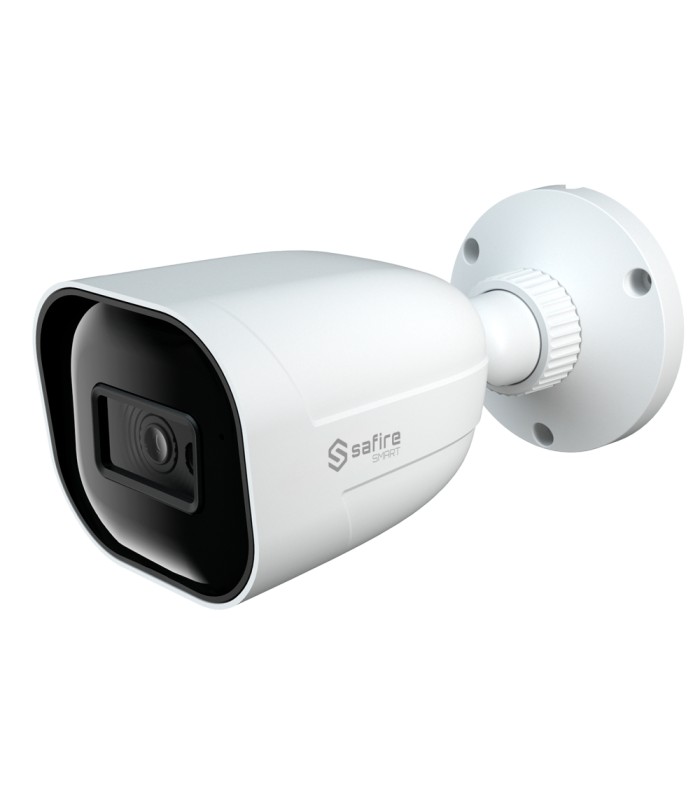

Turret 4 in 1 Camera E1 Range SF-B080SA-2E1
Brand: SAFIRE SMART
- Safire Smart
- 4 in 1 Turret Camera E1 Range
- 2 Mpx (1920x1080), 1/2.8" CMOS Starlight
- 2.8 mm lens | IR range 30 m
- WDR, HLC, BLC, AGC | Audio over coax HDTVI
- Waterproof IP67
Turret 4 in 1 Camera E1 Range SF-B080SA-2E1
- Safire Smart
- E1 Professional Range high quality and performance
- Turret HDTVI, HDCVI, AHD and Analog Camera
- CMOS 1/2.8" Starlight
- 2Mpx (1920x1080)
- 4 in 1 output
- 2.8mm lens
- 0 Lux
- IR Range 30 m
- 3D DNR
- IR CUT
- HLC, BLC, AGC
- WDR (120dB)
- Audio over coaxial over HDTVI- Waterproof IP67
Technical specifications
| Brand | Safire Smart |
| Range | E1 Professional high quality and performance |
| Image sensor | 1/2.8" CMOS Starlight |
| Maximum resolution | 2 Mpx (1920x1080) |
| Resolution | 2Mpx (25fps) |
| Lens | 2.8 mm (H: 101º, V: 68.6º, D: 108.6º) |
| Minimum illumination | 0.001 Lux @(F1.2, AGC ON) |
| Illumination infrared | 0 Lux / IR range up to 30 m (ICR) |
| Day / Night | Auto / Color / BW (Black and White) |
| Audio on coaxial | Integrated Microphone (Audio over coaxial supported over HDTVI) |
| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video switching | Via DVR (HDTVI by default) |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 3D-DNR, AWB, ATW, BLC, AGC, Mirror, Smart IR |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / 300 mA, 4W max |
| Protection degree | Waterproof IP67 |
| Temp. operation | -30º C ~ +50º C |
| Material | Metal body and plastic support |
| Dimensions | 82.8 (H) x 94.6 (Ø) mm |
| Weight | 390 g |
Contents
- Safire Smart turret chamber
- 3 plugs and 3 screws for assembly
- Quick assembly guide
- Installation template
