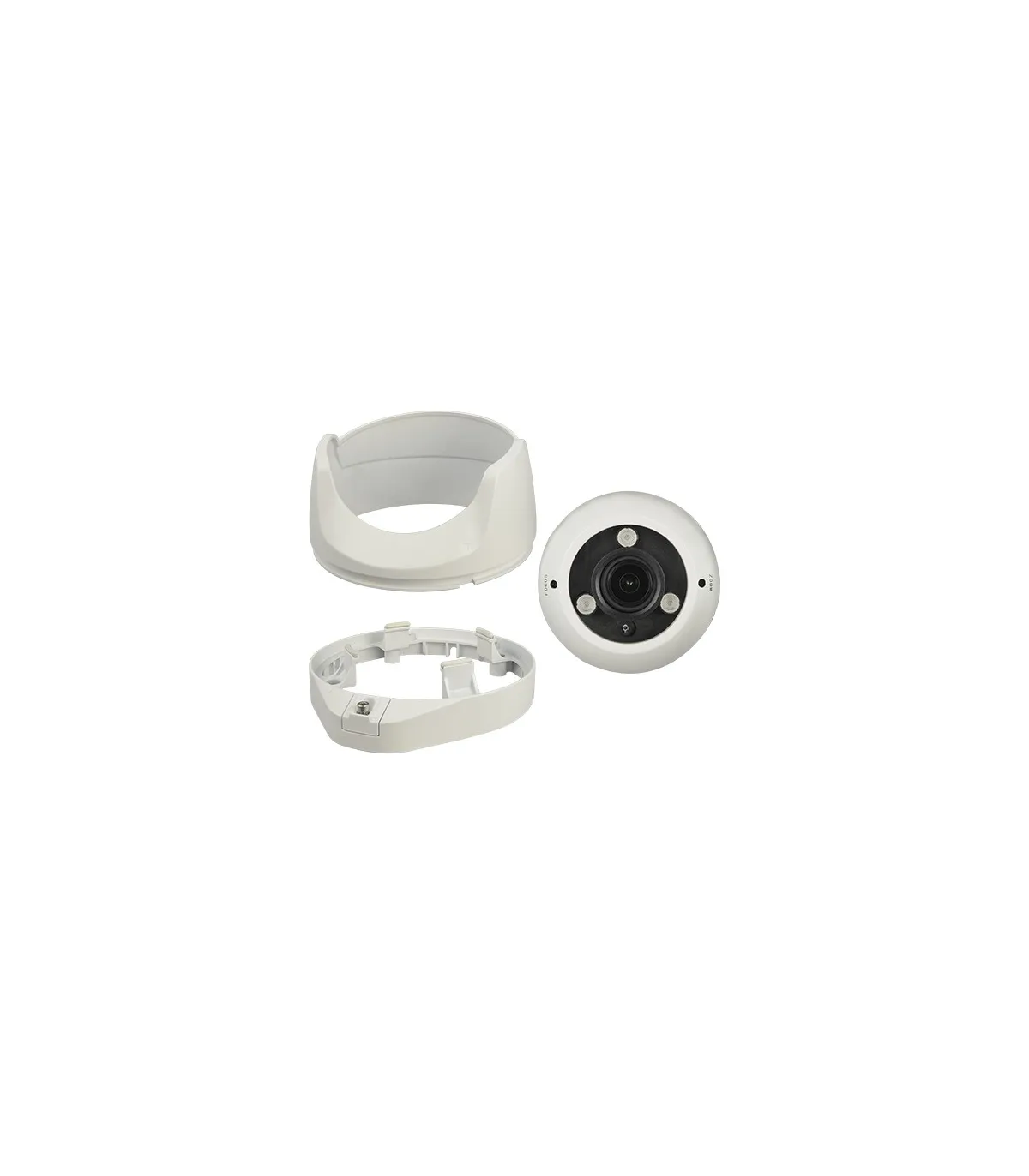

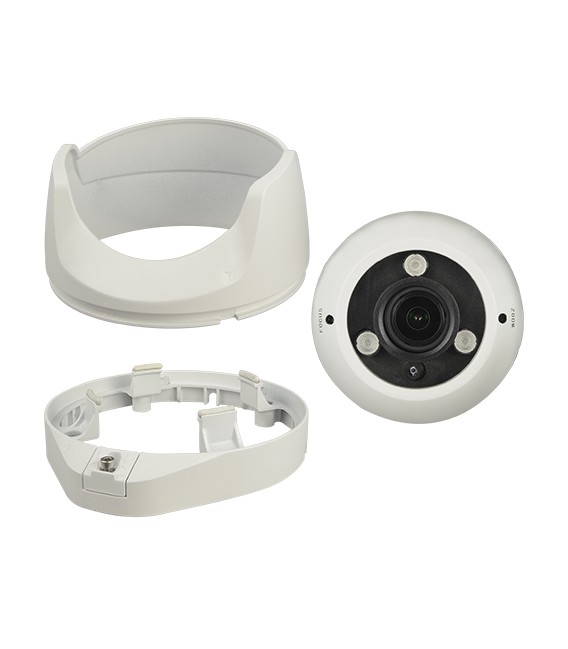

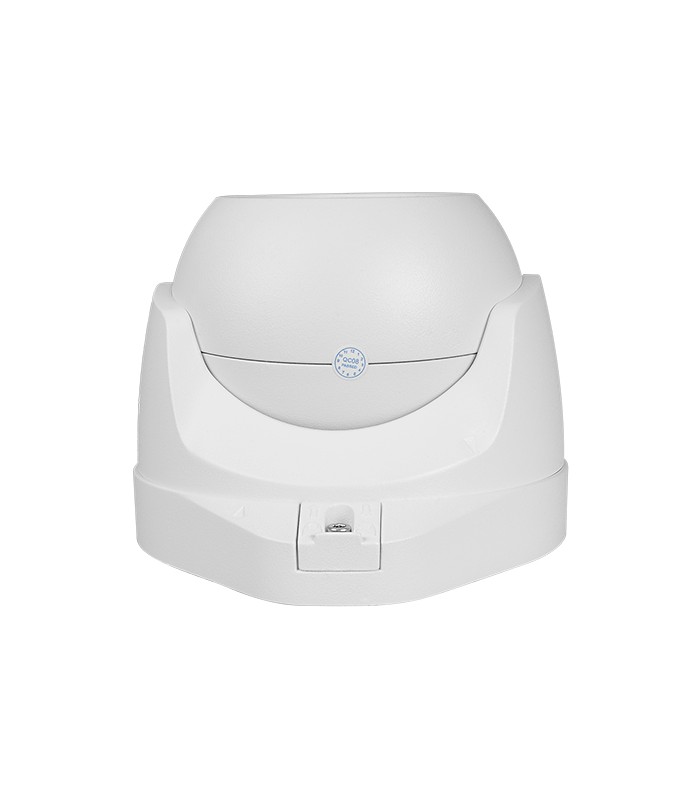

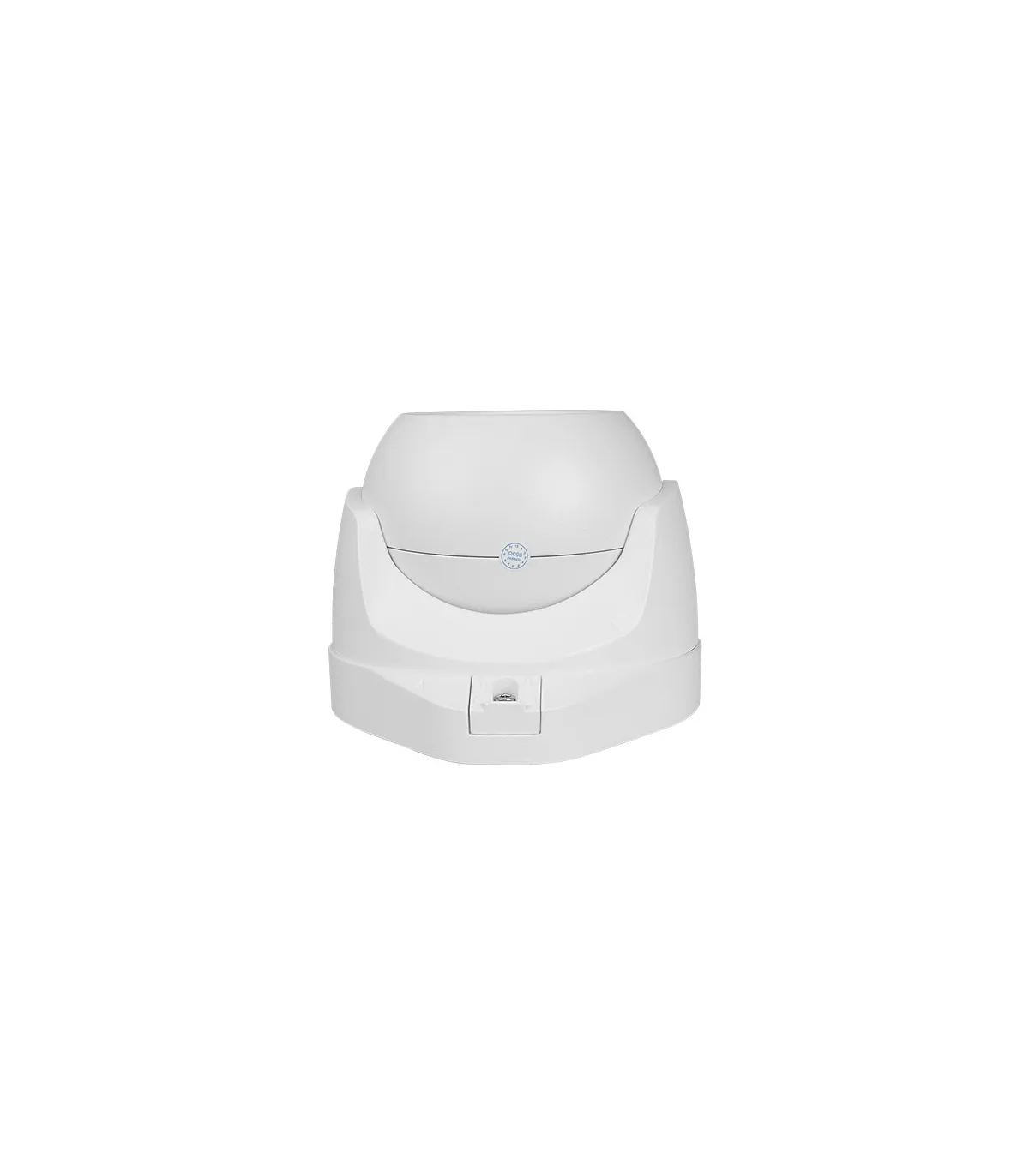

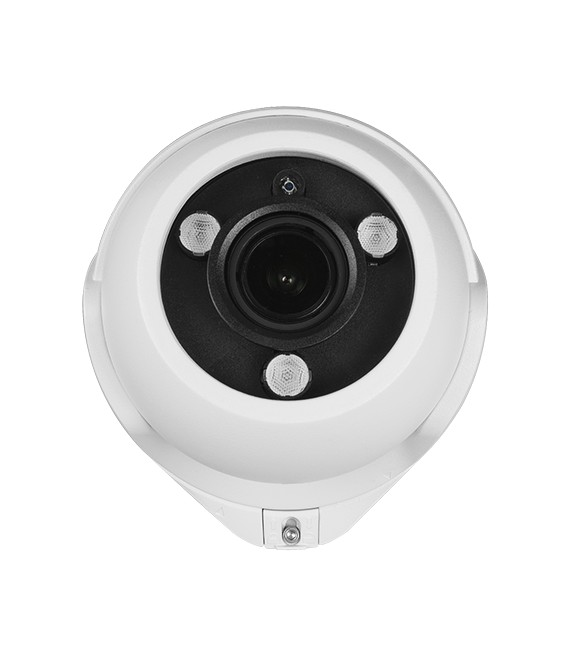

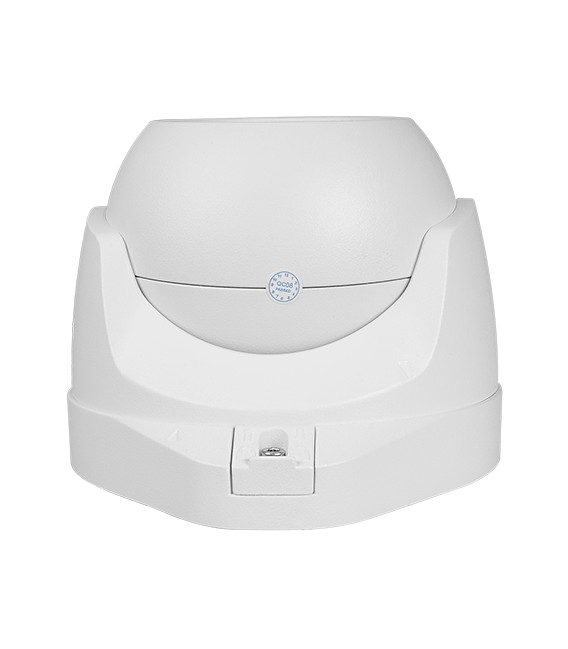

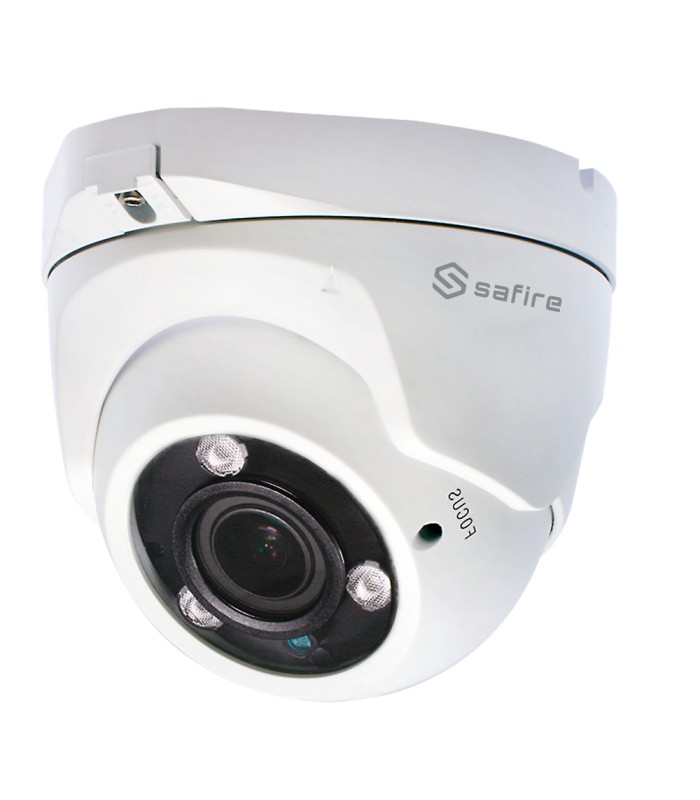

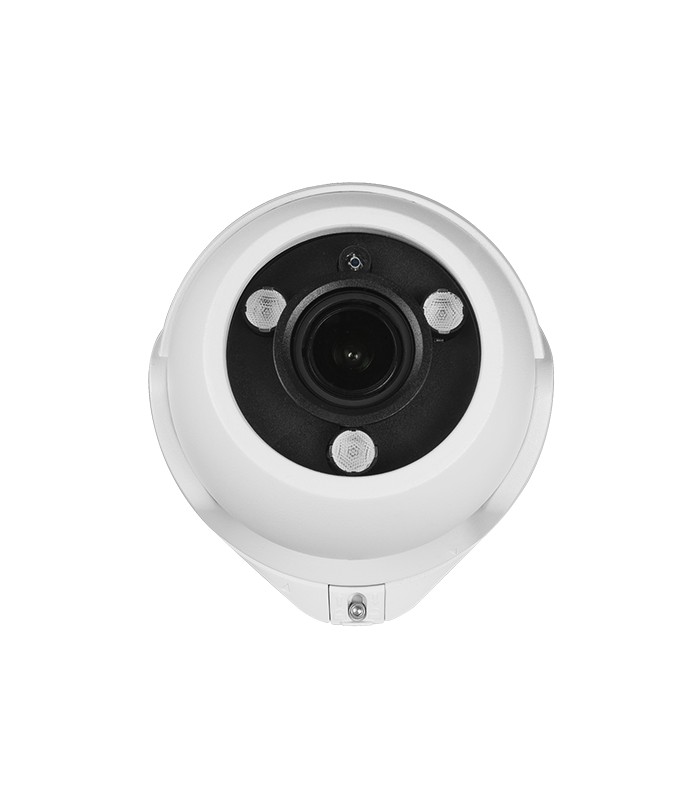

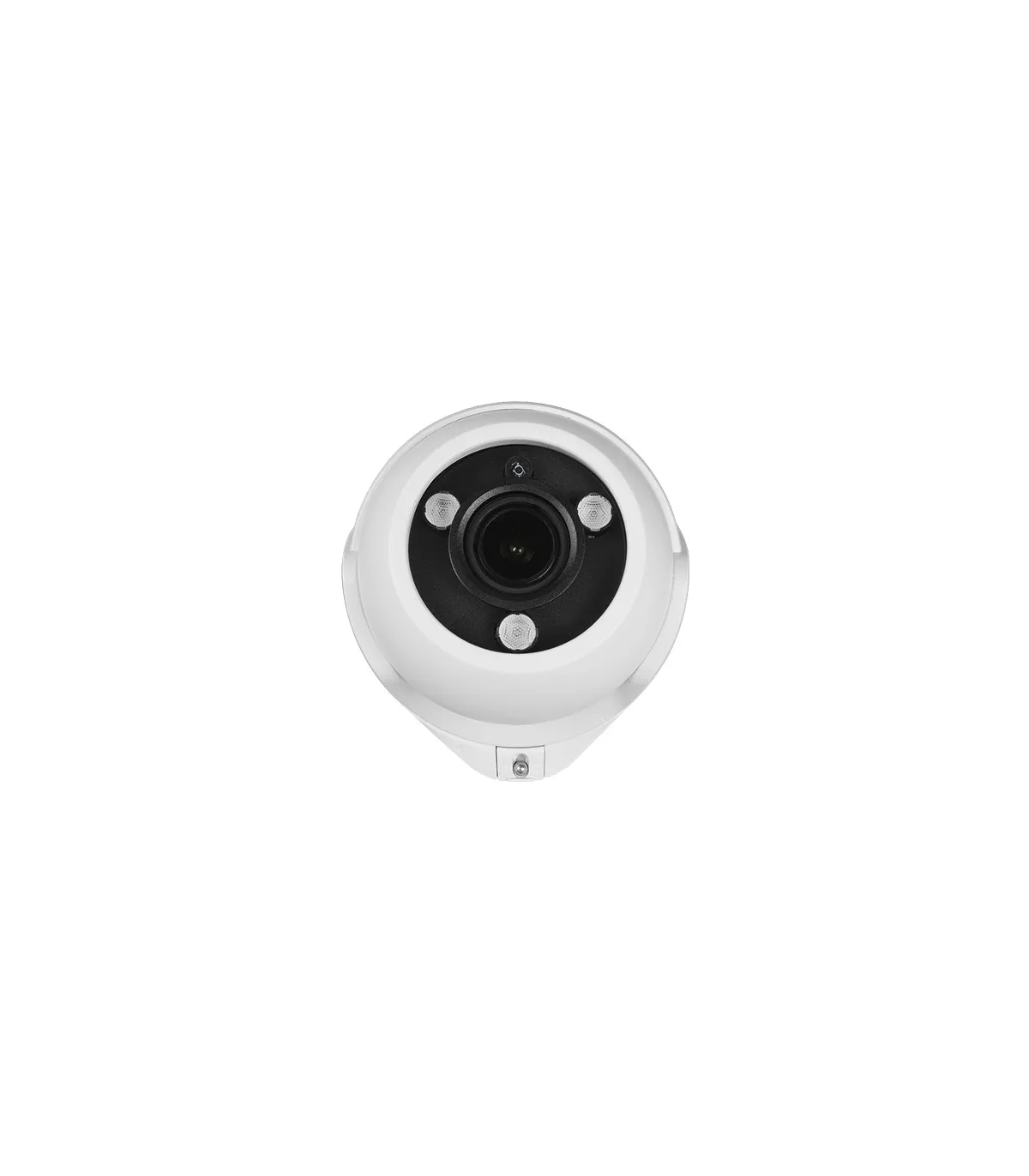

Turret Safire Camera ECO Range SF-T957V-3KE
- Safire
- Turret HDTVI, HDCVI, AHD and Analog Camera
- ECO Range
- High Performance CMOS 3K (5Mpx 16:9)
- 3K (2880x1620)
- 4 in 1 output
- Varifocal lens 2.7~13.5 mm
- 0 Lux
- IR Matrix Range 40 m
- 2D DNR
- IR CUT
- Waterproof IP66
Technical specifications
| Brand | Safire |
| Range | ECO |
| Image Sensor | 3K High Performance CMOS (5Mpx 16:9) |
| Maximum resolution | 3K (2880x1620) at 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | Varifocal 2.7~13.5 mm |
| Angle of view (FOV) | 113º - 31º (H), 58º - 18º (V), 138º - 36º (D) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared illumination | 0 Lux / IR Matrix LEDs (range 40 m) |
| Day / Night | Auto / Color / BW (black and white) |

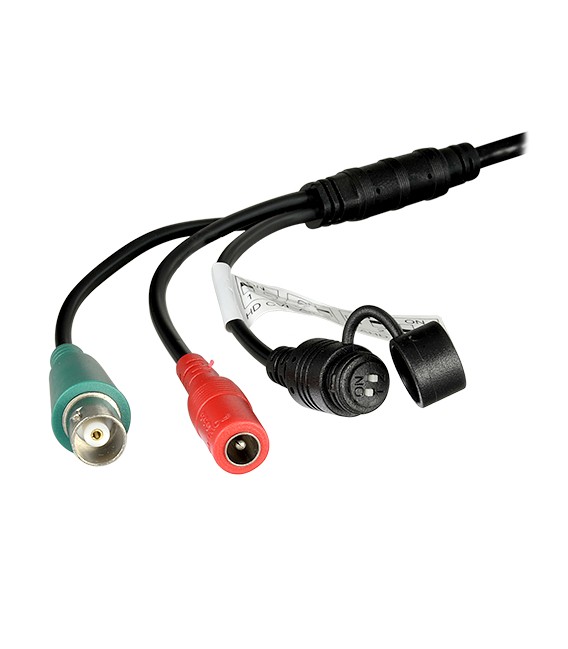

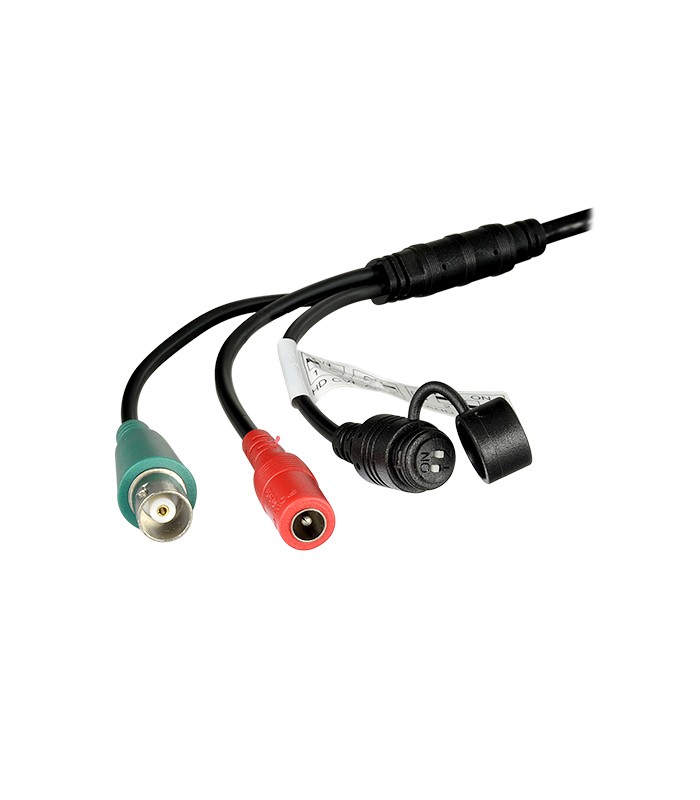

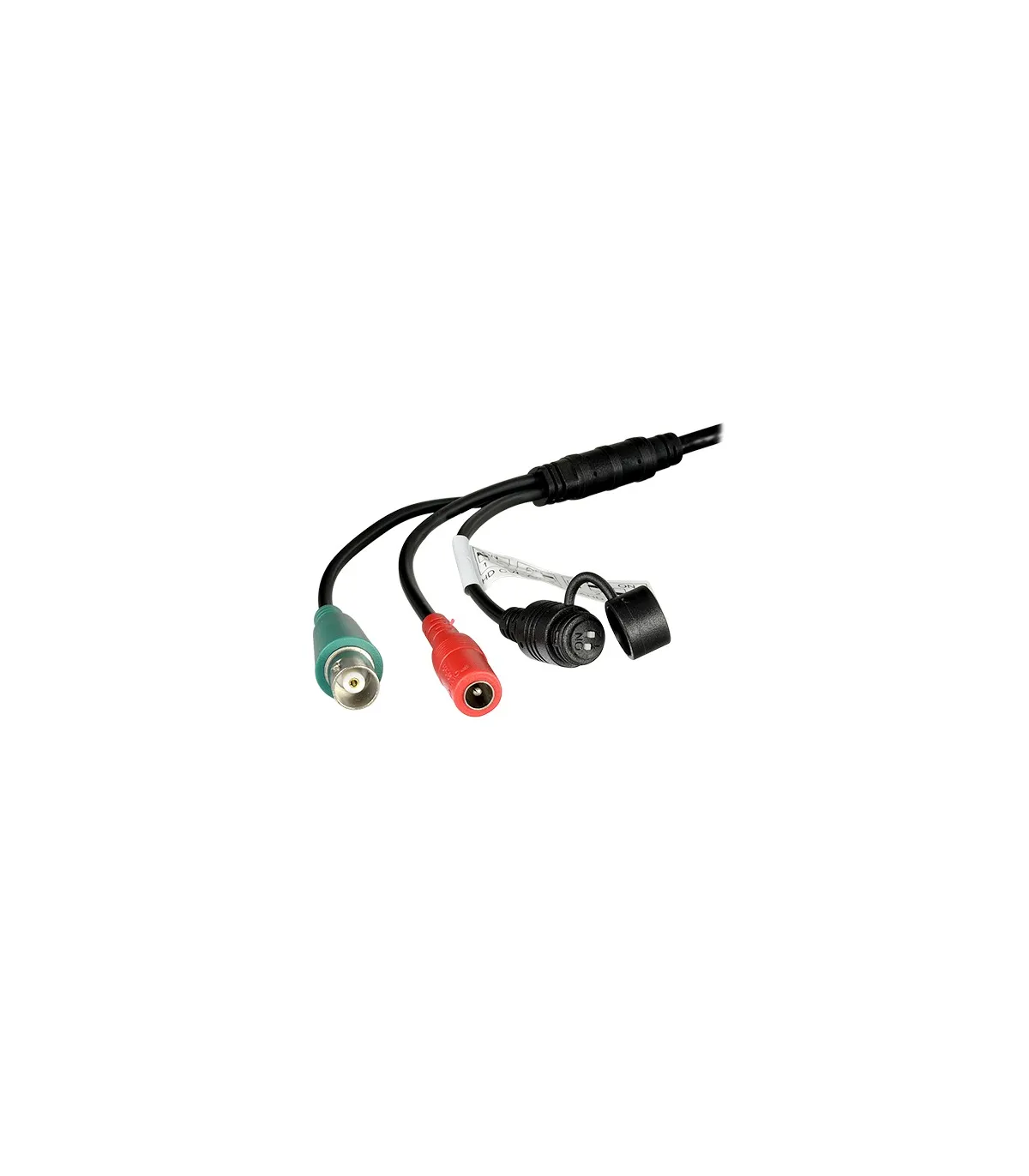

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Switching video output | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | Not available |
| Audio | Not available |
| Power | DC 12 V / 400 mA, 4.8 W max. |
| Protection grade | Waterproof IP66 |
| Temp. operation | -10º C ~ +50º C |
| Material | Metal |
| Dimensions | 104 (Fo) x 119 (W) x 129.4 (H) mm |

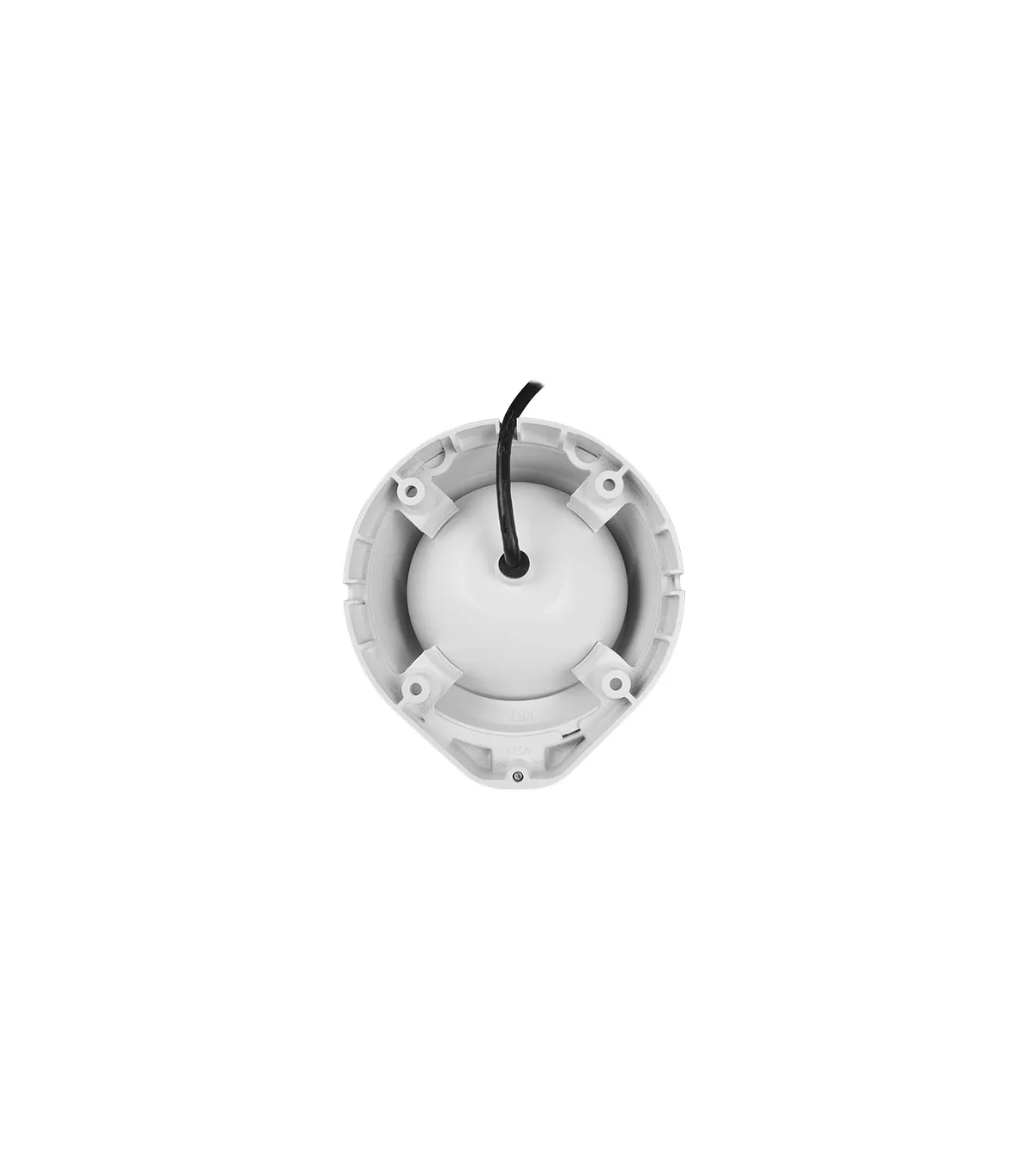

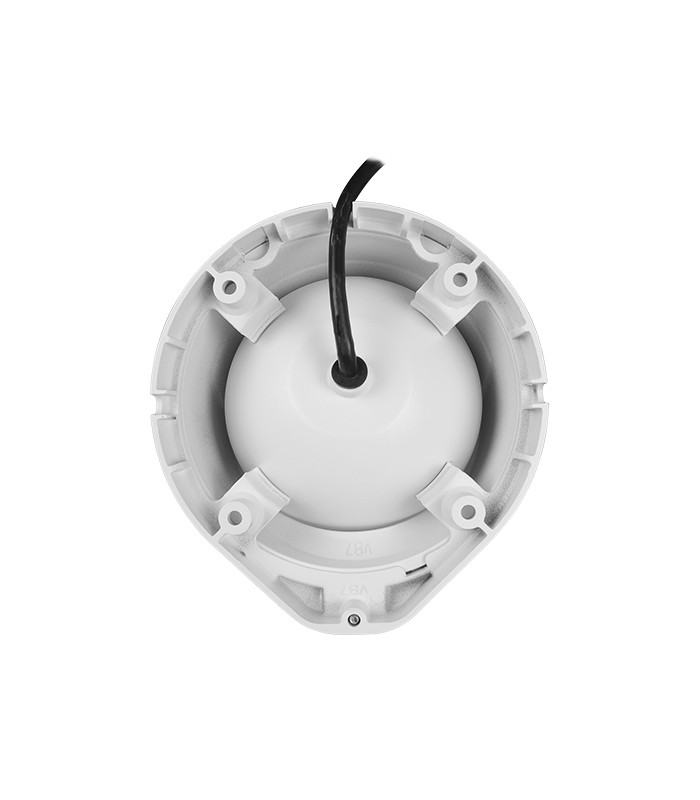

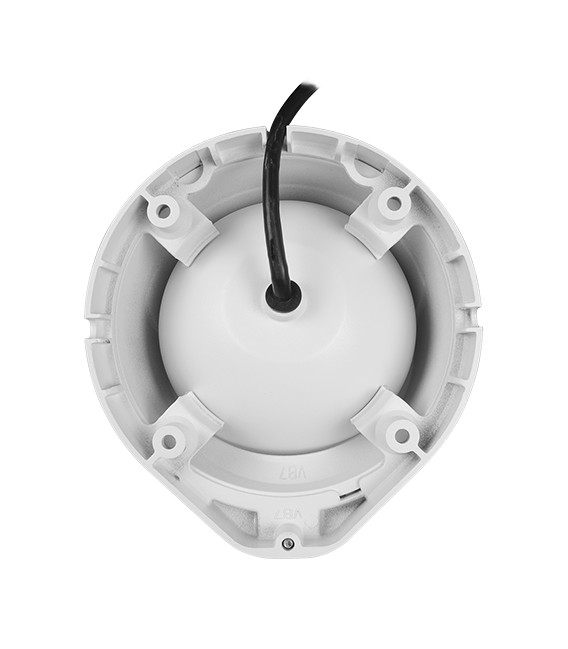

| Base diameter | 104 (Ø) mm / 4 screws |
| Weight | 520 g |
Contents
- Turret 4N1 Safire Camera

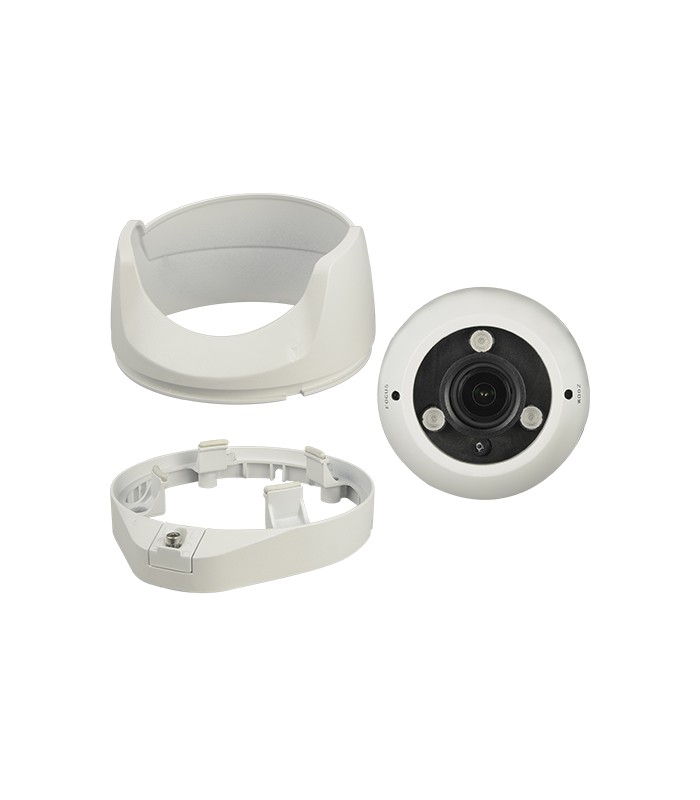

- Mounting material
- Instructions for use
