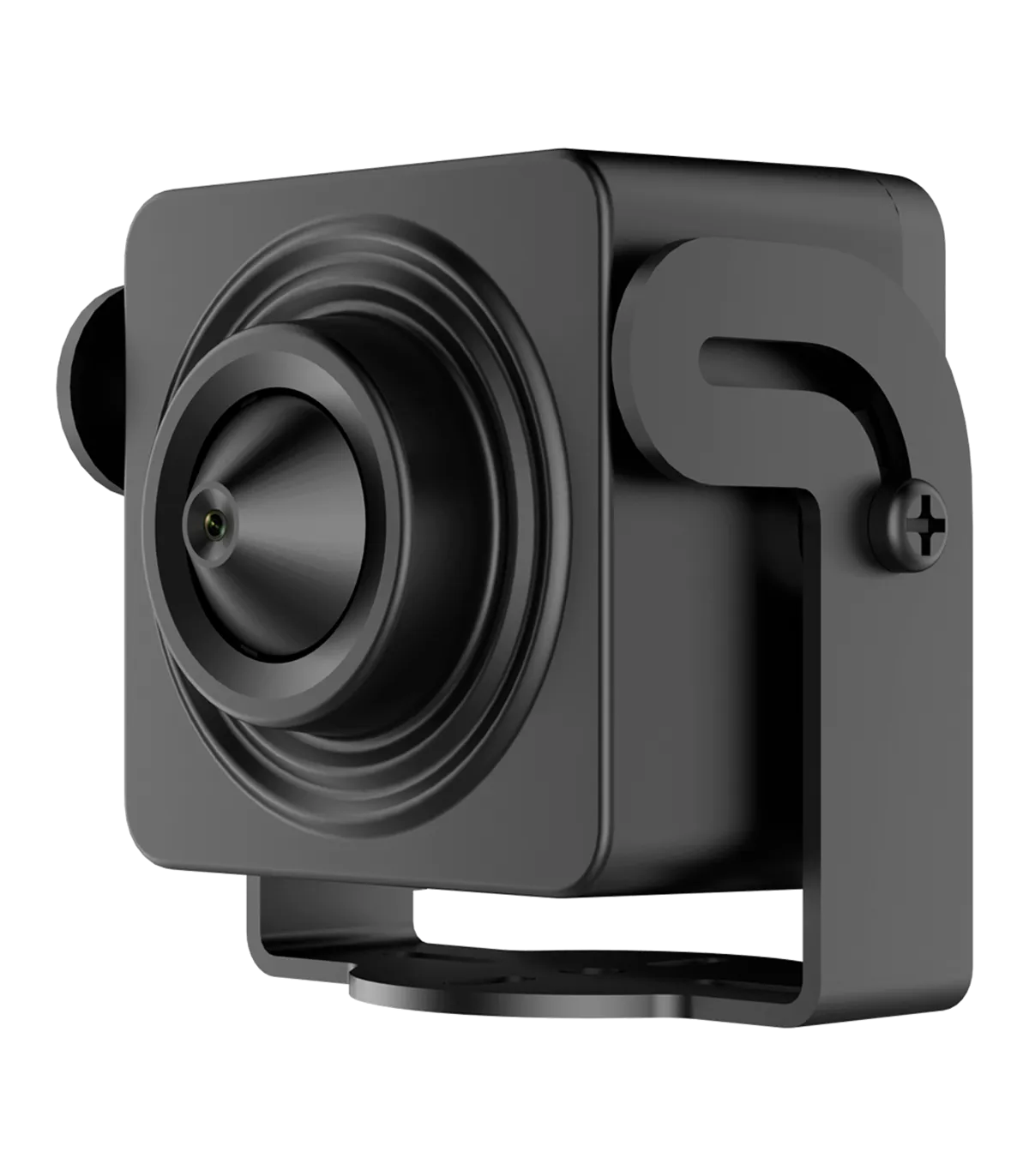

The DS-2CD2D25G1-D/NF(2.8mm) is a high-performance IP camera designed for indoor surveillance applications. With its compact design and advanced features, it is ideal for monitoring small to medium-sized areas such as retail stores, offices, and homes. This camera offers exceptional image quality with a resolution of 2 Megapixels and supports various compression formats, making it a versatile choice for modern security systems. Its remote monitoring capabilities allow users to access live feeds via web browsers or mobile applications, ensuring peace of mind from anywhere.
| Brand | Hikvision |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 50 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 50 fps (640×480, 640×360, 320×240) |
| Third Stream Rate | 1 fps (1920×1080, 1280×720, 640×480, 640×360, 320×240) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 93.9°, V: 51.7°, D: 109.3° |
| DORI | 47.9 m (D), 19 m (O), 9.6 m (R), 4.8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color 0.002 Lux @(F1.2, AGC ON) |
| Image Enhancements | WDR (120dB), 3D-NR, BLC, HLC, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Yes |
| Internal Storage | Not available |
| Alarms | Not available |
| Audio | 1 input / 1 output |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 130 mA / 1.5 W max. |
| Protection Grade | Indoor use |
| Operating Temperature | -30º C ~ +60º C |
| Material | Plastic |
| Dimensions | 31.5 mm (H) x 31.5 mm (W) x 39.7 mm (D) |
| Weight | 93 g |
The DS-2CD2D25G1-D/NF(2.8mm) is an excellent choice for installers looking to enhance security in various environments. For instance, in a retail setting, this mini IP camera can be strategically placed to monitor entrances and checkout areas, providing clear video footage with its 2 Megapixel resolution. The camera's WDR feature ensures that images remain clear even in challenging lighting conditions, such as bright sunlight or dimly lit spaces. Additionally, the remote monitoring capabilities allow store owners to keep an eye on their premises in real-time through a smartphone app, enhancing overall security. With its compact design, the camera can be easily installed in tight spaces, making it ideal for locations where traditional cameras may not fit. Furthermore, the camera's compatibility with ONVIF ensures seamless integration with existing security systems, providing flexibility for future upgrades.
