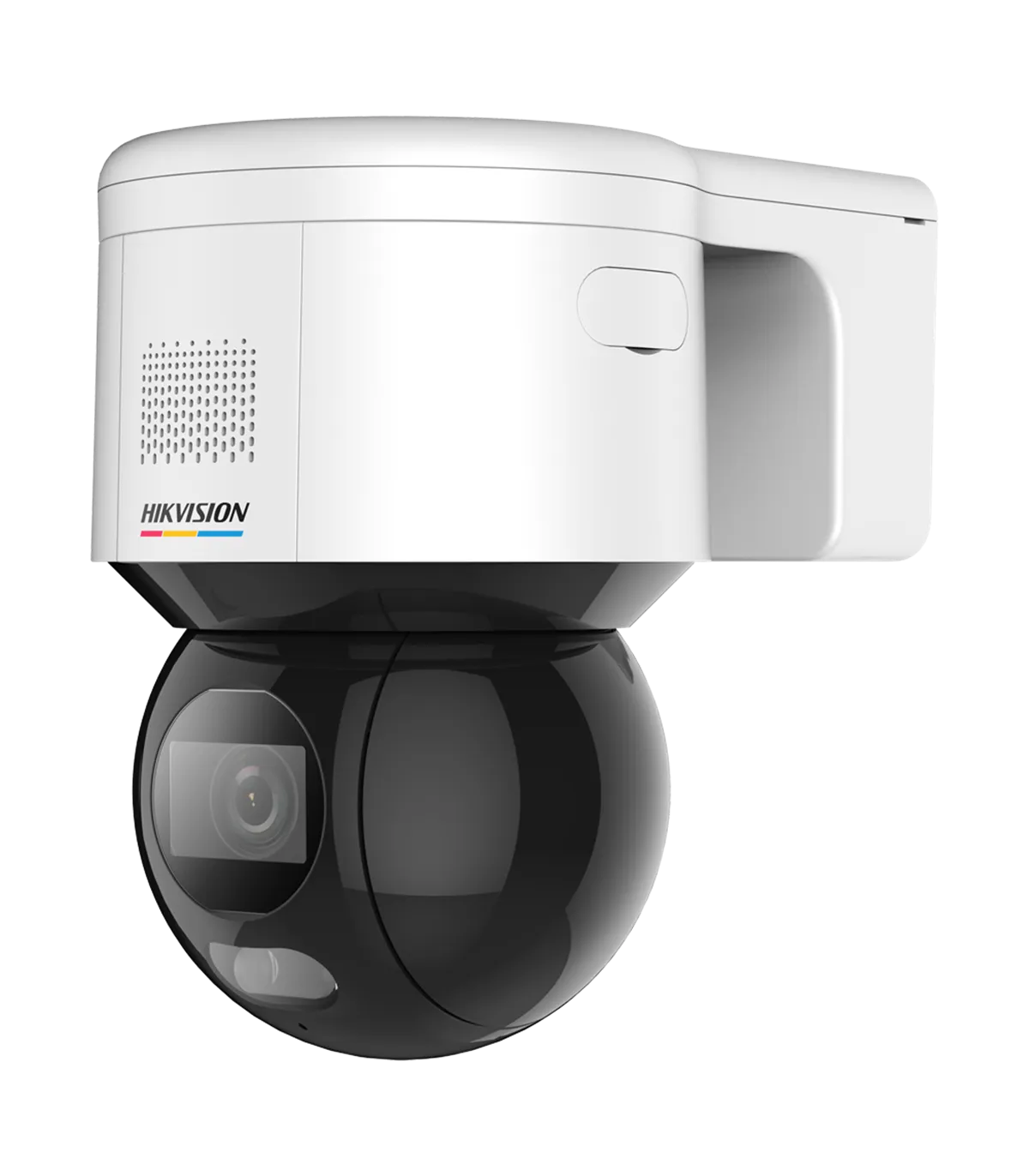

The DS-2DE3A400BW-DE(F1)(T5) is a high-performance IP PTZ camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing detailed monitoring with its 4 Megapixel resolution and advanced features such as AcuSense technology for enhanced detection capabilities. With a robust build and IP66 waterproof rating, it ensures reliable operation in various weather conditions, making it a perfect choice for security professionals seeking a reliable solution.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/1.8“ Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Optics | Fixed lens 4 mm |
| Field of View (FOV) | 88.7º (H), 46.5º (V), 105º (D) |
| Main Stream Rate | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Minimum Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON) 0 lux with white light range 30 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Digital Zoom | 16X |
| Electronic Shutter | 1/1s~1/30,000 s |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, Mirror Function, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region Face Capture. Automatic selection of the best photo. Capable of capturing up to 5 faces simultaneously. * AcuSense and face capture cannot be enabled simultaneously. |
| Pan/Tilt Range | Horizontal: 0~350°, Vertical: 0°~90° |
| Manual Speed | Horizontal: 0.1~60 °/s, Vertical: 0.1~50 °/s |
| Speed Between Presets | Horizontal: 60 °/s, Vertical: 50 °/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) Integrated microphone and speaker |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM |
| Alarms | 1 In / 1 Out |
| PTZ Control | Via network access RS-485 half duplex |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 3.33 A / 14 W max. / PoE+ IEEE802.3at |
| Operating Temperature | -30º C ~ +65º C |
| Protection Grade | IP66 / Surge 6000 V |
| Dimensions (without mount) | 182 mm (H) x 120 mm (W) x 179.3 mm (D) |
| Weight (without mount) | 1125 g |
The DS-2DE3A400BW-DE(F1)(T5) is ideally suited for a variety of surveillance scenarios, such as monitoring large outdoor areas like parking lots or building perimeters. With its 360-degree pan and 90-degree tilt capabilities, security personnel can easily track moving objects and ensure comprehensive coverage. The camera's 4 Megapixel resolution provides crystal-clear images, even in low-light conditions, thanks to its advanced 3D-DNR technology. Additionally, the integration of AcuSense technology allows for intelligent detection of human and vehicle movements, significantly reducing false alarms. This makes it an excellent choice for businesses looking to enhance their security measures while minimizing unnecessary alerts. Furthermore, the camera's remote access capabilities enable users to monitor live feeds from anywhere, ensuring peace of mind and effective surveillance management.
