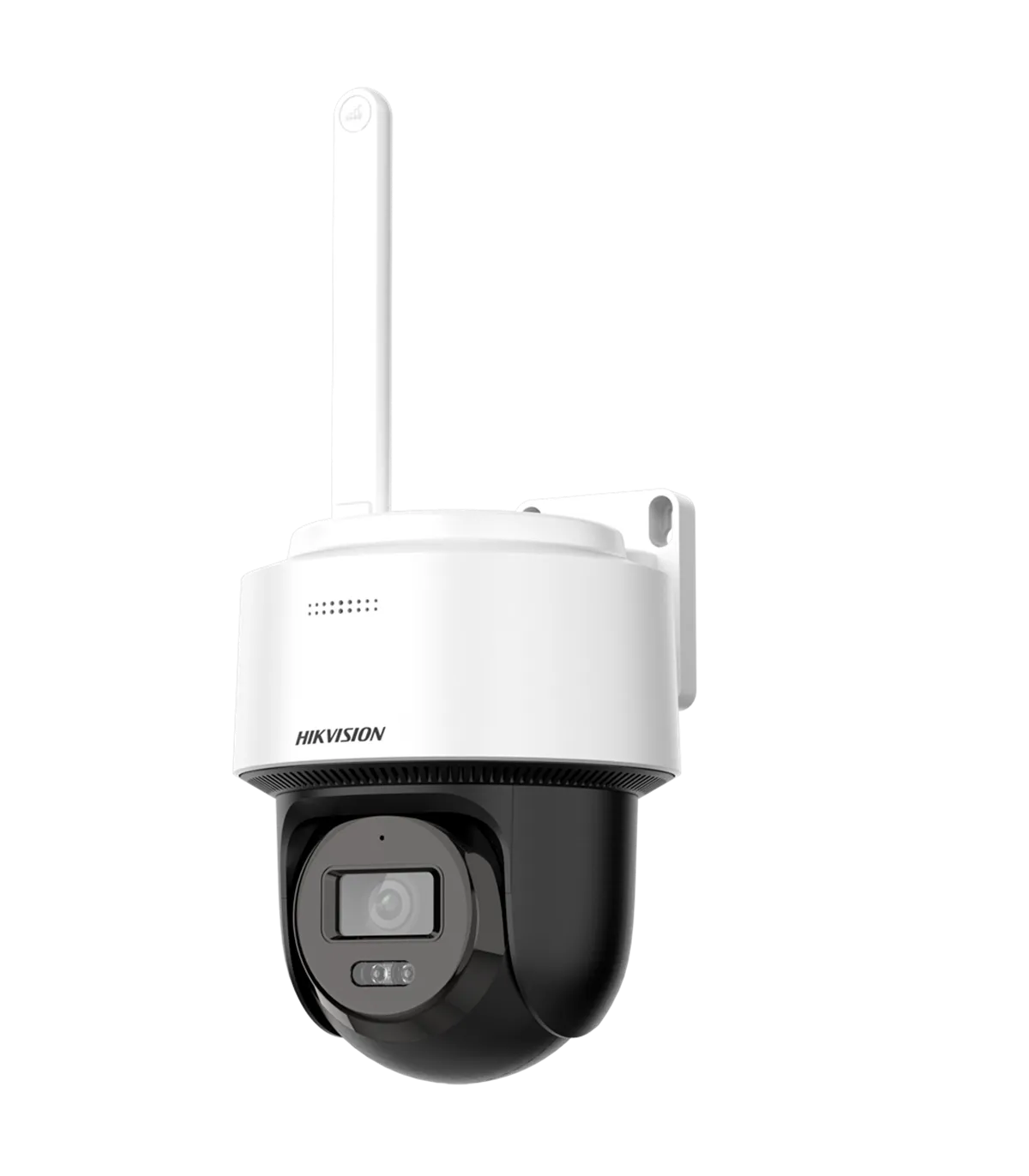

The DS-2DE2C200IWG/W(2.8mm)(W) is a high-performance IP PTZ camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 2 Megapixel resolution and advanced features such as motion detection and AcuSense technology. With its robust IP66 waterproof rating, it ensures reliable operation in various weather conditions, making it suitable for security in commercial and residential settings.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.8“ Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (768x432, 512x288) |
| Minimum Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) 0 lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Compression | H.265 / H.264 |
| Bitrate | 256 Kbps ~ 1 Mbps |
| Optics | Fixed lens 2.8 mm |
| Field of View (FOV) | 92º (H), 50º (V), 110º (D) |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region |
| Pan/Tilt Range | Horizontal: 0~345°, Vertical: 0~80° |
| Manual Speed | Horizontal: up to 25 °/s, Vertical: up to 20 °/s |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated microphone and speaker |
| Audio Type | Mono |
| Audio Compression | G.711/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Alarms | Not available |
| PTZ Control | Via network access |
| Network Interface | Ethernet 10 / 100 BaseT Wi-Fi IEEE802.11 b/g/n |
| WiFi Frequency | 2.412 GHz to 2.472 GHz |
| WiFi Encryption Mode | WPA-PSK/WPA2-PSK |
| WiFi Modulation | 802.11b: CCK, QPSK, BPSK, 802.11g: OFDM, 802.11n: OFDM |
| Wi-Fi Range | Up to 50 m (depending on environmental conditions) |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V / 1 A / 10 W max. |
| Operating Temperature | -30º C ~ +50º C |
| Material | Plastic |
| Protection Rating | IP66 waterproof |
| Dimensions (without mount) | 163.9 (L) mm x 131.9 mm (W) x 312.6 mm (H) |
| Weight (without mount) | 565 g |
The DS-2DE2C200IWG/W(2.8mm)(W) is an excellent choice for security professionals looking to deploy a reliable surveillance solution in various environments. For instance, in a retail setting, this camera can be strategically placed to monitor entrances and exits, providing remote monitoring capabilities through its web interface and smartphone app. The AcuSense technology significantly reduces false alarms by accurately classifying human and vehicle movements, ensuring that security personnel are alerted only when necessary. With its IP66 waterproof rating, the camera can be installed outdoors without concern for weather conditions. Additionally, the integrated microphone and speaker allow for two-way audio communication, enhancing security measures. The camera's fixed lens and wide field of view make it ideal for covering large areas, while the option for microSD storage provides flexibility in data management. Overall, this camera is a robust solution for enhancing security in both commercial and residential applications.
