Ajax Remote Control Relay AJ-RELAY
- Remote control relay
- Dry contact (voltage-free)
- 868 MHz Jeweller wireless
- Range up to 1000 m
- Power supply input 7~24VDC
- Installation in standard mechanism boxes
€41.85
Reference:
AJ-RELAY
Brand:

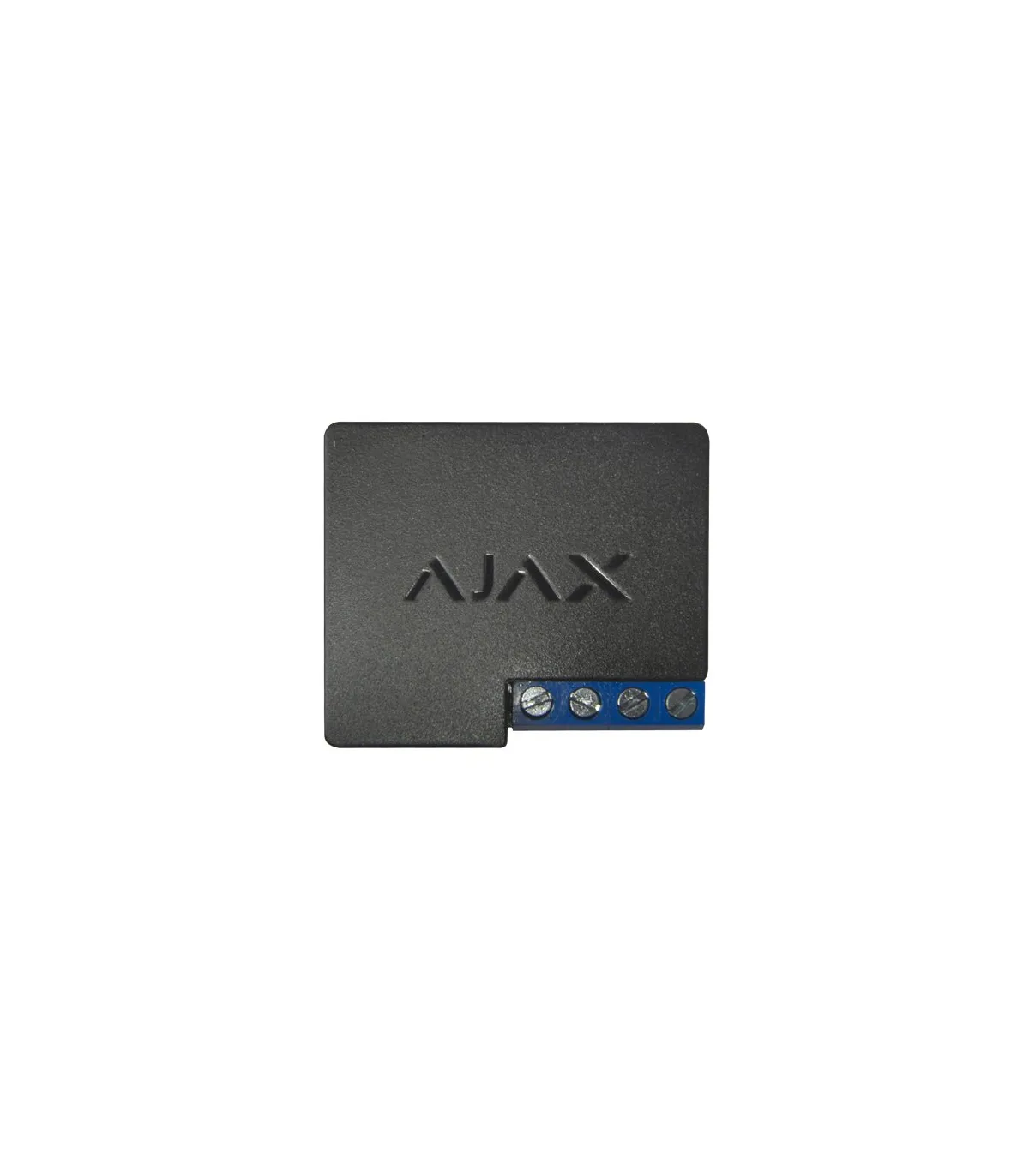

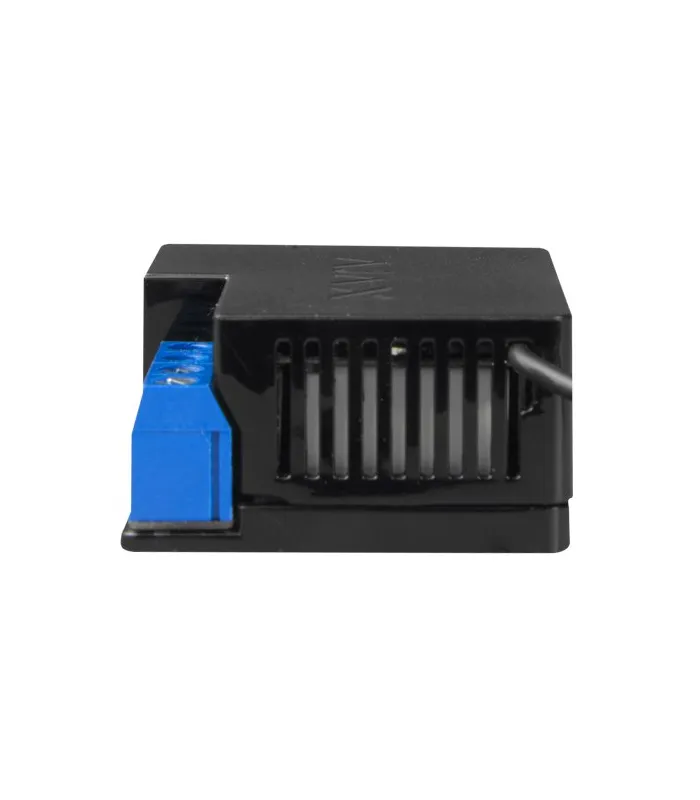

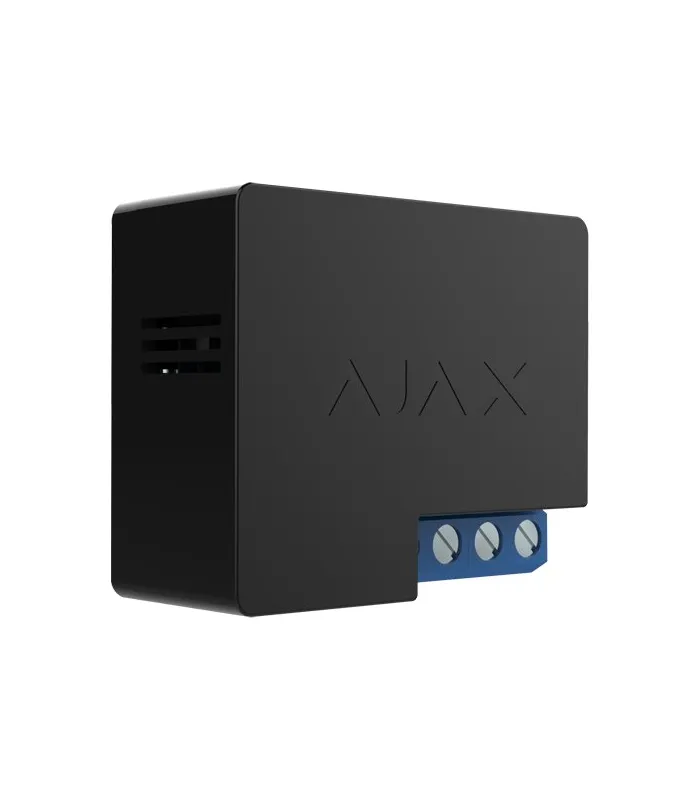

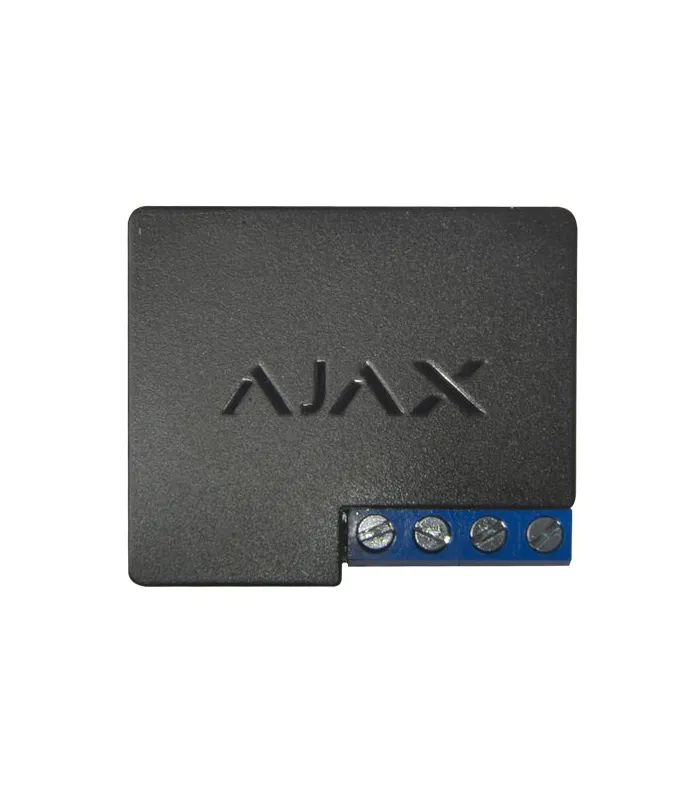

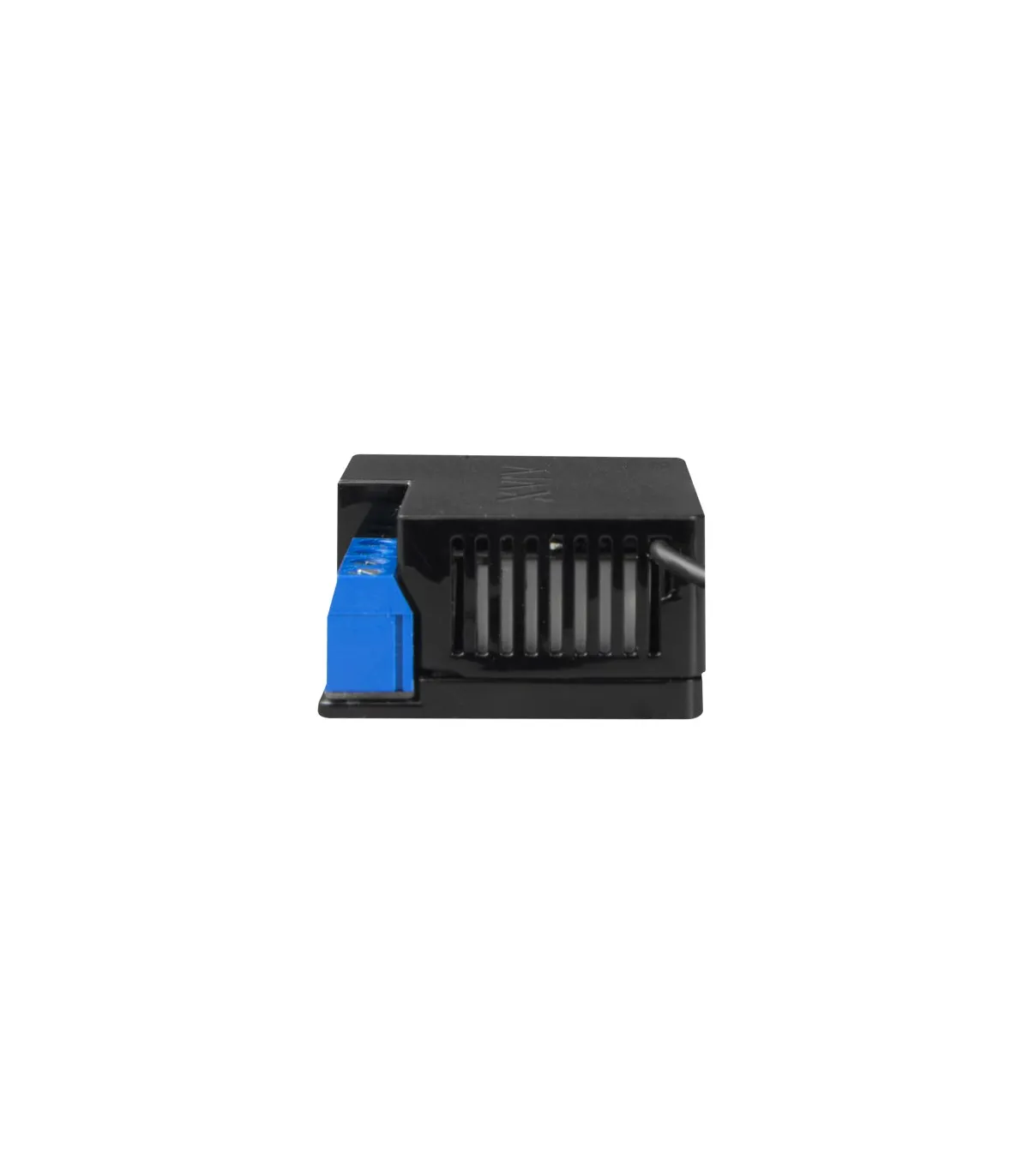

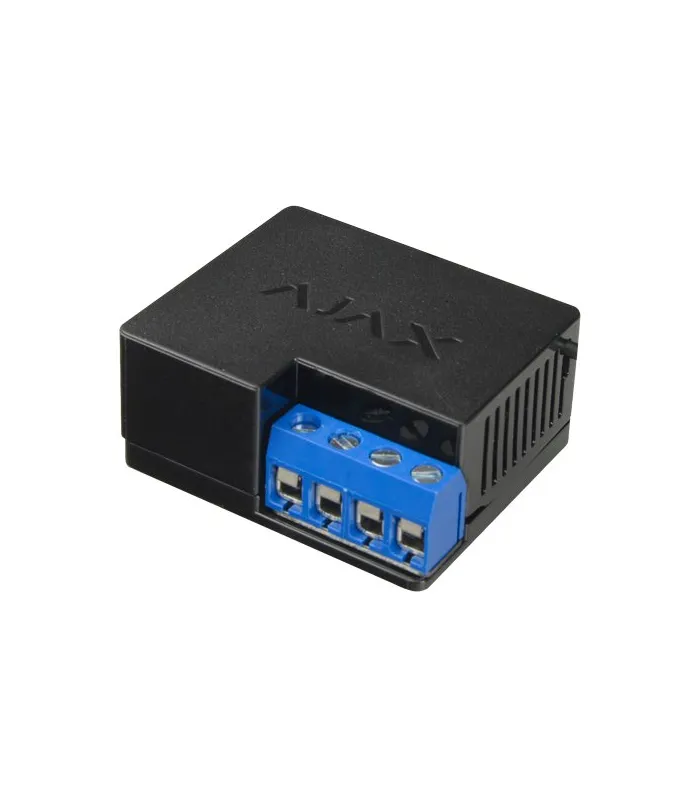

Ajax AJ-RELAY Remote Control Relay
The Ajax AJ-RELAY Remote Control Relay is an innovative device that allows you to remotely control various security systems in your home or business. With this relay, you can activate or deactivate alarms, lights, security cameras, and other devices with just a click on your smartphone.
Its advanced technology gives you the peace of mind to monitor and protect your property from anywhere, at any time. In addition, its easy installation and configuration make it ideal for beginners looking for an effective and secure solution for their security needs.
General Features
- Ajax
- Remote control relay
- Dry contact
- Bidirectional
- Wireless 868 MHz Jeweller
- Free space range 1000 m
- Input power 7~24 V DC
- Maximum power up to 3 kW
- Designed to be installed in standard mechanism boxes such as wall switches
- Black color
Technical Specifications
| Brand | Ajax |
| Relay type | Dry contact (voltage-free) |
| Transmission distance | ≤ 1000 m in open space |
| Frequency | 868 MHz Jeweller |
| Power input | DC 7 V - 24 V 50/60 Hz |
| Maximum current | 5 A at 36 V DC, 13 A at 230 V AC |
| Maximum power | Up to 3 kW |
| Operating temp. | 0º C ~ 64º C |
| Dimensions | 38 (H) x 25 (W) x 18 (D) mm |
| Weight | 32 g |
Package Contents
- Remote control relay
- Instruction manual
AJ-RELAY
Data sheet
- Brand
- Ajax
- Case Color
- Black
- Use
- Indoor
Specific References
- EAN13
- 4823114015854
