| Brand | Hikvision |

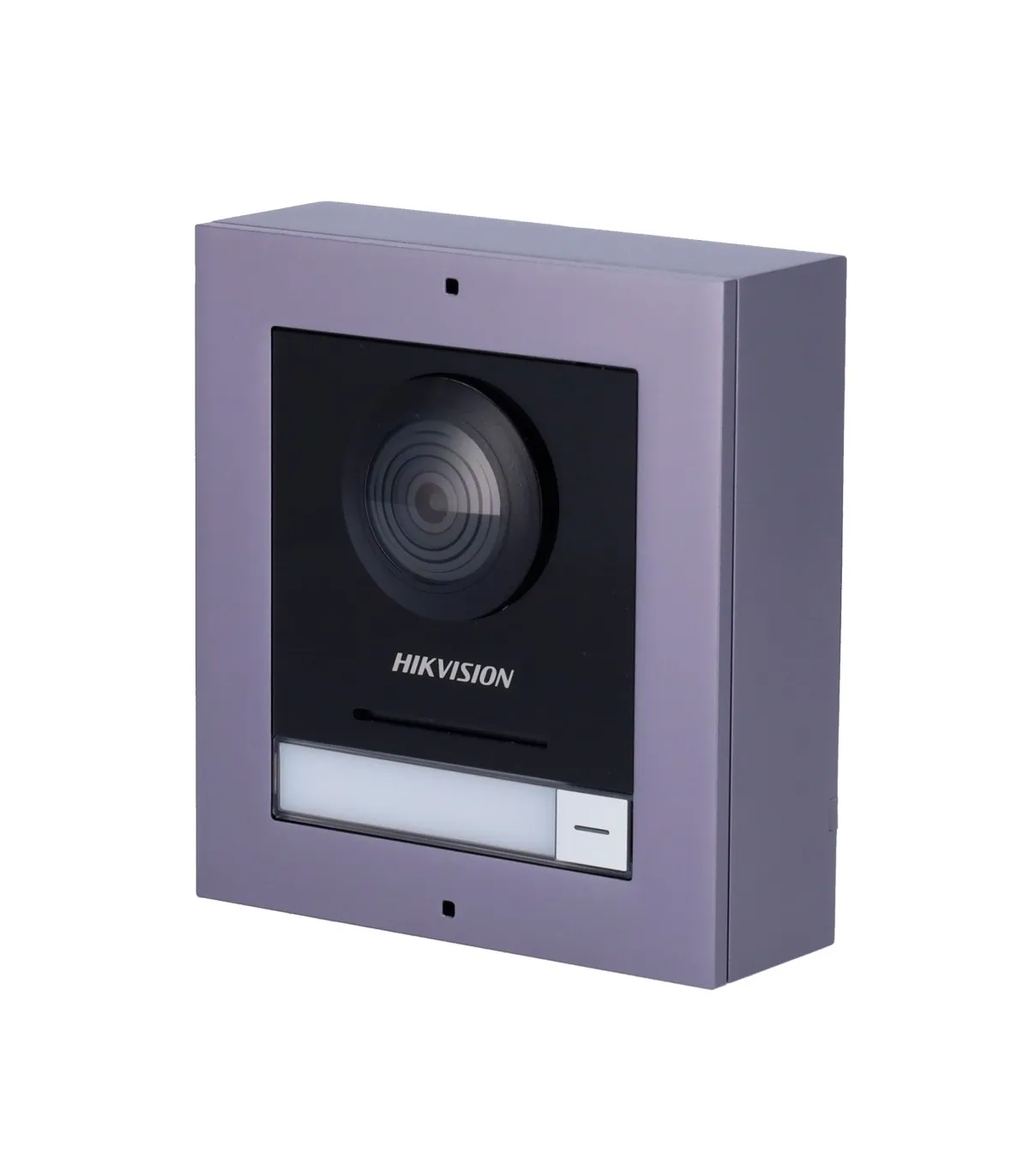

| Model | DS-KD8003-IME1(B)/Surface |
| Operating system | Linux |
| Image sensor | Low Illumination 2 Mpx IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 146º, V: 82º, D: 180º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button with LED personalization label |
| Outputs | 2 x lock relay, 1 x module output, 1 x DC 12 V / 500 mA max. |
| Inputs | 4 x inputs auxiliaries |
| Remote access | iVMS-4200 software Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT / SIP 2.0 Protocol |
| Modular | Compatible with Hikvision modular boards |
| Power | DC 12 V / 850mA max / PoE (IEEE 802.3af) |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Plastic (video intercom) and aluminum (support) |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | Video intercom: 98 (H) x 100 (W) x 42 (Fo) mm Support: 117 (H) x 107 (W) x 32.7 (Fo) mm |
| Weight | 600 g (video intercom with bracket) |
