€49.14
Stainless steel extension module
Call to different monitors
6-button panel
6 custom labeled LED buttons
Suitable for outdoor use IP65
Modular mounting
Hikvision DS-KD8003-IME1(B)/Flush IP Video Intercom
- IP Video Doorbell
- 2 Mpx Camera
- Two-way Audio
- Mobile App through Monitor
- Outdoor IP65 Rated
- Modular Flush Mount Installation (included)
€155.74
Reference:
DS-KD8003-IME1(B)/Flush
Brand:
Love0
Add to compare0
Add to wishlist

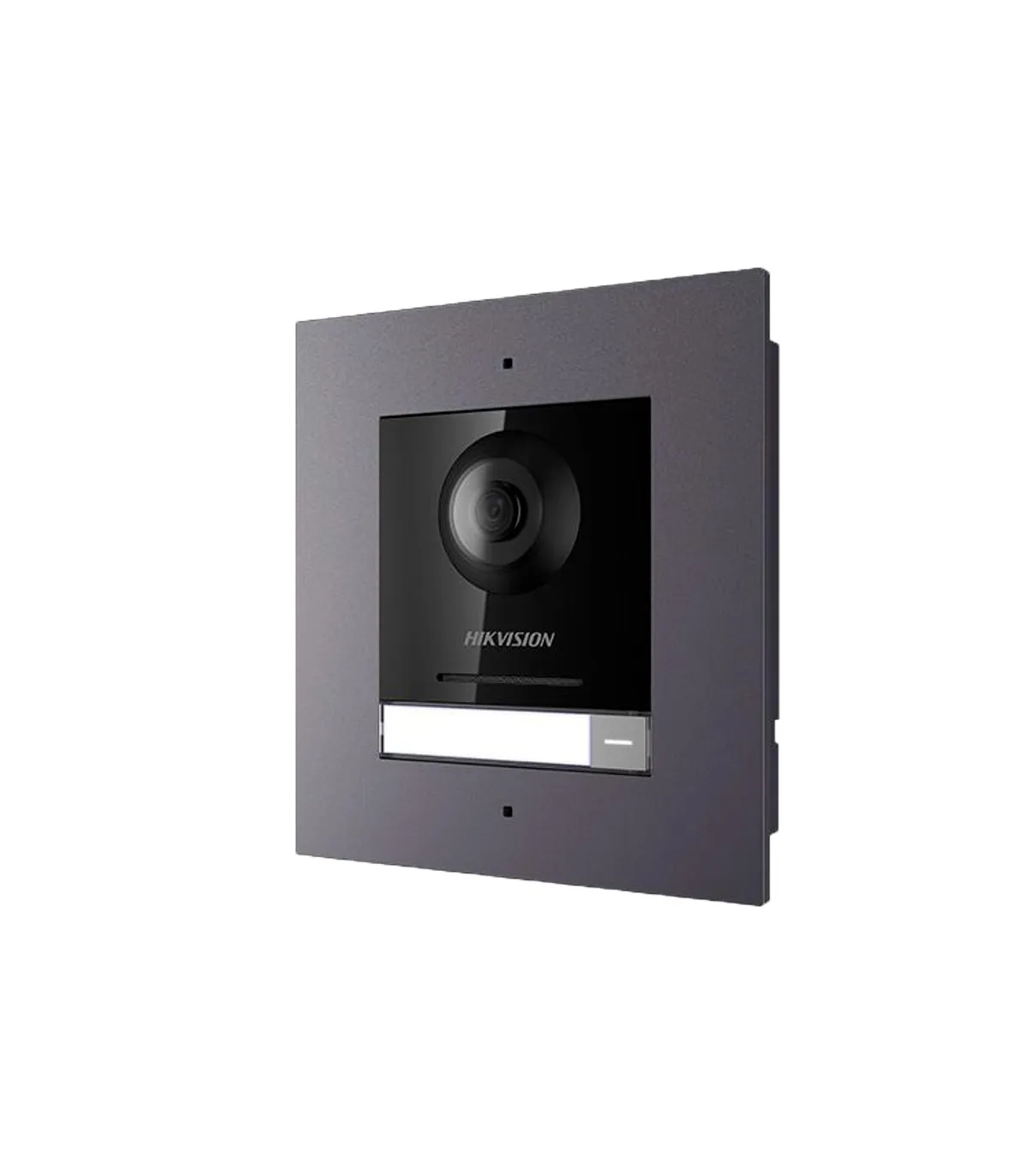

Hikvision DS-KD8003-IME1(B)/Flush IP video intercom
- Hikvision
- IP video intercom with 2 Mpx camera
- Wide angle lens
- Integrated speaker and microphone
- Night vision
- TCP/IP connection
- Se can be powered with standard PoE
- Remote monitoring through iVMS-4200 software, Hik-Connect mobile app or indoor monitor
- Remote door unlocking
- Mounting with recessed bracket included
- Personalization label with LED
- Suitable for outdoor use IP65
- Integratable with Hikvision modules
Specifications techniques
| Brand | Hikvision |
| Model | DS-KD8003-IME1(B)/Flush |
| Operating system | Linux |
| Image sensor | Low Illumination 2 Mpx IR |
| Image functions | BLC / WDR / DNR |
| Viewing angle | H: 146º, V: 82º, D: 180º |
| Audio | Two-way audio with microphone and speaker |
| Keyboard | Mechanical call button with LED personalization label |
| Outputs | 2 x lock relay, 1 x module output, 1 x DC 12 V / 500 mA max. |
| Inputs | 4 x inputs auxiliaries |
| Remote access | iVMS-4200 software Hik-Connect mobile application |
| Network interface | Ethernet 10/100 BaseT / SIP 2.0 Protocol |
| Modular | Compatible with Hikvision modular boards |
| Power | DC 12 V / 850mA max / PoE (IEEE 802.3af) |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Plastic (video intercom) and aluminum (support) |
| Temp. operation | -40º C ~ +60º C |
| Dimensions | Video intercom: 98 (H) x 100 (W) x 42 (D) mm Support: 134 (H) x 124 (W) x 56 (Fo) mm |
| Weight | 600 g (video intercom with bracket) |
Contents
- Hikvision video intercom exterior panel
- Mounting material
- Instructions use
- Recessed support
DS-KD8003-IME1(B)/Flush
Data sheet
- Brand
- Hikvision
- Max. Resolution
- 2 MP
- Indoor / Outdoor
- Outdoor
