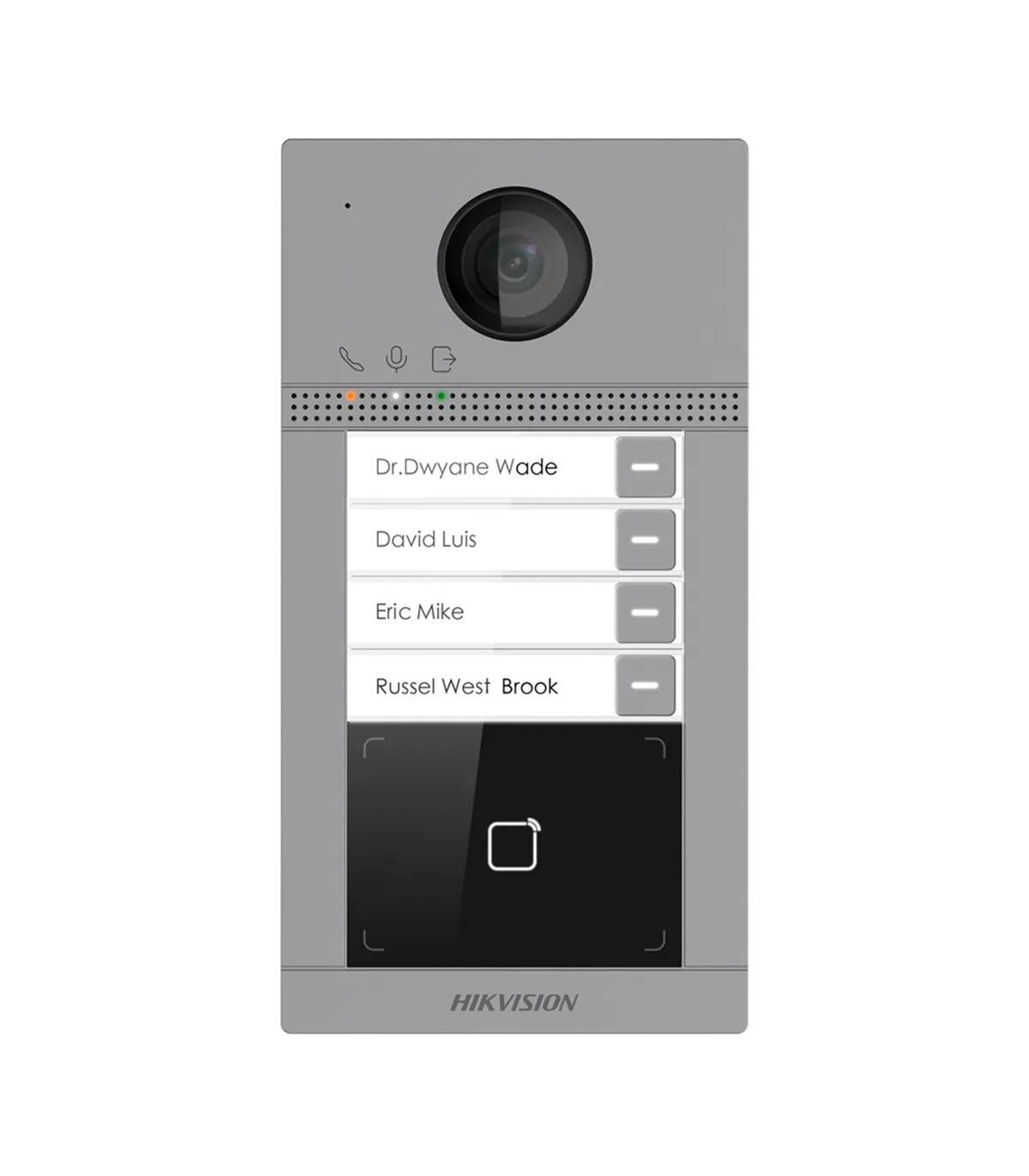

Hikvision IP Video Intercom for 4 Apartments with 2MP WiFi Camera DS-KV8413-WME1
- IP WiFi Video Intercom for 4 Apartments
- 2 MP Camera | Two-Way Audio
- MF Card Access | 2 Relays
- Mobile App with or without Monitor
- Outdoor Suitable IP65 | IK08
- Surface Mount | PoE
€77.05
Reference:
DS-KV8413-WME1
Brand:
Add to wishlist
The video intercom panel is the element that is placed outside the premises, also known as the outdoor unit, and allows visitors to call the building staff.
These devices also have the capability to open the door through their relay outputs. This model features 2 relay outputs to manage up to 2 doors simultaneously. Additionally, it includes integrated access control, allowing identification through cards or key fobs with MF technology at 13.56 MHz.
IP devices communicate and are powered via Ethernet cables and PoE switches, reducing the number of cables required for operation.
Its physical button panel allows users to call easily.
With an IP65 outdoor rating, it can be installed outdoors. Furthermore, its IK08 vandal-resistant rating enables it to withstand more challenging environments.
The iVMS-4200 software facilitates the linking of panels and monitors to make and receive calls, create contacts, send informational messages to monitors, or review call logs.
With the Hik-Connect mobile application for end users, calls can be received, doors can be opened, or the camera feed from the panel can be viewed live, all from anywhere.
- Hikvision
- IP video intercom with 2 MP camera for 4 apartments
- Wide-angle lens
- Integrated speaker and microphone
- Night vision
- TCP/IP, WiFi (P2P only), and RS485 connection
- PoE IEEE802.3af
- MF card reader
- Remote monitoring via iVMS-4200 software, Hik-Connect mobile app, or indoor monitor
- Call to the app with monitor without P2P connection or without monitor
- Remote door unlocking
- Call status LED
- Surface mounting
- Customizable label with LED
- Outdoor suitable IP65
- IK08 vandal-resistant aluminum alloy surface
Specifications: DS-KV8413-WME1
| Brand | Hikvision |
| Model | DS-KV8413-WME1 |
| Operating System | Linux |
| Image Sensor | 1/3" 2 MP CMOS wide-angle IR |
| Image Functions | BLC / WDR / DNR |
| Viewing Angle | H: 124º, V: 75º |
| Audio | Two-way audio with microphone and speaker |
| Access Control | Door opening with MF card 13.56 MHz Up to 2,000 users and 10,000 cards |
| Keyboard | 4 x mechanical call buttons with customizable LED label |
| Outputs | 2 x relay for lock, 1 x RS485 |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote Access | Web browser iVMS-4200 software Hik-Connect mobile application |
| Network Interface | Ethernet 10/100 BaseT / SIP Protocol 2.0 / WiFi (only for app connection via P2P) |
| Power Supply | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Protection Rating | Outdoor suitable IP65 Vandal-resistant IK08 |
| Material | Aluminum alloy |
| Operating Temperature | -40 ºC ~ +55 ºC |
| Dimensions | 174 (H) x 91 (W) x 29 (D) mm |
| Weight | 380 g |
Package Contents
- Hikvision outdoor video intercom panel
- Mounting materials
- User manual
DS-KV8413-WME1
Data sheet
- Brand
- HIKVISION
- Compatible models
- MF-TAG-Y,MF-TAG-Y,MF-TAG-Y,DS-KABV8113-RS/SURFACE,DS-K1F100-D8E,DS-K1F100-D8E,DR-54NDF/M,DR-54NDF/M
Specific References
- EAN13
- 6941264032663
