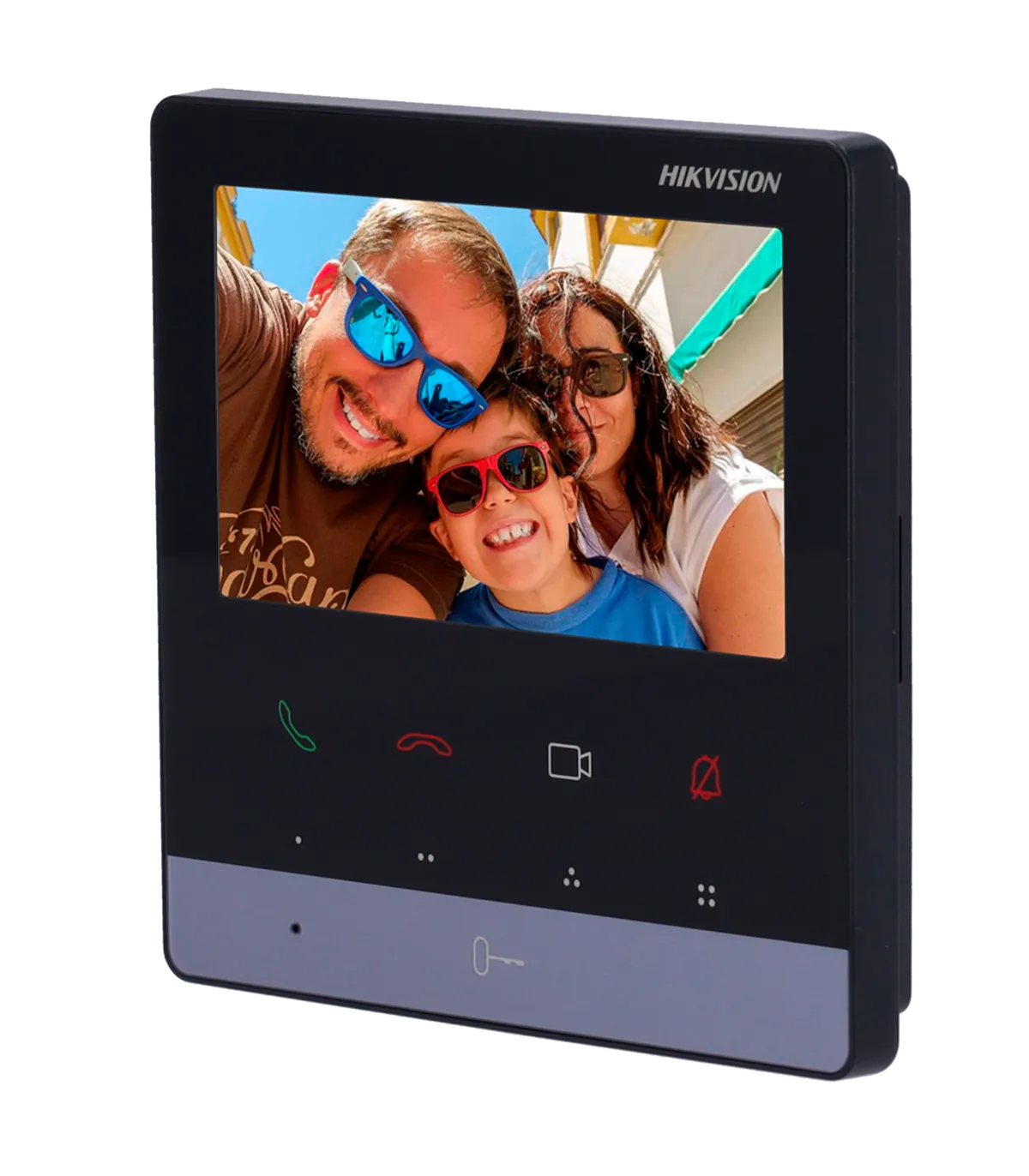

Indoor Monitor HIKVISION 4.3 inch TFT WiFi Two-Way Audio DS-KH7100EY-WE2
- Monitor for video door phone
- 4.3" TFT display
- Two-way audio | Status LED
- 2 HD wires, WiFi
- MicroSD card slot up to 128 GB
- Surface mount
€97.88
Reference:
DS-KH7100EY-WE2
Brand:
Add to wishlist
The video intercom monitor is the component installed inside the premises, also known as the indoor unit, and allows the building staff to receive calls from visitors.
This model features a 4.3" screen and touch buttons that facilitate user operation.
The 2-wire devices communicate and are powered through conventional copper cables (referred to as wires) and distributors, allowing the reuse of existing conventional installations that already have this type of wiring.
With the Hik-Connect mobile application, end users can receive calls, unlock doors, or view the camera feed from the panel, all from any location.
- Hikvision
- 4.3" HD 2-wire video intercom TFT screen
- Integrated microphone and speaker
- Two-way audio
- MicroSD slot
- Recording and image capture
- LED status indicators
- Multiple screen extension: up to 4 monitors connected in series
- TCP/IP connection via WiFi
- Surface mount
- Push notifications via Hik-Connect app (upon receiving a call from the outdoor panel)
Specifications: DS-KH7100EY-WE2
| Brand | Hikvision |
| Model | DS-KH7100EY-WE2 |
| Operating System | Linux |
| LCD | 4.3" color TFT |
| Screen Resolution | 480 x 272 |
| Operation Mode | 9 x Touch operation buttons (call functions, menu actions, and door opening) LED status indicators |
| Inputs | 1 x HD 2-wire |
| Outputs | 1 x HD 2-wire |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | HD 2-wire / RTSP / WiFi 802.11b/g/n (only for app connection via P2P) |
| Remote Access | Hik-Connect mobile application |
| Power Supply | Via specific Hikvision hub for HD 2-wire video intercoms (max 4 W) |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 120 (H) x 120 (W) x 23 (D) mm |
| Weight | 200 g |
| Slave Monitors | Monitors not belonging to the HD 2-wire system cannot be used |
Package Contents
- Hikvision indoor video intercom monitor
- Installation materials
- User instructions
DS-KH7100EY-WE2
Data sheet
- Brand
- HIKVISION INTERCOM
- Compatible models
- DS-KAD7061EY,DS-KAD7060EY,DS-KABH6350-T,CA2-100-H-INTERCOM,CA2-100-H-INTERCOM,CA2-100-H-INTERCOM
Specific References
- EAN13
- 6936422118969
