Hikvision Wired PIR Motion Detector, 12 m Range, 8 m Glass Break Detection, 30 kg Pet Immunity, DS-PDPG12P-EG2

Description & Key Features: DS-PDPG12P-EG2

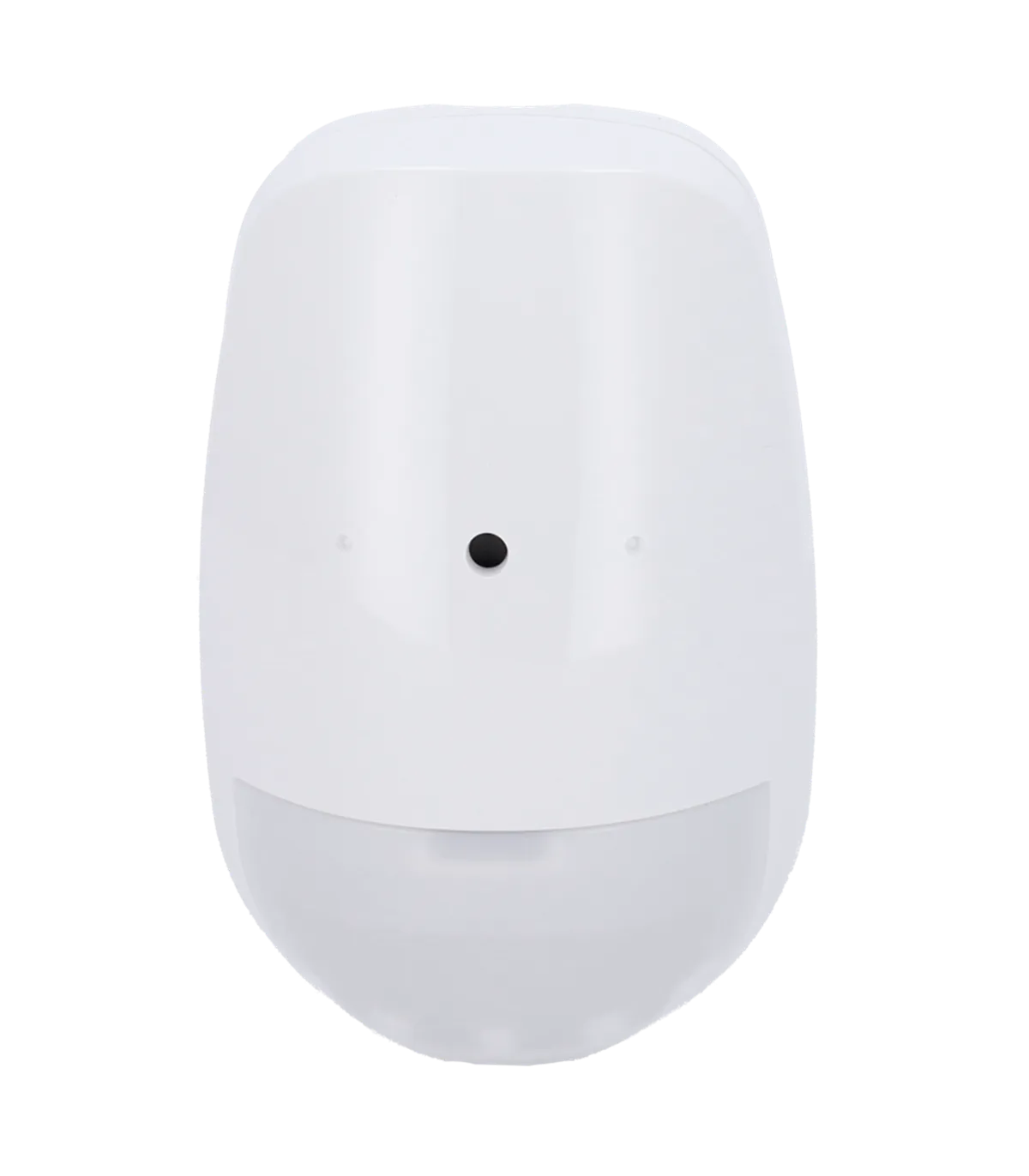

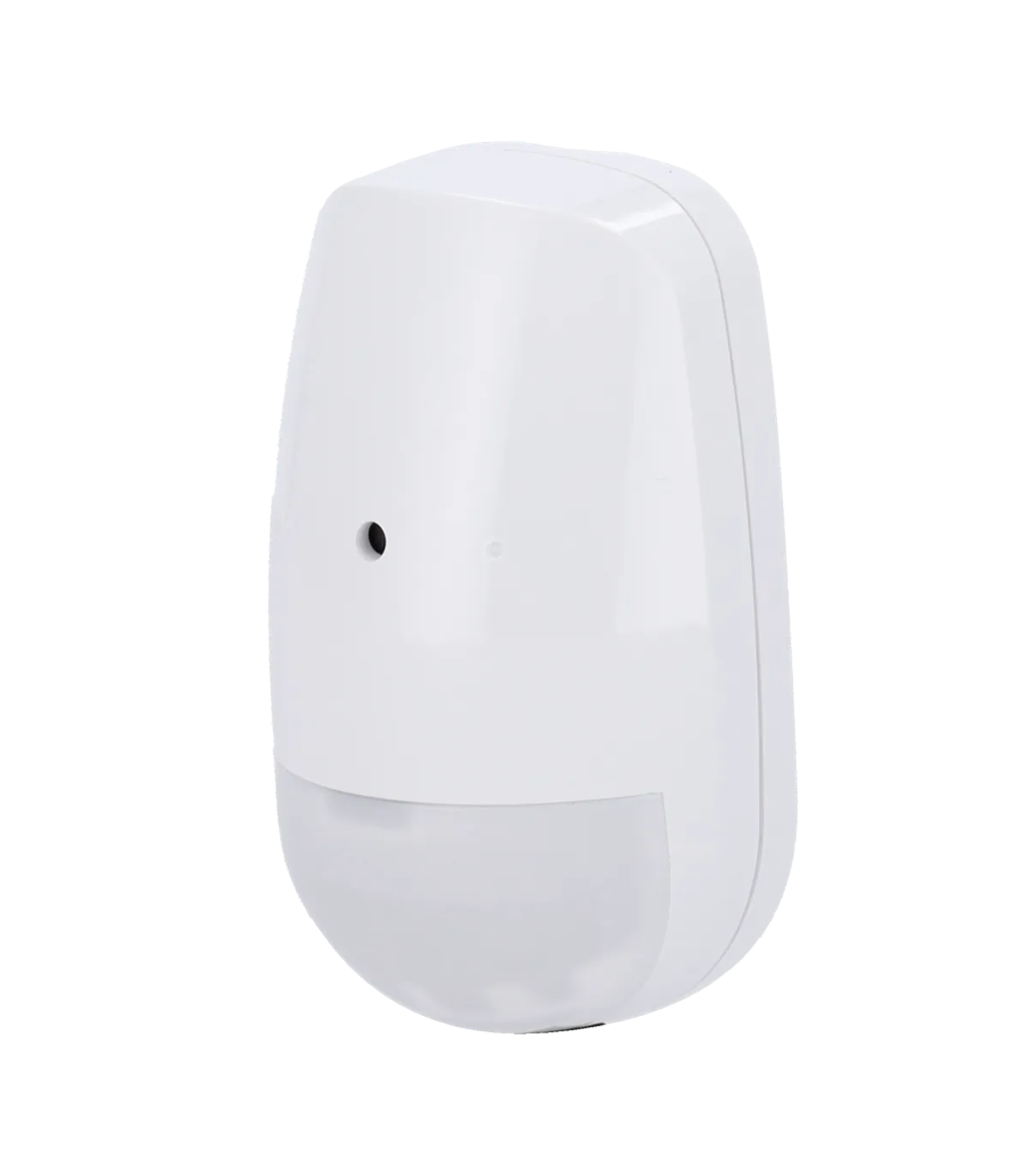

The DS-PDPG12P-EG2 is a sophisticated PIR detector and glass break detector designed for indoor security applications. This device is ideal for protecting residential and commercial spaces, offering reliable detection capabilities with a range of up to 12 meters and a detection angle of 85.9 degrees. Its advanced features, including pet immunity for pets up to 30 kg, make it a versatile choice for various environments.

• Hikvision
• Wired PIR and glass break detector
• Grade 2
• Passive infrared sensor and microphone - Detection range 12 m / 85.9º
• Glass break detection range: 8 m / 120º
• Anti-tamper feature
• Pet immunity up to 30 kg
• Selectable end-of-line (EOL) resistors
• Automatic PIR sensitivity
• Glass break detector sensitivity: 8 m / 120º
• Digital temperature compensation
• LED indicator
• Power supply 9~16 VDC
• Indoor use

Specifications: DS-PDPG12P-EG2

Package Contents

• Wired PIR and glass break detector
• Instruction manual
• Mounting materials

Use Case

In a typical deployment scenario, the DS-PDPG12P-EG2 can be installed in a retail store to enhance security measures. Positioned at strategic entry points, this dual-function detector provides comprehensive coverage, detecting both motion and glass breakage. The pet immunity feature ensures that small animals do not trigger false alarms, allowing for a seamless shopping experience. With its automatic sensitivity adjustment, the device adapts to varying environmental conditions, ensuring reliable performance. Additionally, the digital temperature compensation feature helps maintain accuracy in fluctuating temperatures, making it suitable for diverse indoor settings. The LED indicators provide instant visual feedback on the device's status, enhancing user experience and operational efficiency.
