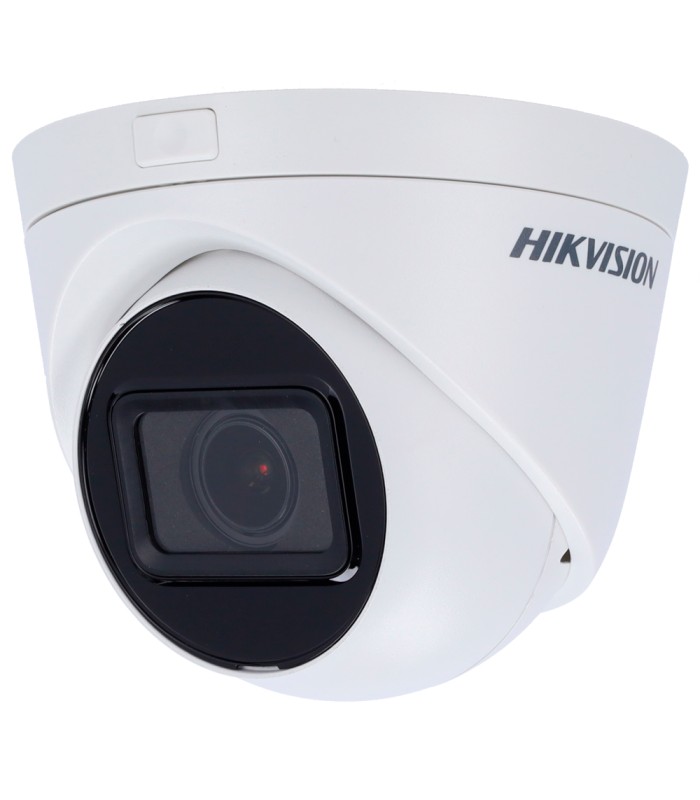

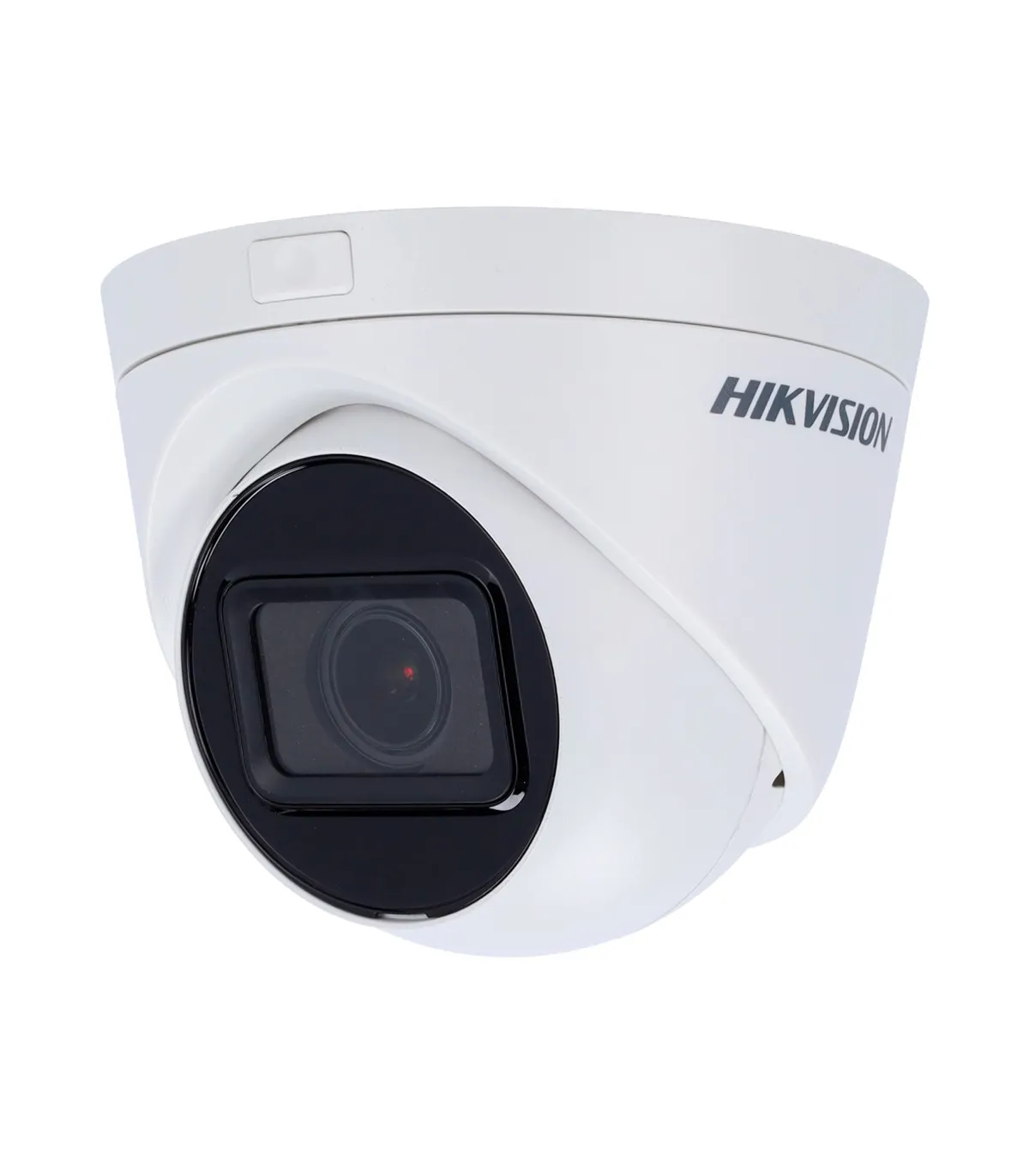

Hikvision IP Turret Camera DS-2CD1H23G0-IZ(2.8-12mm)(C)
Brand: HIKVISION VALUE
- IP Turret Camera Hikvision
- CORE Range | microSD 256 GB
- 2 MP | Lens 2.8~12 mm
- IR 30 m | DWDR
- PoE | H.265+ | IP67
- WEB, CMS Software, Smartphone, and NVR
Hikvision DS-2CD1H23G0-IZ(2.8-12mm)(C) IP Turret Camera
- Hikvision
- CORE range
- IP Camera
- 1/2.7" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- Motorized lens 2.8~12 mm
- 0 Lux
- EXIR IR Range 30 m
- IR CUT
- Compression H.265+ / H.265 / H.264+ / H.264
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- Internal storage MicroSD card up to 256 GB
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- Waterproof IP67
Technical specifications
| Brand | HIKVISION |
| Range | CORE |
| Sensor image | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Rate Stream | 25 fps (1920 × 1080, 1280 × 720) |
| Extra Stream Rate | 25 fps (640 × 480, 640 × 360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | Motorized varifocal 2.8~12 mm (H: 112~33°, V: 58~19°, D: 134~39°) |
| Lighting minimum | Color: 0.005 Lux @(F1.6, AGC ON) Black and White: 0 Lux with Infrared |
| Infrared lighting | EXIR IR LEDs (30 m) |
| Image Enhancements | DWDR, BLC, 3D-DNR, AWB, AGC, ROI, Mirror |
| Motion Detection | Yes |
| Day / Night | Removable ICR mechanical filter |
| Internal storage | Micro SD card slot up to 256 GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 750 mA / 9 W max. / PoE IEEE802.3af |
| Protection degree | Waterproof IP67 |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 129.4 mm × 116.4 mm |
| Dimensions of the base | Ø base 129.4 mm / Ø between screws 112.4 mm / 3 screws |
| Weight | 560 g |
Contents
- Chamber Hikvision IP Dome
- Installation material
- Instructions for use
| Brand | Hikvision |
| Type of camera | Turret |
| Max. Resolution | 2 Megapixel |
| Technology | IP |
| PoE powered | PoE |
