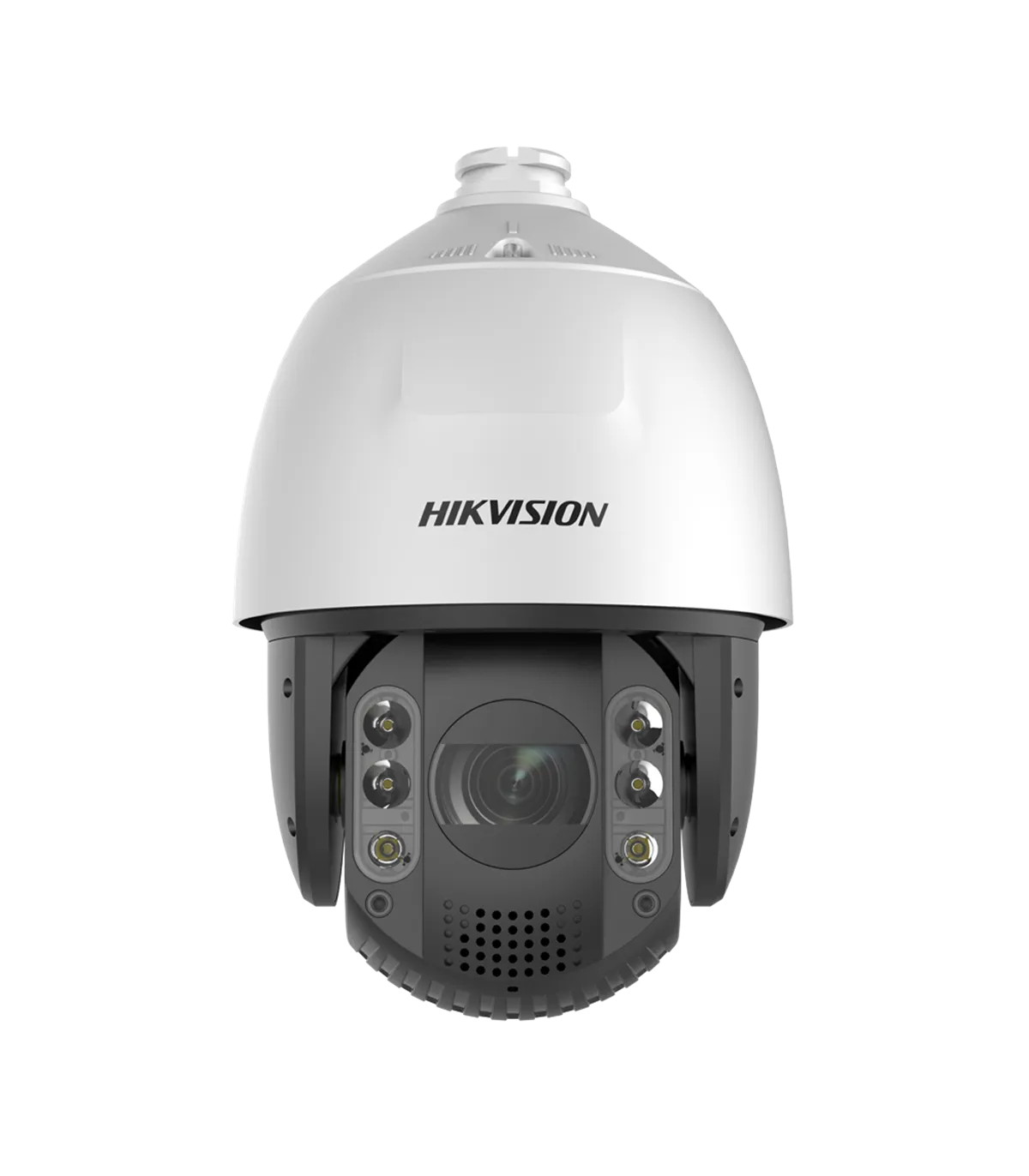

The DS-2DE7A812MCG-EB is a high-performance IP PTZ camera designed for comprehensive surveillance in various environments. With its advanced features, this camera is ideal for security monitoring in large areas such as parking lots, shopping malls, and public spaces. It offers exceptional image quality with an 8 Megapixel resolution and a powerful 12X optical zoom, ensuring detailed visuals even at great distances.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8“ Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra Stream Rate | 25 fps (704x576, 640x480, 352x288) |
| Third Stream Rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| Minimum Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON) Black and white: 0.0001 Lux @ (F1.2, AGC ON) 0 lux with IR LEDs range 150 m |
| Night Illumination | Dual light (IR and white light) IR range: 150 m White light range: 100 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Optics | Motorized varifocal 6.7~80.4 mm (12X optical zoom) |
| Field of View (FOV) | 53~8.1º (H), 31.3~4.6º (V), 59.6~9.3º (D) |
| DORI | 1080 m (D), 428.6 m (O), 216 m (R), 108 m (I) |
| Digital Zoom | 64X |
| Electronic Shutter | 1/1s~1/30.000 s |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Privacy Masking |
| EIS (Electronic Image Stabilization) | Yes |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region Face detection Up to 5 faces simultaneously. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Pan/Tilt Range | Horizontal: 360°, Vertical: -15°~90° auto flip |
| Manual Speed | Horizontal: 0.1~160 °/s, Vertical: 0.1~120 °/s |
| Speed Between Presets | Horizontal: 240°/s, Vertical: 200°/s |
| Preset Positions | 300 presets, 4 auto patterns, 8 auto tours, auto pan, auto scan |
| Internal Storage | MicroSD card slot up to 256 GB |
| Alarms | 2 inputs / 1 output |
| Audio | 1 input (Line In) / 1 output (Line Out) Integrated speaker |
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC-LC) |
| PTZ Control | Via network access |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V / 42 W max. / Hi-PoE |
| Operating Temperature | -30º C ~ +65º C |
| Material | ADC12 |
| Protection Rating | IP66 waterproof / 6000 V surge protection |
| Dimensions (without mount) | Ø 220 mm x 357.3 mm (H) |
| Weight (without mount) | 5.5 kg |
The DS-2DE7A812MCG-EB is perfectly suited for deployment in urban environments where extensive surveillance is required. For instance, a shopping mall can utilize this camera to monitor entrances and exits, ensuring the safety of patrons. With its high-resolution imaging and advanced motion detection capabilities, security personnel can quickly identify potential threats. The camera's remote monitoring feature allows for real-time access to live feeds via a smartphone app, enhancing the efficiency of security operations. Additionally, the dual illumination system ensures clear visibility both day and night, making it an ideal choice for 24/7 surveillance. The integration of AcuSense technology further reduces false alarms, allowing security teams to focus on genuine threats. Overall, the DS-2DE7A812MCG-EB provides a comprehensive solution for modern security needs.
