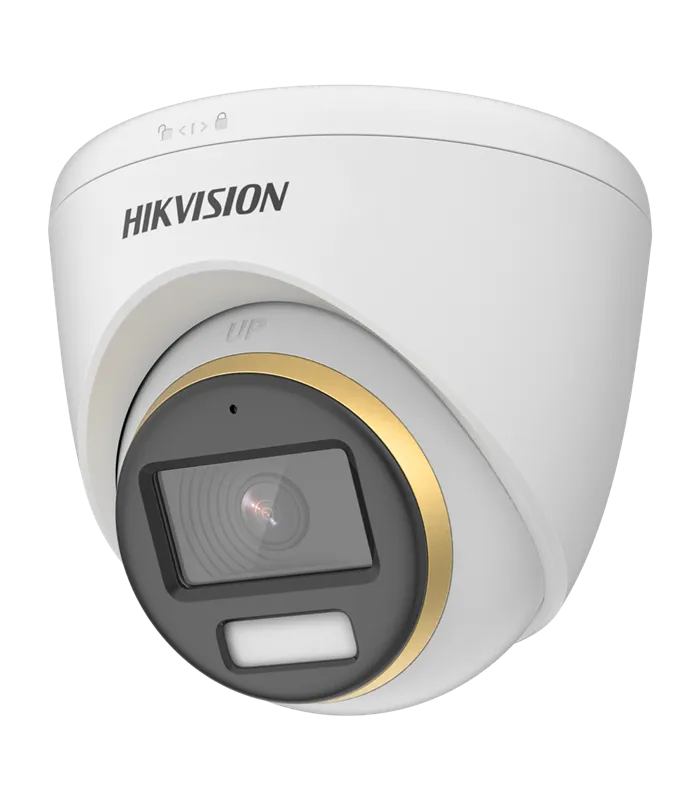

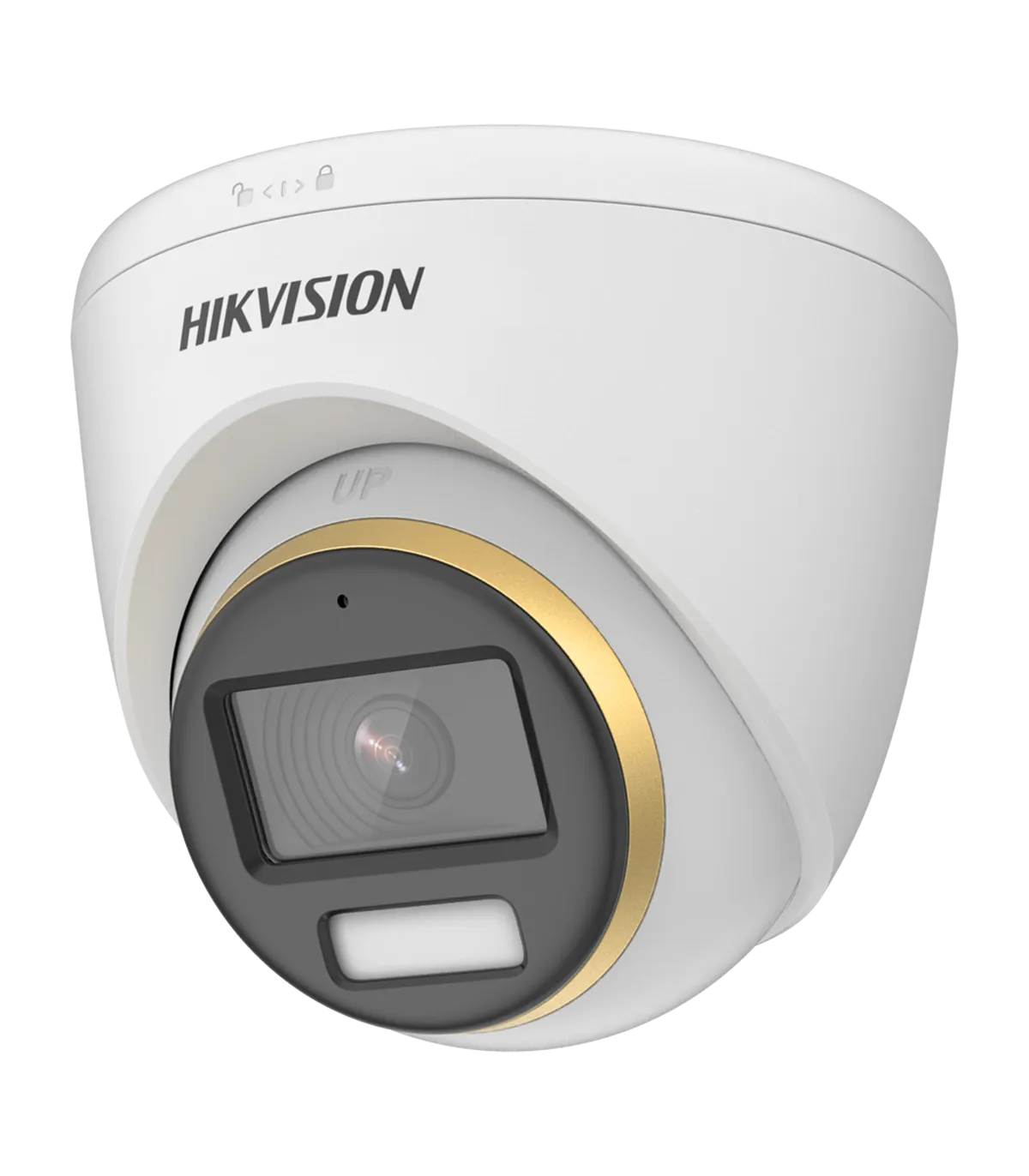

The DS-2CE72DF3T-FS(2.8mm) is a high-performance turret camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing clear and detailed images around the clock, thanks to its ColorVu technology. With a resolution of 2 MP (1920x1080), it supports multiple video output formats including HDTVI, HDCVI, AHD, and CVBS, making it a flexible choice for various security systems. The camera's 0 Lux capability allows for effective monitoring even in complete darkness, ensuring comprehensive security coverage.
| Brand | Hikvision |
| Series | PRO |
| Image Sensor | 2 MP CMOS |
| Maximum Resolution | 1080p (1920x1080) at 30 fps |
| Resolution | TVI: 1080p (25~30 fps) CVI: 1080p (25~30 fps) AHD: 1080p (25~30 fps) CVBS: PAL/NTSC |
| Lens | 2.8 mm |
| Field of View (FOV) | 98º (H), 52º (V), 116º (D) |
| Minimum Illumination | 0.0005 Lux @ (F1.0, AGC ON) 0 Lux with white light, range 40 m |
| Video Output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video Output Switching | Via Switch |
| Basic Functions | OSD Menu (remote) |
| Configurable OSD Functions | WDR (130 dB), BLC, HLC, 3DNR/2DNR, AGC, AWB, Smart Light, Mirror Effect, Privacy Mask |
| Audio | Integrated Microphone Audio over coaxial |
| Communication | HIKVISION-C |
| Lens Positioning | 3 Axis |
| Power Supply | DC 12 V / 5.7 W max. |
| Protection Rating | IP67 Waterproof |
| Operating Temperature | -40º C ~ +60º C |
| Material | Body: Metal Cover: Plastic |
| Dimensions | Ø 110 mm x 98.3 mm (H) |
| Base Diameter | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 336 g |
The DS-2CE72DF3T-FS(2.8mm) turret camera is an excellent choice for a variety of surveillance scenarios, particularly in retail and commercial environments. For instance, a store owner can install this camera at the entrance to monitor customer traffic and deter theft. With its ColorVu technology, the camera provides vibrant color images even at night, ensuring that the store remains secure around the clock. The IP67 waterproof rating allows for outdoor installation, making it suitable for monitoring parking lots or building perimeters. Additionally, the integrated microphone enables audio surveillance, enhancing security measures. The camera's 3D DNR feature ensures clear images in low-light conditions, while the remote monitoring capabilities allow users to access live feeds from anywhere, providing peace of mind. Overall, the DS-2CE72DF3T-FS(2.8mm) is a reliable solution for comprehensive security needs.
