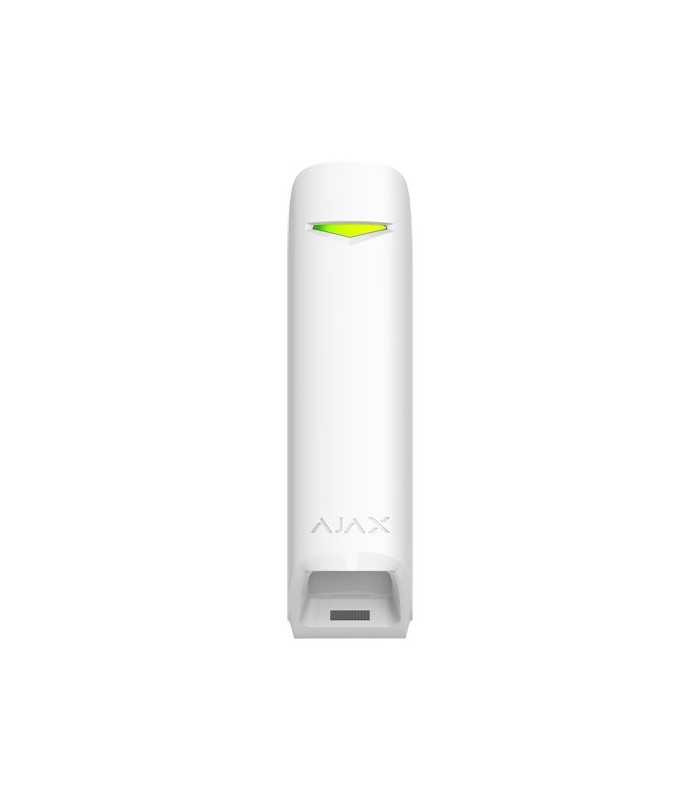

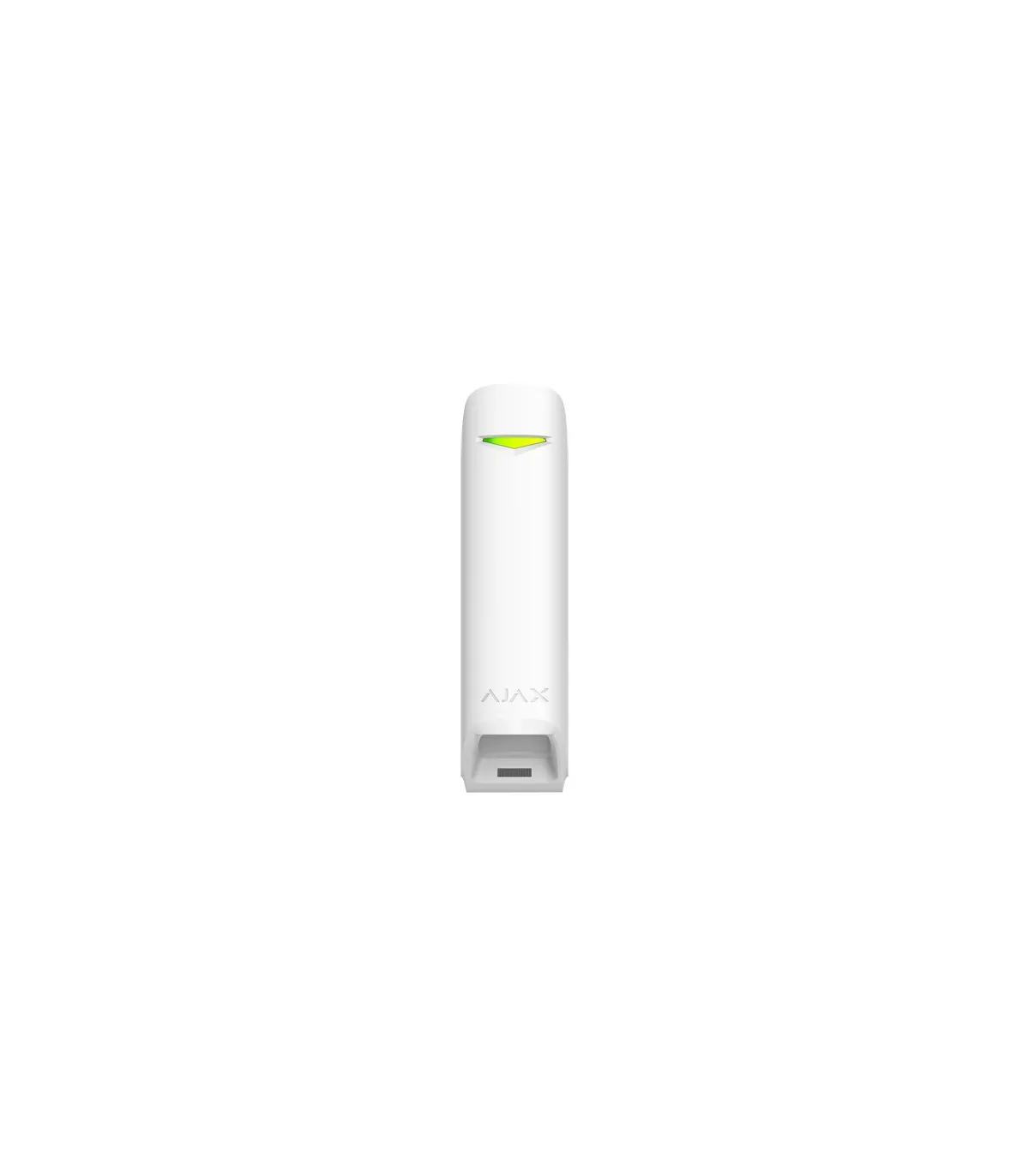

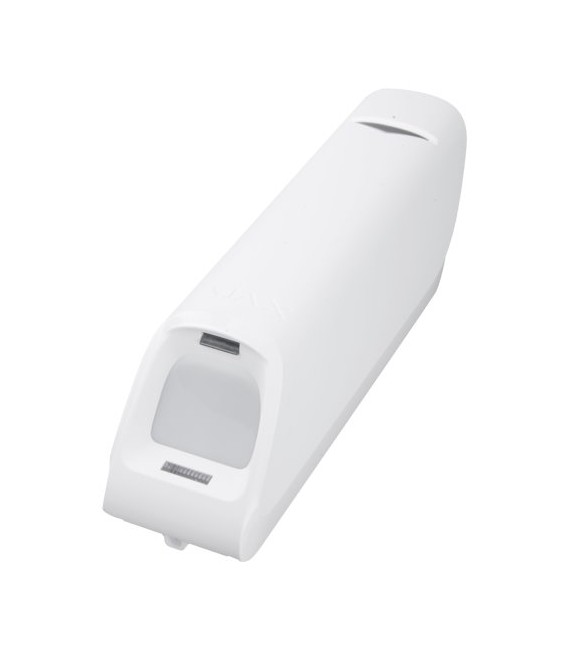

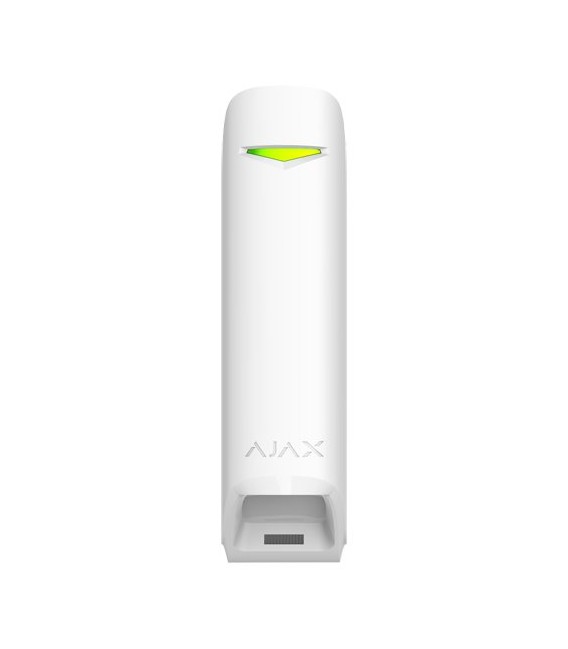

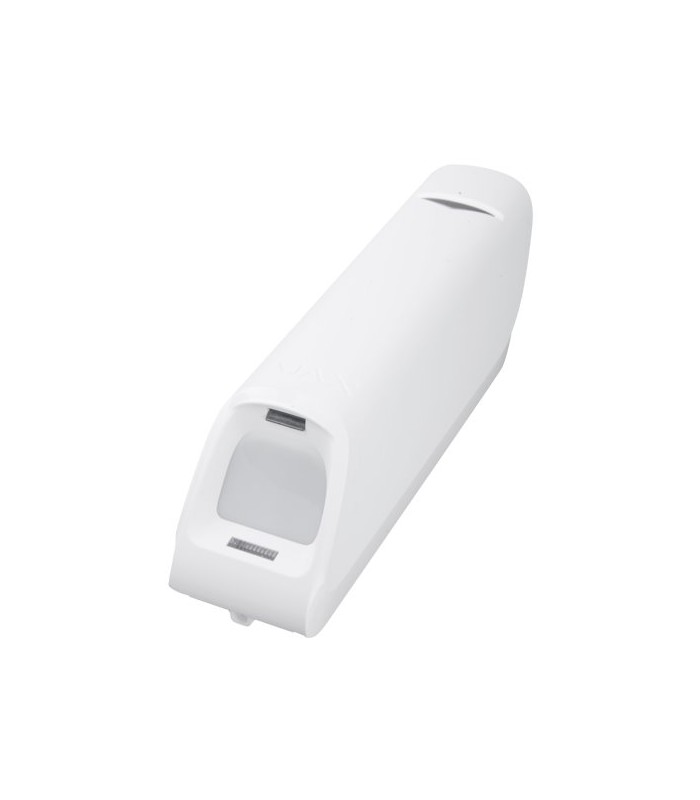

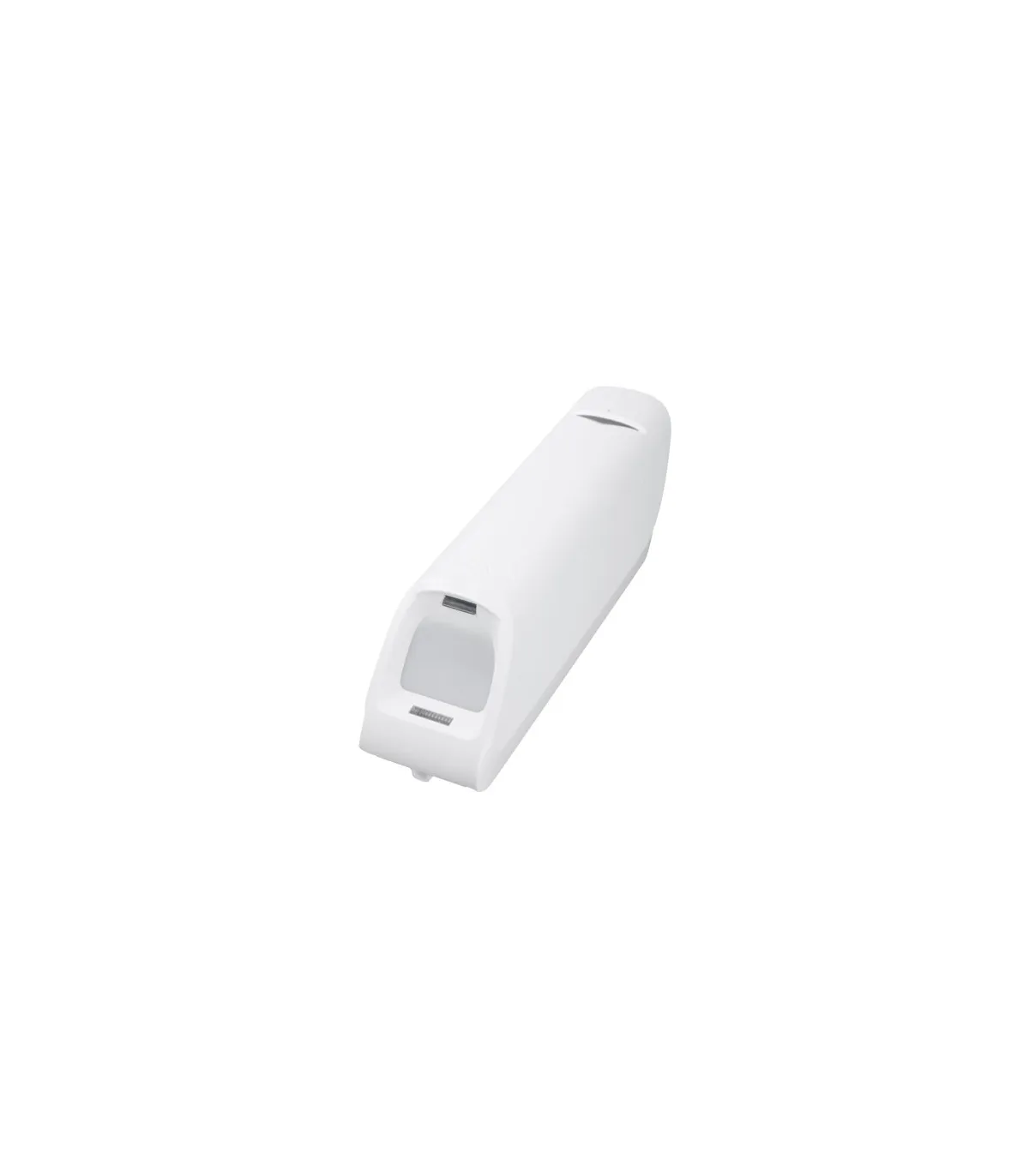

Ajax AJ-CURTAINPROTECT-W Curtain PIR Detector
The Ajax AJ-CURTAINPROTECT-W Curtain PIR Detector is the perfect solution to protect your home or business from intruders. With its advanced motion detection technology, this detector can identify any movement in a specific area, such as a curtain, and send an alert to your Ajax security system.
Its compact and discreet design makes it ideal for installation in any type of environment without drawing attention. Additionally, its easy setup and compatibility with the Ajax system make it a convenient and secure option to effectively protect your spaces.
General Features
- Ajax
- Curtain PIR Detector
- Grade 2 certified
- Bidirectional
- Wireless 868 MHz Jeweller
- Double curtain PIR

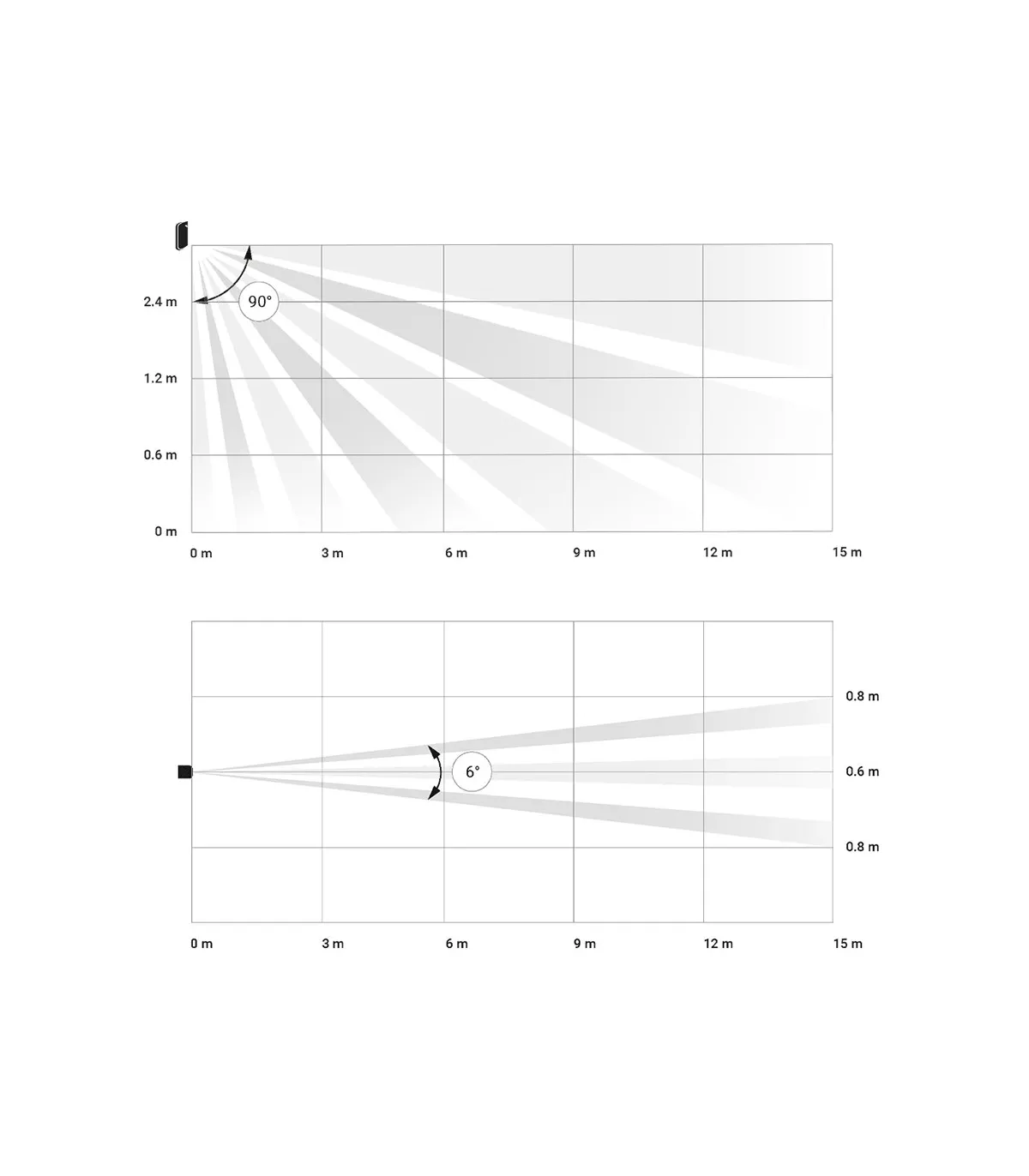

- Detection Range: 6 to 15 m / 6º H / 90º V
- Motion detection indicator
- Anti-opening tamper
- Free space range 1700 m

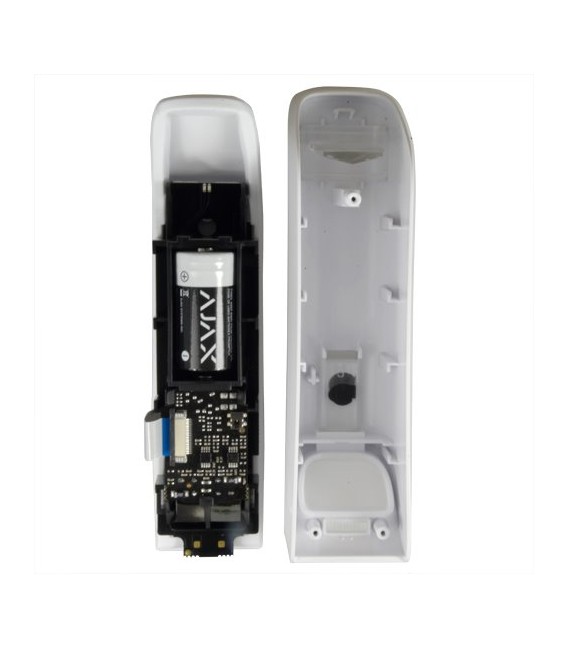

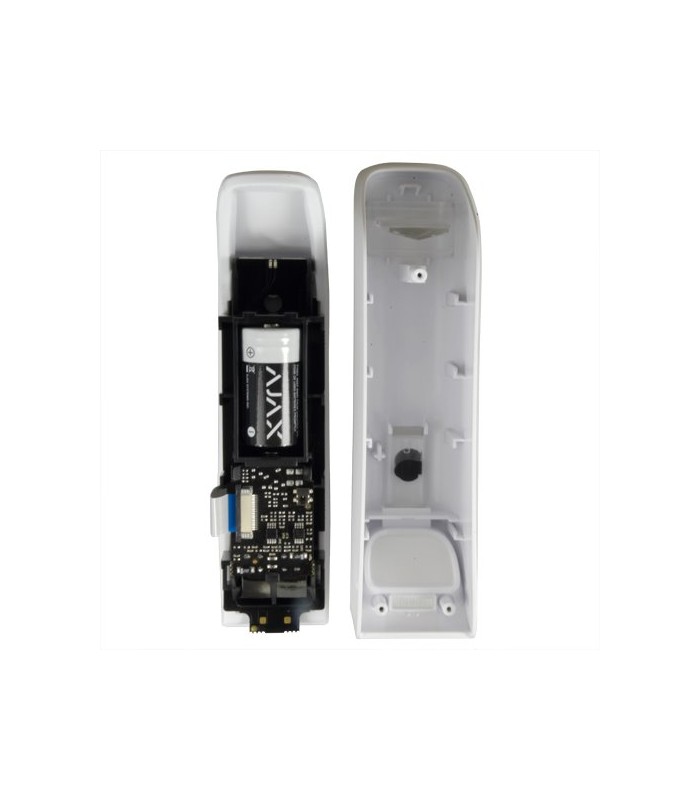

- Power supply 1 CR123A 3.0 V battery (estimated 3-year lifespan)
- Indoor use
- Includes bracket
- Color: White
Technical Specifications
| Brand | Ajax |
| Technology | Double curtain PIR |

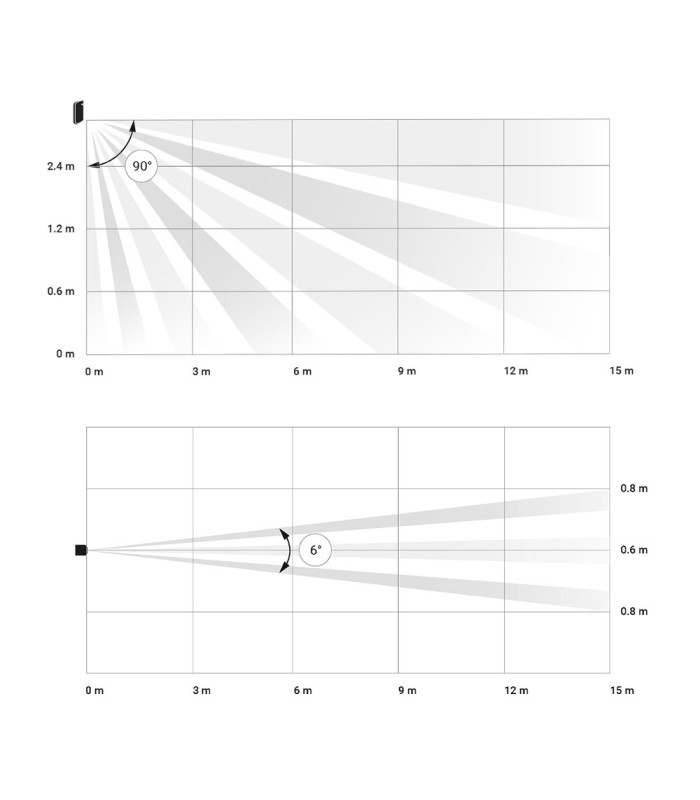

| Detection Field | 6~15 m / 6º H / 90º V / Installation 2.4 m |
| Frequency | 868 MHz Jeweller |
| Transmission Distance | ≤ 1700 m in open space |
| Anti-masking | Not available |
| Sensitivity | Adjustable. 3 levels (high, medium, low) |
| Anti-opening tamper | Available |
| LED Indication | Alarm, tamper, signal |
| Power Supply | 1 CR123A 3.0 V battery (approx. 3-year lifespan) |
| Operating Temp | -10 ºC ~ 40 ºC |
| Protection Grade | IP54 |

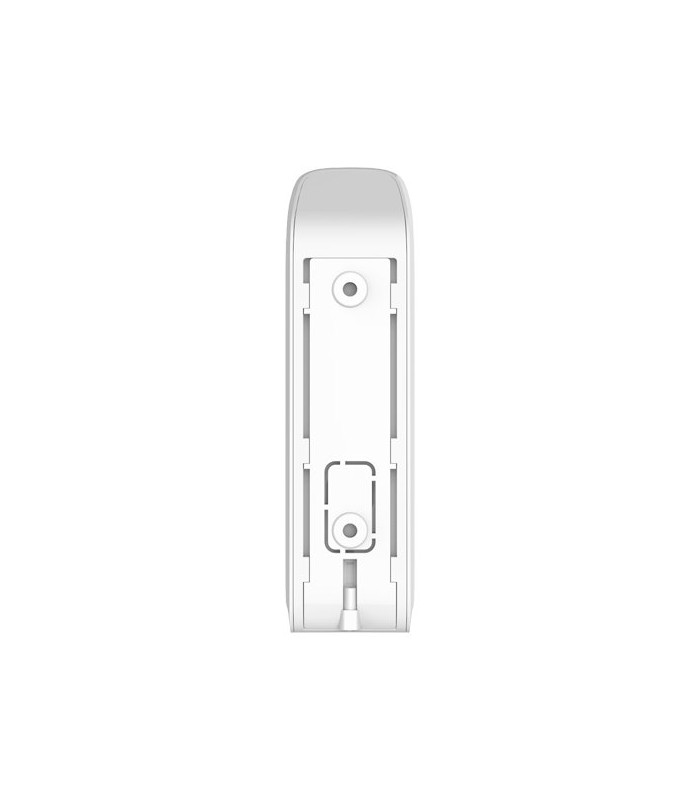

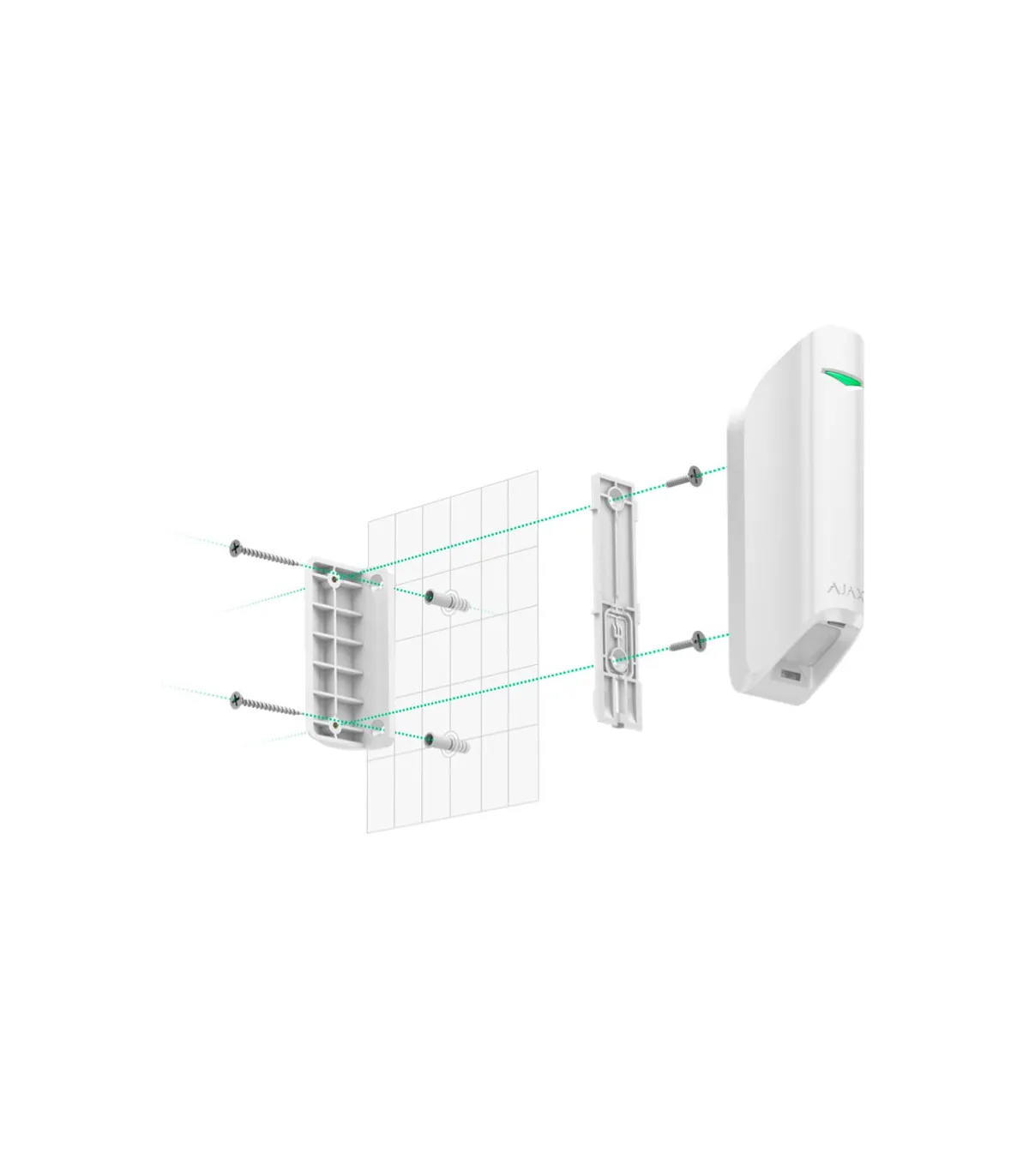

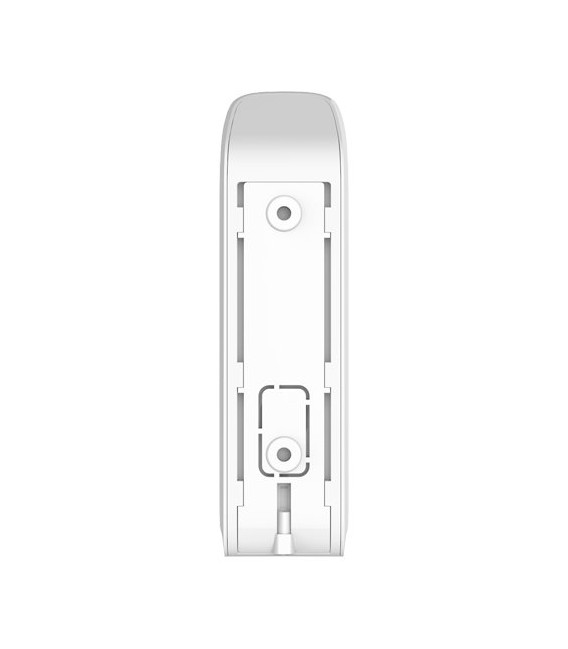

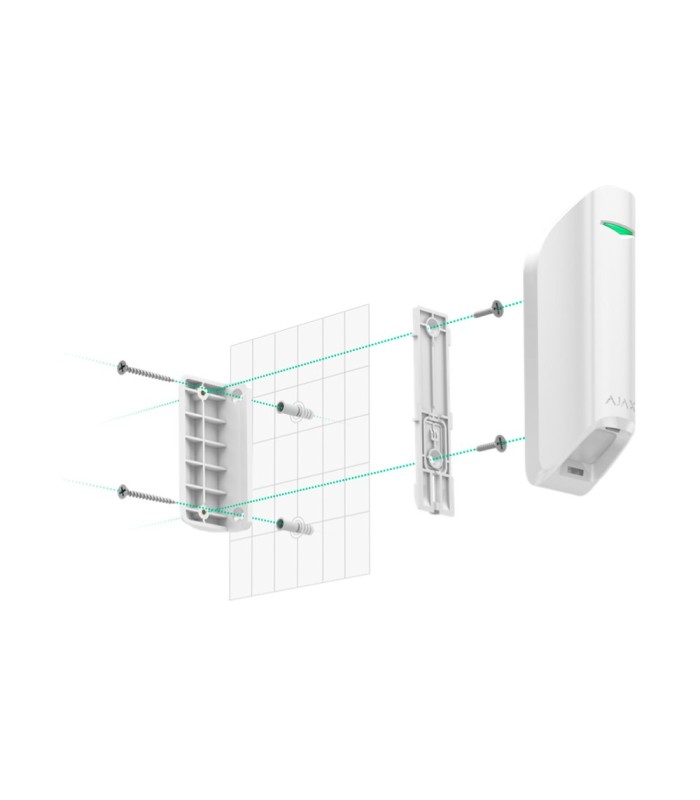

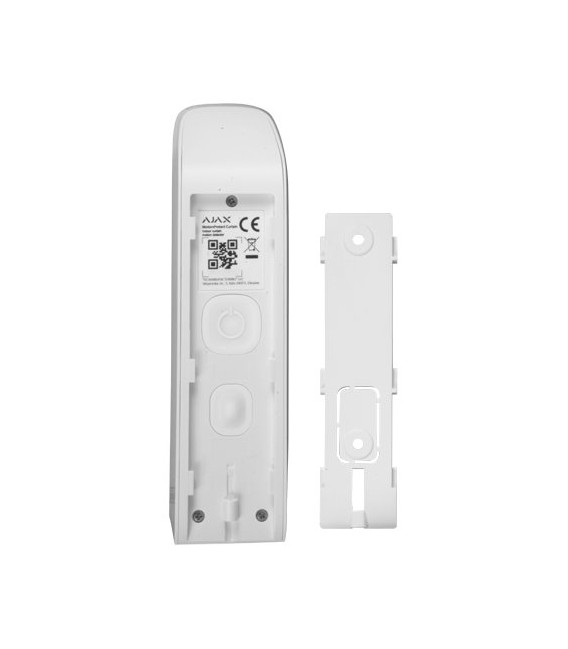

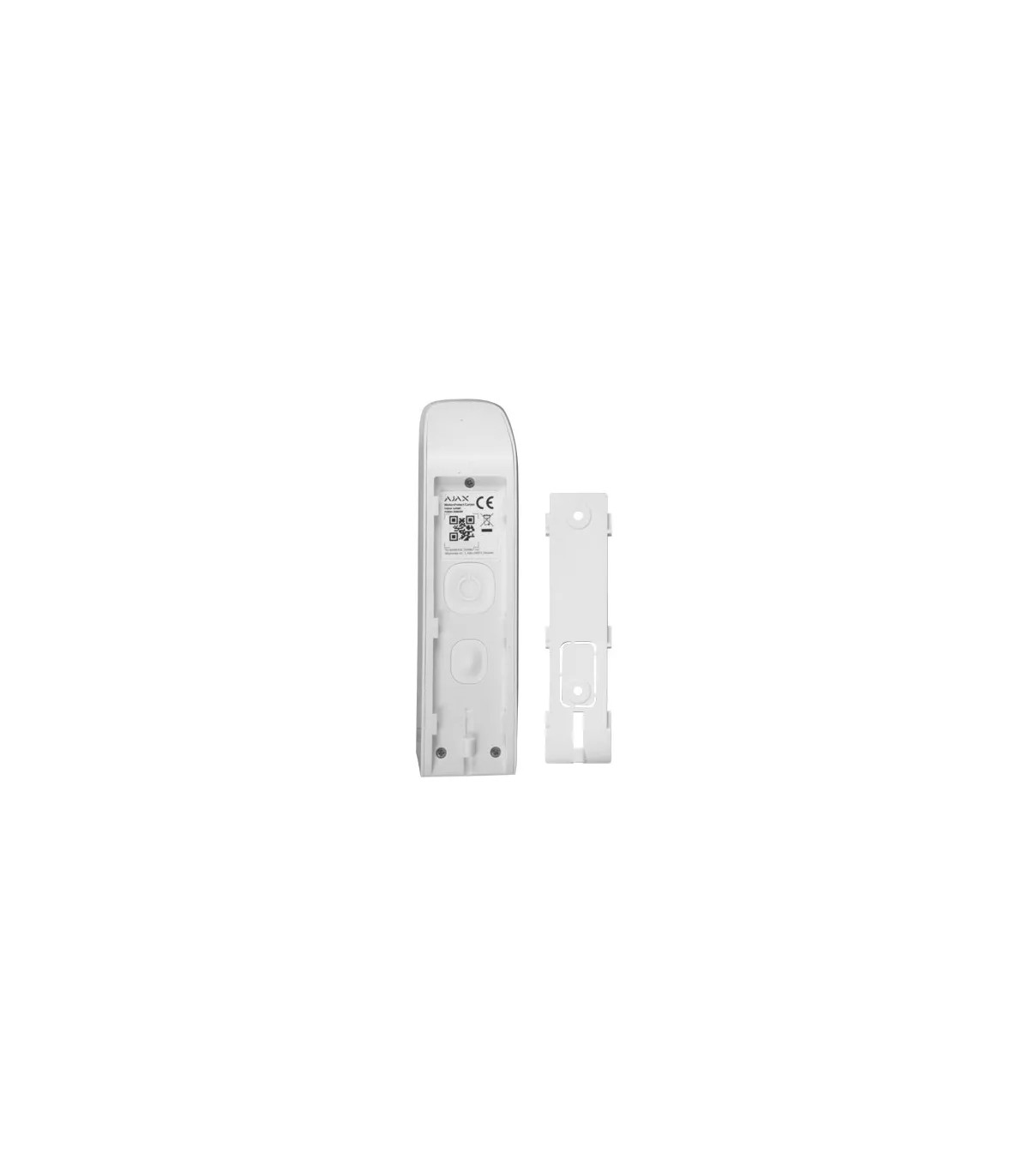

| Bracket | Includes normal bracket and L-bracket |
| Dimensions | 134 (H) x 44 (W) x 34 (D) mm |
Package Contents
- Curtain PIR Detector
- Instruction manual
- Mounting materials
- Two brackets
