Independent keyboard with Ajax reader AJ-KEYPADPLUS-S-W
- Independent keypad with reader
- Powdered by 4 Panasonic AA 1.5V batteries
- Bidirectional
- 868 MHz Jeweller wireless
- Armed, partial armed, disarmed, and emergency
- Grade 2 certified
€108.50
Reference:
AJ-KEYPADPLUS-S-W
Brand:
Add to wishlist

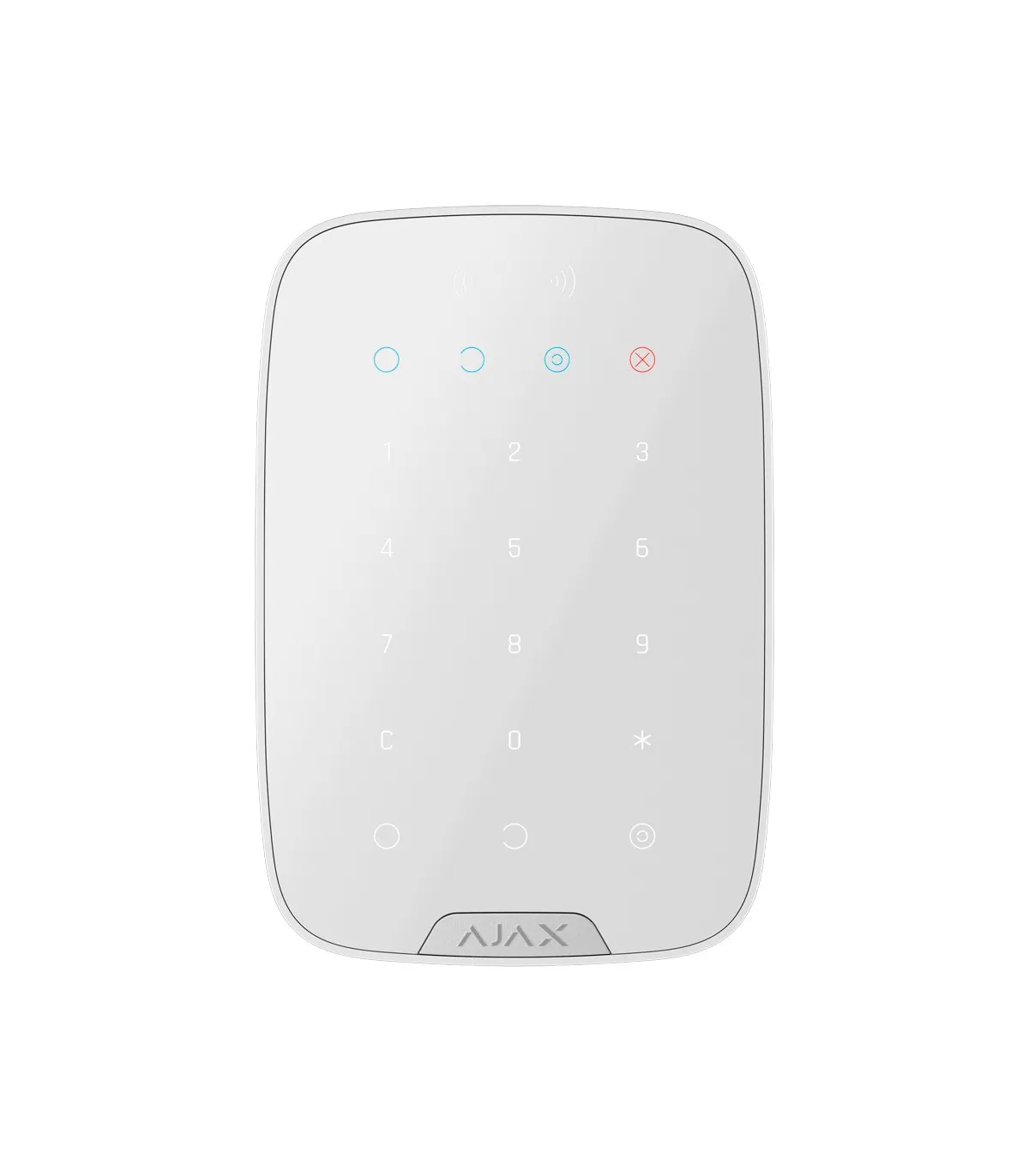

Stand-alone keypad with Ajax AJ-KEYPADPLUS-S-W reader
The Stand-alone keypad with Ajax AJ-KEYPADPLUS-S-W reader is the perfect solution to ensure the security of your home or business. With this keypad, you can easily and securely control access, thanks to its advanced fingerprint reader. Additionally, its compact and elegant design makes it ideal for any type of environment.
General features
- Ajax Superior- Stand-alone keypad with RFID card/tag reader
- Grade 2 certified
- Bidirectional
- Wireless 868 MHz Jeweller
- Internal antenna with free space range up to 1700 m
- Anti-tamper opening
- Allows total/partial/disarm arming via code, tags, and cards
- Used to protect the panel in a secure location
- LED system status indicator
- Power supply 4 AA Panasonic batteries (FR6) 1.5V Lithium (estimated duration 3.5 years)
- Indoor use
- Includes support
- Color white
Technical specifications
| Brand | Ajax Superior |
| Security grade | Grade 2 |
| Functions | Arming, disarming, partial arming, and emergency |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| RFID technology | Mifare DESFire® EV1, EV2 (ISO14443-A 13.56 MHz) |
| RFID reading | Ajax Tag keychains and Ajax Pass cards |
| Compatibility | Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, Hub Hybrid (2G and 4G), ReX and ReX 2 |
| Access code types | Personal (users), keypad general, and guest (available for Hub Plus, Hub 2 (2G and 4G), Hub 2 Plus, and Hub Hybrid (2G and 4G)) |
| Battery | 4 AA Panasonic batteries (FR6) 1.5V Lithium. Approximate duration 3.5 years (reader activated) / 4.5 years (reader deactivated) |
| Cover material | ABS plastic |
| Operating temp | -10°C ~ 40°C |
| Dimensions | 165 (H) x 113 (W) x 20 (D) mm |
| Weight | 267 g |
| Color | White |
Package contents
- Wireless keypad with card/tag reader
- Instruction manual
AJ-KEYPADPLUS-S-W
Data sheet
- Brand
- AJAXSUPERIOR
- Case Color
- White
- Indoor / Outdoor
- Indoor
- Product type
- Teclado
Specific References
- EAN13
- 4823114043543
