| Brand | Hikvision |
| Range | Value |
| Image sensor | 2 Mpx progressive scan CMOS |
| Maximum resolution | 2 Mpx (1920x1080) at 25 fps |
| Resolution | 2 Mpx at 25 fps |
| Lens | Motorized varifocal lens 2.7~13.5 mm |
| Angle of view (FOV) | 102~31º (H) |
| Minimum illumination | 0.005 Lux @(F1.2, AGC ON) |
| Infrared illumination | 0 Lux / (Smart EXIR IR range 70 m) |
| Day / Night | Auto / Color / BW (Black and White) |

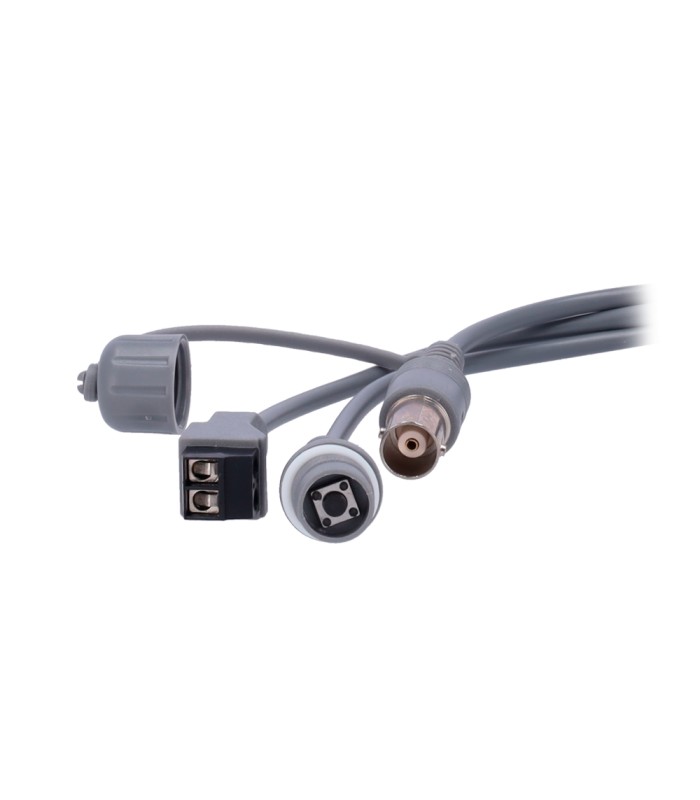

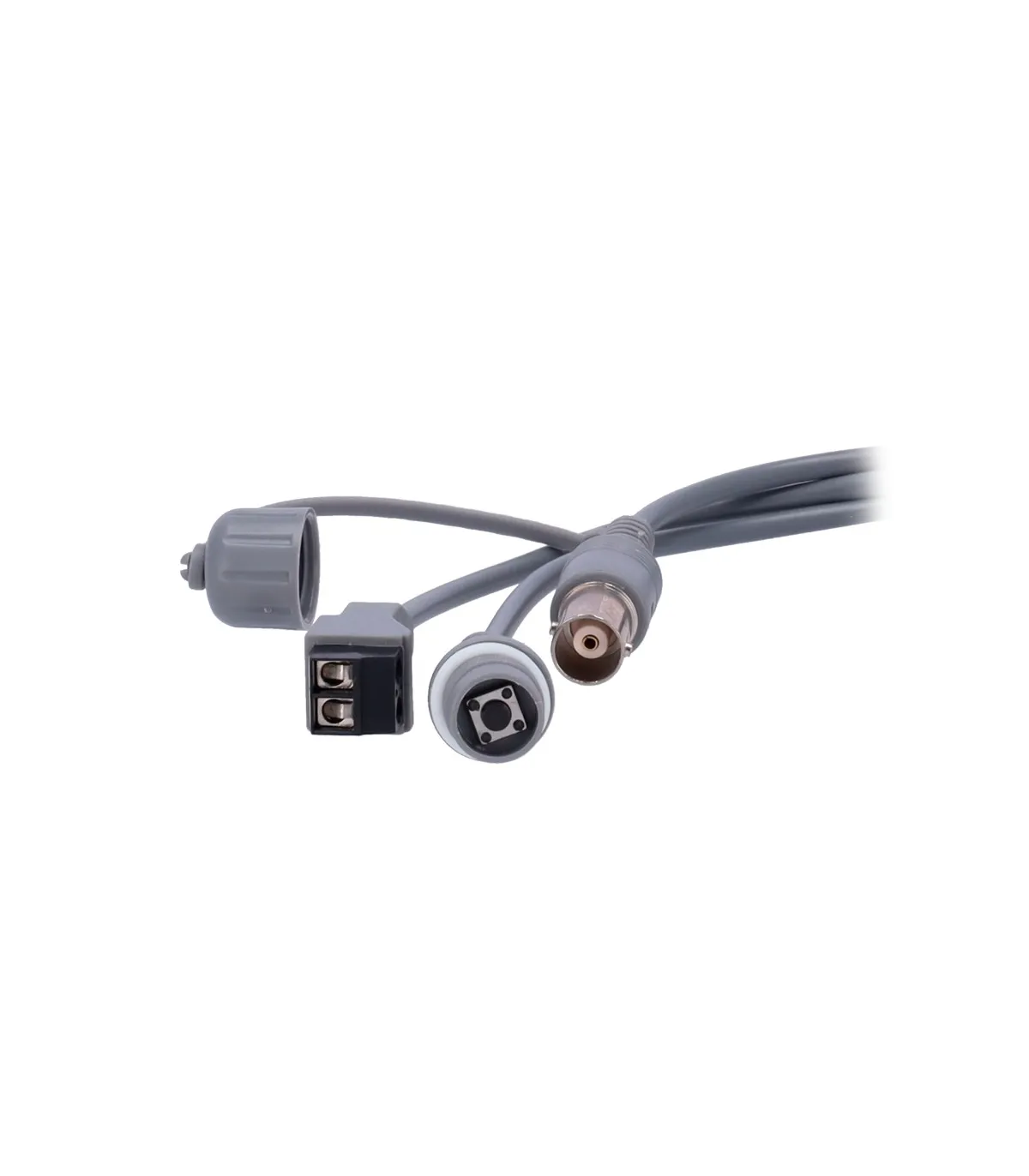

| Video output | 1 x BNC switchable HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | WDR 120dB, 3DNR, AWB, BLC, HLC, AGC, Mirror function, Smart IR |
| Lens Positioning | 3 Axis |
| Power | DC 12 V / AC 24 V / 9.7 w max |
| Protection grade | Waterproof IP67 |
| Temp. operation | -40º C ~ +60º C |
| Material | Front cover: Metal Camera body: Plastic Arm: Metal |
| Dimensions | 84.5 mm (H) × 92 mm (W) × 255.1 mm (D) |

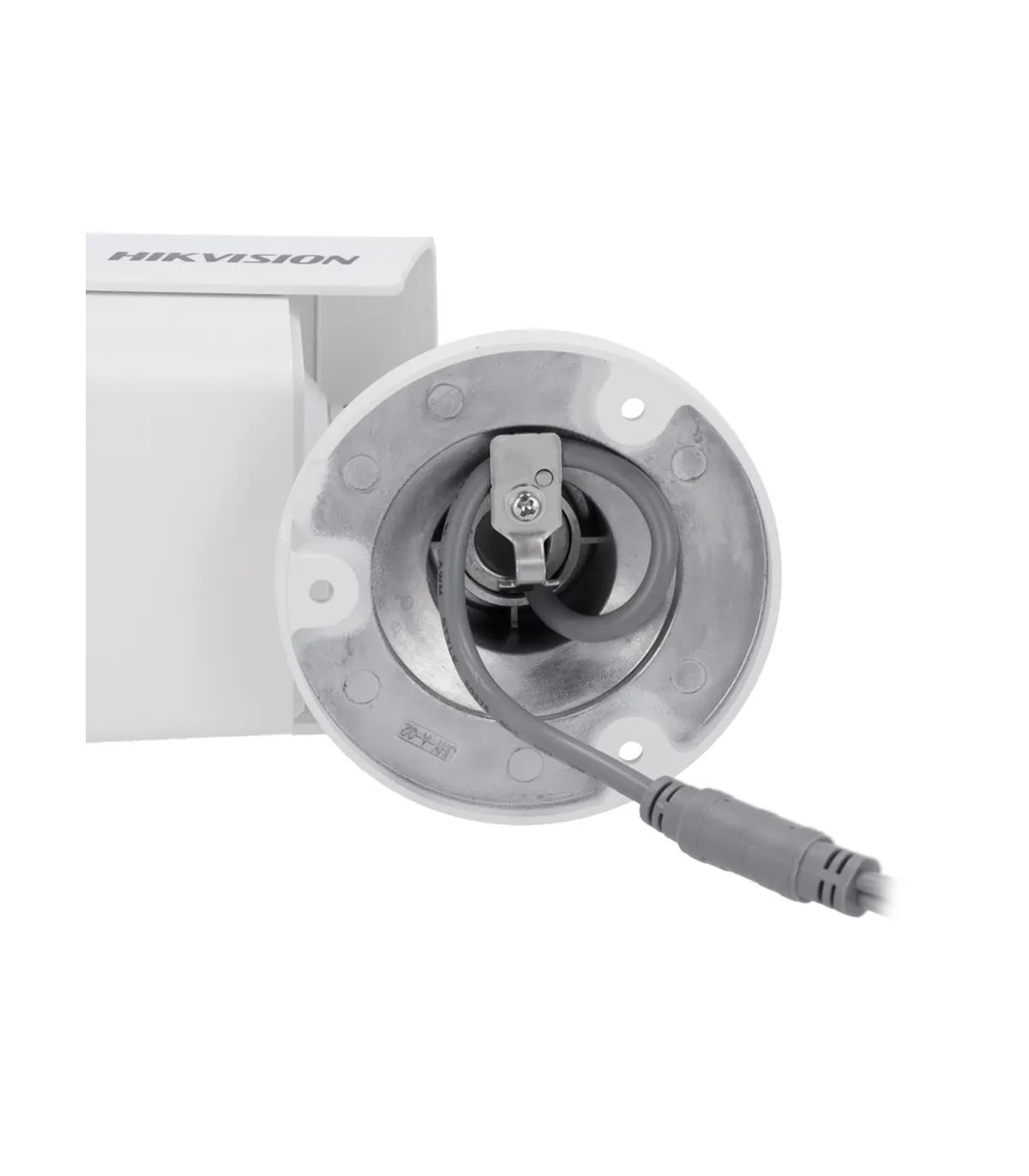

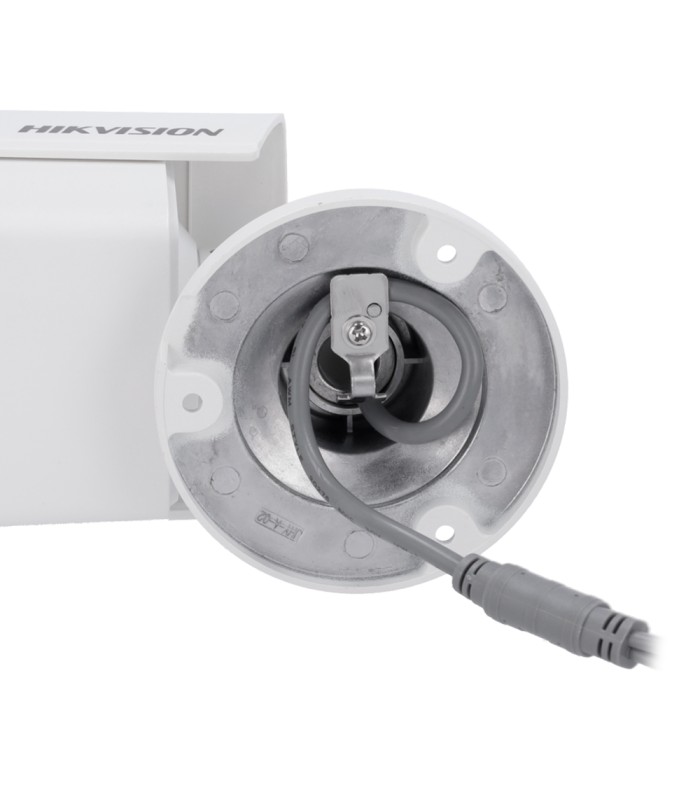

| Base dimensions | base Ø 85.3 mm / Ø between screws 70 mm / 3 screws |
| Weight | 695 g |
Data sheet
